KITZ 16K Ductile Iron DJF Series Butterfly Valve (G-16DJFU(E))

KITZ 16K Ductile Iron DJF Series Butterfly Valve (G-16DJFU(E))

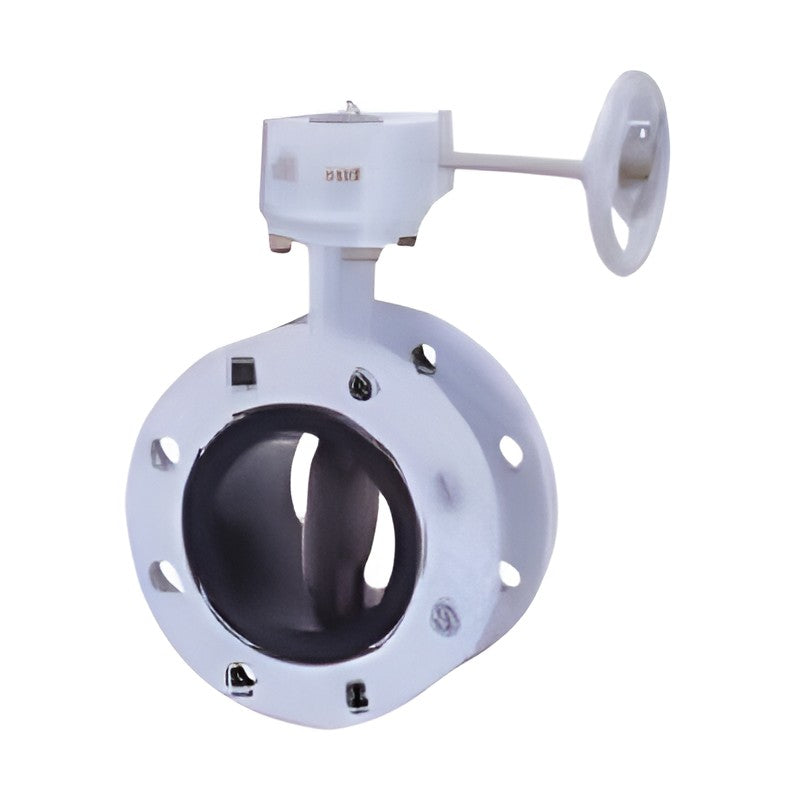

KITZ Fig. G-16DJFU(E): Double-flanged ductile iron butterfly valve of the KITZ DJF series with gear operator. JIS 16K, JIS B2239 16K FF ends, sizes 4 in to 24 in.

Key features

  • Double flanged body for JIS B2239 flat-face flanges
  • Rubber seat in NBR or EPDM (E)
  • Gear operated in sizes 4 in to 24 in
  • Body FCD450-10(ASTM A536); disc CF8; stem 410SS/420J2
  • Seat code in Fig.: EPDM, NBR

Specifications

Pressure class JIS 16K
End connection JIS B2239 16K FF
Body FCD450-10(ASTM A536)
Stem/Bottom Stem 410SS/420J2
Disc CF8
O-ring NBR (E: EPDM)
Service conditions NBR: 0°C to +70°C 1.0MPa for 10K/1.6MPa for 16K, EPDM: -20°C to +120°C 1.0MPa for 10K/1.6MPa for 16K
Dimension key L face-to-face, H height, D handwheel/lever; B gear (per catalogue drawing)
Source KITZ General Catalog E-020=26 (KITZ_general.pdf), p. 118
G-16DJFU 100A Size: 4 in (100A) | Seat: NBR | Dimensions (mm): L 100, H 214, D 110, B 150
G-16DJFU 125A Size: 5 in (125A) | Seat: NBR | Dimensions (mm): L 100, H 244, D 170, B 180
G-16DJFU 150A Size: 6 in (150A) | Seat: NBR | Dimensions (mm): L 100, H 257, D 170, B 180
G-16DJFU 200A Size: 8 in (200A) | Seat: NBR | Dimensions (mm): L 152, H 389, D 170, B 180
G-16DJFU 250A Size: 10 in (250A) | Seat: NBR | Dimensions (mm): L 110, H 389, D 310, B 280
G-16DJFU 300A Size: 12 in (300A) | Seat: NBR | Dimensions (mm): L 178, H 414, D 310, B 280
G-16DJFU 350A Size: 14 in (350A) | Seat: NBR | Dimensions (mm): L 190, H 461, D 360, B 310
G-16DJFU 400A Size: 16 in (400A) | Seat: NBR | Dimensions (mm): L 216, H 516, D 360, B 310
G-16DJFU 450A Size: 18 in (450A) | Seat: NBR | Dimensions (mm): L 150, H 539, D 360, B 310
G-16DJFU 500A Size: 20 in (500A) | Seat: NBR | Dimensions (mm): L 160, H 623, D 500, B 410
G-16DJFU 550A Size: 22 in (550A) | Seat: NBR | Dimensions (mm): L 170, H 647, D 500, B 410
G-16DJFU 600A Size: 24 in (600A) | Seat: NBR | Dimensions (mm): L 170, H 671, D 500, B 410
G-16DJFUE 100A Size: 4 in (100A) | Seat: EPDM | Dimensions (mm): L 100, H 214, D 110, B 150
G-16DJFUE 125A Size: 5 in (125A) | Seat: EPDM | Dimensions (mm): L 100, H 244, D 170, B 180
G-16DJFUE 150A Size: 6 in (150A) | Seat: EPDM | Dimensions (mm): L 100, H 257, D 170, B 180
G-16DJFUE 200A Size: 8 in (200A) | Seat: EPDM | Dimensions (mm): L 152, H 389, D 170, B 180
G-16DJFUE 250A Size: 10 in (250A) | Seat: EPDM | Dimensions (mm): L 110, H 389, D 310, B 280
G-16DJFUE 300A Size: 12 in (300A) | Seat: EPDM | Dimensions (mm): L 178, H 414, D 310, B 280
G-16DJFUE 350A Size: 14 in (350A) | Seat: EPDM | Dimensions (mm): L 190, H 461, D 360, B 310
G-16DJFUE 400A Size: 16 in (400A) | Seat: EPDM | Dimensions (mm): L 216, H 516, D 360, B 310
G-16DJFUE 450A Size: 18 in (450A) | Seat: EPDM | Dimensions (mm): L 150, H 539, D 360, B 310
G-16DJFUE 500A Size: 20 in (500A) | Seat: EPDM | Dimensions (mm): L 160, H 623, D 500, B 410
G-16DJFUE 550A Size: 22 in (550A) | Seat: EPDM | Dimensions (mm): L 170, H 647, D 500, B 410
G-16DJFUE 600A Size: 24 in (600A) | Seat: EPDM | Dimensions (mm): L 170, H 671, D 500, B 410
Butterfly ValvesKITZ
24 product codes available in this family
