KITZ 16K Ductile Iron Gate Valve (16SMBO)

KITZ 16K Ductile Iron Gate Valve (16SMBO)

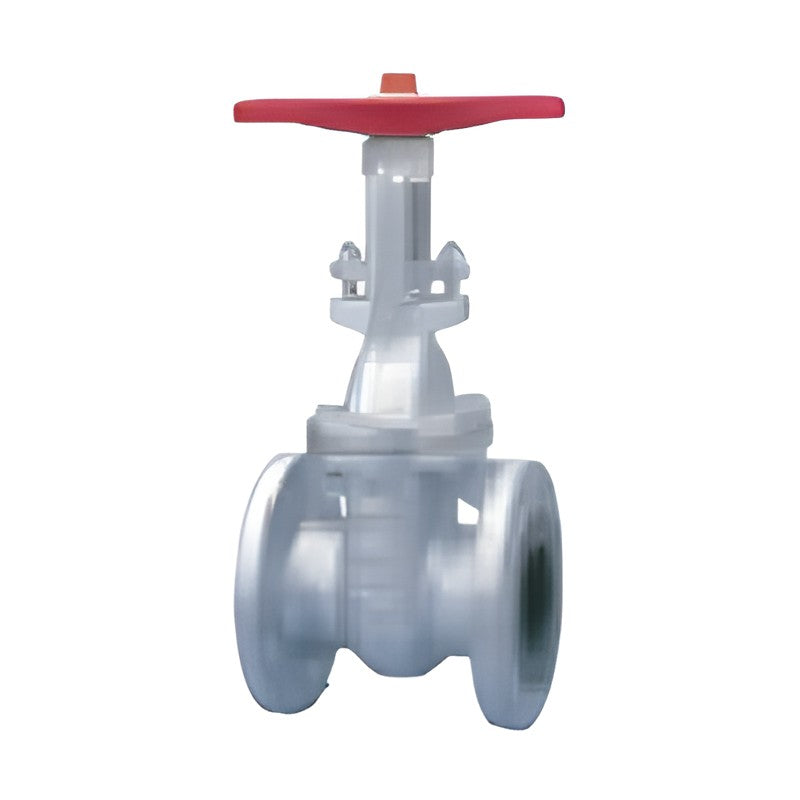

KITZ Fig. 16SMBO: JIS 16K ductile iron gate valve with JIS 16K raised face flange ends, bolted bonnet, outside screw & yoke, rising stem. Sizes 1-1/2 in to 12 in.

Key features

  • Construction: bolted bonnet, outside screw & yoke, rising stem
  • Body: FCD-S (JIS ductile iron)
  • Trim: stem 403SS; disc SCS1 or 403SS or CS+13Cr; seat rings (seat/disc) 403SS
  • Rated service: 120°C Static Water 2.2MPa, 220°C Steam, Air, Gas, Oil 2.0MPa
  • Ordered by Fig. number and nominal size; 10 sizes/variants listed

Specifications

Pressure class JIS 16K
End connection JIS B2239 16K RF
Construction bolted bonnet, outside screw & yoke, rising stem
Body/Bonnet FCD-S
Stem 403SS
Disc SCS1 or 403SS or CS+13Cr
Gland Packing P/#6118
Gasket P/#6633
Seat rings (seat/disc) 403SS
Service conditions 120°C Static Water 2.2MPa, 220°C Steam, Air, Gas, Oil 2.0MPa
Dimension key L face-to-face, H height (open), D handwheel diameter
Source KITZ General Catalog E-020=26 (KITZ_general.pdf), p. 89
16SMBO 40A Size: 1-1/2 in (40A) | Dimensions (mm): L 165, H 301, D 160
16SMBO 50A Size: 2 in (50A) | Dimensions (mm): L 178, H 352, D 200
16SMBO 65A Size: 2-1/2 in (65A) | Dimensions (mm): L 190, H 410, D 200
16SMBO 80A Size: 3 in (80A) | Dimensions (mm): L 203, H 479, D 250
16SMBO 100A Size: 4 in (100A) | Dimensions (mm): L 229, H 566, D 250
16SMBO 125A Size: 5 in (125A) | Dimensions (mm): L 254, H 668, D 300
16SMBO 150A Size: 6 in (150A) | Dimensions (mm): L 267, H 780, D 300
16SMBO 200A Size: 8 in (200A) | Dimensions (mm): L 292, H 970, D 350
16SMBO 250A Size: 10 in (250A) | Dimensions (mm): L 330, H 1181, D 400
16SMBO 300A Size: 12 in (300A) | Dimensions (mm): L 356, H 1404, D 450
Gate ValvesKITZ
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KITZ 16K Ductile Iron Gate Valve (16SMBO)

Brand KITZ·Gate Valves

Available part numbers (10)

16SMBO 40A, 16SMBO 50A, 16SMBO 65A, 16SMBO 80A, 16SMBO 100A, 16SMBO 125A, 16SMBO 150A, 16SMBO 200A, 16SMBO 250A, 16SMBO 300A

How to order

Send the KITZ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
16SMBO 40ASize: 1-1/2 in (40A) | Dimensions (mm): L 165, H 301, D 160
16SMBO 50ASize: 2 in (50A) | Dimensions (mm): L 178, H 352, D 200
16SMBO 65ASize: 2-1/2 in (65A) | Dimensions (mm): L 190, H 410, D 200
16SMBO 80ASize: 3 in (80A) | Dimensions (mm): L 203, H 479, D 250
16SMBO 100ASize: 4 in (100A) | Dimensions (mm): L 229, H 566, D 250
16SMBO 125ASize: 5 in (125A) | Dimensions (mm): L 254, H 668, D 300
16SMBO 150ASize: 6 in (150A) | Dimensions (mm): L 267, H 780, D 300
16SMBO 200ASize: 8 in (200A) | Dimensions (mm): L 292, H 970, D 350
16SMBO 250ASize: 10 in (250A) | Dimensions (mm): L 330, H 1181, D 400
16SMBO 300ASize: 12 in (300A) | Dimensions (mm): L 356, H 1404, D 450
