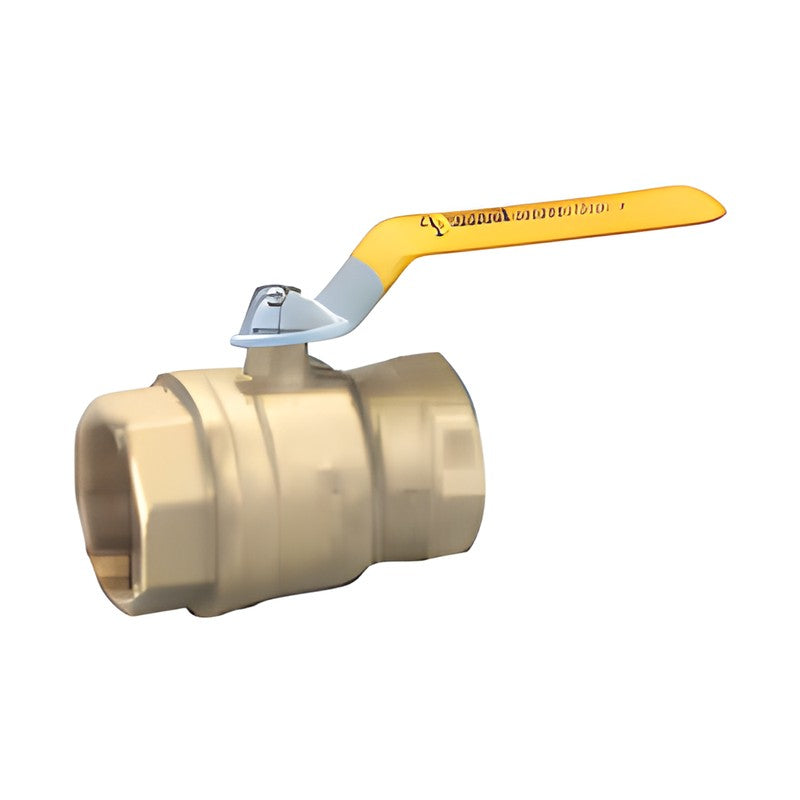

KITZ Z Series 600 Brass Ball Valve, NPT / Solder (AKSZA, CSZA)

KITZ Z Series 600 Brass Ball Valve, NPT / Solder (AKSZA, CSZA)

KITZ Z series 600 WOG full-bore forged brass ball valves with ASME B1.20.1 NPT (AKSZA, AKSZAW) or ASME B16.18 solder (CSZA, CSZAW) ends.

Key features

  • Double O-ring stem seal, FKM
  • AKSZAW / CSZAW: butterfly (wing) handle
  • Listings: AKSZA CSA/FM, CSZA UL/FM, AKSZAW CSA/UL, CSZAW UL
  • Catalogue caution: not for toxic gas; flammable gas only with specially certified valves

Specifications

Size range 1/4 in (8A) to 4 in (100A)
End connections Threaded / Solder
Pressure class 600 WOG
Stem Brass + Ni Plated
Ball Forged Brass+Sn-Ni Plated/304SS
Ball Seat PTFE
Gland Packing/O ring FKM
Handle CS + Zn Plated/DI
Bore Full Bore
Service Conditions W.O.G. Non-shock 4.14MPa(600psi)/4": 2.76MPa(400psi) , W.O.G 150 C 1.03MPa(150psi)/4": 0.69MPa(100psi)
Source KITZ General Catalog E-020=26 (Bronze & Brass), p. 20-21 (BR15-BR16)
AKSZA 8A Size: 1/4 in (8A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 42 mm | H: 37 mm | D: 70 mm
AKSZA 10A Size: 3/8 in (10A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 42 mm | H: 37 mm | D: 70 mm
AKSZA 15A Size: 1/2 in (15A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 53 mm | H: 40 mm | D: 80 mm
AKSZA 20A Size: 3/4 in (20A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 60 mm | H: 44 mm | D: 80 mm
AKSZA 25A Size: 1 in (25A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 72 mm | H: 50 mm | D: 110 mm
AKSZA 32A Size: 1-1/4 in (32A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 84 mm | H: 55 mm | D: 110 mm
AKSZA 40A Size: 1-1/2 in (40A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 92 mm | H: 65 mm | D: 150 mm
AKSZA 50A Size: 2 in (50A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 110 mm | H: 72 mm | D: 150 mm
AKSZA 65A Size: 2-1/2 in (65A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 138 mm | H: 101 mm | D: 200 mm
AKSZA 80A Size: 3 in (80A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 167 mm | H: 113 mm | D: 300 mm
AKSZA 100A Size: 4 in (100A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 193 mm | H: 131 mm | D: 300 mm
CSZA 10A Size: 3/8 in (10A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 46 mm | H: 37 mm | D: 70 mm
CSZA 15A Size: 1/2 in (15A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 54 mm | H: 40 mm | D: 80 mm
CSZA 20A Size: 3/4 in (20A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 73 mm | H: 44 mm | D: 80 mm
CSZA 25A Size: 1 in (25A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 88 mm | H: 50 mm | D: 110 mm
CSZA 32A Size: 1-1/4 in (32A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 100 mm | H: 55 mm | D: 110 mm
CSZA 40A Size: 1-1/2 in (40A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 115 mm | H: 65 mm | D: 150 mm
CSZA 50A Size: 2 in (50A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 140 mm | H: 72 mm | D: 150 mm
CSZA 65A Size: 2-1/2 in (65A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 164 mm | H: 101 mm | D: 200 mm
CSZA 80A Size: 3 in (80A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 187 mm | H: 113 mm | D: 300 mm
AKSZAW 8A Size: 1/4 in (8A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 42 mm | H: 34 mm | D: 55 mm
AKSZAW 10A Size: 3/8 in (10A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 42 mm | H: 34 mm | D: 55 mm
AKSZAW 15A Size: 1/2 in (15A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 53 mm | H: 40 mm | D: 70 mm
AKSZAW 20A Size: 3/4 in (20A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 60 mm | H: 44 mm | D: 70 mm
AKSZAW 25A Size: 1 in (25A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 72 mm | H: 53 mm | D: 100 mm
AKSZAW 32A Size: 1-1/4 in (32A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 84 mm | H: 58 mm | D: 100 mm
AKSZAW 40A Size: 1-1/2 in (40A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 92 mm | H: 74 mm | D: 130 mm
AKSZAW 50A Size: 2 in (50A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 110 mm | H: 81 mm | D: 130 mm
CSZAW 10A Size: 3/8 in (10A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 46 mm | H: 34 mm | D: 55 mm
CSZAW 15A Size: 1/2 in (15A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 54 mm | H: 40 mm | D: 70 mm
CSZAW 20A Size: 3/4 in (20A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 73 mm | H: 44 mm | D: 70 mm
CSZAW 25A Size: 1 in (25A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 88 mm | H: 53 mm | D: 100 mm
CSZAW 32A Size: 1-1/4 in (32A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 100 mm | H: 58 mm | D: 100 mm
CSZAW 40A Size: 1-1/2 in (40A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 115 mm | H: 74 mm | D: 130 mm
CSZAW 50A Size: 2 in (50A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 140 mm | H: 81 mm | D: 130 mm
Ball ValvesKITZ
35 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KITZ Z Series 600 Brass Ball Valve, NPT / Solder (AKSZA, CSZA)

Brand KITZ·Ball Valves

Available part numbers (35)

AKSZA 8A, AKSZA 10A, AKSZA 15A, AKSZA 20A, AKSZA 25A, AKSZA 32A, AKSZA 40A, AKSZA 50A, AKSZA 65A, AKSZA 80A + 25 more — see full table ↓

How to order

Send the KITZ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
AKSZA 8ASize: 1/4 in (8A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 42 mm | H: 37 mm | D: 70 mm
AKSZA 10ASize: 3/8 in (10A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 42 mm | H: 37 mm | D: 70 mm
AKSZA 15ASize: 1/2 in (15A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 53 mm | H: 40 mm | D: 80 mm
AKSZA 20ASize: 3/4 in (20A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 60 mm | H: 44 mm | D: 80 mm
AKSZA 25ASize: 1 in (25A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 72 mm | H: 50 mm | D: 110 mm
AKSZA 32ASize: 1-1/4 in (32A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 84 mm | H: 55 mm | D: 110 mm
AKSZA 40ASize: 1-1/2 in (40A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 92 mm | H: 65 mm | D: 150 mm
AKSZA 50ASize: 2 in (50A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 110 mm | H: 72 mm | D: 150 mm
AKSZA 65ASize: 2-1/2 in (65A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 138 mm | H: 101 mm | D: 200 mm
AKSZA 80ASize: 3 in (80A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 167 mm | H: 113 mm | D: 300 mm
AKSZA 100ASize: 4 in (100A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass/Cast Bronze | L: 193 mm | H: 131 mm | D: 300 mm
CSZA 10ASize: 3/8 in (10A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 46 mm | H: 37 mm | D: 70 mm
CSZA 15ASize: 1/2 in (15A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 54 mm | H: 40 mm | D: 80 mm
CSZA 20ASize: 3/4 in (20A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 73 mm | H: 44 mm | D: 80 mm
CSZA 25ASize: 1 in (25A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 88 mm | H: 50 mm | D: 110 mm
CSZA 32ASize: 1-1/4 in (32A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 100 mm | H: 55 mm | D: 110 mm
CSZA 40ASize: 1-1/2 in (40A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 115 mm | H: 65 mm | D: 150 mm
CSZA 50ASize: 2 in (50A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 140 mm | H: 72 mm | D: 150 mm
CSZA 65ASize: 2-1/2 in (65A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 164 mm | H: 101 mm | D: 200 mm
CSZA 80ASize: 3 in (80A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 187 mm | H: 113 mm | D: 300 mm
AKSZAW 8ASize: 1/4 in (8A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 42 mm | H: 34 mm | D: 55 mm
AKSZAW 10ASize: 3/8 in (10A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 42 mm | H: 34 mm | D: 55 mm
AKSZAW 15ASize: 1/2 in (15A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 53 mm | H: 40 mm | D: 70 mm
AKSZAW 20ASize: 3/4 in (20A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 60 mm | H: 44 mm | D: 70 mm
AKSZAW 25ASize: 1 in (25A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 72 mm | H: 53 mm | D: 100 mm
AKSZAW 32ASize: 1-1/4 in (32A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 84 mm | H: 58 mm | D: 100 mm
AKSZAW 40ASize: 1-1/2 in (40A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 92 mm | H: 74 mm | D: 130 mm
AKSZAW 50ASize: 2 in (50A) | Ends: Threaded, ASME B1.20.1 | Body & Cap: Forged Brass | L: 110 mm | H: 81 mm | D: 130 mm
CSZAW 10ASize: 3/8 in (10A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 46 mm | H: 34 mm | D: 55 mm
CSZAW 15ASize: 1/2 in (15A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 54 mm | H: 40 mm | D: 70 mm
CSZAW 20ASize: 3/4 in (20A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 73 mm | H: 44 mm | D: 70 mm
CSZAW 25ASize: 1 in (25A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 88 mm | H: 53 mm | D: 100 mm
CSZAW 32ASize: 1-1/4 in (32A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 100 mm | H: 58 mm | D: 100 mm
CSZAW 40ASize: 1-1/2 in (40A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 115 mm | H: 74 mm | D: 130 mm
CSZAW 50ASize: 2 in (50A) | Ends: Solder, ASME B16.18 | Body & Cap: Forged Brass | L: 140 mm | H: 81 mm | D: 130 mm
