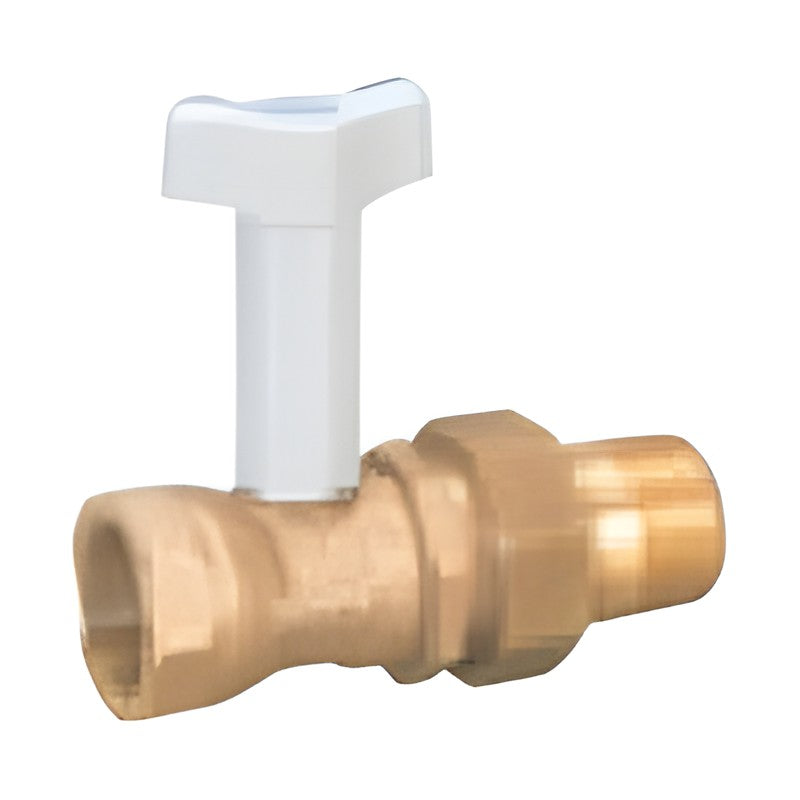

KITZ RTUC Constant Flow Ball Valve, Detachable Handle

KITZ RTUC Constant Flow Ball Valve, Detachable Handle

KITZ RTUC constant-flow ball valve with detachable handle, female x male union nipple, predetermined flow rate.

Key features

  • Predetermined flow rate, +/-15% (+/-20% at 5 L/min)
  • Control range 0.15 to 0.49 MPa, 5 to 30 L/min
  • Code = RTUC + nominal + flow rate L/min
  • Ordered by Fig + nominal size, e.g. RTUC15-5

Specifications

Size range 1/2 in (15A) to 1 in (25A)
Pressure class 10K
End connection Threaded, BS21 (JIS B0203)
Body & Bonnet CAC406
Stem C3531
Ball Seat PTFE
O ring POM + Silicon Rubber
Gasket EPDM
Handle Polyacetal
Bore Full Bore
Service Conditions Max Working Pressure 1.0MPa, Working Temperature Water 0 C to 60 C
Source KITZ General Catalog E-020=26 (Bronze & Brass), p. 35 (BR30)
RTUC15-5 Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 5 L/min
RTUC15-6 Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 6 L/min
RTUC15-7.5 Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 7.5 L/min
RTUC15-10 Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 10 L/min
RTUC15-12.5 Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 12.5 L/min
RTUC15-15 Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 15 L/min
RTUC15-17.5 Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 17.5 L/min
RTUC15-20 Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 20 L/min
RTUC20-5 Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 5 L/min
RTUC20-6 Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 6 L/min
RTUC20-7.5 Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 7.5 L/min
RTUC20-10 Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 10 L/min
RTUC20-12.5 Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 12.5 L/min
RTUC20-15 Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 15 L/min
RTUC20-17.5 Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 17.5 L/min
RTUC20-20 Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 20 L/min
RTUC20-25 Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 25 L/min
RTUC20-30 Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 30 L/min
RTUC25-25 Size: 1 in (25A) | L: 104 mm | H: 75.5 mm | D: 40 mm | Flow: 25 L/min
RTUC25-30 Size: 1 in (25A) | L: 104 mm | H: 75.5 mm | D: 40 mm | Flow: 30 L/min
Balancing ValvesKITZ
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KITZ RTUC Constant Flow Ball Valve, Detachable Handle

Brand KITZ·Balancing Valves

Available part numbers (20)

RTUC15-5, RTUC15-6, RTUC15-7.5, RTUC15-10, RTUC15-12.5, RTUC15-15, RTUC15-17.5, RTUC15-20, RTUC20-5, RTUC20-6 + 10 more — see full table ↓

How to order

Send the KITZ part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RTUC15-5Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 5 L/min
RTUC15-6Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 6 L/min
RTUC15-7.5Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 7.5 L/min
RTUC15-10Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 10 L/min
RTUC15-12.5Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 12.5 L/min
RTUC15-15Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 15 L/min
RTUC15-17.5Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 17.5 L/min
RTUC15-20Size: 1/2 in (15A) | L: 88 mm | H: 72 mm | D: 40 mm | Flow: 20 L/min
RTUC20-5Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 5 L/min
RTUC20-6Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 6 L/min
RTUC20-7.5Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 7.5 L/min
RTUC20-10Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 10 L/min
RTUC20-12.5Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 12.5 L/min
RTUC20-15Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 15 L/min
RTUC20-17.5Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 17.5 L/min
RTUC20-20Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 20 L/min
RTUC20-25Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 25 L/min
RTUC20-30Size: 3/4 in (20A) | L: 92.5 mm | H: 72 mm | D: 40 mm | Flow: 30 L/min
RTUC25-25Size: 1 in (25A) | L: 104 mm | H: 75.5 mm | D: 40 mm | Flow: 25 L/min
RTUC25-30Size: 1 in (25A) | L: 104 mm | H: 75.5 mm | D: 40 mm | Flow: 30 L/min
