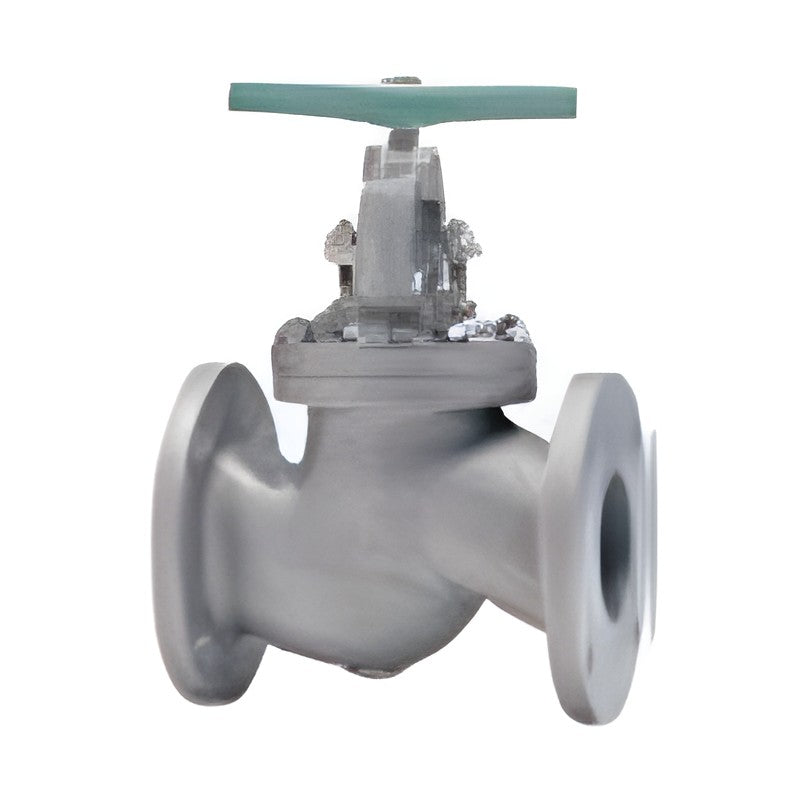

KITZ Bellows Seal Stainless Steel Globe Valve (UPAWM, UPDAWM, UPAW)

KITZ Bellows Seal Stainless Steel Globe Valve (UPAWM, UPDAWM, UPAW)

KITZ Series A bellows seal globe valves with 316L bellows for leak-tight stem sealing, in CF8M (ASME Class 150/300) and CF8 (JIS 10K/20K), RF flanged.

Key features

  • 316L bellows seal backed by carbon fiber coil packing
  • Flexible graphite body gasket
  • Metal disc (316 or CF8M) or soft seated PTFE disc (UPDAWM, UPDAW)
  • ASME B16.34 or JIS B2220 P-T rating; face-to-face to ASME B16.10
  • Sizes 1/2 to 6 in

Specifications

End connection RF flanged
Operation Handwheel
Stem 304SS
Dimensions L face-to-face, H height, D handwheel
Bellows 316L
Gland packing Carbon Fiber Coil Packing
Bonnet bolt/nut B8/8
Face-to-face ASME B16.10
Wall thickness ASME B16.34
Source KITZ General Catalog E-020=26 (Stainless Steel section), p. 218
