• KNIPEX High Leverage Diagonal Cutter 74 01 Series
1 1

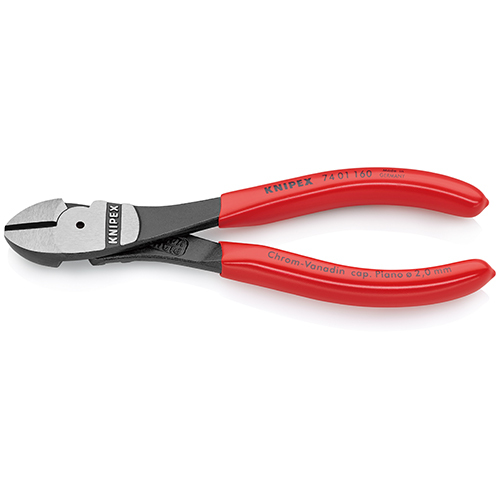

KNIPEX High Leverage Diagonal Cutter 74 01 Series

KNIPEX High Leverage Diagonal Cutter 74 01 Series

KNIPEX 74 01 series high leverage diagonal cutter. 20% less handle force vs standard.

Key features

  • Sharp blade angle for flush cuts
  • Cuts piano wire and all common wire types
  • Chrome vanadium steel
  • Hardness: 64 HRC
  • Available: 74 01 140 SB / 74 01 160 SB / 74 01 180 SB / 74 01 200 SB / 74 01 250 SB
  • Origin: Germany
215-6598 High leverage diagonal cutter. 20% less handle force. Cuts piano wire. Blade: 64 HRC. | Model: 74 01 140 SB | Length: 140mm | Soft wire: 3.1mm | Copper wire: 2.0mm | Piano wire: 1.5mm | Weight: 131g
215-6613 High leverage diagonal cutter. 20% less handle force. Cuts piano wire. | Model: 74 01 160 SB | Length: 160mm | Soft wire: 4.0mm | Copper wire: 2.5mm | Piano wire: 1.8mm | Weight: 224g
215-6844 High leverage diagonal cutter. 20% less handle force. Cuts piano wire. | Model: 74 01 180 SB | Length: 180mm | Soft wire: 4.2mm | Copper wire: 3.0mm | Piano wire: 2.0mm | Weight: 263g
215-8028 High leverage diagonal cutter. 20% less handle force. Cuts piano wire. | Model: 74 01 250 SB | Length: 250mm | Soft wire: 4.6mm | Copper wire: 3.5mm | Piano wire: 3.0mm | Weight: 391g
NippersKNIPEX
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KNIPEX High Leverage Diagonal Cutter 74 01 Series

Brand KNIPEX·Nippers

Available part numbers (4)

215-6598, 215-6613, 215-6844, 215-8028

How to order

Send the KNIPEX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
215-6598High leverage diagonal cutter. 20% less handle force. Cuts piano wire. Blade: 64 HRC. | Model: 74 01 140 SB | Length: 140mm | Soft wire: 3.1mm | Copper wire: 2.0mm | Piano wire: 1.5mm | Weight: 131g
215-6613High leverage diagonal cutter. 20% less handle force. Cuts piano wire. | Model: 74 01 160 SB | Length: 160mm | Soft wire: 4.0mm | Copper wire: 2.5mm | Piano wire: 1.8mm | Weight: 224g
215-6844High leverage diagonal cutter. 20% less handle force. Cuts piano wire. | Model: 74 01 180 SB | Length: 180mm | Soft wire: 4.2mm | Copper wire: 3.0mm | Piano wire: 2.0mm | Weight: 263g
215-8028High leverage diagonal cutter. 20% less handle force. Cuts piano wire. | Model: 74 01 250 SB | Length: 250mm | Soft wire: 4.6mm | Copper wire: 3.5mm | Piano wire: 3.0mm | Weight: 391g

Need a different model, or a part not listed here? Send us your parts list →
