• KNIPEX High Leverage Diagonal Cutter 74 02 Series
1 1

KNIPEX High Leverage Diagonal Cutter 74 02 Series

KNIPEX High Leverage Diagonal Cutter 74 02 Series

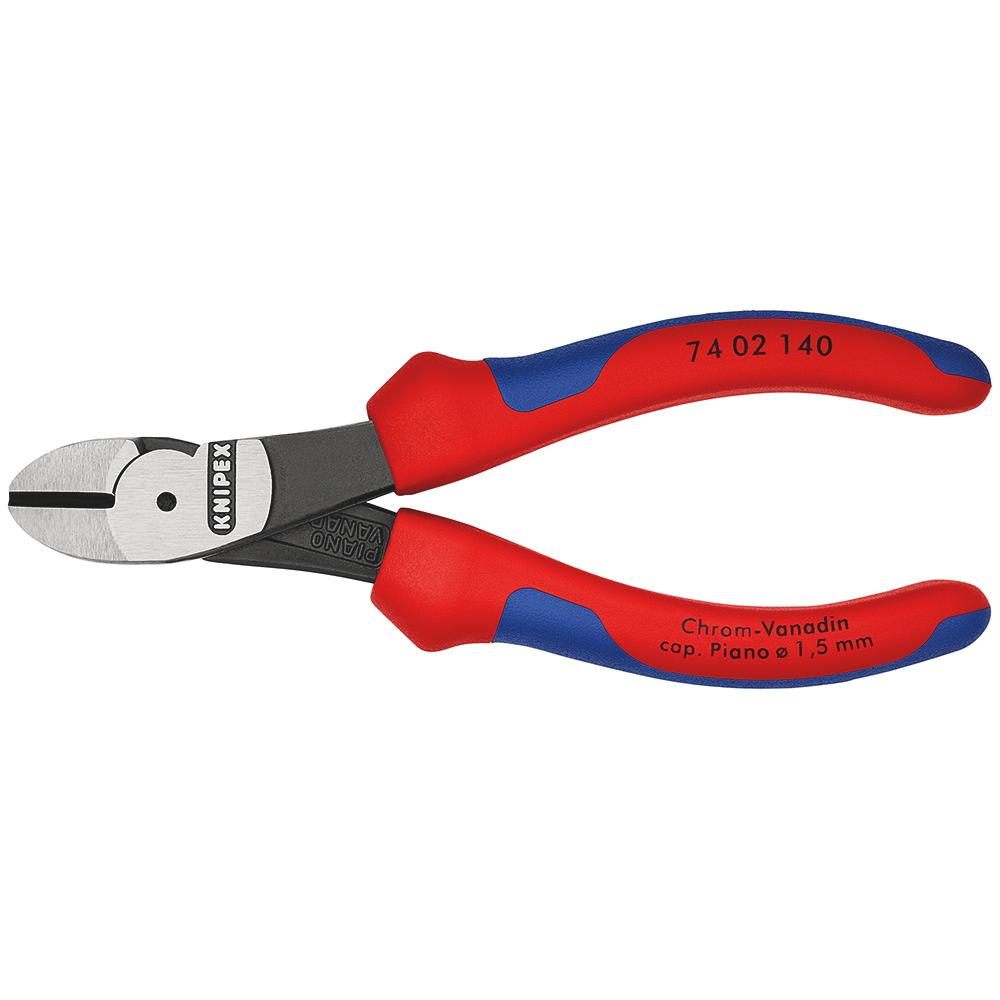

KNIPEX 74 02 series high leverage diagonal cutter.

Key features

  • Chrome vanadium steel
  • Hardness: 64 HRC
  • Available: 74 02 160 / 74 02 160 SB / 74 02 180 SB / 74 02 200 SB / 74 02 250 SB
  • Soft wire: 3.1–4.6mm / copper wire: 2.0–3.5mm
  • Origin: Germany
217-2295 High leverage diagonal cutter. Chrome vanadium. Blade: 64 HRC. | Model: 74 02 160 | Length: 160mm | Soft wire: 3.1mm | Copper wire: 2.0mm | Piano wire: 1.5mm | Weight: 157g
217-3966 High leverage diagonal cutter. Chrome vanadium. Blade: 64 HRC. | Model: 74 02 160 SB | Length: 160mm | Soft wire: 3.8mm | Copper wire: 2.7mm | Piano wire: 2.2mm | Weight: 209g
217-2301 High leverage diagonal cutter. Chrome vanadium. Blade: 64 HRC. | Model: 74 02 180 SB | Length: 180mm | Soft wire: 3.8mm | Copper wire: 2.7mm | Piano wire: 2.2mm | Weight: 157g
215-9203 High leverage diagonal cutter. Chrome vanadium. Blade: 64 HRC. | Model: 74 02 200 SB | Length: 200mm | Soft wire: 4.4mm | Copper wire: 3.2mm | Piano wire: 2.5mm | Weight: 215g
217-2310 High leverage diagonal cutter. Chrome vanadium. Blade: 64 HRC. | Model: 74 02 250 SB | Length: 250mm | Soft wire: 4.6mm | Copper wire: 3.5mm | Piano wire: 3.0mm | Weight: 437g
NippersKNIPEX
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KNIPEX High Leverage Diagonal Cutter 74 02 Series

Brand KNIPEX·Nippers

Available part numbers (5)

217-2295, 217-3966, 217-2301, 215-9203, 217-2310

How to order

Send the KNIPEX part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
217-2295High leverage diagonal cutter. Chrome vanadium. Blade: 64 HRC. | Model: 74 02 160 | Length: 160mm | Soft wire: 3.1mm | Copper wire: 2.0mm | Piano wire: 1.5mm | Weight: 157g
217-3966High leverage diagonal cutter. Chrome vanadium. Blade: 64 HRC. | Model: 74 02 160 SB | Length: 160mm | Soft wire: 3.8mm | Copper wire: 2.7mm | Piano wire: 2.2mm | Weight: 209g
217-2301High leverage diagonal cutter. Chrome vanadium. Blade: 64 HRC. | Model: 74 02 180 SB | Length: 180mm | Soft wire: 3.8mm | Copper wire: 2.7mm | Piano wire: 2.2mm | Weight: 157g
215-9203High leverage diagonal cutter. Chrome vanadium. Blade: 64 HRC. | Model: 74 02 200 SB | Length: 200mm | Soft wire: 4.4mm | Copper wire: 3.2mm | Piano wire: 2.5mm | Weight: 215g
217-2310High leverage diagonal cutter. Chrome vanadium. Blade: 64 HRC. | Model: 74 02 250 SB | Length: 250mm | Soft wire: 4.6mm | Copper wire: 3.5mm | Piano wire: 3.0mm | Weight: 437g
