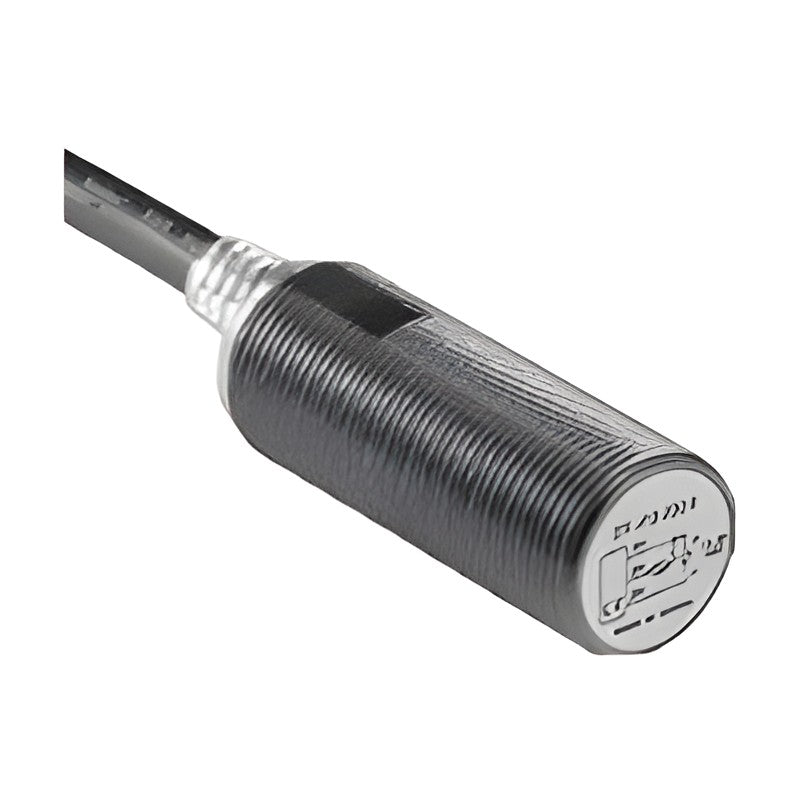

KOINO IPX AC 2-Wire Inductive Proximity Sensors (90-250 VAC, 12-40 mm)

KOINO IPX AC 2-Wire Inductive Proximity Sensors (90-250 VAC, 12-40 mm)

KOINO IPX series AC 2-wire high-frequency oscillation inductive proximity sensors (NO or NC) for 90-250 VAC supply, in cylindrical 12 / 18 / 30 mm and rectangular 25 / 30 / 40 mm bodies.

Key features

  • Connection styles: pre-wired 2 m cable (no suffix), M12 connector (R) or wire connector (W); rectangular bodies are cable type (S)
  • Setting distance 0-1.6 / 0-3.2 / 0-4.0 / 0-6.4 / 0-8.0 / 0-12.0 mm for the cylindrical sizes, 0-4.0 / 0-4.0 / 0-8.0 / 0-16.0 mm for the rectangular sizes
  • Detects ferrous and non-ferrous metals (steel 100 %, stainless approx. 60 %, brass 40 %, aluminium 30 %, copper 28 %); hysteresis 10 % max
  • Red LED operation indicator, IP67, nickel-plated brass body with PBT sensing face (rectangular: PBT body)
  • IPW relay cables are ordered separately for connector (R / W) models
  • Rectangular bodies in 25 / 30 / 40 mm square (no 17 mm size for AC 2-wire)
  • Response frequency 20 Hz; load current 10-200 mA, leakage (consumption) current 2.5 mA max
  • Two sensors can be wired in series (AND) or in parallel (OR) subject to residual-voltage and leakage-current limits

Specifications

Supply AC 2-wire
Rated operating voltage 110 VAC
Supply voltage range 90-250 VAC, 50/60 Hz
Output 2-wire switching, NO or NC
Control output current 10-200 mA
Current consumption 2.5 mA max
Protection circuits Surge
Series IPX high-frequency oscillation inductive
Sensing object Ferrous and non-ferrous metal
Hysteresis 10 % of sensing distance max
Indicator Red LED
Ambient temperature -25 to +70 C
Protection IP67
Insulation resistance 100 M ohm min (500 VDC)
Dielectric strength 1,500 VAC 50/60 Hz, 1 min
Vibration 10-55 Hz, 1.5 mm amplitude, 2 h each axis
Shock 500 m/s2 (50 G), 3 times each axis
Certification CE: EN 60947-1 / 60947-5-2
Source KOINO general catalog 5th ed., p. 515-516, 522, 527-530, 535-537
IPX-A12-02A1 Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Shielded | Output: NO | Sensing distance: 2.0 mm
IPX-A12-04A1N Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Unshielded | Output: NO | Sensing distance: 4.0 mm
IPX-A18-05A1 Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Shielded | Output: NO | Sensing distance: 5.0 mm
IPX-A18-08A1N Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Unshielded | Output: NO | Sensing distance: 8.0 mm
IPX-A30-10A1 Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Shielded | Output: NO | Sensing distance: 10.0 mm
IPX-A30-15A1N Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Unshielded | Output: NO | Sensing distance: 15.0 mm
IPX-A12-02A1R Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Shielded | Output: NO | Sensing distance: 2.0 mm
IPX-A12-04A1RN Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Unshielded | Output: NO | Sensing distance: 4.0 mm
IPX-A18-05A1R Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Shielded | Output: NO | Sensing distance: 5.0 mm
IPX-A18-08A1RN Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Unshielded | Output: NO | Sensing distance: 8.0 mm
IPX-A30-10A1R Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Shielded | Output: NO | Sensing distance: 10.0 mm
IPX-A30-15A1RN Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Unshielded | Output: NO | Sensing distance: 15.0 mm
IPX-A12-02A1W Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Shielded | Output: NO | Sensing distance: 2.0 mm
IPX-A12-04A1WN Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Unshielded | Output: NO | Sensing distance: 4.0 mm
IPX-A18-05A1W Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Shielded | Output: NO | Sensing distance: 5.0 mm
IPX-A18-08A1WN Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Unshielded | Output: NO | Sensing distance: 8.0 mm
IPX-A30-10A1W Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Shielded | Output: NO | Sensing distance: 10.0 mm
IPX-A30-15A1WN Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Unshielded | Output: NO | Sensing distance: 15.0 mm
IPX-A25-05A1S Shape: Rectangular | Connection: Cable (2 m) | Size: 25 mm square | Shield: Not specified | Output: NO | Sensing distance: 5.0 mm
IPX-A30-10A1S Shape: Rectangular | Connection: Cable (2 m) | Size: 30 mm square | Shield: Not specified | Output: NO | Sensing distance: 10.0 mm
IPX-A40-20A1S Shape: Rectangular | Connection: Cable (2 m) | Size: 40 mm square | Shield: Not specified | Output: NO | Sensing distance: 20.0 mm
IPX-A12-02A2 Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Shielded | Output: NC | Sensing distance: 2.0 mm
IPX-A12-04A2N Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Unshielded | Output: NC | Sensing distance: 4.0 mm
IPX-A18-05A2 Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Shielded | Output: NC | Sensing distance: 5.0 mm
IPX-A18-08A2N Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Unshielded | Output: NC | Sensing distance: 8.0 mm
IPX-A30-10A2 Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Shielded | Output: NC | Sensing distance: 10.0 mm
IPX-A30-15A2N Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Unshielded | Output: NC | Sensing distance: 15.0 mm
IPX-A12-02A2R Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Shielded | Output: NC | Sensing distance: 2.0 mm
IPX-A12-04A2RN Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Unshielded | Output: NC | Sensing distance: 4.0 mm
IPX-A18-05A2R Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Shielded | Output: NC | Sensing distance: 5.0 mm
IPX-A18-08A2RN Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Unshielded | Output: NC | Sensing distance: 8.0 mm
IPX-A30-10A2R Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Shielded | Output: NC | Sensing distance: 10.0 mm
IPX-A30-15A2RN Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Unshielded | Output: NC | Sensing distance: 15.0 mm
IPX-A12-02A2W Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Shielded | Output: NC | Sensing distance: 2.0 mm
IPX-A12-04A2WN Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Unshielded | Output: NC | Sensing distance: 4.0 mm
IPX-A18-05A2W Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Shielded | Output: NC | Sensing distance: 5.0 mm
IPX-A18-08A2WN Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Unshielded | Output: NC | Sensing distance: 8.0 mm
IPX-A30-10A2W Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Shielded | Output: NC | Sensing distance: 10.0 mm
IPX-A30-15A2WN Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Unshielded | Output: NC | Sensing distance: 15.0 mm
IPX-A25-05A2S Shape: Rectangular | Connection: Cable (2 m) | Size: 25 mm square | Shield: Not specified | Output: NC | Sensing distance: 5.0 mm
IPX-A30-10A2S Shape: Rectangular | Connection: Cable (2 m) | Size: 30 mm square | Shield: Not specified | Output: NC | Sensing distance: 10.0 mm
IPX-A40-20A2S Shape: Rectangular | Connection: Cable (2 m) | Size: 40 mm square | Shield: Not specified | Output: NC | Sensing distance: 20.0 mm
Proximity SensorsKOINO
42 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO IPX AC 2-Wire Inductive Proximity Sensors (90-250 VAC, 12-40 mm)

Brand KOINO·Proximity Sensors

Available part numbers (42)

IPX-A12-02A1, IPX-A12-04A1N, IPX-A18-05A1, IPX-A18-08A1N, IPX-A30-10A1, IPX-A30-15A1N, IPX-A12-02A1R, IPX-A12-04A1RN, IPX-A18-05A1R, IPX-A18-08A1RN + 32 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
