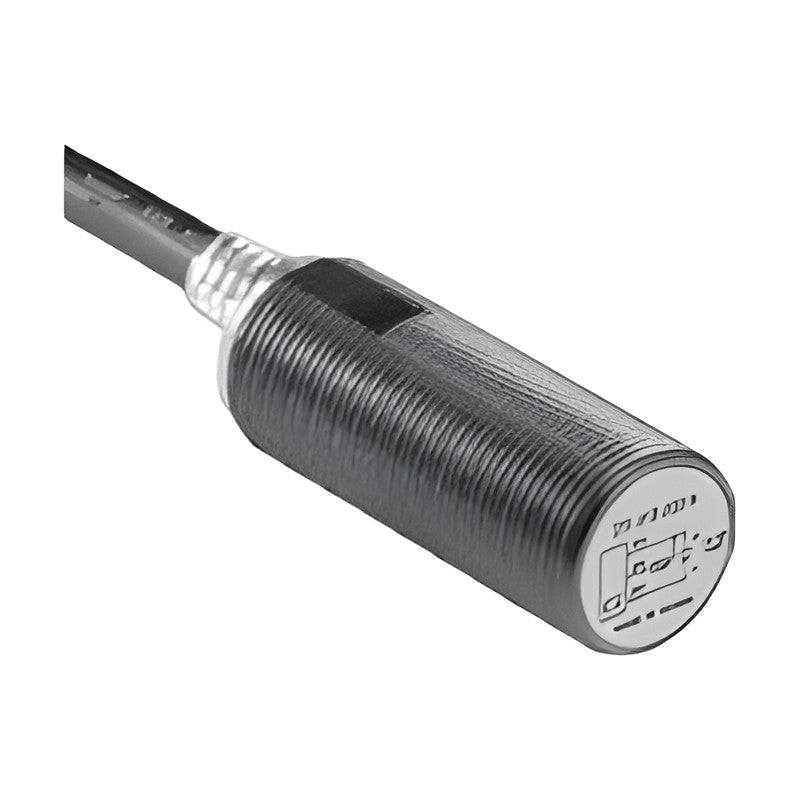

KOINO IPX DC 3-Wire Inductive Proximity Sensors (NPN/PNP, 12-40 mm)

KOINO IPX DC 3-Wire Inductive Proximity Sensors (NPN/PNP, 12-40 mm)

KOINO IPX series DC 3-wire high-frequency oscillation inductive proximity sensors with NPN or PNP voltage output (NO / NC), in cylindrical 12 / 18 / 30 mm and rectangular 17 to 40 mm bodies.

Key features

  • Cylindrical 12 / 18 / 30 mm bodies in shielded and unshielded versions, plus rectangular 17 / 25 / 30 / 40 mm bodies
  • Connection styles: pre-wired 2 m cable (no suffix), M12 connector (R) or wire connector (W); rectangular bodies are cable type (S)
  • Setting distance 0-1.6 / 0-3.2 / 0-4.0 / 0-6.4 / 0-8.0 / 0-12.0 mm for the cylindrical sizes, 0-4.0 / 0-4.0 / 0-8.0 / 0-16.0 mm for the rectangular sizes
  • Detects ferrous and non-ferrous metals (steel 100 %, stainless approx. 60 %, brass 40 %, aluminium 30 %, copper 28 %); hysteresis 10 % max
  • Red LED operation indicator, IP67, nickel-plated brass body with PBT sensing face (rectangular: PBT body)
  • IPW relay cables are ordered separately for connector (R / W) models
  • Response frequency 600 / 400 / 400 / 200 / 250 / 100 Hz (cylindrical 12-02 to 30-15), 500 / 350 / 250 / 100 Hz (rectangular 17 to 40)

Specifications

Supply DC 3-wire
Rated operating voltage 12-24 VDC
Supply voltage range 10-30 VDC
Output NPN / PNP voltage output, NO or NC
Control output current 200 mA max
Current consumption 10 mA max
Protection circuits Surge, overcurrent, reverse polarity
Series IPX high-frequency oscillation inductive
Sensing object Ferrous and non-ferrous metal
Hysteresis 10 % of sensing distance max
Indicator Red LED
Ambient temperature -25 to +70 C
Protection IP67
Insulation resistance 100 M ohm min (500 VDC)
Dielectric strength 1,500 VAC 50/60 Hz, 1 min
Vibration 10-55 Hz, 1.5 mm amplitude, 2 h each axis
Shock 500 m/s2 (50 G), 3 times each axis
Certification CE: EN 55011 / 60947-5-2
Source KOINO general catalog 5th ed., p. 514-515, 522-526, 535-537
IPX-D12-02E1 Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Shielded | Output: NPN NO | Sensing distance: 2.0 mm
IPX-D12-04E1N Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Unshielded | Output: NPN NO | Sensing distance: 4.0 mm
IPX-D18-05E1 Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Shielded | Output: NPN NO | Sensing distance: 5.0 mm
IPX-D18-08E1N Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Unshielded | Output: NPN NO | Sensing distance: 8.0 mm
IPX-D30-10E1 Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Shielded | Output: NPN NO | Sensing distance: 10.0 mm
IPX-D30-15E1N Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Unshielded | Output: NPN NO | Sensing distance: 15.0 mm
IPX-D12-02E1R Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Shielded | Output: NPN NO | Sensing distance: 2.0 mm
IPX-D12-04E1RN Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Unshielded | Output: NPN NO | Sensing distance: 4.0 mm
IPX-D18-05E1R Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Shielded | Output: NPN NO | Sensing distance: 5.0 mm
IPX-D18-08E1RN Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Unshielded | Output: NPN NO | Sensing distance: 8.0 mm
IPX-D30-10E1R Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Shielded | Output: NPN NO | Sensing distance: 10.0 mm
IPX-D30-15E1RN Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Unshielded | Output: NPN NO | Sensing distance: 15.0 mm
IPX-D12-02E1W Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Shielded | Output: NPN NO | Sensing distance: 2.0 mm
IPX-D12-04E1WN Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Unshielded | Output: NPN NO | Sensing distance: 4.0 mm
IPX-D18-05E1W Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Shielded | Output: NPN NO | Sensing distance: 5.0 mm
IPX-D18-08E1WN Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Unshielded | Output: NPN NO | Sensing distance: 8.0 mm
IPX-D30-10E1W Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Shielded | Output: NPN NO | Sensing distance: 10.0 mm
IPX-D30-15E1WN Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Unshielded | Output: NPN NO | Sensing distance: 15.0 mm
IPX-D17-05E1S Shape: Rectangular | Connection: Cable (2 m) | Size: 17 mm square | Shield: Not specified | Output: NPN NO | Sensing distance: 5.0 mm
IPX-D25-05E1S Shape: Rectangular | Connection: Cable (2 m) | Size: 25 mm square | Shield: Not specified | Output: NPN NO | Sensing distance: 5.0 mm
IPX-D30-10E1S Shape: Rectangular | Connection: Cable (2 m) | Size: 30 mm square | Shield: Not specified | Output: NPN NO | Sensing distance: 10.0 mm
IPX-D40-20E1S Shape: Rectangular | Connection: Cable (2 m) | Size: 40 mm square | Shield: Not specified | Output: NPN NO | Sensing distance: 20.0 mm
IPX-D12-02E2 Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Shielded | Output: NPN NC | Sensing distance: 2.0 mm
IPX-D12-04E2N Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Unshielded | Output: NPN NC | Sensing distance: 4.0 mm
IPX-D18-05E2 Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Shielded | Output: NPN NC | Sensing distance: 5.0 mm
IPX-D18-08E2N Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Unshielded | Output: NPN NC | Sensing distance: 8.0 mm
IPX-D30-10E2 Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Shielded | Output: NPN NC | Sensing distance: 10.0 mm
IPX-D30-15E2N Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Unshielded | Output: NPN NC | Sensing distance: 15.0 mm
IPX-D12-02E2R Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Shielded | Output: NPN NC | Sensing distance: 2.0 mm
IPX-D12-04E2RN Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Unshielded | Output: NPN NC | Sensing distance: 4.0 mm
IPX-D18-05E2R Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Shielded | Output: NPN NC | Sensing distance: 5.0 mm
IPX-D18-08E2RN Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Unshielded | Output: NPN NC | Sensing distance: 8.0 mm
IPX-D30-10E2R Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Shielded | Output: NPN NC | Sensing distance: 10.0 mm
IPX-D30-15E2RN Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Unshielded | Output: NPN NC | Sensing distance: 15.0 mm
IPX-D12-02E2W Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Shielded | Output: NPN NC | Sensing distance: 2.0 mm
IPX-D12-04E2WN Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Unshielded | Output: NPN NC | Sensing distance: 4.0 mm
IPX-D18-05E2W Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Shielded | Output: NPN NC | Sensing distance: 5.0 mm
IPX-D18-08E2WN Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Unshielded | Output: NPN NC | Sensing distance: 8.0 mm
IPX-D30-10E2W Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Shielded | Output: NPN NC | Sensing distance: 10.0 mm
IPX-D30-15E2WN Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Unshielded | Output: NPN NC | Sensing distance: 15.0 mm
IPX-D17-05E2S Shape: Rectangular | Connection: Cable (2 m) | Size: 17 mm square | Shield: Not specified | Output: NPN NC | Sensing distance: 5.0 mm
IPX-D25-05E2S Shape: Rectangular | Connection: Cable (2 m) | Size: 25 mm square | Shield: Not specified | Output: NPN NC | Sensing distance: 5.0 mm
IPX-D30-10E2S Shape: Rectangular | Connection: Cable (2 m) | Size: 30 mm square | Shield: Not specified | Output: NPN NC | Sensing distance: 10.0 mm
IPX-D40-20E2S Shape: Rectangular | Connection: Cable (2 m) | Size: 40 mm square | Shield: Not specified | Output: NPN NC | Sensing distance: 20.0 mm
IPX-D12-02E3 Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Shielded | Output: PNP NO | Sensing distance: 2.0 mm
IPX-D12-04E3N Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Unshielded | Output: PNP NO | Sensing distance: 4.0 mm
IPX-D18-05E3 Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Shielded | Output: PNP NO | Sensing distance: 5.0 mm
IPX-D18-08E3N Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Unshielded | Output: PNP NO | Sensing distance: 8.0 mm
IPX-D30-10E3 Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Shielded | Output: PNP NO | Sensing distance: 10.0 mm
IPX-D30-15E3N Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Unshielded | Output: PNP NO | Sensing distance: 15.0 mm
IPX-D12-02E3R Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Shielded | Output: PNP NO | Sensing distance: 2.0 mm
IPX-D12-04E3RN Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Unshielded | Output: PNP NO | Sensing distance: 4.0 mm
IPX-D18-05E3R Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Shielded | Output: PNP NO | Sensing distance: 5.0 mm
IPX-D18-08E3RN Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Unshielded | Output: PNP NO | Sensing distance: 8.0 mm
IPX-D30-10E3R Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Shielded | Output: PNP NO | Sensing distance: 10.0 mm
IPX-D30-15E3RN Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Unshielded | Output: PNP NO | Sensing distance: 15.0 mm
IPX-D12-02E3W Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Shielded | Output: PNP NO | Sensing distance: 2.0 mm
IPX-D12-04E3WN Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Unshielded | Output: PNP NO | Sensing distance: 4.0 mm
IPX-D18-05E3W Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Shielded | Output: PNP NO | Sensing distance: 5.0 mm
IPX-D18-08E3WN Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Unshielded | Output: PNP NO | Sensing distance: 8.0 mm
IPX-D30-10E3W Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Shielded | Output: PNP NO | Sensing distance: 10.0 mm
IPX-D30-15E3WN Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Unshielded | Output: PNP NO | Sensing distance: 15.0 mm
IPX-D17-05E3S Shape: Rectangular | Connection: Cable (2 m) | Size: 17 mm square | Shield: Not specified | Output: PNP NO | Sensing distance: 5.0 mm
IPX-D25-05E3S Shape: Rectangular | Connection: Cable (2 m) | Size: 25 mm square | Shield: Not specified | Output: PNP NO | Sensing distance: 5.0 mm
IPX-D30-10E3S Shape: Rectangular | Connection: Cable (2 m) | Size: 30 mm square | Shield: Not specified | Output: PNP NO | Sensing distance: 10.0 mm
IPX-D40-20E3S Shape: Rectangular | Connection: Cable (2 m) | Size: 40 mm square | Shield: Not specified | Output: PNP NO | Sensing distance: 20.0 mm
IPX-D12-02E4 Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Shielded | Output: PNP NC | Sensing distance: 2.0 mm
IPX-D12-04E4N Shape: Cylindrical | Connection: Cable (2 m) | Size: 12 mm dia. | Shield: Unshielded | Output: PNP NC | Sensing distance: 4.0 mm
IPX-D18-05E4 Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Shielded | Output: PNP NC | Sensing distance: 5.0 mm
IPX-D18-08E4N Shape: Cylindrical | Connection: Cable (2 m) | Size: 18 mm dia. | Shield: Unshielded | Output: PNP NC | Sensing distance: 8.0 mm
IPX-D30-10E4 Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Shielded | Output: PNP NC | Sensing distance: 10.0 mm
IPX-D30-15E4N Shape: Cylindrical | Connection: Cable (2 m) | Size: 30 mm dia. | Shield: Unshielded | Output: PNP NC | Sensing distance: 15.0 mm
IPX-D12-02E4R Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Shielded | Output: PNP NC | Sensing distance: 2.0 mm
IPX-D12-04E4RN Shape: Cylindrical | Connection: M12 connector | Size: 12 mm dia. | Shield: Unshielded | Output: PNP NC | Sensing distance: 4.0 mm
IPX-D18-05E4R Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Shielded | Output: PNP NC | Sensing distance: 5.0 mm
IPX-D18-08E4RN Shape: Cylindrical | Connection: M12 connector | Size: 18 mm dia. | Shield: Unshielded | Output: PNP NC | Sensing distance: 8.0 mm
IPX-D30-10E4R Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Shielded | Output: PNP NC | Sensing distance: 10.0 mm
IPX-D30-15E4RN Shape: Cylindrical | Connection: M12 connector | Size: 30 mm dia. | Shield: Unshielded | Output: PNP NC | Sensing distance: 15.0 mm
IPX-D12-02E4W Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Shielded | Output: PNP NC | Sensing distance: 2.0 mm
IPX-D12-04E4WN Shape: Cylindrical | Connection: Wire connector | Size: 12 mm dia. | Shield: Unshielded | Output: PNP NC | Sensing distance: 4.0 mm
IPX-D18-05E4W Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Shielded | Output: PNP NC | Sensing distance: 5.0 mm
IPX-D18-08E4WN Shape: Cylindrical | Connection: Wire connector | Size: 18 mm dia. | Shield: Unshielded | Output: PNP NC | Sensing distance: 8.0 mm
IPX-D30-10E4W Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Shielded | Output: PNP NC | Sensing distance: 10.0 mm
IPX-D30-15E4WN Shape: Cylindrical | Connection: Wire connector | Size: 30 mm dia. | Shield: Unshielded | Output: PNP NC | Sensing distance: 15.0 mm
IPX-D17-05E4S Shape: Rectangular | Connection: Cable (2 m) | Size: 17 mm square | Shield: Not specified | Output: PNP NC | Sensing distance: 5.0 mm
IPX-D25-05E4S Shape: Rectangular | Connection: Cable (2 m) | Size: 25 mm square | Shield: Not specified | Output: PNP NC | Sensing distance: 5.0 mm
IPX-D30-10E4S Shape: Rectangular | Connection: Cable (2 m) | Size: 30 mm square | Shield: Not specified | Output: PNP NC | Sensing distance: 10.0 mm
IPX-D40-20E4S Shape: Rectangular | Connection: Cable (2 m) | Size: 40 mm square | Shield: Not specified | Output: PNP NC | Sensing distance: 20.0 mm
