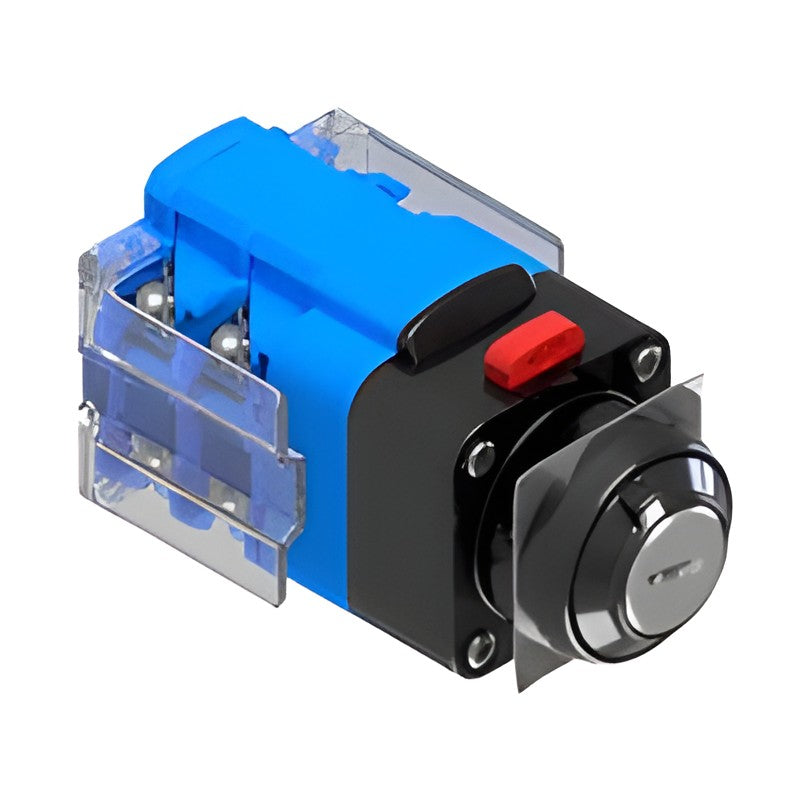

KOINO KG Panel-Integrated Cam Switches (48x48, 60x60, 60x83, 24V Lamp)

KOINO KG Panel-Integrated Cam Switches (48x48, 60x60, 60x83, 24V Lamp)

KOINO KG series panel-integrated cam switches with angled terminal blocks in 48x48, 60x60 (indicator type 6S), 60x83 and 60x80 24VDC-lamp panel sizes, UL/CE/KC certified and built to order with the customer's circuit.

Key features

  • Model code KG-[panel][lamp][action][notches][decks][serial][knob]: panel 4 = 48x48, 6 = 60x60, 6S = 60x60 indicator type, A = 60x83, 24D = 60x80 with 24VDC lamp; lamp blank = 2-color, T = 3-color (24D only)
  • Action codes: blank = manual return 45 deg, R = auto-return both sides, C = auto-return one side, CL = pull-to-turn auto-return (45 deg), 3M/6M/9M = manual return 30/60/90 deg; notches 2-12, decks 1-12 (R/C/CL max. 5 decks), circuit serial 01-99 assigned by KOINO; printed example KG-[]3210H
  • Knob shapes E (oval), R (chrysanthemum), T (triangle), S (short lever), H (long lever), P (pistol); with a P-type pistol knob on manual types confirm the knob position at notch 1 before ordering
  • KG-24D lamp: DC24V +/-10% (Class 2 input), 1W max., 20mA max. per LED, colors red/green/yellow, (-) common standard ((+) common on request); lamp terminals M3
  • Protection IP65 (KG-4, KG-6, KG-A, KG-24D/24DT, 24DTCL) and IP40 for KG-4CL / KG-6CL / KG-ACL per the catalog model table
  • Body length L = 5.2 + (n x 12.1) mm, n = number of decks; attach the circuit drawing with the order

Specifications

Rated insulation voltage / thermal current Ui 600VAC, 250VDC; Ith 15A
Contact rating 250VAC 10A (resistive)
AC-12 / AC-15 rating 125V 15A/7.5A; 250V 10A/3A; 440V 2.5A/2A
DC-12 / DC-13 rating 24V 10A/6A; 110V 2A/1A; 250V 0.8A/0.55A
Insulation / dielectric 100 MOhm min. (500VDC); 1,500VAC for 1 minute
Life Electrical 200,000 (250VAC 10A); mechanical 500,000
Ambient temperature -25 to +60C operating; minimum load 5VDC 100mA
Protection IP65
Materials Contact block UL94-V0; operator PA66; contacts Ag alloy; cam POM
Certification KC 61058-1; CE EN IEC 60947-1/-5-1; UL 60947-1/-5-1; CAN/CSA C22.2
Circuit Custom, specified on order (notches x decks x serial)
Source KOINO general catalog 5th ed., p. 41-42, 70-72, 77-80
KG-4 Mounting: 48x48 panel | Lamp: None | Action: Manual | Return: Manual (45 deg)
KG-4R Mounting: 48x48 panel | Lamp: None | Action: Auto-return both sides | Return: Auto-return (45 deg)
KG-4CL Mounting: 48x48 panel | Lamp: None | Action: Pull-to-turn, auto-return | Return: Auto-return (45 deg)
KG-6 Mounting: 60x60 panel | Lamp: None | Action: Manual | Return: Manual (45 deg)
KG-6R Mounting: 60x60 panel | Lamp: None | Action: Auto-return both sides | Return: Auto-return (45 deg)
KG-6CL Mounting: 60x60 panel | Lamp: None | Action: Pull-to-turn, auto-return | Return: Auto-return (45 deg)
KG-A Mounting: 60x83 panel | Lamp: None | Action: Manual | Return: Manual (45 deg)
KG-ACL Mounting: 60x83 panel | Lamp: None | Action: Pull-to-turn, auto-return | Return: Auto-return (45 deg)
KG-24D Mounting: 60x80 panel, 24VDC lamp | Lamp: 2-color LED (R/G) | Action: Manual | Return: Manual (45 deg)
KG-24DT Mounting: 60x80 panel, 24VDC lamp | Lamp: 3-color LED (R/G/Y) | Action: Manual | Return: Manual (45 deg)
KG-24DCL Mounting: 60x80 panel, 24VDC lamp | Lamp: 2-color LED (R/G) | Action: Pull-to-turn, auto-return | Return: Auto-return (45 deg)
KG-24DTCL Mounting: 60x80 panel, 24VDC lamp | Lamp: 3-color LED (R/G/Y) | Action: Pull-to-turn, auto-return | Return: Auto-return (45 deg)
