KOINO KRS-R30 Robust Touch Switches (dia.30, IP68)

KOINO KRS-R30 Robust Touch Switches (dia.30, IP68)

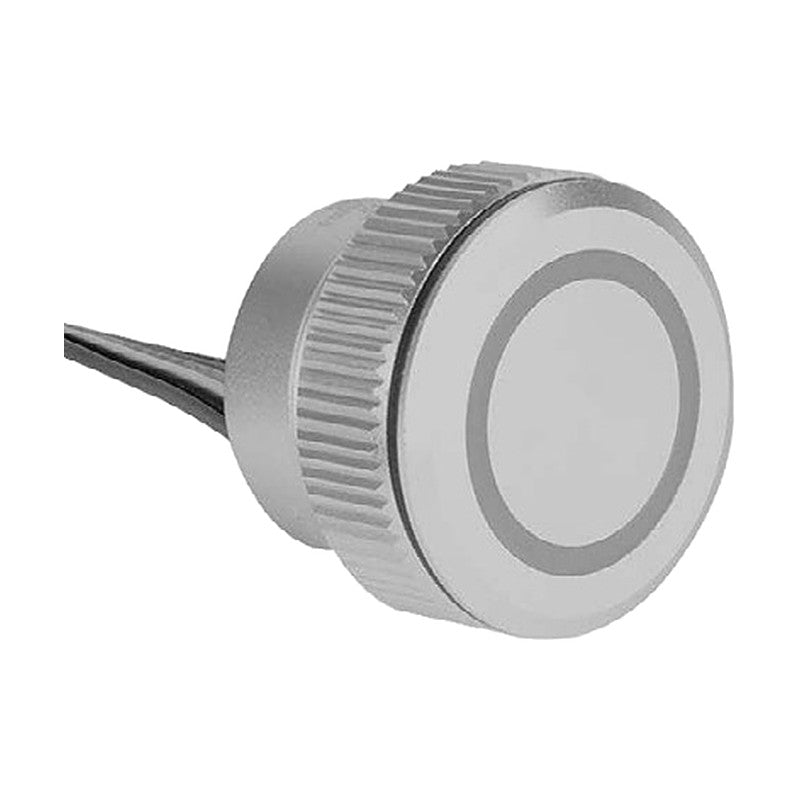

KOINO KRS-R30 robust switches are dia.30 mm flush-mount illuminated touch switches in anodized aluminium with no moving parts, IP68 protection and a life of 50 million operations or more.

Key features

  • Alternate (A), momentary NO/NC pulse (M1/M2) types with NPN open collector output 35VDC 200 mA, 24VDC supply
  • S type: self-powered one-shot pulse SPST solid-state output 24V AC/DC 100 mA, 20-350 ms, no NPN/PNP selection needed
  • High-brightness chip LED illumination in red, green or yellow (24VDC, 20 mA max.); dual-color D1-D6 versions made to order
  • Cable type (1.5 m lead, front and rear IP sealed) or connector type (front IP sealed)
  • Actuation force 2-6 N; no moving parts, 50 million operations min.
  • Non-resistor type (external LED current-limiting resistor) available to order

Specifications

Body diameter dia.30 mm
Illumination Chip LED 24VDC 20 mA max.
Actuation force 2-6 N
Life 50 million operations min.
Protection IP68
Operating temperature -20 to +75 deg C (storage -30 to +85)
Ambient humidity 35-85% RH
Insulation resistance 100 Mohm min. (500VDC)
Vibration 10-55 Hz, 1.5 mm, 2 h each axis
Shock 500 m/s2, 3 times each axis
Material Anodized aluminium
Source KOINO general catalog 5th ed., p. 638-640
KRS-R30AR Operation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Cable 1.5 m
KRS-R30ARC Operation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Connector
KRS-R30AG Operation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Cable 1.5 m
KRS-R30AGC Operation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Connector
KRS-R30AY Operation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Cable 1.5 m
KRS-R30AYC Operation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Connector
KRS-R30M1R Operation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Cable 1.5 m
KRS-R30M1RC Operation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Connector
KRS-R30M1G Operation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Cable 1.5 m
KRS-R30M1GC Operation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Connector
KRS-R30M1Y Operation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Cable 1.5 m
KRS-R30M1YC Operation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Connector
KRS-R30M2R Operation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Cable 1.5 m
KRS-R30M2RC Operation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Connector
KRS-R30M2G Operation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Cable 1.5 m
KRS-R30M2GC Operation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Connector
KRS-R30M2Y Operation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Cable 1.5 m
KRS-R30M2YC Operation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Connector
KRS-R30SR Operation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Red | Connection: Cable 1.5 m
KRS-R30SRC Operation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Red | Connection: Connector
KRS-R30SG Operation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Green | Connection: Cable 1.5 m
KRS-R30SGC Operation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Green | Connection: Connector
KRS-R30SY Operation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Yellow | Connection: Cable 1.5 m
KRS-R30SYC Operation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Yellow | Connection: Connector
Touch SwitchesKOINO
24 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KRS-R30 Robust Touch Switches (dia.30, IP68)

Brand KOINO·Touch Switches

Available part numbers (24)

KRS-R30AR, KRS-R30ARC, KRS-R30AG, KRS-R30AGC, KRS-R30AY, KRS-R30AYC, KRS-R30M1R, KRS-R30M1RC, KRS-R30M1G, KRS-R30M1GC + 14 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KRS-R30AROperation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Cable 1.5 m
KRS-R30ARCOperation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Connector
KRS-R30AGOperation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Cable 1.5 m
KRS-R30AGCOperation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Connector
KRS-R30AYOperation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Cable 1.5 m
KRS-R30AYCOperation: Alternate | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Connector
KRS-R30M1ROperation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Cable 1.5 m
KRS-R30M1RCOperation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Connector
KRS-R30M1GOperation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Cable 1.5 m
KRS-R30M1GCOperation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Connector
KRS-R30M1YOperation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Cable 1.5 m
KRS-R30M1YCOperation: Momentary NO (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Connector
KRS-R30M2ROperation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Cable 1.5 m
KRS-R30M2RCOperation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Red | Connection: Connector
KRS-R30M2GOperation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Cable 1.5 m
KRS-R30M2GCOperation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Green | Connection: Connector
KRS-R30M2YOperation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Cable 1.5 m
KRS-R30M2YCOperation: Momentary NC (pulse) | Output: NPN TR 35VDC 200 mA | Supply: 24VDC | LED color: Yellow | Connection: Connector
KRS-R30SROperation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Red | Connection: Cable 1.5 m
KRS-R30SRCOperation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Red | Connection: Connector
KRS-R30SGOperation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Green | Connection: Cable 1.5 m
KRS-R30SGCOperation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Green | Connection: Connector
KRS-R30SYOperation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Yellow | Connection: Cable 1.5 m
KRS-R30SYCOperation: Momentary pulse NO, SPST | Output: SPST solid-state 24V AC/DC 100 mA | Supply: None (self-powered) | LED color: Yellow | Connection: Connector
