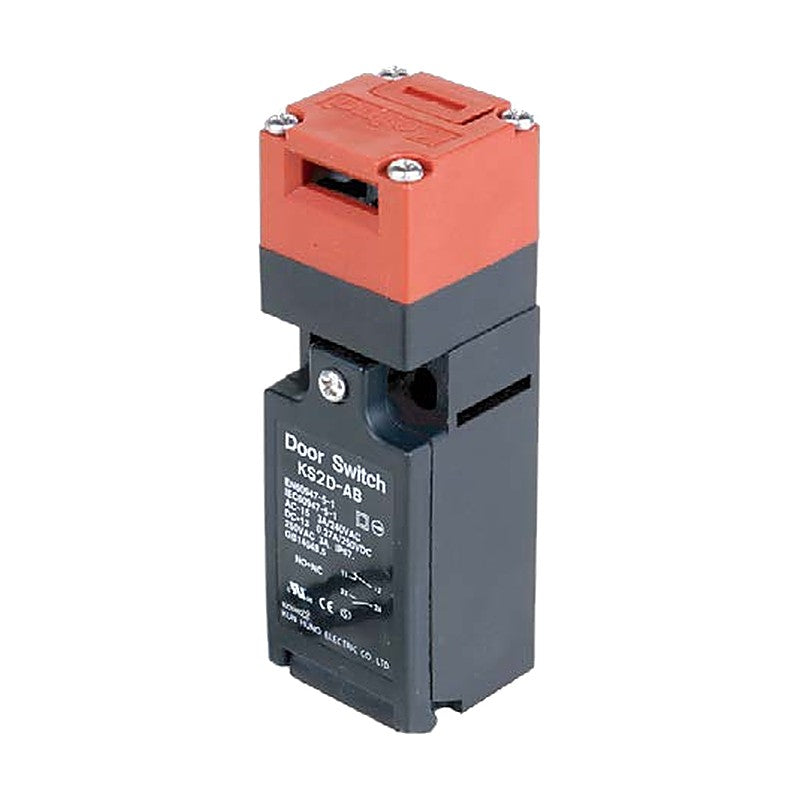

KOINO KSD Safety Door Switches (Key Actuated, IP67)

KOINO KSD Safety Door Switches (Key Actuated, IP67)

KOINO KSD series key-actuated safety door switch for guard doors, with a head that rotates for 5-way key insertion, direct-opening NC contacts and IP67 body protection.

Key features

  • Separate actuator key inserted into the switch head; head angle adjustable for 5 key entry directions
  • Contact configurations 1NC+1NO (AB), 2NC (2B), 1NC (B) and 1NO (A); type A has no direct-opening action
  • Horizontal (H), vertical (V) or adjustable (C) actuator key supplied with the switch
  • Head-separation detection: mismatched NC circuits (11-12 / 21-22) reveal a broken or removed head
  • IP67 body (with cable gland, PG13.5), IP00 actuator; double-insulated Class II, pollution degree 3
  • UL 508, CSA C22.2 No.14, CE (EN ISO 14119, EN ISO 13849-2, EN 60204-1, EN 60947-5-1), S-mark, CCC

Specifications

Series KSD
Contact rating 250VAC 3A, 250VDC 0.27A (AC-15 / DC-13)
Rated insulation voltage 500V
Direct opening force / travel 60N min. / 10 mm min.
Key insertion / extraction force 15N max. / 30N max.
Mechanical / electrical life 1,000,000 / 300,000 operations
Operating frequency 30 operations/min
Ambient temperature -30 to +70 C (no freezing)
Shock / vibration 30G / 10-55Hz 1.5 mm double amplitude
Protection IP67 body, IP00 actuator
Thermal current Ith 10A
Source KOINO general catalog 5th ed., p. 128-131
KSD-ABH Contact configuration: 1NC + 1NO | Direct opening: Yes | Actuator key: Horizontal (H)
KSD-ABV Contact configuration: 1NC + 1NO | Direct opening: Yes | Actuator key: Vertical (V)
KSD-ABC Contact configuration: 1NC + 1NO | Direct opening: Yes | Actuator key: Adjustable (C)
KSD-2BH Contact configuration: 2NC | Direct opening: Yes | Actuator key: Horizontal (H)
KSD-2BV Contact configuration: 2NC | Direct opening: Yes | Actuator key: Vertical (V)
KSD-2BC Contact configuration: 2NC | Direct opening: Yes | Actuator key: Adjustable (C)
KSD-AH Contact configuration: 1NO | Direct opening: No | Actuator key: Horizontal (H)
KSD-AV Contact configuration: 1NO | Direct opening: No | Actuator key: Vertical (V)
KSD-AC Contact configuration: 1NO | Direct opening: No | Actuator key: Adjustable (C)
KSD-BH Contact configuration: 1NC | Direct opening: Yes | Actuator key: Horizontal (H)
KSD-BV Contact configuration: 1NC | Direct opening: Yes | Actuator key: Vertical (V)
KSD-BC Contact configuration: 1NC | Direct opening: Yes | Actuator key: Adjustable (C)
Door SwitchesKOINO
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KSD Safety Door Switches (Key Actuated, IP67)

Brand KOINO·Door Switches

Available part numbers (12)

KSD-ABH, KSD-ABV, KSD-ABC, KSD-2BH, KSD-2BV, KSD-2BC, KSD-AH, KSD-AV, KSD-AC, KSD-BH + 2 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KSD-ABHContact configuration: 1NC + 1NO | Direct opening: Yes | Actuator key: Horizontal (H)
KSD-ABVContact configuration: 1NC + 1NO | Direct opening: Yes | Actuator key: Vertical (V)
KSD-ABCContact configuration: 1NC + 1NO | Direct opening: Yes | Actuator key: Adjustable (C)
KSD-2BHContact configuration: 2NC | Direct opening: Yes | Actuator key: Horizontal (H)
KSD-2BVContact configuration: 2NC | Direct opening: Yes | Actuator key: Vertical (V)
KSD-2BCContact configuration: 2NC | Direct opening: Yes | Actuator key: Adjustable (C)
KSD-AHContact configuration: 1NO | Direct opening: No | Actuator key: Horizontal (H)
KSD-AVContact configuration: 1NO | Direct opening: No | Actuator key: Vertical (V)
KSD-ACContact configuration: 1NO | Direct opening: No | Actuator key: Adjustable (C)
KSD-BHContact configuration: 1NC | Direct opening: Yes | Actuator key: Horizontal (H)
KSD-BVContact configuration: 1NC | Direct opening: Yes | Actuator key: Vertical (V)
KSD-BCContact configuration: 1NC | Direct opening: Yes | Actuator key: Adjustable (C)
