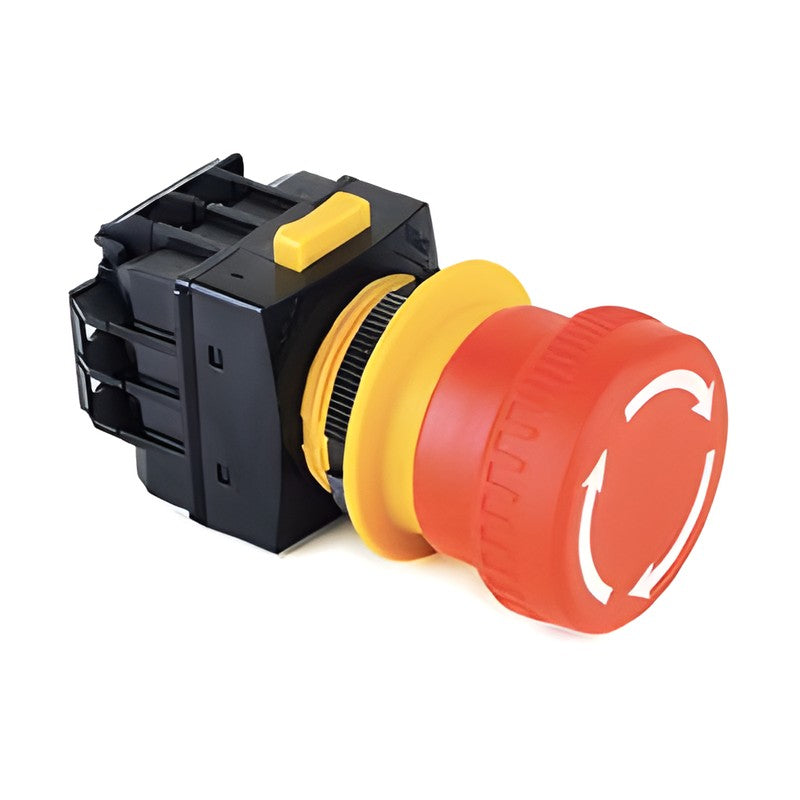

KOINO KSE Emergency Stop Switches (22/25/30 mm, Push-Lock Turn-Reset)

KOINO KSE series emergency stop switch for 22, 25 or 30 mm panel holes with 40 or 60 mm mushroom button, non-illuminated (KSEP) or illuminated (KSEB), direct-opening contacts and up to 4 circuits.

Key features

Push-lock, turn-to-reset (or pull-to-reset) operation; minimum operating force 49N, travel 3.8-4.5 mm
Up to 2 NO and 4 NC contact blocks (max. 4 circuits); NO/NC contacts with direct opening (forced separation)
Illuminated KSEB with lamp input DC 6V / 12V / 24V or AC 110V / 220V on dedicated terminals
Mounting hole 22, 25 or 30 mm, panel thickness up to 5 mm; IP65 front panel, IP20 screw terminals (M3 x 6.5)
Optional EMO / EMS marked buttons (sound on operation); protective covers, label rings and enclosure boxes ordered separately
UL 508, CSA C22.2 No.14, IEC 60947-5-5, CE (EN ISO 13850, EN ISO 13849-2, EN 60204-1, EN 60947-5-1/5-5), S-mark

Specifications

Series	KSE
Contact rating	250VAC 3A (resistive)
Dielectric strength	2,500VAC 1 min (same-pole terminals)
Mechanical / electrical life	250,000 / 100,000 operations (15 operations/min)
Operating frequency	900 operations/hour
Shock	100G durability, 15G malfunction
Ambient temperature	-25 to +50 C (no freezing)
Protection	IP65 front, IP20 terminals
Body depth	81 mm (behind panel 41 mm square terminal block)
Source	KOINO general catalog 5th ed., p. 158-163

KSEP-22401		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NC
KSEP-22402		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NC
KSEP-22403		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 3NC
KSEP-22404		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 4NC
KSEP-22411		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
KSEP-22412		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
KSEP-22413		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
KSEP-22421		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
KSEP-22422		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
KSEB-2241C01		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
KSEB-2241C02		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
KSEB-2241C03		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
KSEB-2241C04		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
KSEB-2241C11		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
KSEB-2241C12		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
KSEB-2241C13		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
KSEB-2241C21		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
KSEB-2241C22		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
KSEB-2242C01		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
KSEB-2242C02		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
KSEB-2242C03		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
KSEB-2242C04		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
KSEB-2242C11		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
KSEB-2242C12		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
KSEB-2242C13		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
KSEB-2242C21		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
KSEB-2242C22		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
KSEB-2243C01		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
KSEB-2243C02		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
KSEB-2243C03		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
KSEB-2243C04		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
KSEB-2243C11		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
KSEB-2243C12		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
KSEB-2243C13		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
KSEB-2243C21		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
KSEB-2243C22		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
KSEB-2241A01		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
KSEB-2241A02		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
KSEB-2241A03		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
KSEB-2241A04		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
KSEB-2241A11		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
KSEB-2241A12		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
KSEB-2241A13		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
KSEB-2241A21		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
KSEB-2241A22		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
KSEB-2242A01		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
KSEB-2242A02		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
KSEB-2242A03		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
KSEB-2242A04		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
KSEB-2242A11		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
KSEB-2242A12		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
KSEB-2242A13		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
KSEB-2242A21		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
KSEB-2242A22		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC
KSEP-22601		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NC
KSEP-22602		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NC
KSEP-22603		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 3NC
KSEP-22604		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 4NC
KSEP-22611		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
KSEP-22612		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
KSEP-22613		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
KSEP-22621		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
KSEP-22622		Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
KSEB-2261C01		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
KSEB-2261C02		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
KSEB-2261C03		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
KSEB-2261C04		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
KSEB-2261C11		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
KSEB-2261C12		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
KSEB-2261C13		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
KSEB-2261C21		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
KSEB-2261C22		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
KSEB-2262C01		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
KSEB-2262C02		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
KSEB-2262C03		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
KSEB-2262C04		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
KSEB-2262C11		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
KSEB-2262C12		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
KSEB-2262C13		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
KSEB-2262C21		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
KSEB-2262C22		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
KSEB-2263C01		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
KSEB-2263C02		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
KSEB-2263C03		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
KSEB-2263C04		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
KSEB-2263C11		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
KSEB-2263C12		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
KSEB-2263C13		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
KSEB-2263C21		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
KSEB-2263C22		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
KSEB-2261A01		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
KSEB-2261A02		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
KSEB-2261A03		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
KSEB-2261A04		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
KSEB-2261A11		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
KSEB-2261A12		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
KSEB-2261A13		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
KSEB-2261A21		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
KSEB-2261A22		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
KSEB-2262A01		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
KSEB-2262A02		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
KSEB-2262A03		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
KSEB-2262A04		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
KSEB-2262A11		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
KSEB-2262A12		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
KSEB-2262A13		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
KSEB-2262A21		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
KSEB-2262A22		Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC
KSEP-25401		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NC
KSEP-25402		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NC
KSEP-25403		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 3NC
KSEP-25404		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 4NC
KSEP-25411		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
KSEP-25412		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
KSEP-25413		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
KSEP-25421		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
KSEP-25422		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
KSEB-2541C01		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
KSEB-2541C02		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
KSEB-2541C03		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
KSEB-2541C04		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
KSEB-2541C11		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
KSEB-2541C12		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
KSEB-2541C13		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
KSEB-2541C21		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
KSEB-2541C22		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
KSEB-2542C01		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
KSEB-2542C02		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
KSEB-2542C03		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
KSEB-2542C04		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
KSEB-2542C11		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
KSEB-2542C12		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
KSEB-2542C13		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
KSEB-2542C21		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
KSEB-2542C22		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
KSEB-2543C01		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
KSEB-2543C02		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
KSEB-2543C03		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
KSEB-2543C04		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
KSEB-2543C11		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
KSEB-2543C12		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
KSEB-2543C13		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
KSEB-2543C21		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
KSEB-2543C22		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
KSEB-2541A01		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
KSEB-2541A02		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
KSEB-2541A03		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
KSEB-2541A04		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
KSEB-2541A11		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
KSEB-2541A12		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
KSEB-2541A13		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
KSEB-2541A21		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
KSEB-2541A22		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
KSEB-2542A01		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
KSEB-2542A02		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
KSEB-2542A03		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
KSEB-2542A04		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
KSEB-2542A11		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
KSEB-2542A12		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
KSEB-2542A13		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
KSEB-2542A21		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
KSEB-2542A22		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC
KSEP-25601		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NC
KSEP-25602		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NC
KSEP-25603		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 3NC
KSEP-25604		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 4NC
KSEP-25611		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
KSEP-25612		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
KSEP-25613		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
KSEP-25621		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
KSEP-25622		Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
KSEB-2561C01		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
KSEB-2561C02		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
KSEB-2561C03		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
KSEB-2561C04		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
KSEB-2561C11		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
KSEB-2561C12		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
KSEB-2561C13		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
KSEB-2561C21		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
KSEB-2561C22		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
KSEB-2562C01		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
KSEB-2562C02		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
KSEB-2562C03		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
KSEB-2562C04		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
KSEB-2562C11		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
KSEB-2562C12		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
KSEB-2562C13		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
KSEB-2562C21		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
KSEB-2562C22		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
KSEB-2563C01		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
KSEB-2563C02		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
KSEB-2563C03		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
KSEB-2563C04		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
KSEB-2563C11		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
KSEB-2563C12		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
KSEB-2563C13		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
KSEB-2563C21		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
KSEB-2563C22		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
KSEB-2561A01		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
KSEB-2561A02		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
KSEB-2561A03		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
KSEB-2561A04		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
KSEB-2561A11		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
KSEB-2561A12		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
KSEB-2561A13		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
KSEB-2561A21		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
KSEB-2561A22		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
KSEB-2562A01		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
KSEB-2562A02		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
KSEB-2562A03		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
KSEB-2562A04		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
KSEB-2562A11		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
KSEB-2562A12		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
KSEB-2562A13		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
KSEB-2562A21		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
KSEB-2562A22		Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC
KSEP-30401		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NC
KSEP-30402		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NC
KSEP-30403		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 3NC
KSEP-30404		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 4NC
KSEP-30411		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
KSEP-30412		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
KSEP-30413		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
KSEP-30421		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
KSEP-30422		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
KSEB-3041C01		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
KSEB-3041C02		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
KSEB-3041C03		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
KSEB-3041C04		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
KSEB-3041C11		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
KSEB-3041C12		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
KSEB-3041C13		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
KSEB-3041C21		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
KSEB-3041C22		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
KSEB-3042C01		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
KSEB-3042C02		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
KSEB-3042C03		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
KSEB-3042C04		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
KSEB-3042C11		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
KSEB-3042C12		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
KSEB-3042C13		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
KSEB-3042C21		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
KSEB-3042C22		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
KSEB-3043C01		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
KSEB-3043C02		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
KSEB-3043C03		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
KSEB-3043C04		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
KSEB-3043C11		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
KSEB-3043C12		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
KSEB-3043C13		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
KSEB-3043C21		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
KSEB-3043C22		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
KSEB-3041A01		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
KSEB-3041A02		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
KSEB-3041A03		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
KSEB-3041A04		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
KSEB-3041A11		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
KSEB-3041A12		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
KSEB-3041A13		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
KSEB-3041A21		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
KSEB-3041A22		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
KSEB-3042A01		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
KSEB-3042A02		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
KSEB-3042A03		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
KSEB-3042A04		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
KSEB-3042A11		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
KSEB-3042A12		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
KSEB-3042A13		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
KSEB-3042A21		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
KSEB-3042A22		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC
KSEP-30601		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NC
KSEP-30602		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NC
KSEP-30603		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 3NC
KSEP-30604		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 4NC
KSEP-30611		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
KSEP-30612		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
KSEP-30613		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
KSEP-30621		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
KSEP-30622		Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
KSEB-3061C01		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
KSEB-3061C02		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
KSEB-3061C03		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
KSEB-3061C04		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
KSEB-3061C11		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
KSEB-3061C12		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
KSEB-3061C13		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
KSEB-3061C21		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
KSEB-3061C22		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
KSEB-3062C01		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
KSEB-3062C02		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
KSEB-3062C03		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
KSEB-3062C04		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
KSEB-3062C11		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
KSEB-3062C12		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
KSEB-3062C13		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
KSEB-3062C21		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
KSEB-3062C22		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
KSEB-3063C01		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
KSEB-3063C02		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
KSEB-3063C03		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
KSEB-3063C04		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
KSEB-3063C11		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
KSEB-3063C12		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
KSEB-3063C13		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
KSEB-3063C21		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
KSEB-3063C22		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
KSEB-3061A01		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
KSEB-3061A02		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
KSEB-3061A03		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
KSEB-3061A04		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
KSEB-3061A11		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
KSEB-3061A12		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
KSEB-3061A13		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
KSEB-3061A21		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
KSEB-3061A22		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
KSEB-3062A01		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
KSEB-3062A02		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
KSEB-3062A03		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
KSEB-3062A04		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
KSEB-3062A11		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
KSEB-3062A12		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
KSEB-3062A13		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
KSEB-3062A21		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
KSEB-3062A22		Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC

Emergency Stop SwitchesKOINO

324 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KSE Emergency Stop Switches (22/25/30 mm, Push-Lock Turn-Reset)

Brand KOINO·Emergency Stop Switches

Available part numbers (324)

KSEP-22401, KSEP-22402, KSEP-22403, KSEP-22404, KSEP-22411, KSEP-22412, KSEP-22413, KSEP-22421, KSEP-22422, KSEB-2241C01 + 314 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	KSEP-22401	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NC
	KSEP-22402	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NC
	KSEP-22403	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 3NC
	KSEP-22404	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 4NC
	KSEP-22411	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
	KSEP-22412	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
	KSEP-22413	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
	KSEP-22421	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
	KSEP-22422	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
	KSEB-2241C01	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
	KSEB-2241C02	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
	KSEB-2241C03	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
	KSEB-2241C04	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
	KSEB-2241C11	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
	KSEB-2241C12	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
	KSEB-2241C13	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
	KSEB-2241C21	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
	KSEB-2241C22	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
	KSEB-2242C01	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
	KSEB-2242C02	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
	KSEB-2242C03	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
	KSEB-2242C04	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
	KSEB-2242C11	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
	KSEB-2242C12	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
	KSEB-2242C13	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
	KSEB-2242C21	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
	KSEB-2242C22	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
	KSEB-2243C01	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
	KSEB-2243C02	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
	KSEB-2243C03	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
	KSEB-2243C04	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
	KSEB-2243C11	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
	KSEB-2243C12	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
	KSEB-2243C13	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
	KSEB-2243C21	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
	KSEB-2243C22	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
	KSEB-2241A01	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
	KSEB-2241A02	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
	KSEB-2241A03	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
	KSEB-2241A04	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
	KSEB-2241A11	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
	KSEB-2241A12	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
	KSEB-2241A13	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
	KSEB-2241A21	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
	KSEB-2241A22	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
	KSEB-2242A01	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
	KSEB-2242A02	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
	KSEB-2242A03	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
	KSEB-2242A04	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
	KSEB-2242A11	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
	KSEB-2242A12	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
	KSEB-2242A13	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
	KSEB-2242A21	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
	KSEB-2242A22	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC
	KSEP-22601	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NC
	KSEP-22602	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NC
	KSEP-22603	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 3NC
	KSEP-22604	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 4NC
	KSEP-22611	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
	KSEP-22612	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
	KSEP-22613	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
	KSEP-22621	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
	KSEP-22622	Illumination: Non-illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
	KSEB-2261C01	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
	KSEB-2261C02	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
	KSEB-2261C03	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
	KSEB-2261C04	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
	KSEB-2261C11	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
	KSEB-2261C12	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
	KSEB-2261C13	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
	KSEB-2261C21	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
	KSEB-2261C22	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
	KSEB-2262C01	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
	KSEB-2262C02	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
	KSEB-2262C03	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
	KSEB-2262C04	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
	KSEB-2262C11	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
	KSEB-2262C12	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
	KSEB-2262C13	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
	KSEB-2262C21	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
	KSEB-2262C22	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
	KSEB-2263C01	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
	KSEB-2263C02	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
	KSEB-2263C03	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
	KSEB-2263C04	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
	KSEB-2263C11	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
	KSEB-2263C12	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
	KSEB-2263C13	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
	KSEB-2263C21	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
	KSEB-2263C22	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
	KSEB-2261A01	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
	KSEB-2261A02	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
	KSEB-2261A03	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
	KSEB-2261A04	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
	KSEB-2261A11	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
	KSEB-2261A12	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
	KSEB-2261A13	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
	KSEB-2261A21	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
	KSEB-2261A22	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
	KSEB-2262A01	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
	KSEB-2262A02	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
	KSEB-2262A03	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
	KSEB-2262A04	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
	KSEB-2262A11	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
	KSEB-2262A12	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
	KSEB-2262A13	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
	KSEB-2262A21	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
	KSEB-2262A22	Illumination: Illuminated \| Mounting hole: 22 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC
	KSEP-25401	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NC
	KSEP-25402	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NC
	KSEP-25403	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 3NC
	KSEP-25404	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 4NC
	KSEP-25411	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
	KSEP-25412	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
	KSEP-25413	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
	KSEP-25421	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
	KSEP-25422	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
	KSEB-2541C01	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
	KSEB-2541C02	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
	KSEB-2541C03	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
	KSEB-2541C04	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
	KSEB-2541C11	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
	KSEB-2541C12	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
	KSEB-2541C13	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
	KSEB-2541C21	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
	KSEB-2541C22	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
	KSEB-2542C01	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
	KSEB-2542C02	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
	KSEB-2542C03	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
	KSEB-2542C04	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
	KSEB-2542C11	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
	KSEB-2542C12	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
	KSEB-2542C13	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
	KSEB-2542C21	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
	KSEB-2542C22	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
	KSEB-2543C01	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
	KSEB-2543C02	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
	KSEB-2543C03	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
	KSEB-2543C04	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
	KSEB-2543C11	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
	KSEB-2543C12	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
	KSEB-2543C13	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
	KSEB-2543C21	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
	KSEB-2543C22	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
	KSEB-2541A01	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
	KSEB-2541A02	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
	KSEB-2541A03	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
	KSEB-2541A04	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
	KSEB-2541A11	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
	KSEB-2541A12	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
	KSEB-2541A13	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
	KSEB-2541A21	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
	KSEB-2541A22	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
	KSEB-2542A01	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
	KSEB-2542A02	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
	KSEB-2542A03	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
	KSEB-2542A04	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
	KSEB-2542A11	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
	KSEB-2542A12	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
	KSEB-2542A13	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
	KSEB-2542A21	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
	KSEB-2542A22	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC
	KSEP-25601	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NC
	KSEP-25602	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NC
	KSEP-25603	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 3NC
	KSEP-25604	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 4NC
	KSEP-25611	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
	KSEP-25612	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
	KSEP-25613	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
	KSEP-25621	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
	KSEP-25622	Illumination: Non-illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
	KSEB-2561C01	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
	KSEB-2561C02	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
	KSEB-2561C03	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
	KSEB-2561C04	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
	KSEB-2561C11	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
	KSEB-2561C12	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
	KSEB-2561C13	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
	KSEB-2561C21	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
	KSEB-2561C22	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
	KSEB-2562C01	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
	KSEB-2562C02	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
	KSEB-2562C03	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
	KSEB-2562C04	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
	KSEB-2562C11	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
	KSEB-2562C12	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
	KSEB-2562C13	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
	KSEB-2562C21	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
	KSEB-2562C22	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
	KSEB-2563C01	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
	KSEB-2563C02	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
	KSEB-2563C03	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
	KSEB-2563C04	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
	KSEB-2563C11	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
	KSEB-2563C12	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
	KSEB-2563C13	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
	KSEB-2563C21	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
	KSEB-2563C22	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
	KSEB-2561A01	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
	KSEB-2561A02	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
	KSEB-2561A03	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
	KSEB-2561A04	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
	KSEB-2561A11	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
	KSEB-2561A12	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
	KSEB-2561A13	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
	KSEB-2561A21	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
	KSEB-2561A22	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
	KSEB-2562A01	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
	KSEB-2562A02	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
	KSEB-2562A03	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
	KSEB-2562A04	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
	KSEB-2562A11	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
	KSEB-2562A12	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
	KSEB-2562A13	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
	KSEB-2562A21	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
	KSEB-2562A22	Illumination: Illuminated \| Mounting hole: 25 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC
	KSEP-30401	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NC
	KSEP-30402	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NC
	KSEP-30403	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 3NC
	KSEP-30404	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 4NC
	KSEP-30411	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
	KSEP-30412	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
	KSEP-30413	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
	KSEP-30421	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
	KSEP-30422	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
	KSEB-3041C01	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
	KSEB-3041C02	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
	KSEB-3041C03	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
	KSEB-3041C04	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
	KSEB-3041C11	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
	KSEB-3041C12	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
	KSEB-3041C13	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
	KSEB-3041C21	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
	KSEB-3041C22	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
	KSEB-3042C01	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
	KSEB-3042C02	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
	KSEB-3042C03	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
	KSEB-3042C04	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
	KSEB-3042C11	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
	KSEB-3042C12	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
	KSEB-3042C13	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
	KSEB-3042C21	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
	KSEB-3042C22	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
	KSEB-3043C01	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
	KSEB-3043C02	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
	KSEB-3043C03	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
	KSEB-3043C04	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
	KSEB-3043C11	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
	KSEB-3043C12	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
	KSEB-3043C13	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
	KSEB-3043C21	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
	KSEB-3043C22	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
	KSEB-3041A01	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
	KSEB-3041A02	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
	KSEB-3041A03	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
	KSEB-3041A04	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
	KSEB-3041A11	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
	KSEB-3041A12	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
	KSEB-3041A13	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
	KSEB-3041A21	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
	KSEB-3041A22	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
	KSEB-3042A01	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
	KSEB-3042A02	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
	KSEB-3042A03	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
	KSEB-3042A04	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
	KSEB-3042A11	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
	KSEB-3042A12	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
	KSEB-3042A13	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
	KSEB-3042A21	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
	KSEB-3042A22	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 40 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC
	KSEP-30601	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NC
	KSEP-30602	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NC
	KSEP-30603	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 3NC
	KSEP-30604	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 4NC
	KSEP-30611	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 1NC
	KSEP-30612	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 2NC
	KSEP-30613	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 1NO + 3NC
	KSEP-30621	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 1NC
	KSEP-30622	Illumination: Non-illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: None \| Contacts: 2NO + 2NC
	KSEB-3061C01	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NC
	KSEB-3061C02	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NC
	KSEB-3061C03	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 3NC
	KSEB-3061C04	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 4NC
	KSEB-3061C11	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 1NC
	KSEB-3061C12	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 2NC
	KSEB-3061C13	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 1NO + 3NC
	KSEB-3061C21	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 1NC
	KSEB-3061C22	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 6V \| Contacts: 2NO + 2NC
	KSEB-3062C01	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NC
	KSEB-3062C02	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NC
	KSEB-3062C03	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 3NC
	KSEB-3062C04	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 4NC
	KSEB-3062C11	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 1NC
	KSEB-3062C12	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 2NC
	KSEB-3062C13	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 1NO + 3NC
	KSEB-3062C21	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 1NC
	KSEB-3062C22	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 12V \| Contacts: 2NO + 2NC
	KSEB-3063C01	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NC
	KSEB-3063C02	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NC
	KSEB-3063C03	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 3NC
	KSEB-3063C04	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 4NC
	KSEB-3063C11	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 1NC
	KSEB-3063C12	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 2NC
	KSEB-3063C13	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 1NO + 3NC
	KSEB-3063C21	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 1NC
	KSEB-3063C22	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: DC 24V \| Contacts: 2NO + 2NC
	KSEB-3061A01	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NC
	KSEB-3061A02	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NC
	KSEB-3061A03	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 3NC
	KSEB-3061A04	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 4NC
	KSEB-3061A11	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 1NC
	KSEB-3061A12	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 2NC
	KSEB-3061A13	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 1NO + 3NC
	KSEB-3061A21	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 1NC
	KSEB-3061A22	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 110V \| Contacts: 2NO + 2NC
	KSEB-3062A01	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NC
	KSEB-3062A02	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NC
	KSEB-3062A03	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 3NC
	KSEB-3062A04	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 4NC
	KSEB-3062A11	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 1NC
	KSEB-3062A12	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 2NC
	KSEB-3062A13	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 1NO + 3NC
	KSEB-3062A21	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 1NC
	KSEB-3062A22	Illumination: Illuminated \| Mounting hole: 30 mm \| Button: 60 mm \| Lamp voltage: AC 220V \| Contacts: 2NO + 2NC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →

Item added to your cart

KOINO KSE Emergency Stop Switches (22/25/30 mm, Push-Lock Turn-Reset)
