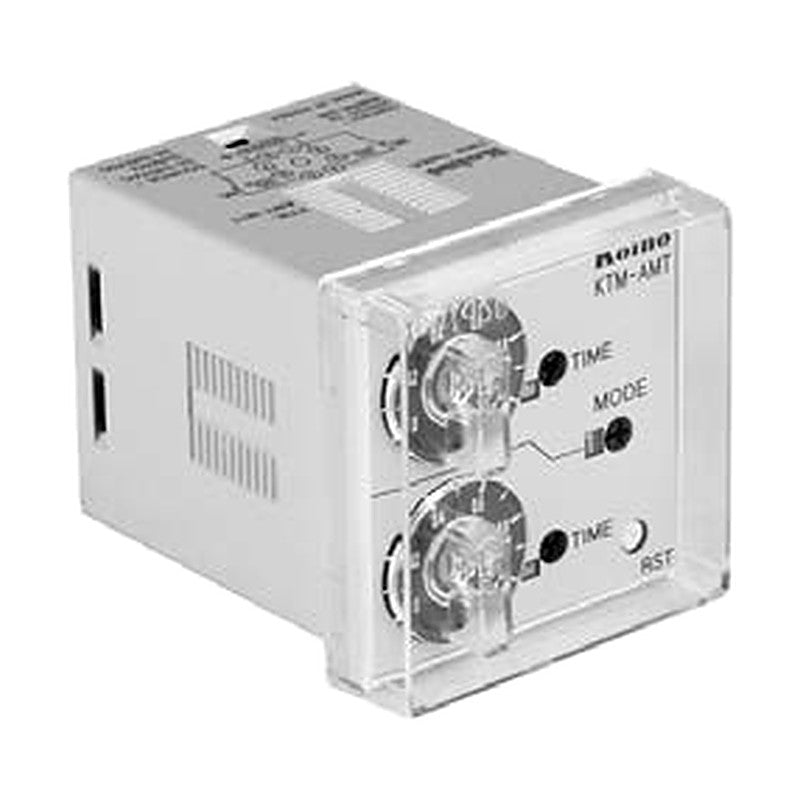

KOINO KTM-AMT Twin Timers (ON/OFF Flicker, 0.1 s-60 h)

KOINO KTM-AMT Twin Timers (ON/OFF Flicker, 0.1 s-60 h)

KOINO KTM-AMT twin timer with independently set ON and OFF times (0.1 s to 60 h per range), 24-240VAC/DC free power and 8-pin plug-in base, in 6-mode (M) and single-mode (C) versions.

Key features

  • One timer provides continuous ON/OFF cycling with separate ON-time and OFF-time knobs
  • KTM-AMT-M: 6 operation modes (ON start flicker 1/2/3, OFF start flicker 1/2/3) giving timed 2C, instant 1C + timed 1C, or separate ON/OFF timed 1C outputs
  • KTM-AMT-C: single mode, timed 1C ON-start flicker output
  • ON and OFF time ranges ordered as range 1, 3 or 6; each range covers S/10S/M/10M/H/10H units (e.g. range 1 = 1 s to 10 h max.)
  • Free power 24-240VAC 50/60Hz and 24-240VDC; relay 250VAC 5A resistive; LED operation and output indicators
  • Front RST button for power on/off; mates with KOINO 8-pin sockets (ordered separately)

Specifications

Control time range 0.1 s to 60 h (depends on ordered range)
Supply voltage 24-240VAC 50/60Hz, 24-240VDC
Voltage tolerance 90-110% of rated
Power consumption DC 1.5W max. / AC 2.5VA max.
Output rating 250VAC 5A resistive
Reset time 100 ms min.
Operating temperature -10 to +55 C (no freezing), 35-85% RH
Housing ABS, ivory; approx. 110 g
Source KOINO general catalog 5th ed., p. 558-580
KTM-AMTM11 Mode type: M, 6 selectable output modes | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTM13 Mode type: M, 6 selectable output modes | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTM16 Mode type: M, 6 selectable output modes | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
KTM-AMTM31 Mode type: M, 6 selectable output modes | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTM33 Mode type: M, 6 selectable output modes | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTM36 Mode type: M, 6 selectable output modes | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
KTM-AMTM61 Mode type: M, 6 selectable output modes | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTM63 Mode type: M, 6 selectable output modes | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTM66 Mode type: M, 6 selectable output modes | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
KTM-AMTC11 Mode type: C, single mode timed 1C ON-start | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTC13 Mode type: C, single mode timed 1C ON-start | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTC16 Mode type: C, single mode timed 1C ON-start | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
KTM-AMTC31 Mode type: C, single mode timed 1C ON-start | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTC33 Mode type: C, single mode timed 1C ON-start | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTC36 Mode type: C, single mode timed 1C ON-start | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
KTM-AMTC61 Mode type: C, single mode timed 1C ON-start | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTC63 Mode type: C, single mode timed 1C ON-start | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTC66 Mode type: C, single mode timed 1C ON-start | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
TimersKOINO
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO KTM-AMT Twin Timers (ON/OFF Flicker, 0.1 s-60 h)

Brand KOINO·Timers

Available part numbers (18)

KTM-AMTM11, KTM-AMTM13, KTM-AMTM16, KTM-AMTM31, KTM-AMTM33, KTM-AMTM36, KTM-AMTM61, KTM-AMTM63, KTM-AMTM66, KTM-AMTC11 + 8 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
KTM-AMTM11Mode type: M, 6 selectable output modes | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTM13Mode type: M, 6 selectable output modes | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTM16Mode type: M, 6 selectable output modes | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
KTM-AMTM31Mode type: M, 6 selectable output modes | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTM33Mode type: M, 6 selectable output modes | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTM36Mode type: M, 6 selectable output modes | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
KTM-AMTM61Mode type: M, 6 selectable output modes | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTM63Mode type: M, 6 selectable output modes | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTM66Mode type: M, 6 selectable output modes | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
KTM-AMTC11Mode type: C, single mode timed 1C ON-start | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTC13Mode type: C, single mode timed 1C ON-start | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTC16Mode type: C, single mode timed 1C ON-start | ON time range: Range 1, 0.1 s to 10 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
KTM-AMTC31Mode type: C, single mode timed 1C ON-start | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTC33Mode type: C, single mode timed 1C ON-start | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTC36Mode type: C, single mode timed 1C ON-start | ON time range: Range 3, 0.1 s to 30 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
KTM-AMTC61Mode type: C, single mode timed 1C ON-start | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 1, 0.1 s to 10 h max.
KTM-AMTC63Mode type: C, single mode timed 1C ON-start | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 3, 0.1 s to 30 h max.
KTM-AMTC66Mode type: C, single mode timed 1C ON-start | ON time range: Range 6, 0.1 s to 60 h max. | OFF time range: Range 6, 0.1 s to 60 h max.
