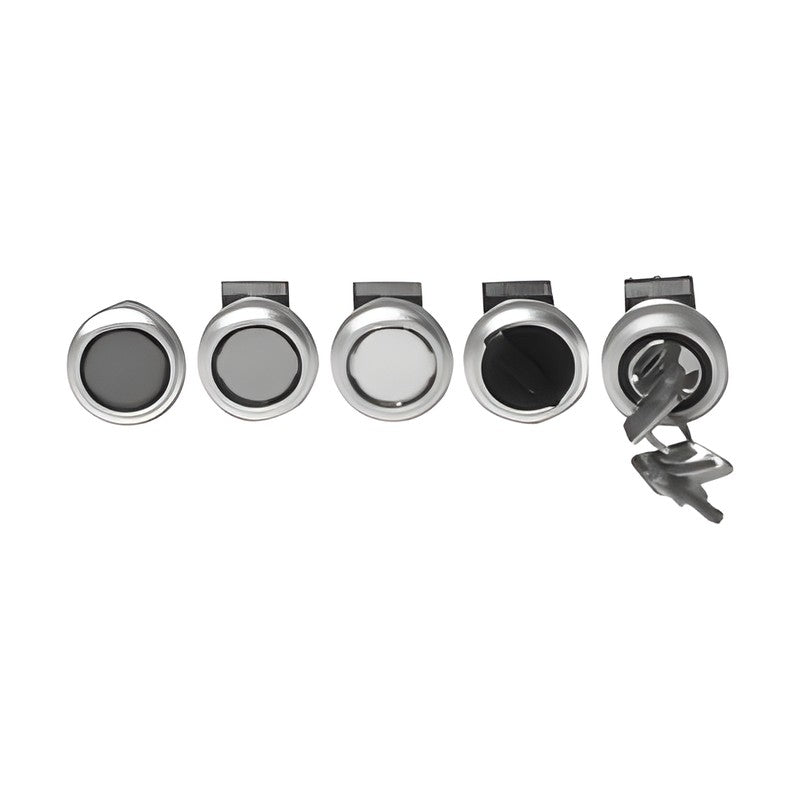

KOINO NF22 Flush-Mount Switches and Pilot Lamps (22 mm, Al Guard)

KOINO NF22 Flush-Mount Switches and Pilot Lamps (22 mm, Al Guard)

KOINO NF22 series 22 mm flush-mount (2 mm panel projection) control components with aluminium front guard: pilot lamps, non-illuminated and illuminated push buttons, selector, illuminated selector and key selector switches.

Key features

  • Aluminium front guard, projects 2 mm or less from the panel for a low-profile layout
  • Product types: L pilot lamp, P push button, B illuminated push button, S selector (illuminated or not), K key selector
  • Push operators momentary (M) or push-lock push-release (A); selectors 2-position, 3-position or 3-position spring return (A3)
  • Lamp voltages 6V (1C), 12V (2C), 24V (3C); lens/button colors red, green, yellow, white, blue, black and orange
  • Contact block 1C (one changeover) or 2C (two changeover); solder terminals, wiring socket recommended
  • KC, UL/cUL (UL 508, CAN/CSA C22.2 No.14-05) and CE (EN 60947-5-1, EN 60825-1) approved

Specifications

Mounting hole 22 mm
Contact rating 250V AC 3A (resistive)
Insulation resistance 100 MOhm min. (500V DC megger)
Contact resistance 30 mOhm max. (initial)
Dielectric strength 1,000V AC 50/60Hz for 1 min
Vibration 10-55 Hz, 1.5 mm amplitude, X/Y/Z 1 h each
Shock Approx. 10G (100 m/s2)
Ambient conditions -25 to +55 C, 45-85% RH
Operating frequency 30 operations/min
Electrical life 100,000 operations min.
Mechanical life 1,000,000 (momentary), 200,000 (push-lock), 100,000 (selector)
Protection IP40
Approvals KC, UL/cUL, CE
Source KOINO general catalog 5th ed., p. 307-310
NF22-L1CR Type: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Red | Contacts: -
NF22-L1CG Type: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Green | Contacts: -
NF22-L1CY Type: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Yellow | Contacts: -
NF22-L1CW Type: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: White | Contacts: -
NF22-L1CB Type: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Blue | Contacts: -
NF22-L1CBK Type: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Black | Contacts: -
NF22-L1CO Type: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Orange | Contacts: -
NF22-L2CR Type: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Red | Contacts: -
NF22-L2CG Type: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Green | Contacts: -
NF22-L2CY Type: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Yellow | Contacts: -
NF22-L2CW Type: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: White | Contacts: -
NF22-L2CB Type: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Blue | Contacts: -
NF22-L2CBK Type: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Black | Contacts: -
NF22-L2CO Type: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Orange | Contacts: -
NF22-L3CR Type: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Red | Contacts: -
NF22-L3CG Type: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Green | Contacts: -
NF22-L3CY Type: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Yellow | Contacts: -
NF22-L3CW Type: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: White | Contacts: -
NF22-L3CB Type: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Blue | Contacts: -
NF22-L3CBK Type: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Black | Contacts: -
NF22-L3CO Type: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Orange | Contacts: -
NF22-PMR1 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Red | Contacts: 1C (1 changeover)
NF22-PMR2 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Red | Contacts: 2C (2 changeover)
NF22-PMG1 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Green | Contacts: 1C (1 changeover)
NF22-PMG2 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Green | Contacts: 2C (2 changeover)
NF22-PMY1 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Yellow | Contacts: 1C (1 changeover)
NF22-PMY2 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Yellow | Contacts: 2C (2 changeover)
NF22-PMW1 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: White | Contacts: 1C (1 changeover)
NF22-PMW2 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: White | Contacts: 2C (2 changeover)
NF22-PMB1 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Blue | Contacts: 1C (1 changeover)
NF22-PMB2 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Blue | Contacts: 2C (2 changeover)
NF22-PMBK1 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Black | Contacts: 1C (1 changeover)
NF22-PMBK2 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Black | Contacts: 2C (2 changeover)
NF22-PMO1 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Orange | Contacts: 1C (1 changeover)
NF22-PMO2 Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Orange | Contacts: 2C (2 changeover)
NF22-BM1CR1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Red | Contacts: 1C (1 changeover)
NF22-BM1CR2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Red | Contacts: 2C (2 changeover)
NF22-BM1CG1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Green | Contacts: 1C (1 changeover)
NF22-BM1CG2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Green | Contacts: 2C (2 changeover)
NF22-BM1CY1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BM1CY2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BM1CW1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: White | Contacts: 1C (1 changeover)
NF22-BM1CW2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: White | Contacts: 2C (2 changeover)
NF22-BM1CB1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BM1CB2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BM1CBK1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Black | Contacts: 1C (1 changeover)
NF22-BM1CBK2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Black | Contacts: 2C (2 changeover)
NF22-BM1CO1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BM1CO2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Orange | Contacts: 2C (2 changeover)
NF22-BM2CR1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Red | Contacts: 1C (1 changeover)
NF22-BM2CR2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Red | Contacts: 2C (2 changeover)
NF22-BM2CG1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Green | Contacts: 1C (1 changeover)
NF22-BM2CG2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Green | Contacts: 2C (2 changeover)
NF22-BM2CY1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BM2CY2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BM2CW1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: White | Contacts: 1C (1 changeover)
NF22-BM2CW2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: White | Contacts: 2C (2 changeover)
NF22-BM2CB1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BM2CB2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BM2CBK1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Black | Contacts: 1C (1 changeover)
NF22-BM2CBK2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Black | Contacts: 2C (2 changeover)
NF22-BM2CO1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BM2CO2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Orange | Contacts: 2C (2 changeover)
NF22-BM3CR1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Red | Contacts: 1C (1 changeover)
NF22-BM3CR2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Red | Contacts: 2C (2 changeover)
NF22-BM3CG1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Green | Contacts: 1C (1 changeover)
NF22-BM3CG2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Green | Contacts: 2C (2 changeover)
NF22-BM3CY1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BM3CY2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BM3CW1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: White | Contacts: 1C (1 changeover)
NF22-BM3CW2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: White | Contacts: 2C (2 changeover)
NF22-BM3CB1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BM3CB2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BM3CBK1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Black | Contacts: 1C (1 changeover)
NF22-BM3CBK2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Black | Contacts: 2C (2 changeover)
NF22-BM3CO1 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BM3CO2 Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Orange | Contacts: 2C (2 changeover)
NF22-PAR1 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Red | Contacts: 1C (1 changeover)
NF22-PAR2 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Red | Contacts: 2C (2 changeover)
NF22-PAG1 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Green | Contacts: 1C (1 changeover)
NF22-PAG2 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Green | Contacts: 2C (2 changeover)
NF22-PAY1 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Yellow | Contacts: 1C (1 changeover)
NF22-PAY2 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Yellow | Contacts: 2C (2 changeover)
NF22-PAW1 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: White | Contacts: 1C (1 changeover)
NF22-PAW2 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: White | Contacts: 2C (2 changeover)
NF22-PAB1 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Blue | Contacts: 1C (1 changeover)
NF22-PAB2 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Blue | Contacts: 2C (2 changeover)
NF22-PABK1 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Black | Contacts: 1C (1 changeover)
NF22-PABK2 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Black | Contacts: 2C (2 changeover)
NF22-PAO1 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Orange | Contacts: 1C (1 changeover)
NF22-PAO2 Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Orange | Contacts: 2C (2 changeover)
NF22-BA1CR1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Red | Contacts: 1C (1 changeover)
NF22-BA1CR2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Red | Contacts: 2C (2 changeover)
NF22-BA1CG1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Green | Contacts: 1C (1 changeover)
NF22-BA1CG2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Green | Contacts: 2C (2 changeover)
NF22-BA1CY1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BA1CY2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BA1CW1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: White | Contacts: 1C (1 changeover)
NF22-BA1CW2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: White | Contacts: 2C (2 changeover)
NF22-BA1CB1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BA1CB2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BA1CBK1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Black | Contacts: 1C (1 changeover)
NF22-BA1CBK2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Black | Contacts: 2C (2 changeover)
NF22-BA1CO1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BA1CO2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Orange | Contacts: 2C (2 changeover)
NF22-BA2CR1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Red | Contacts: 1C (1 changeover)
NF22-BA2CR2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Red | Contacts: 2C (2 changeover)
NF22-BA2CG1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Green | Contacts: 1C (1 changeover)
NF22-BA2CG2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Green | Contacts: 2C (2 changeover)
NF22-BA2CY1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BA2CY2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BA2CW1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: White | Contacts: 1C (1 changeover)
NF22-BA2CW2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: White | Contacts: 2C (2 changeover)
NF22-BA2CB1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BA2CB2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BA2CBK1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Black | Contacts: 1C (1 changeover)
NF22-BA2CBK2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Black | Contacts: 2C (2 changeover)
NF22-BA2CO1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BA2CO2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Orange | Contacts: 2C (2 changeover)
NF22-BA3CR1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Red | Contacts: 1C (1 changeover)
NF22-BA3CR2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Red | Contacts: 2C (2 changeover)
NF22-BA3CG1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Green | Contacts: 1C (1 changeover)
NF22-BA3CG2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Green | Contacts: 2C (2 changeover)
NF22-BA3CY1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BA3CY2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BA3CW1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: White | Contacts: 1C (1 changeover)
NF22-BA3CW2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: White | Contacts: 2C (2 changeover)
NF22-BA3CB1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BA3CB2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BA3CBK1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Black | Contacts: 1C (1 changeover)
NF22-BA3CBK2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Black | Contacts: 2C (2 changeover)
NF22-BA3CO1 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BA3CO2 Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Orange | Contacts: 2C (2 changeover)
NF22-S2R1 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Red | Contacts: 1C (1 changeover)
NF22-S2R2 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Red | Contacts: 2C (2 changeover)
NF22-S2G1 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Green | Contacts: 1C (1 changeover)
NF22-S2G2 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Green | Contacts: 2C (2 changeover)
NF22-S2Y1 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S2Y2 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S2W1 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: White | Contacts: 1C (1 changeover)
NF22-S2W2 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: White | Contacts: 2C (2 changeover)
NF22-S2B1 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Blue | Contacts: 1C (1 changeover)
NF22-S2B2 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Blue | Contacts: 2C (2 changeover)
NF22-S2BK1 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Black | Contacts: 1C (1 changeover)
NF22-S2BK2 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Black | Contacts: 2C (2 changeover)
NF22-S2O1 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Orange | Contacts: 1C (1 changeover)
NF22-S2O2 Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Orange | Contacts: 2C (2 changeover)
NF22-S21CR1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Red | Contacts: 1C (1 changeover)
NF22-S21CR2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Red | Contacts: 2C (2 changeover)
NF22-S21CG1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Green | Contacts: 1C (1 changeover)
NF22-S21CG2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Green | Contacts: 2C (2 changeover)
NF22-S21CY1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S21CY2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S21CW1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: White | Contacts: 1C (1 changeover)
NF22-S21CW2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: White | Contacts: 2C (2 changeover)
NF22-S21CB1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S21CB2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S21CBK1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Black | Contacts: 1C (1 changeover)
NF22-S21CBK2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Black | Contacts: 2C (2 changeover)
NF22-S21CO1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S21CO2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Orange | Contacts: 2C (2 changeover)
NF22-S22CR1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Red | Contacts: 1C (1 changeover)
NF22-S22CR2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Red | Contacts: 2C (2 changeover)
NF22-S22CG1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Green | Contacts: 1C (1 changeover)
NF22-S22CG2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Green | Contacts: 2C (2 changeover)
NF22-S22CY1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S22CY2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S22CW1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: White | Contacts: 1C (1 changeover)
NF22-S22CW2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: White | Contacts: 2C (2 changeover)
NF22-S22CB1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S22CB2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S22CBK1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Black | Contacts: 1C (1 changeover)
NF22-S22CBK2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Black | Contacts: 2C (2 changeover)
NF22-S22CO1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S22CO2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Orange | Contacts: 2C (2 changeover)
NF22-S23CR1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Red | Contacts: 1C (1 changeover)
NF22-S23CR2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Red | Contacts: 2C (2 changeover)
NF22-S23CG1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Green | Contacts: 1C (1 changeover)
NF22-S23CG2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Green | Contacts: 2C (2 changeover)
NF22-S23CY1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S23CY2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S23CW1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: White | Contacts: 1C (1 changeover)
NF22-S23CW2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: White | Contacts: 2C (2 changeover)
NF22-S23CB1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S23CB2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S23CBK1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Black | Contacts: 1C (1 changeover)
NF22-S23CBK2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Black | Contacts: 2C (2 changeover)
NF22-S23CO1 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S23CO2 Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Orange | Contacts: 2C (2 changeover)
NF22-K21 Type: Key selector | Operator: 2-position maintained | Lamp voltage: - | Color: - | Contacts: 1C (1 changeover)
NF22-K22 Type: Key selector | Operator: 2-position maintained | Lamp voltage: - | Color: - | Contacts: 2C (2 changeover)
NF22-S3R1 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Red | Contacts: 1C (1 changeover)
NF22-S3R2 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Red | Contacts: 2C (2 changeover)
NF22-S3G1 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Green | Contacts: 1C (1 changeover)
NF22-S3G2 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Green | Contacts: 2C (2 changeover)
NF22-S3Y1 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S3Y2 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S3W1 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: White | Contacts: 1C (1 changeover)
NF22-S3W2 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: White | Contacts: 2C (2 changeover)
NF22-S3B1 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Blue | Contacts: 1C (1 changeover)
NF22-S3B2 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Blue | Contacts: 2C (2 changeover)
NF22-S3BK1 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Black | Contacts: 1C (1 changeover)
NF22-S3BK2 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Black | Contacts: 2C (2 changeover)
NF22-S3O1 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Orange | Contacts: 1C (1 changeover)
NF22-S3O2 Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Orange | Contacts: 2C (2 changeover)
NF22-S31CR1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Red | Contacts: 1C (1 changeover)
NF22-S31CR2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Red | Contacts: 2C (2 changeover)
NF22-S31CG1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Green | Contacts: 1C (1 changeover)
NF22-S31CG2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Green | Contacts: 2C (2 changeover)
NF22-S31CY1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S31CY2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S31CW1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: White | Contacts: 1C (1 changeover)
NF22-S31CW2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: White | Contacts: 2C (2 changeover)
NF22-S31CB1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S31CB2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S31CBK1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Black | Contacts: 1C (1 changeover)
NF22-S31CBK2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Black | Contacts: 2C (2 changeover)
NF22-S31CO1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S31CO2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Orange | Contacts: 2C (2 changeover)
NF22-S32CR1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Red | Contacts: 1C (1 changeover)
NF22-S32CR2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Red | Contacts: 2C (2 changeover)
NF22-S32CG1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Green | Contacts: 1C (1 changeover)
NF22-S32CG2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Green | Contacts: 2C (2 changeover)
NF22-S32CY1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S32CY2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S32CW1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: White | Contacts: 1C (1 changeover)
NF22-S32CW2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: White | Contacts: 2C (2 changeover)
NF22-S32CB1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S32CB2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S32CBK1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Black | Contacts: 1C (1 changeover)
NF22-S32CBK2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Black | Contacts: 2C (2 changeover)
NF22-S32CO1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S32CO2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Orange | Contacts: 2C (2 changeover)
NF22-S33CR1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Red | Contacts: 1C (1 changeover)
NF22-S33CR2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Red | Contacts: 2C (2 changeover)
NF22-S33CG1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Green | Contacts: 1C (1 changeover)
NF22-S33CG2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Green | Contacts: 2C (2 changeover)
NF22-S33CY1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S33CY2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S33CW1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: White | Contacts: 1C (1 changeover)
NF22-S33CW2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: White | Contacts: 2C (2 changeover)
NF22-S33CB1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S33CB2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S33CBK1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Black | Contacts: 1C (1 changeover)
NF22-S33CBK2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Black | Contacts: 2C (2 changeover)
NF22-S33CO1 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S33CO2 Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Orange | Contacts: 2C (2 changeover)
NF22-K31 Type: Key selector | Operator: 3-position maintained | Lamp voltage: - | Color: - | Contacts: 1C (1 changeover)
NF22-K32 Type: Key selector | Operator: 3-position maintained | Lamp voltage: - | Color: - | Contacts: 2C (2 changeover)
NF22-SA3R1 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Red | Contacts: 1C (1 changeover)
NF22-SA3R2 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Red | Contacts: 2C (2 changeover)
NF22-SA3G1 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Green | Contacts: 1C (1 changeover)
NF22-SA3G2 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Green | Contacts: 2C (2 changeover)
NF22-SA3Y1 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Yellow | Contacts: 1C (1 changeover)
NF22-SA3Y2 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Yellow | Contacts: 2C (2 changeover)
NF22-SA3W1 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: White | Contacts: 1C (1 changeover)
NF22-SA3W2 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: White | Contacts: 2C (2 changeover)
NF22-SA3B1 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Blue | Contacts: 1C (1 changeover)
NF22-SA3B2 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Blue | Contacts: 2C (2 changeover)
NF22-SA3BK1 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Black | Contacts: 1C (1 changeover)
NF22-SA3BK2 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Black | Contacts: 2C (2 changeover)
NF22-SA3O1 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Orange | Contacts: 1C (1 changeover)
NF22-SA3O2 Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Orange | Contacts: 2C (2 changeover)
NF22-SA31CR1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Red | Contacts: 1C (1 changeover)
NF22-SA31CR2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Red | Contacts: 2C (2 changeover)
NF22-SA31CG1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Green | Contacts: 1C (1 changeover)
NF22-SA31CG2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Green | Contacts: 2C (2 changeover)
NF22-SA31CY1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-SA31CY2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-SA31CW1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: White | Contacts: 1C (1 changeover)
NF22-SA31CW2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: White | Contacts: 2C (2 changeover)
NF22-SA31CB1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Blue | Contacts: 1C (1 changeover)
NF22-SA31CB2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Blue | Contacts: 2C (2 changeover)
NF22-SA31CBK1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Black | Contacts: 1C (1 changeover)
NF22-SA31CBK2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Black | Contacts: 2C (2 changeover)
NF22-SA31CO1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Orange | Contacts: 1C (1 changeover)
NF22-SA31CO2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Orange | Contacts: 2C (2 changeover)
NF22-SA32CR1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Red | Contacts: 1C (1 changeover)
NF22-SA32CR2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Red | Contacts: 2C (2 changeover)
NF22-SA32CG1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Green | Contacts: 1C (1 changeover)
NF22-SA32CG2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Green | Contacts: 2C (2 changeover)
NF22-SA32CY1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-SA32CY2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-SA32CW1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: White | Contacts: 1C (1 changeover)
NF22-SA32CW2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: White | Contacts: 2C (2 changeover)
NF22-SA32CB1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Blue | Contacts: 1C (1 changeover)
NF22-SA32CB2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Blue | Contacts: 2C (2 changeover)
NF22-SA32CBK1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Black | Contacts: 1C (1 changeover)
NF22-SA32CBK2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Black | Contacts: 2C (2 changeover)
NF22-SA32CO1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Orange | Contacts: 1C (1 changeover)
NF22-SA32CO2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Orange | Contacts: 2C (2 changeover)
NF22-SA33CR1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Red | Contacts: 1C (1 changeover)
NF22-SA33CR2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Red | Contacts: 2C (2 changeover)
NF22-SA33CG1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Green | Contacts: 1C (1 changeover)
NF22-SA33CG2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Green | Contacts: 2C (2 changeover)
NF22-SA33CY1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-SA33CY2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-SA33CW1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: White | Contacts: 1C (1 changeover)
NF22-SA33CW2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: White | Contacts: 2C (2 changeover)
NF22-SA33CB1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Blue | Contacts: 1C (1 changeover)
NF22-SA33CB2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Blue | Contacts: 2C (2 changeover)
NF22-SA33CBK1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Black | Contacts: 1C (1 changeover)
NF22-SA33CBK2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Black | Contacts: 2C (2 changeover)
NF22-SA33CO1 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Orange | Contacts: 1C (1 changeover)
NF22-SA33CO2 Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Orange | Contacts: 2C (2 changeover)
NF22-KA31 Type: Key selector | Operator: 3-position spring return | Lamp voltage: - | Color: - | Contacts: 1C (1 changeover)
NF22-KA32 Type: Key selector | Operator: 3-position spring return | Lamp voltage: - | Color: - | Contacts: 2C (2 changeover)
Push Button SwitchesKOINO
307 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

KOINO NF22 Flush-Mount Switches and Pilot Lamps (22 mm, Al Guard)

Brand KOINO·Push Button Switches

Available part numbers (307)

NF22-L1CR, NF22-L1CG, NF22-L1CY, NF22-L1CW, NF22-L1CB, NF22-L1CBK, NF22-L1CO, NF22-L2CR, NF22-L2CG, NF22-L2CY + 297 more — see full table ↓

How to order

Send the KOINO part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NF22-L1CRType: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Red | Contacts: -
NF22-L1CGType: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Green | Contacts: -
NF22-L1CYType: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Yellow | Contacts: -
NF22-L1CWType: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: White | Contacts: -
NF22-L1CBType: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Blue | Contacts: -
NF22-L1CBKType: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Black | Contacts: -
NF22-L1COType: Pilot lamp | Operator: - | Lamp voltage: 6V | Color: Orange | Contacts: -
NF22-L2CRType: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Red | Contacts: -
NF22-L2CGType: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Green | Contacts: -
NF22-L2CYType: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Yellow | Contacts: -
NF22-L2CWType: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: White | Contacts: -
NF22-L2CBType: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Blue | Contacts: -
NF22-L2CBKType: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Black | Contacts: -
NF22-L2COType: Pilot lamp | Operator: - | Lamp voltage: 12V | Color: Orange | Contacts: -
NF22-L3CRType: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Red | Contacts: -
NF22-L3CGType: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Green | Contacts: -
NF22-L3CYType: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Yellow | Contacts: -
NF22-L3CWType: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: White | Contacts: -
NF22-L3CBType: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Blue | Contacts: -
NF22-L3CBKType: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Black | Contacts: -
NF22-L3COType: Pilot lamp | Operator: - | Lamp voltage: 24V | Color: Orange | Contacts: -
NF22-PMR1Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Red | Contacts: 1C (1 changeover)
NF22-PMR2Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Red | Contacts: 2C (2 changeover)
NF22-PMG1Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Green | Contacts: 1C (1 changeover)
NF22-PMG2Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Green | Contacts: 2C (2 changeover)
NF22-PMY1Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Yellow | Contacts: 1C (1 changeover)
NF22-PMY2Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Yellow | Contacts: 2C (2 changeover)
NF22-PMW1Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: White | Contacts: 1C (1 changeover)
NF22-PMW2Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: White | Contacts: 2C (2 changeover)
NF22-PMB1Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Blue | Contacts: 1C (1 changeover)
NF22-PMB2Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Blue | Contacts: 2C (2 changeover)
NF22-PMBK1Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Black | Contacts: 1C (1 changeover)
NF22-PMBK2Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Black | Contacts: 2C (2 changeover)
NF22-PMO1Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Orange | Contacts: 1C (1 changeover)
NF22-PMO2Type: Push button | Operator: Momentary push | Lamp voltage: - | Color: Orange | Contacts: 2C (2 changeover)
NF22-BM1CR1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Red | Contacts: 1C (1 changeover)
NF22-BM1CR2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Red | Contacts: 2C (2 changeover)
NF22-BM1CG1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Green | Contacts: 1C (1 changeover)
NF22-BM1CG2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Green | Contacts: 2C (2 changeover)
NF22-BM1CY1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BM1CY2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BM1CW1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: White | Contacts: 1C (1 changeover)
NF22-BM1CW2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: White | Contacts: 2C (2 changeover)
NF22-BM1CB1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BM1CB2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BM1CBK1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Black | Contacts: 1C (1 changeover)
NF22-BM1CBK2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Black | Contacts: 2C (2 changeover)
NF22-BM1CO1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BM1CO2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 6V | Color: Orange | Contacts: 2C (2 changeover)
NF22-BM2CR1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Red | Contacts: 1C (1 changeover)
NF22-BM2CR2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Red | Contacts: 2C (2 changeover)
NF22-BM2CG1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Green | Contacts: 1C (1 changeover)
NF22-BM2CG2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Green | Contacts: 2C (2 changeover)
NF22-BM2CY1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BM2CY2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BM2CW1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: White | Contacts: 1C (1 changeover)
NF22-BM2CW2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: White | Contacts: 2C (2 changeover)
NF22-BM2CB1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BM2CB2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BM2CBK1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Black | Contacts: 1C (1 changeover)
NF22-BM2CBK2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Black | Contacts: 2C (2 changeover)
NF22-BM2CO1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BM2CO2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 12V | Color: Orange | Contacts: 2C (2 changeover)
NF22-BM3CR1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Red | Contacts: 1C (1 changeover)
NF22-BM3CR2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Red | Contacts: 2C (2 changeover)
NF22-BM3CG1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Green | Contacts: 1C (1 changeover)
NF22-BM3CG2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Green | Contacts: 2C (2 changeover)
NF22-BM3CY1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BM3CY2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BM3CW1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: White | Contacts: 1C (1 changeover)
NF22-BM3CW2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: White | Contacts: 2C (2 changeover)
NF22-BM3CB1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BM3CB2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BM3CBK1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Black | Contacts: 1C (1 changeover)
NF22-BM3CBK2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Black | Contacts: 2C (2 changeover)
NF22-BM3CO1Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BM3CO2Type: Illuminated push button | Operator: Momentary push | Lamp voltage: 24V | Color: Orange | Contacts: 2C (2 changeover)
NF22-PAR1Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Red | Contacts: 1C (1 changeover)
NF22-PAR2Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Red | Contacts: 2C (2 changeover)
NF22-PAG1Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Green | Contacts: 1C (1 changeover)
NF22-PAG2Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Green | Contacts: 2C (2 changeover)
NF22-PAY1Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Yellow | Contacts: 1C (1 changeover)
NF22-PAY2Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Yellow | Contacts: 2C (2 changeover)
NF22-PAW1Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: White | Contacts: 1C (1 changeover)
NF22-PAW2Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: White | Contacts: 2C (2 changeover)
NF22-PAB1Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Blue | Contacts: 1C (1 changeover)
NF22-PAB2Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Blue | Contacts: 2C (2 changeover)
NF22-PABK1Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Black | Contacts: 1C (1 changeover)
NF22-PABK2Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Black | Contacts: 2C (2 changeover)
NF22-PAO1Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Orange | Contacts: 1C (1 changeover)
NF22-PAO2Type: Push button | Operator: Push-lock push-release | Lamp voltage: - | Color: Orange | Contacts: 2C (2 changeover)
NF22-BA1CR1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Red | Contacts: 1C (1 changeover)
NF22-BA1CR2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Red | Contacts: 2C (2 changeover)
NF22-BA1CG1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Green | Contacts: 1C (1 changeover)
NF22-BA1CG2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Green | Contacts: 2C (2 changeover)
NF22-BA1CY1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BA1CY2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BA1CW1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: White | Contacts: 1C (1 changeover)
NF22-BA1CW2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: White | Contacts: 2C (2 changeover)
NF22-BA1CB1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BA1CB2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BA1CBK1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Black | Contacts: 1C (1 changeover)
NF22-BA1CBK2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Black | Contacts: 2C (2 changeover)
NF22-BA1CO1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BA1CO2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 6V | Color: Orange | Contacts: 2C (2 changeover)
NF22-BA2CR1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Red | Contacts: 1C (1 changeover)
NF22-BA2CR2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Red | Contacts: 2C (2 changeover)
NF22-BA2CG1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Green | Contacts: 1C (1 changeover)
NF22-BA2CG2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Green | Contacts: 2C (2 changeover)
NF22-BA2CY1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BA2CY2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BA2CW1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: White | Contacts: 1C (1 changeover)
NF22-BA2CW2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: White | Contacts: 2C (2 changeover)
NF22-BA2CB1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BA2CB2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BA2CBK1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Black | Contacts: 1C (1 changeover)
NF22-BA2CBK2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Black | Contacts: 2C (2 changeover)
NF22-BA2CO1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BA2CO2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 12V | Color: Orange | Contacts: 2C (2 changeover)
NF22-BA3CR1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Red | Contacts: 1C (1 changeover)
NF22-BA3CR2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Red | Contacts: 2C (2 changeover)
NF22-BA3CG1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Green | Contacts: 1C (1 changeover)
NF22-BA3CG2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Green | Contacts: 2C (2 changeover)
NF22-BA3CY1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-BA3CY2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-BA3CW1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: White | Contacts: 1C (1 changeover)
NF22-BA3CW2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: White | Contacts: 2C (2 changeover)
NF22-BA3CB1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Blue | Contacts: 1C (1 changeover)
NF22-BA3CB2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Blue | Contacts: 2C (2 changeover)
NF22-BA3CBK1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Black | Contacts: 1C (1 changeover)
NF22-BA3CBK2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Black | Contacts: 2C (2 changeover)
NF22-BA3CO1Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Orange | Contacts: 1C (1 changeover)
NF22-BA3CO2Type: Illuminated push button | Operator: Push-lock push-release | Lamp voltage: 24V | Color: Orange | Contacts: 2C (2 changeover)
NF22-S2R1Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Red | Contacts: 1C (1 changeover)
NF22-S2R2Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Red | Contacts: 2C (2 changeover)
NF22-S2G1Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Green | Contacts: 1C (1 changeover)
NF22-S2G2Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Green | Contacts: 2C (2 changeover)
NF22-S2Y1Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S2Y2Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S2W1Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: White | Contacts: 1C (1 changeover)
NF22-S2W2Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: White | Contacts: 2C (2 changeover)
NF22-S2B1Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Blue | Contacts: 1C (1 changeover)
NF22-S2B2Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Blue | Contacts: 2C (2 changeover)
NF22-S2BK1Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Black | Contacts: 1C (1 changeover)
NF22-S2BK2Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Black | Contacts: 2C (2 changeover)
NF22-S2O1Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Orange | Contacts: 1C (1 changeover)
NF22-S2O2Type: Selector | Operator: 2-position maintained | Lamp voltage: - | Color: Orange | Contacts: 2C (2 changeover)
NF22-S21CR1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Red | Contacts: 1C (1 changeover)
NF22-S21CR2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Red | Contacts: 2C (2 changeover)
NF22-S21CG1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Green | Contacts: 1C (1 changeover)
NF22-S21CG2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Green | Contacts: 2C (2 changeover)
NF22-S21CY1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S21CY2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S21CW1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: White | Contacts: 1C (1 changeover)
NF22-S21CW2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: White | Contacts: 2C (2 changeover)
NF22-S21CB1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S21CB2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S21CBK1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Black | Contacts: 1C (1 changeover)
NF22-S21CBK2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Black | Contacts: 2C (2 changeover)
NF22-S21CO1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S21CO2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 6V | Color: Orange | Contacts: 2C (2 changeover)
NF22-S22CR1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Red | Contacts: 1C (1 changeover)
NF22-S22CR2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Red | Contacts: 2C (2 changeover)
NF22-S22CG1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Green | Contacts: 1C (1 changeover)
NF22-S22CG2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Green | Contacts: 2C (2 changeover)
NF22-S22CY1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S22CY2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S22CW1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: White | Contacts: 1C (1 changeover)
NF22-S22CW2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: White | Contacts: 2C (2 changeover)
NF22-S22CB1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S22CB2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S22CBK1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Black | Contacts: 1C (1 changeover)
NF22-S22CBK2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Black | Contacts: 2C (2 changeover)
NF22-S22CO1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S22CO2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 12V | Color: Orange | Contacts: 2C (2 changeover)
NF22-S23CR1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Red | Contacts: 1C (1 changeover)
NF22-S23CR2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Red | Contacts: 2C (2 changeover)
NF22-S23CG1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Green | Contacts: 1C (1 changeover)
NF22-S23CG2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Green | Contacts: 2C (2 changeover)
NF22-S23CY1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S23CY2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S23CW1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: White | Contacts: 1C (1 changeover)
NF22-S23CW2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: White | Contacts: 2C (2 changeover)
NF22-S23CB1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S23CB2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S23CBK1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Black | Contacts: 1C (1 changeover)
NF22-S23CBK2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Black | Contacts: 2C (2 changeover)
NF22-S23CO1Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S23CO2Type: Illuminated selector | Operator: 2-position maintained | Lamp voltage: 24V | Color: Orange | Contacts: 2C (2 changeover)
NF22-K21Type: Key selector | Operator: 2-position maintained | Lamp voltage: - | Color: - | Contacts: 1C (1 changeover)
NF22-K22Type: Key selector | Operator: 2-position maintained | Lamp voltage: - | Color: - | Contacts: 2C (2 changeover)
NF22-S3R1Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Red | Contacts: 1C (1 changeover)
NF22-S3R2Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Red | Contacts: 2C (2 changeover)
NF22-S3G1Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Green | Contacts: 1C (1 changeover)
NF22-S3G2Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Green | Contacts: 2C (2 changeover)
NF22-S3Y1Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S3Y2Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S3W1Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: White | Contacts: 1C (1 changeover)
NF22-S3W2Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: White | Contacts: 2C (2 changeover)
NF22-S3B1Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Blue | Contacts: 1C (1 changeover)
NF22-S3B2Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Blue | Contacts: 2C (2 changeover)
NF22-S3BK1Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Black | Contacts: 1C (1 changeover)
NF22-S3BK2Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Black | Contacts: 2C (2 changeover)
NF22-S3O1Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Orange | Contacts: 1C (1 changeover)
NF22-S3O2Type: Selector | Operator: 3-position maintained | Lamp voltage: - | Color: Orange | Contacts: 2C (2 changeover)
NF22-S31CR1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Red | Contacts: 1C (1 changeover)
NF22-S31CR2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Red | Contacts: 2C (2 changeover)
NF22-S31CG1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Green | Contacts: 1C (1 changeover)
NF22-S31CG2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Green | Contacts: 2C (2 changeover)
NF22-S31CY1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S31CY2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S31CW1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: White | Contacts: 1C (1 changeover)
NF22-S31CW2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: White | Contacts: 2C (2 changeover)
NF22-S31CB1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S31CB2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S31CBK1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Black | Contacts: 1C (1 changeover)
NF22-S31CBK2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Black | Contacts: 2C (2 changeover)
NF22-S31CO1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S31CO2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 6V | Color: Orange | Contacts: 2C (2 changeover)
NF22-S32CR1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Red | Contacts: 1C (1 changeover)
NF22-S32CR2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Red | Contacts: 2C (2 changeover)
NF22-S32CG1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Green | Contacts: 1C (1 changeover)
NF22-S32CG2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Green | Contacts: 2C (2 changeover)
NF22-S32CY1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S32CY2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S32CW1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: White | Contacts: 1C (1 changeover)
NF22-S32CW2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: White | Contacts: 2C (2 changeover)
NF22-S32CB1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S32CB2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S32CBK1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Black | Contacts: 1C (1 changeover)
NF22-S32CBK2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Black | Contacts: 2C (2 changeover)
NF22-S32CO1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S32CO2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 12V | Color: Orange | Contacts: 2C (2 changeover)
NF22-S33CR1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Red | Contacts: 1C (1 changeover)
NF22-S33CR2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Red | Contacts: 2C (2 changeover)
NF22-S33CG1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Green | Contacts: 1C (1 changeover)
NF22-S33CG2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Green | Contacts: 2C (2 changeover)
NF22-S33CY1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-S33CY2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-S33CW1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: White | Contacts: 1C (1 changeover)
NF22-S33CW2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: White | Contacts: 2C (2 changeover)
NF22-S33CB1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Blue | Contacts: 1C (1 changeover)
NF22-S33CB2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Blue | Contacts: 2C (2 changeover)
NF22-S33CBK1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Black | Contacts: 1C (1 changeover)
NF22-S33CBK2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Black | Contacts: 2C (2 changeover)
NF22-S33CO1Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Orange | Contacts: 1C (1 changeover)
NF22-S33CO2Type: Illuminated selector | Operator: 3-position maintained | Lamp voltage: 24V | Color: Orange | Contacts: 2C (2 changeover)
NF22-K31Type: Key selector | Operator: 3-position maintained | Lamp voltage: - | Color: - | Contacts: 1C (1 changeover)
NF22-K32Type: Key selector | Operator: 3-position maintained | Lamp voltage: - | Color: - | Contacts: 2C (2 changeover)
NF22-SA3R1Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Red | Contacts: 1C (1 changeover)
NF22-SA3R2Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Red | Contacts: 2C (2 changeover)
NF22-SA3G1Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Green | Contacts: 1C (1 changeover)
NF22-SA3G2Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Green | Contacts: 2C (2 changeover)
NF22-SA3Y1Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Yellow | Contacts: 1C (1 changeover)
NF22-SA3Y2Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Yellow | Contacts: 2C (2 changeover)
NF22-SA3W1Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: White | Contacts: 1C (1 changeover)
NF22-SA3W2Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: White | Contacts: 2C (2 changeover)
NF22-SA3B1Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Blue | Contacts: 1C (1 changeover)
NF22-SA3B2Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Blue | Contacts: 2C (2 changeover)
NF22-SA3BK1Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Black | Contacts: 1C (1 changeover)
NF22-SA3BK2Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Black | Contacts: 2C (2 changeover)
NF22-SA3O1Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Orange | Contacts: 1C (1 changeover)
NF22-SA3O2Type: Selector | Operator: 3-position spring return | Lamp voltage: - | Color: Orange | Contacts: 2C (2 changeover)
NF22-SA31CR1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Red | Contacts: 1C (1 changeover)
NF22-SA31CR2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Red | Contacts: 2C (2 changeover)
NF22-SA31CG1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Green | Contacts: 1C (1 changeover)
NF22-SA31CG2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Green | Contacts: 2C (2 changeover)
NF22-SA31CY1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-SA31CY2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-SA31CW1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: White | Contacts: 1C (1 changeover)
NF22-SA31CW2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: White | Contacts: 2C (2 changeover)
NF22-SA31CB1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Blue | Contacts: 1C (1 changeover)
NF22-SA31CB2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Blue | Contacts: 2C (2 changeover)
NF22-SA31CBK1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Black | Contacts: 1C (1 changeover)
NF22-SA31CBK2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Black | Contacts: 2C (2 changeover)
NF22-SA31CO1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Orange | Contacts: 1C (1 changeover)
NF22-SA31CO2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 6V | Color: Orange | Contacts: 2C (2 changeover)
NF22-SA32CR1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Red | Contacts: 1C (1 changeover)
NF22-SA32CR2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Red | Contacts: 2C (2 changeover)
NF22-SA32CG1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Green | Contacts: 1C (1 changeover)
NF22-SA32CG2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Green | Contacts: 2C (2 changeover)
NF22-SA32CY1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-SA32CY2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-SA32CW1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: White | Contacts: 1C (1 changeover)
NF22-SA32CW2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: White | Contacts: 2C (2 changeover)
NF22-SA32CB1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Blue | Contacts: 1C (1 changeover)
NF22-SA32CB2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Blue | Contacts: 2C (2 changeover)
NF22-SA32CBK1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Black | Contacts: 1C (1 changeover)
NF22-SA32CBK2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Black | Contacts: 2C (2 changeover)
NF22-SA32CO1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Orange | Contacts: 1C (1 changeover)
NF22-SA32CO2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 12V | Color: Orange | Contacts: 2C (2 changeover)
NF22-SA33CR1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Red | Contacts: 1C (1 changeover)
NF22-SA33CR2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Red | Contacts: 2C (2 changeover)
NF22-SA33CG1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Green | Contacts: 1C (1 changeover)
NF22-SA33CG2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Green | Contacts: 2C (2 changeover)
NF22-SA33CY1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Yellow | Contacts: 1C (1 changeover)
NF22-SA33CY2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Yellow | Contacts: 2C (2 changeover)
NF22-SA33CW1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: White | Contacts: 1C (1 changeover)
NF22-SA33CW2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: White | Contacts: 2C (2 changeover)
NF22-SA33CB1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Blue | Contacts: 1C (1 changeover)
NF22-SA33CB2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Blue | Contacts: 2C (2 changeover)
NF22-SA33CBK1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Black | Contacts: 1C (1 changeover)
NF22-SA33CBK2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Black | Contacts: 2C (2 changeover)
NF22-SA33CO1Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Orange | Contacts: 1C (1 changeover)
NF22-SA33CO2Type: Illuminated selector | Operator: 3-position spring return | Lamp voltage: 24V | Color: Orange | Contacts: 2C (2 changeover)
NF22-KA31Type: Key selector | Operator: 3-position spring return | Lamp voltage: - | Color: - | Contacts: 1C (1 changeover)
NF22-KA32Type: Key selector | Operator: 3-position spring return | Lamp voltage: - | Color: - | Contacts: 2C (2 changeover)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Relays & Switches →
