• LK DAM-1S Chain Hoist (4-Point)
1 1

LK DAM-1S Chain Hoist (4-Point)

LK DAM-1S Chain Hoist (4-Point)

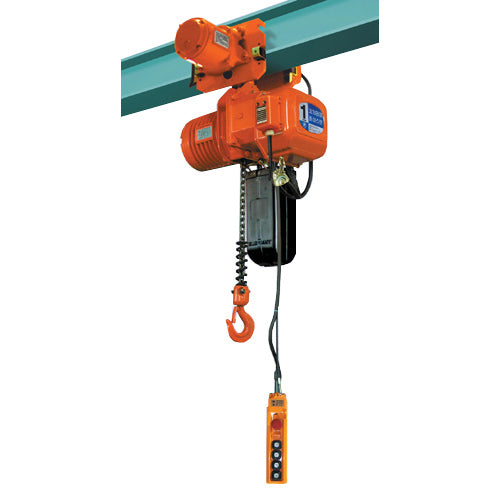

The LK DAM-1S Chain Hoist (4-Point) is a heavy-duty lifting device designed for controlled vertical load handling, sourced direct from Korea.

Key features

  • Four-point chain hoists of this type are commonly used in industrial rigging, factory floor assembly, and maintenance applications where balanced, multi-point suspension of large or awkwardly shaped loads is required

Specifications

Lift Height 4
558-0194 MPN: DAM-1S | DAM-1S (1.0T) Three-Phase 220V | Spec: 1.0 | Weight: 112.0 | Number of Strings: 1 | Hoisting Speed: 8.2 | Traversing Speed: 22 | Chain Thickness: 7.1 | Lift Height: 4
558-0200 MPN: DAM-1.5S | DAM-1.5S (1.5T) Three-Phase 220V | Spec: 1.5 | Weight: 168.0 | Number of Strings: 1 | Hoisting Speed: 10.3 | Traversing Speed: 14 | Chain Thickness: 9.5 | Lift Height: 4
558-0219 MPN: DAM-2W | DAM-2W (2.0T) Three-phase 220V | Spec: 2.0 | Weight: 132.0 | Number of Strings: 2 | Hoisting Speed: 4.1 | Traversing Speed: 14 | Chain Thickness: 7.1 | Lift Height: 4
558-0228 MPN: DAM-2S | DAM-2S (2.0T) Three Phase 220V | Spec: 2.0 | Weight: 171.0 | Number of Strings: 1 | Hoisting Speed: 8.1 | Traversing Speed: 14 | Chain Thickness: 11.2 | Lift Height: 4
558-0237 MPN: DAM-2.8W | DAM-2.8W (2.8T) Three-Phase 220V | Spec: 2.8 | Weight: 220.0 | Number of Strings: 2 | Hoisting Speed: 5.15 | Traversing Speed: 14 | Chain Thickness: 9.5 | Lift Height: 4
558-0246 MPN: DAM-5W | DAM-5W (5.0T) 3-Phase 220V | Spec: 5.0 | Weight: 255.0 | Number of Strings: 2 | Hoisting Speed: 3.25 | Traversing Speed: 14 | Chain Thickness: 11.2 | Lift Height: 4
558-0714 MPN: DAM-2.5S | DAM-2.5S (2.5T) Three Phase 220V | Spec: 2.5 | Weight: 203.0 | Number of Strings: 1 | Hoisting Speed: 6.5 | Traversing Speed: 14 | Chain Thickness: 11.2 | Lift Height: 4
Hoists & WinchesLK
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LK DAM-1S Chain Hoist (4-Point)

Brand LK·Hoists & Winches

Available part numbers (7)

558-0194, 558-0200, 558-0219, 558-0228, 558-0237, 558-0246, 558-0714

How to order

Send the LK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
558-0194MPN: DAM-1S | DAM-1S (1.0T) Three-Phase 220V | Spec: 1.0 | Weight: 112.0 | Number of Strings: 1 | Hoisting Speed: 8.2 | Traversing Speed: 22 | Chain Thickness: 7.1 | Lift Height: 4
558-0200MPN: DAM-1.5S | DAM-1.5S (1.5T) Three-Phase 220V | Spec: 1.5 | Weight: 168.0 | Number of Strings: 1 | Hoisting Speed: 10.3 | Traversing Speed: 14 | Chain Thickness: 9.5 | Lift Height: 4
558-0219MPN: DAM-2W | DAM-2W (2.0T) Three-phase 220V | Spec: 2.0 | Weight: 132.0 | Number of Strings: 2 | Hoisting Speed: 4.1 | Traversing Speed: 14 | Chain Thickness: 7.1 | Lift Height: 4
558-0228MPN: DAM-2S | DAM-2S (2.0T) Three Phase 220V | Spec: 2.0 | Weight: 171.0 | Number of Strings: 1 | Hoisting Speed: 8.1 | Traversing Speed: 14 | Chain Thickness: 11.2 | Lift Height: 4
558-0237MPN: DAM-2.8W | DAM-2.8W (2.8T) Three-Phase 220V | Spec: 2.8 | Weight: 220.0 | Number of Strings: 2 | Hoisting Speed: 5.15 | Traversing Speed: 14 | Chain Thickness: 9.5 | Lift Height: 4
558-0246MPN: DAM-5W | DAM-5W (5.0T) 3-Phase 220V | Spec: 5.0 | Weight: 255.0 | Number of Strings: 2 | Hoisting Speed: 3.25 | Traversing Speed: 14 | Chain Thickness: 11.2 | Lift Height: 4
558-0714MPN: DAM-2.5S | DAM-2.5S (2.5T) Three Phase 220V | Spec: 2.5 | Weight: 203.0 | Number of Strings: 1 | Hoisting Speed: 6.5 | Traversing Speed: 14 | Chain Thickness: 11.2 | Lift Height: 4
