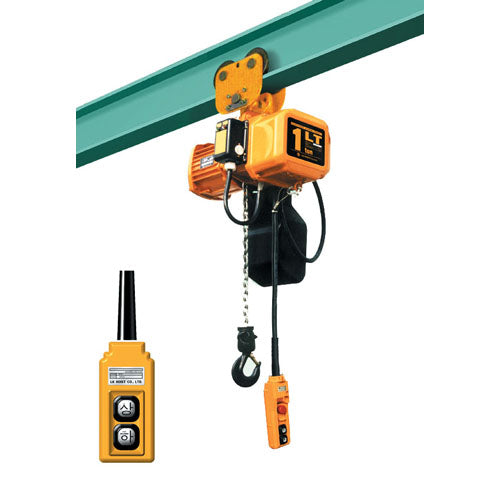

LK LTH-490 Chain Hoist (2-Point)

LK LTH-490 Chain Hoist (2-Point)

LK LTH-490 Chain Hoist (2-Point) is a dual-anchor chain hoist designed for controlled overhead lifting and load positioning, sourced direct from Korea.

Key features

  • Two-point suspension models are commonly used in industrial assembly, maintenance bays, and stage rigging applications where load stability and balanced lifting across a span are critical

Specifications

Lift Height 4
558-0015 MPN: LTH-490 | LTH-490 (0.49T) Three Phase 220V | Spec: 0.49 | Weight: 50.0 | Motor: 0.8 | Speed: 8 | Number of Strings: 1 | Chain Thickness: 6.3 | Lift Height: 4
558-0024 MPN: LTH-1S | LTH-1S (1.0T) Three Phase 220V | Spec: 1.0 | Weight: 51.0 | Motor: 1.8 | Speed: 8.2 | Number of Strings: 1 | Chain Thickness: 7.1 | Lift Height: 4
558-0033 MPN: LTH-2W | LTH-2W (2.0T) Three Phase 220V | Spec: 2.0 | Weight: 62.0 | Motor: 1.8 | Speed: 4.1 | Number of Strings: 2 | Chain Thickness: 7.1 | Lift Height: 4
558-0042 MPN: LDS-1S | LDS-1S (1.0T) Three Phase 220V | Spec: 1.0 | Weight: 53.0 | Motor: 1.8 | Speed: 8.2 | Number of Strings: 1 | Chain Thickness: 7.1 | Lift Height: 4
558-0051 MPN: LDS-2W | LDS-2W (2.0T) Three-phase 220V | Spec: 2.0 | Weight: 64.0 | Motor: 1.8 | Speed: 4.1 | Number of Strings: 2 | Chain Thickness: 7.1 | Lift Height: 4
558-0060 MPN: LDS-2.8W | LDS-2.8W (2.8T) Three-Phase 220V | Spec: 2.8 | Weight: 74.0 | Motor: 2.0 | Speed: 3.1 | Number of Strings: 2 | Chain Thickness: 8 | Lift Height: 4
558-0662 MPN: LTD-1S | LTD-1S (1.0T) Three Phase 220V | Spec: 1.0 | Weight: 56.0 | Motor: 2.0/0.5 | Speed: 8.2/2 | Number of Strings: 1 | Chain Thickness: 7.1 | Lift Height: 4
558-0671 MPN: LTD-2W | LTD-2W (2.0T) Three-phase 220V | Spec: 2.0 | Weight: 68.0 | Motor: 2.0/0.5 | Speed: 4.1/1 | Number of Strings: 2 | Chain Thickness: 7.1 | Lift Height: 4
Hoists & WinchesLK
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LK LTH-490 Chain Hoist (2-Point)

Brand LK·Hoists & Winches

Available part numbers (8)

558-0015, 558-0024, 558-0033, 558-0042, 558-0051, 558-0060, 558-0662, 558-0671

How to order

Send the LK part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
558-0015MPN: LTH-490 | LTH-490 (0.49T) Three Phase 220V | Spec: 0.49 | Weight: 50.0 | Motor: 0.8 | Speed: 8 | Number of Strings: 1 | Chain Thickness: 6.3 | Lift Height: 4
558-0024MPN: LTH-1S | LTH-1S (1.0T) Three Phase 220V | Spec: 1.0 | Weight: 51.0 | Motor: 1.8 | Speed: 8.2 | Number of Strings: 1 | Chain Thickness: 7.1 | Lift Height: 4
558-0033MPN: LTH-2W | LTH-2W (2.0T) Three Phase 220V | Spec: 2.0 | Weight: 62.0 | Motor: 1.8 | Speed: 4.1 | Number of Strings: 2 | Chain Thickness: 7.1 | Lift Height: 4
558-0042MPN: LDS-1S | LDS-1S (1.0T) Three Phase 220V | Spec: 1.0 | Weight: 53.0 | Motor: 1.8 | Speed: 8.2 | Number of Strings: 1 | Chain Thickness: 7.1 | Lift Height: 4
558-0051MPN: LDS-2W | LDS-2W (2.0T) Three-phase 220V | Spec: 2.0 | Weight: 64.0 | Motor: 1.8 | Speed: 4.1 | Number of Strings: 2 | Chain Thickness: 7.1 | Lift Height: 4
558-0060MPN: LDS-2.8W | LDS-2.8W (2.8T) Three-Phase 220V | Spec: 2.8 | Weight: 74.0 | Motor: 2.0 | Speed: 3.1 | Number of Strings: 2 | Chain Thickness: 8 | Lift Height: 4
558-0662MPN: LTD-1S | LTD-1S (1.0T) Three Phase 220V | Spec: 1.0 | Weight: 56.0 | Motor: 2.0/0.5 | Speed: 8.2/2 | Number of Strings: 1 | Chain Thickness: 7.1 | Lift Height: 4
558-0671MPN: LTD-2W | LTD-2W (2.0T) Three-phase 220V | Spec: 2.0 | Weight: 68.0 | Motor: 2.0/0.5 | Speed: 4.1/1 | Number of Strings: 2 | Chain Thickness: 7.1 | Lift Height: 4
