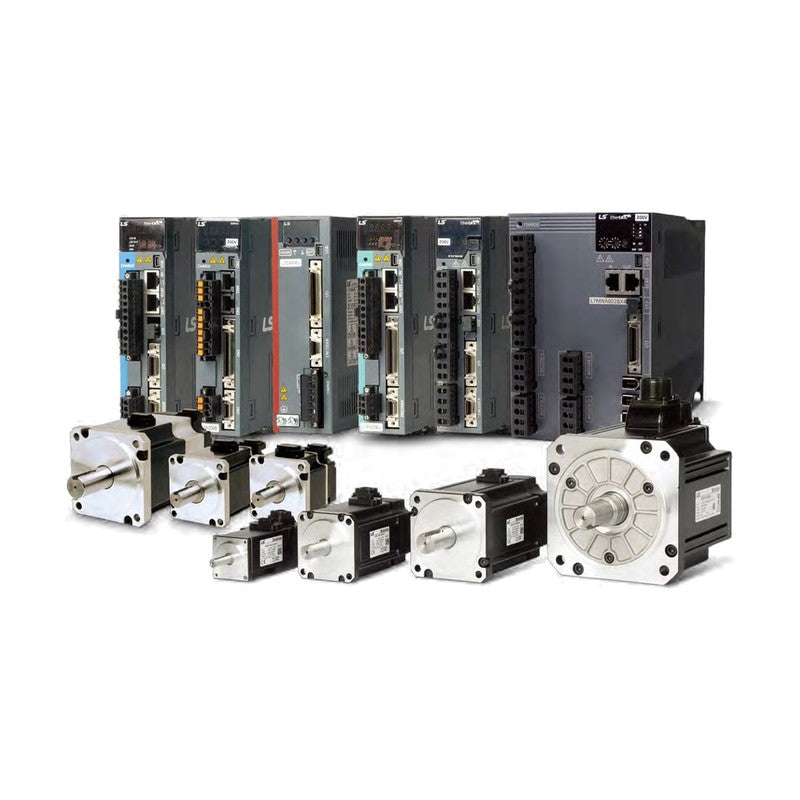

LS Electric APM-E Servo Motors 200V (180 mm, 1.2-7.5 kW)

LS Electric APM-E Servo Motors 200V (180 mm, 1.2-7.5 kW)

LS Electric Xmotion APM-E 200V servo motors with 180 mm flange (EF frame), 1.2 to 7.5 kW at 1,000-3,000 rpm rated speed.

Key features

  • High-resolution serial absolute encoder: 23-bit (M3) or 20-bit batteryless (L), both with 16-bit multi-turn
  • Shaft K (single round key, standard) or N (straight); options oil seal, 24 VDC holding brake or both
  • Full order code = base model + encoder + shaft + option, e.g. APM-EB04AM3K2
  • Matched to Xmotion iX7NH, iX7M, L7NH, L7P, L7S and L7C drives (see drive pairing tables)
  • Totally enclosed self-cooled design, continuous duty, vibration resistance 49 m/s2 (5G)

Specifications

Motor series APM-E (Xmotion E series)
Protection Totally enclosed, IP65 (shaft through-hole excluded)
Time rating Continuous
Allowable load inertia 5x motor inertia
Holding brake DC 24 V, 40 N.m
Ambient 0 to 40 C, 80% RH max, non-condensing
Vibration 49 m/s2 (5G)
Flange 180 mm square
Voltage 200 VAC class
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 82, 86-89, 96-97
APM-EF30A Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF30AM3K Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30AM3K1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30AM3K2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30AM3K3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30AM3N Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF30AM3N1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30AM3N2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF30AM3N3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF30ALK Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30ALK1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30ALK2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30ALK3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30ALN Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF30ALN1 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30ALN2 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF30ALN3 Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF50A Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF50AM3K Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF50AM3K1 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF50AM3K2 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF50AM3K3 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF50AM3N Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF50AM3N1 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF50AM3N2 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF50AM3N3 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF50ALK Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF50ALK1 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF50ALK2 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF50ALK3 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF50ALN Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF50ALN1 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF50ALN2 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF50ALN3 Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF22D Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF22DM3K Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF22DM3K1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF22DM3K2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF22DM3K3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF22DM3N Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF22DM3N1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF22DM3N2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF22DM3N3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF22DLK Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF22DLK1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF22DLK2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF22DLK3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF22DLN Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF22DLN1 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF22DLN2 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF22DLN3 Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF35D Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF35DM3K Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF35DM3K1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF35DM3K2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF35DM3K3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF35DM3N Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF35DM3N1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF35DM3N2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF35DM3N3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF35DLK Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF35DLK1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF35DLK2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF35DLK3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF35DLN Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF35DLN1 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF35DLN2 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF35DLN3 Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF55D Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF55DM3K Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF55DM3K1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF55DM3K2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF55DM3K3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF55DM3N Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF55DM3N1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF55DM3N2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF55DM3N3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF55DLK Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF55DLK1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF55DLK2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF55DLK3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF55DLN Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF55DLN1 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF55DLN2 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF55DLN3 Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF75D Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF75DM3K Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF75DM3K1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF75DM3K2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF75DM3K3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF75DM3N Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF75DM3N1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF75DM3N2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF75DM3N3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF75DLK Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF75DLK1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF75DLK2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF75DLK3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF75DLN Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF75DLN1 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF75DLN2 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF75DLN3 Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF20G Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF20GM3K Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF20GM3K1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF20GM3K2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF20GM3K3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF20GM3N Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF20GM3N1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF20GM3N2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF20GM3N3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF20GLK Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF20GLK1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF20GLK2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF20GLK3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF20GLN Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF20GLN1 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF20GLN2 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF20GLN3 Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF30G Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF30GM3K Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30GM3K1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30GM3K2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30GM3K3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30GM3N Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF30GM3N1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30GM3N2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF30GM3N3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF30GLK Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30GLK1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30GLK2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30GLK3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30GLN Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF30GLN1 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30GLN2 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF30GLN3 Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF44G Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF44GM3K Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF44GM3K1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF44GM3K2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF44GM3K3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF44GM3N Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF44GM3N1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF44GM3N2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF44GM3N3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF44GLK Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF44GLK1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF44GLK2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF44GLK3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF44GLN Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF44GLN1 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF44GLN2 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF44GLN3 Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF60G Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF60GM3K Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF60GM3K1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF60GM3K2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF60GM3K3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF60GM3N Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF60GM3N1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF60GM3N2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF60GM3N3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF60GLK Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF60GLK1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF60GLK2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF60GLK3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF60GLN Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF60GLN1 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF60GLN2 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF60GLN3 Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF75G Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF75GM3K Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF75GM3K1 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF75GM3K2 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF75GM3K3 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF75GM3N Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF75GM3N1 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF75GM3N2 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF75GM3N3 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF75GLK Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF75GLK1 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF75GLK2 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF75GLK3 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF75GLN Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF75GLN1 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF75GLN2 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF75GLN3 Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF12M Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF12MM3K Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF12MM3K1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF12MM3K2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF12MM3K3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF12MM3N Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF12MM3N1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF12MM3N2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF12MM3N3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF12MLK Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF12MLK1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF12MLK2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF12MLK3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF12MLN Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF12MLN1 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF12MLN2 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF12MLN3 Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF20M Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF20MM3K Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF20MM3K1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF20MM3K2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF20MM3K3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF20MM3N Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF20MM3N1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF20MM3N2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF20MM3N3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF20MLK Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF20MLK1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF20MLK2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF20MLK3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF20MLN Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF20MLN1 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF20MLN2 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF20MLN3 Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF30M Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF30MM3K Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30MM3K1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30MM3K2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30MM3K3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30MM3N Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF30MM3N1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30MM3N2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF30MM3N3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF30MLK Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30MLK1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30MLK2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30MLK3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30MLN Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF30MLN1 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30MLN2 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF30MLN3 Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF44M Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF44MM3K Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF44MM3K1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF44MM3K2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF44MM3K3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF44MM3N Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF44MM3N1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF44MM3N2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF44MM3N3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF44MLK Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF44MLK1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF44MLK2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF44MLK3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF44MLN Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF44MLN1 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF44MLN2 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF44MLN3 Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
255 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-E Servo Motors 200V (180 mm, 1.2-7.5 kW)

Brand LS Electric·Servo Motors

Available part numbers (255)

APM-EF30A, APM-EF30AM3K, APM-EF30AM3K1, APM-EF30AM3K2, APM-EF30AM3K3, APM-EF30AM3N, APM-EF30AM3N1, APM-EF30AM3N2, APM-EF30AM3N3, APM-EF30ALK + 245 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-EF30ARating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF30AM3KRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30AM3K1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30AM3K2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30AM3K3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30AM3NRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF30AM3N1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30AM3N2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF30AM3N3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF30ALKRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30ALK1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30ALK2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30ALK3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30ALNRating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF30ALN1Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30ALN2Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF30ALN3Rating: 3 kW / 9.55 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF50ARating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF50AM3KRating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF50AM3K1Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF50AM3K2Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF50AM3K3Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF50AM3NRating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF50AM3N1Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF50AM3N2Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF50AM3N3Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF50ALKRating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF50ALK1Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF50ALK2Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF50ALK3Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF50ALNRating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF50ALN1Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF50ALN2Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF50ALN3Rating: 4.7 kW / 14.96 N.m | Rated speed: 3,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF22DRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF22DM3KRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF22DM3K1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF22DM3K2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF22DM3K3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF22DM3NRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF22DM3N1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF22DM3N2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF22DM3N3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF22DLKRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF22DLK1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF22DLK2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF22DLK3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF22DLNRating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF22DLN1Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF22DLN2Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF22DLN3Rating: 2.2 kW / 10.5 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF35DRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF35DM3KRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF35DM3K1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF35DM3K2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF35DM3K3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF35DM3NRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF35DM3N1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF35DM3N2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF35DM3N3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF35DLKRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF35DLK1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF35DLK2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF35DLK3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF35DLNRating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF35DLN1Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF35DLN2Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF35DLN3Rating: 3.5 kW / 16.71 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF55DRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF55DM3KRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF55DM3K1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF55DM3K2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF55DM3K3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF55DM3NRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF55DM3N1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF55DM3N2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF55DM3N3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF55DLKRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF55DLK1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF55DLK2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF55DLK3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF55DLNRating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF55DLN1Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF55DLN2Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF55DLN3Rating: 5.5 kW / 26.26 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF75DRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF75DM3KRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF75DM3K1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF75DM3K2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF75DM3K3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF75DM3NRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF75DM3N1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF75DM3N2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF75DM3N3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF75DLKRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF75DLK1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF75DLK2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF75DLK3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF75DLNRating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF75DLN1Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF75DLN2Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF75DLN3Rating: 7.5 kW / 35.81 N.m | Rated speed: 2,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF20GRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF20GM3KRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF20GM3K1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF20GM3K2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF20GM3K3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF20GM3NRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF20GM3N1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF20GM3N2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF20GM3N3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF20GLKRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF20GLK1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF20GLK2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF20GLK3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF20GLNRating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF20GLN1Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF20GLN2Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF20GLN3Rating: 1.8 kW / 11.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF30GRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF30GM3KRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30GM3K1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30GM3K2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30GM3K3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30GM3NRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF30GM3N1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30GM3N2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF30GM3N3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF30GLKRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30GLK1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30GLK2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30GLK3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30GLNRating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF30GLN1Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30GLN2Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF30GLN3Rating: 2.9 kW / 18.46 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF44GRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF44GM3KRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF44GM3K1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF44GM3K2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF44GM3K3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF44GM3NRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF44GM3N1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF44GM3N2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF44GM3N3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF44GLKRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF44GLK1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF44GLK2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF44GLK3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF44GLNRating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF44GLN1Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF44GLN2Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF44GLN3Rating: 4.4 kW / 28.01 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF60GRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF60GM3KRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF60GM3K1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF60GM3K2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF60GM3K3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF60GM3NRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF60GM3N1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF60GM3N2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF60GM3N3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF60GLKRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF60GLK1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF60GLK2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF60GLK3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF60GLNRating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF60GLN1Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF60GLN2Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF60GLN3Rating: 6 kW / 38.2 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF75GRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF75GM3KRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF75GM3K1Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF75GM3K2Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF75GM3K3Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF75GM3NRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF75GM3N1Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF75GM3N2Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF75GM3N3Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF75GLKRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF75GLK1Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF75GLK2Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF75GLK3Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF75GLNRating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF75GLN1Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF75GLN2Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF75GLN3Rating: 7.5 kW / 47.75 N.m | Rated speed: 1,500 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF12MRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF12MM3KRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF12MM3K1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF12MM3K2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF12MM3K3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF12MM3NRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF12MM3N1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF12MM3N2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF12MM3N3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF12MLKRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF12MLK1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF12MLK2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF12MLK3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF12MLNRating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF12MLN1Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF12MLN2Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF12MLN3Rating: 1.2 kW / 11.46 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF20MRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF20MM3KRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF20MM3K1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF20MM3K2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF20MM3K3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF20MM3NRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF20MM3N1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF20MM3N2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF20MM3N3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF20MLKRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF20MLK1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF20MLK2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF20MLK3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF20MLNRating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF20MLN1Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF20MLN2Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF20MLN3Rating: 2 kW / 19.1 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF30MRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF30MM3KRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30MM3K1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30MM3K2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30MM3K3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30MM3NRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF30MM3N1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30MM3N2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF30MM3N3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF30MLKRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF30MLK1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF30MLK2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF30MLK3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF30MLNRating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF30MLN1Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF30MLN2Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF30MLN3Rating: 3 kW / 28.65 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF44MRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EF44MM3KRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF44MM3K1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF44MM3K2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF44MM3K3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF44MM3NRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EF44MM3N1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EF44MM3N2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EF44MM3N3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EF44MLKRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EF44MLK1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EF44MLK2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EF44MLK3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EF44MLNRating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EF44MLN1Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EF44MLN2Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EF44MLN3Rating: 4.4 kW / 42.02 N.m | Rated speed: 1,000 rpm | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
