LS Electric APM-E Servo Motors 200V (40-80 mm, 0.05-1 kW)

LS Electric APM-E Servo Motors 200V (40-80 mm, 0.05-1 kW)

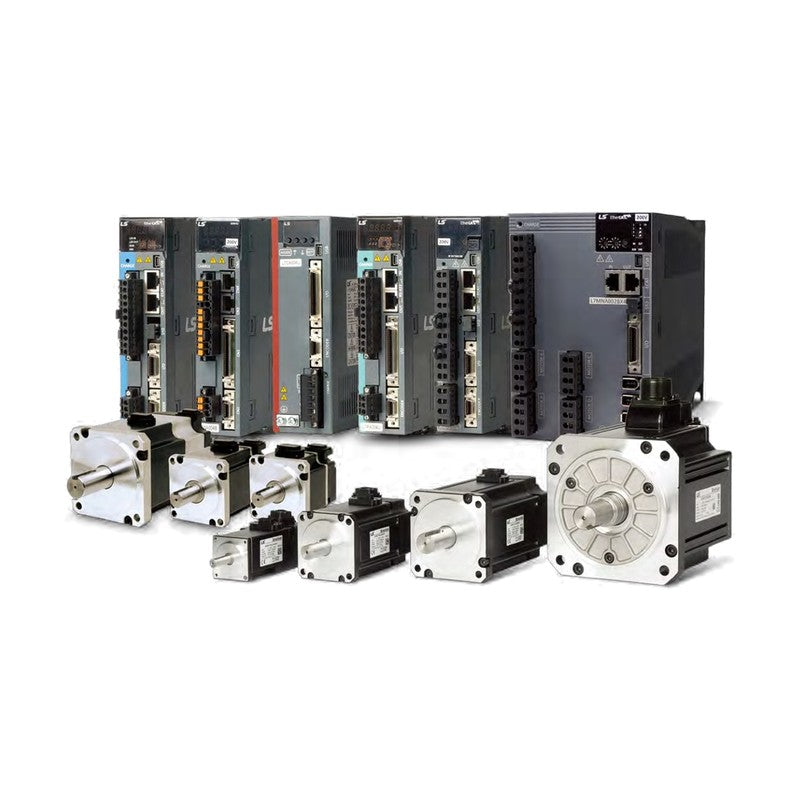

LS Electric Xmotion APM-E 200V servo motors in 40, 60 and 80 mm flanges (EA/EB/EC, 50 W to 1 kW, 3,000 rpm) with 23-bit or batteryless absolute encoders.

Key features

  • High-resolution serial absolute encoder: 23-bit (M3) or 20-bit batteryless (L), both with 16-bit multi-turn
  • Shaft K (single round key, standard) or N (straight); options oil seal, 24 VDC holding brake or both
  • Full order code = base model + encoder + shaft + option, e.g. APM-EB04AM3K2
  • Matched to Xmotion iX7NH, iX7M, L7NH, L7P, L7S and L7C drives (see drive pairing tables)
  • Totally enclosed self-cooled design, continuous duty, vibration resistance 49 m/s2 (5G)

Specifications

Motor series APM-E (Xmotion E series)
Rated speed 3,000 rpm
Protection Totally enclosed, IP67 (shaft through-hole excluded)
Time rating Continuous
Allowable load inertia 30x (EA), 20x/15x (EB), 15x/10x (EC) motor inertia
Holding brake DC 24 V, 0.32 N.m (EA) / 1.47 N.m (EB) / 3.23 N.m (EC)
Ambient 0 to 40 C, 80% RH max, non-condensing
Vibration 49 m/s2 (5G)
Voltage 200 VAC class
Note Batteryless encoder not usable with L7C; EA015A on request
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 82-85, 94-97
APM-EAR5A Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EAR5AM3K Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EAR5AM3K1 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EAR5AM3K2 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EAR5AM3K3 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EAR5AM3N Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EAR5AM3N1 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EAR5AM3N2 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EAR5AM3N3 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EAR5ALK Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EAR5ALK1 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EAR5ALK2 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EAR5ALK3 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EAR5ALN Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EAR5ALN1 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EAR5ALN2 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EAR5ALN3 Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EA01A Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EA01AM3K Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EA01AM3K1 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EA01AM3K2 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EA01AM3K3 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EA01AM3N Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EA01AM3N1 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EA01AM3N2 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EA01AM3N3 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EA01ALK Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EA01ALK1 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EA01ALK2 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EA01ALK3 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EA01ALN Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EA01ALN1 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EA01ALN2 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EA01ALN3 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EA015A Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EA015AM3K Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EA015AM3K1 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EA015AM3K2 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EA015AM3K3 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EA015AM3N Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EA015AM3N1 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EA015AM3N2 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EA015AM3N3 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EA015ALK Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EA015ALK1 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EA015ALK2 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EA015ALK3 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EA015ALN Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EA015ALN1 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EA015ALN2 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EA015ALN3 Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB01A Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EB01AM3K Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB01AM3K1 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB01AM3K2 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB01AM3K3 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB01AM3N Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EB01AM3N1 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EB01AM3N2 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EB01AM3N3 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB01ALK Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB01ALK1 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB01ALK2 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB01ALK3 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB01ALN Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EB01ALN1 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EB01ALN2 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EB01ALN3 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB02A Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EB02AM3K Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB02AM3K1 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB02AM3K2 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB02AM3K3 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB02AM3N Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EB02AM3N1 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EB02AM3N2 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EB02AM3N3 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB02ALK Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB02ALK1 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB02ALK2 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB02ALK3 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB02ALN Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EB02ALN1 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EB02ALN2 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EB02ALN3 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB04A Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EB04AM3K Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB04AM3K1 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB04AM3K2 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB04AM3K3 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB04AM3N Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EB04AM3N1 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EB04AM3N2 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EB04AM3N3 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB04ALK Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB04ALK1 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB04ALK2 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB04ALK3 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB04ALN Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EB04ALN1 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EB04ALN2 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EB04ALN3 Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC04A Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EC04AM3K Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC04AM3K1 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC04AM3K2 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC04AM3K3 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC04AM3N Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EC04AM3N1 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EC04AM3N2 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EC04AM3N3 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC04ALK Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC04ALK1 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC04ALK2 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC04ALK3 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC04ALN Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EC04ALN1 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EC04ALN2 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EC04ALN3 Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC06A Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EC06AM3K Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC06AM3K1 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC06AM3K2 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC06AM3K3 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC06AM3N Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EC06AM3N1 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EC06AM3N2 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EC06AM3N3 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC06ALK Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC06ALK1 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC06ALK2 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC06ALK3 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC06ALN Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EC06ALN1 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EC06ALN2 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EC06ALN3 Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC08A Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EC08AM3K Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC08AM3K1 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC08AM3K2 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC08AM3K3 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC08AM3N Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EC08AM3N1 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EC08AM3N2 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EC08AM3N3 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC08ALK Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC08ALK1 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC08ALK2 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC08ALK3 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC08ALN Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EC08ALN1 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EC08ALN2 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EC08ALN3 Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC10A Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EC10AM3K Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC10AM3K1 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC10AM3K2 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC10AM3K3 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC10AM3N Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EC10AM3N1 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EC10AM3N2 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EC10AM3N3 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC10ALK Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC10ALK1 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC10ALK2 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC10ALK3 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC10ALN Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EC10ALN1 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EC10ALN2 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EC10ALN3 Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
170 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APM-E Servo Motors 200V (40-80 mm, 0.05-1 kW)

Brand LS Electric·Servo Motors

Available part numbers (170)

APM-EAR5A, APM-EAR5AM3K, APM-EAR5AM3K1, APM-EAR5AM3K2, APM-EAR5AM3K3, APM-EAR5AM3N, APM-EAR5AM3N1, APM-EAR5AM3N2, APM-EAR5AM3N3, APM-EAR5ALK + 160 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
APM-EAR5AFlange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EAR5AM3KFlange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EAR5AM3K1Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EAR5AM3K2Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EAR5AM3K3Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EAR5AM3NFlange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EAR5AM3N1Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EAR5AM3N2Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EAR5AM3N3Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EAR5ALKFlange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EAR5ALK1Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EAR5ALK2Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EAR5ALK3Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EAR5ALNFlange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EAR5ALN1Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EAR5ALN2Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EAR5ALN3Flange: 40 mm | Rating: 0.05 kW / 0.16 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EA01AFlange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EA01AM3KFlange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EA01AM3K1Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EA01AM3K2Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EA01AM3K3Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EA01AM3NFlange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EA01AM3N1Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EA01AM3N2Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EA01AM3N3Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EA01ALKFlange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EA01ALK1Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EA01ALK2Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EA01ALK3Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EA01ALNFlange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EA01ALN1Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EA01ALN2Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EA01ALN3Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EA015AFlange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EA015AM3KFlange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EA015AM3K1Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EA015AM3K2Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EA015AM3K3Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EA015AM3NFlange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EA015AM3N1Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EA015AM3N2Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EA015AM3N3Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EA015ALKFlange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EA015ALK1Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EA015ALK2Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EA015ALK3Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EA015ALNFlange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EA015ALN1Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EA015ALN2Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EA015ALN3Flange: 40 mm | Rating: 0.15 kW / 0.48 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB01AFlange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EB01AM3KFlange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB01AM3K1Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB01AM3K2Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB01AM3K3Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB01AM3NFlange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EB01AM3N1Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EB01AM3N2Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EB01AM3N3Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB01ALKFlange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB01ALK1Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB01ALK2Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB01ALK3Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB01ALNFlange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EB01ALN1Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EB01ALN2Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EB01ALN3Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB02AFlange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EB02AM3KFlange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB02AM3K1Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB02AM3K2Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB02AM3K3Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB02AM3NFlange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EB02AM3N1Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EB02AM3N2Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EB02AM3N3Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB02ALKFlange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB02ALK1Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB02ALK2Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB02ALK3Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB02ALNFlange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EB02ALN1Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EB02ALN2Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EB02ALN3Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB04AFlange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EB04AM3KFlange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB04AM3K1Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB04AM3K2Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB04AM3K3Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB04AM3NFlange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EB04AM3N1Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EB04AM3N2Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EB04AM3N3Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EB04ALKFlange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EB04ALK1Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EB04ALK2Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EB04ALK3Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EB04ALNFlange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EB04ALN1Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EB04ALN2Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EB04ALN3Flange: 60 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC04AFlange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EC04AM3KFlange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC04AM3K1Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC04AM3K2Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC04AM3K3Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC04AM3NFlange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EC04AM3N1Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EC04AM3N2Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EC04AM3N3Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC04ALKFlange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC04ALK1Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC04ALK2Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC04ALK3Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC04ALNFlange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EC04ALN1Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EC04ALN2Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EC04ALN3Flange: 80 mm | Rating: 0.4 kW / 1.27 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC06AFlange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EC06AM3KFlange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC06AM3K1Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC06AM3K2Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC06AM3K3Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC06AM3NFlange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EC06AM3N1Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EC06AM3N2Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EC06AM3N3Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC06ALKFlange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC06ALK1Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC06ALK2Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC06ALK3Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC06ALNFlange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EC06ALN1Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EC06ALN2Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EC06ALN3Flange: 80 mm | Rating: 0.6 kW / 1.91 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC08AFlange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EC08AM3KFlange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC08AM3K1Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC08AM3K2Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC08AM3K3Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC08AM3NFlange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EC08AM3N1Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EC08AM3N2Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EC08AM3N3Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC08ALKFlange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC08ALK1Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC08ALK2Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC08ALK3Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC08ALNFlange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EC08ALN1Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EC08ALN2Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EC08ALN3Flange: 80 mm | Rating: 0.75 kW / 2.39 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC10AFlange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APM-EC10AM3KFlange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC10AM3K1Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC10AM3K2Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC10AM3K3Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC10AM3NFlange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APM-EC10AM3N1Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APM-EC10AM3N2Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APM-EC10AM3N3Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: M3: 23-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APM-EC10ALKFlange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: None
APM-EC10ALK1Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APM-EC10ALK2Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Brake
APM-EC10ALK3Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APM-EC10ALNFlange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: None
APM-EC10ALN1Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal
APM-EC10ALN2Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Brake
APM-EC10ALN3Flange: 80 mm | Rating: 1 kW / 3.18 N.m | Encoder: L: 20-bit batteryless multi-turn | Shaft: Straight | Option: Oil seal + brake

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
