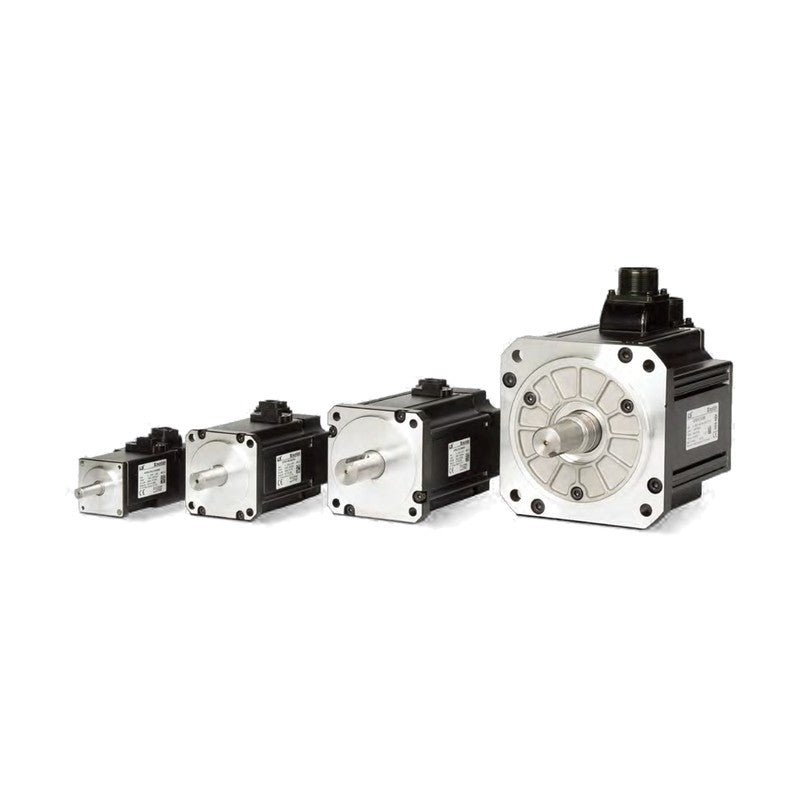

LS Electric APMC-F Low-Voltage Servo Motors 48VDC (PHOX)

LS Electric APMC-F Low-Voltage Servo Motors 48VDC (PHOX)

LS Electric Xmotion APMC-F 48 VDC low-voltage servo motors (40 and 60 mm, 100-300 W, 3,000 rpm) for PHOX DC EtherCAT servo drives.

Key features

  • Low-voltage version of the F series for PHOX-03 / PHOX-06 DC drives (suffix -8 = 48 VDC)
  • FAL01A-8 with 18-bit (M8) encoder; FBL01A/02A/03A-8 with 19-bit (M) encoder, 16-bit multi-turn
  • Full order code e.g. APMC-FBL02AMK2-8; shaft K (round key) or N (straight)
  • Options oil seal / brake (40 mm FAL: brake only)
  • IP67 (shaft through-hole excluded)

Specifications

Motor series APMC-F low voltage
Supply 48 VDC (drive input)
Rated speed 3,000 rpm
Max speed 3,000 rpm
Protection IP67 (shaft through-hole excluded)
Allowable load inertia 30x (FAL), 20x (FBL)
Drives PHOX-03 (FAL01A, FBL01A), PHOX-06 (FBL02A, FBL03A)
Ambient 0 to 40 C, 80% RH max, non-condensing
Source LS Electric Xmotion Servo System catalog (KR, 2024.09), p. 98, 109
APMC-FAL01A-8 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APMC-FAL01AM8K-8 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M8: 18-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APMC-FAL01AM8K2-8 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M8: 18-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APMC-FAL01AM8N-8 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M8: 18-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APMC-FAL01AM8N2-8 Flange: 40 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M8: 18-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APMC-FBL01A-8 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APMC-FBL01AMK-8 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APMC-FBL01AMK1-8 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APMC-FBL01AMK2-8 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APMC-FBL01AMK3-8 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APMC-FBL01AMN-8 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APMC-FBL01AMN1-8 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APMC-FBL01AMN2-8 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APMC-FBL01AMN3-8 Flange: 60 mm | Rating: 0.1 kW / 0.32 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APMC-FBL02A-8 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APMC-FBL02AMK-8 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APMC-FBL02AMK1-8 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APMC-FBL02AMK2-8 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APMC-FBL02AMK3-8 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APMC-FBL02AMN-8 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APMC-FBL02AMN1-8 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APMC-FBL02AMN2-8 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APMC-FBL02AMN3-8 Flange: 60 mm | Rating: 0.2 kW / 0.64 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
APMC-FBL03A-8 Flange: 60 mm | Rating: 0.3 kW / 0.95 N.m | Encoder: Base model (specify) | Shaft: Specify | Option: Specify
APMC-FBL03AMK-8 Flange: 60 mm | Rating: 0.3 kW / 0.95 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: None
APMC-FBL03AMK1-8 Flange: 60 mm | Rating: 0.3 kW / 0.95 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal
APMC-FBL03AMK2-8 Flange: 60 mm | Rating: 0.3 kW / 0.95 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Brake
APMC-FBL03AMK3-8 Flange: 60 mm | Rating: 0.3 kW / 0.95 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Key, one end round (std) | Option: Oil seal + brake
APMC-FBL03AMN-8 Flange: 60 mm | Rating: 0.3 kW / 0.95 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: None
APMC-FBL03AMN1-8 Flange: 60 mm | Rating: 0.3 kW / 0.95 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal
APMC-FBL03AMN2-8 Flange: 60 mm | Rating: 0.3 kW / 0.95 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Brake
APMC-FBL03AMN3-8 Flange: 60 mm | Rating: 0.3 kW / 0.95 N.m | Encoder: M: 19-bit abs, 16-bit multi-turn | Shaft: Straight | Option: Oil seal + brake
Servo MotorsLS Electric
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric APMC-F Low-Voltage Servo Motors 48VDC (PHOX)

Brand LS Electric·Servo Motors

Available part numbers (32)

APMC-FAL01A-8, APMC-FAL01AM8K-8, APMC-FAL01AM8K2-8, APMC-FAL01AM8N-8, APMC-FAL01AM8N2-8, APMC-FBL01A-8, APMC-FBL01AMK-8, APMC-FBL01AMK1-8, APMC-FBL01AMK2-8, APMC-FBL01AMK3-8 + 22 more — see full table ↓
