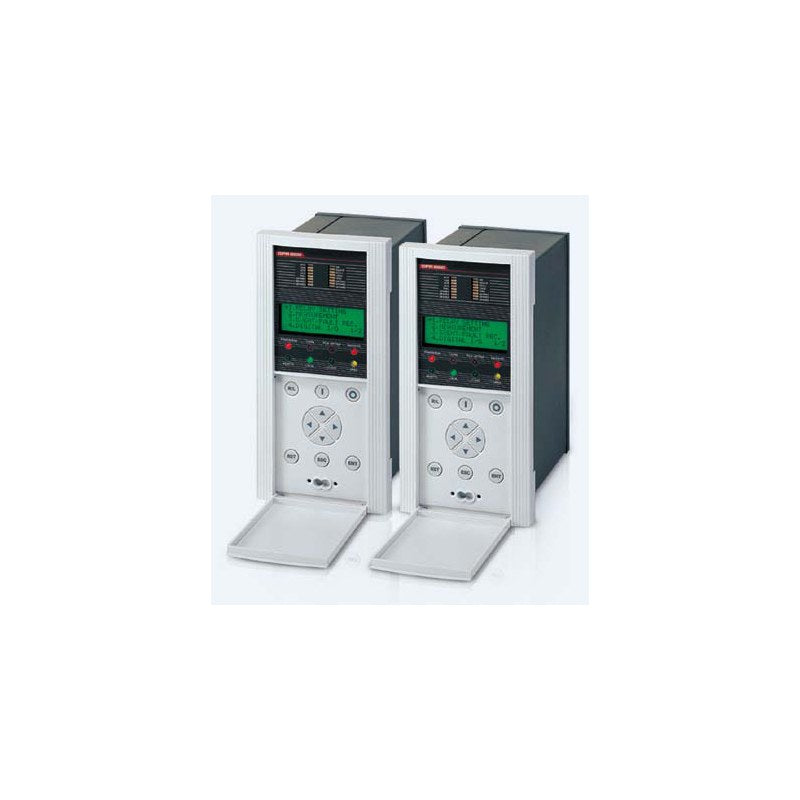

LS Electric Beyond X DPR1000 Digital Protection Relay (Feeder/Motor)

LS Electric Beyond X DPR1000 Digital Protection Relay (Feeder/Motor)

LS Electric Beyond X DPR1000 digital protection relay for high-voltage feeders and motors, with residual (NCT) or ZCT ground-fault input.

Key features

  • FN: 50/51, 50/51N, 46, 67N, 49, 48/51LR, 37, 66, 38 protection elements (residual NCT ground input)
  • FZ: 50/51, 46, 67G, 49, 48/51LR, 37, 66, 38 protection elements (ZCT ground input)
  • Optional 4-20 mA analog input; RS-485 Modbus communication
  • 20 x 4 text LCD, local/remote and CB open/close keys; IrDA serial port for DPR-OPTO MASTER software (option)

Specifications

CT rating 5 A (ZCT 1.5 mA)
GPT rating 190 V, 190/sqrt3 V
Wiring 3P3W, 3P4W
Communication RS-485, Modbus
Control power AC/DC 110 V, DC 125 V
Digital input voltage AC/DC 110 V
Operating temperature -10 to 55 C
Size / weight 120 x 245 x 185 mm (W x H x D); 3.4 kg
Standards IEC 60255, IEC 61000-4, KEMC 1120
Source LS Electric DPR1000 catalog C160F1-01 (2023-04), p. 5, 12
DPR1000FNRSM5A60HzAI Protection type: FN (feeder/motor, NCT input) | Frequency: 60 Hz | Analog input: 4-20 mA
DPR1000FNRSM5A60Hz Protection type: FN (feeder/motor, NCT input) | Frequency: 60 Hz | Analog input: None
DPR1000FNRSM5A50HzAI Protection type: FN (feeder/motor, NCT input) | Frequency: 50 Hz | Analog input: 4-20 mA
DPR1000FNRSM5A50Hz Protection type: FN (feeder/motor, NCT input) | Frequency: 50 Hz | Analog input: None
DPR1000FZRSM5A60HzAI Protection type: FZ (feeder/motor, ZCT input) | Frequency: 60 Hz | Analog input: 4-20 mA
DPR1000FZRSM5A60Hz Protection type: FZ (feeder/motor, ZCT input) | Frequency: 60 Hz | Analog input: None
DPR1000FZRSM5A50HzAI Protection type: FZ (feeder/motor, ZCT input) | Frequency: 50 Hz | Analog input: 4-20 mA
DPR1000FZRSM5A50Hz Protection type: FZ (feeder/motor, ZCT input) | Frequency: 50 Hz | Analog input: None
Protection RelaysLS Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Beyond X DPR1000 Digital Protection Relay (Feeder/Motor)

Brand LS Electric·Protection Relays

Available part numbers (8)

DPR1000FNRSM5A60HzAI, DPR1000FNRSM5A60Hz, DPR1000FNRSM5A50HzAI, DPR1000FNRSM5A50Hz, DPR1000FZRSM5A60HzAI, DPR1000FZRSM5A60Hz, DPR1000FZRSM5A50HzAI, DPR1000FZRSM5A50Hz

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DPR1000FNRSM5A60HzAIProtection type: FN (feeder/motor, NCT input) | Frequency: 60 Hz | Analog input: 4-20 mA
DPR1000FNRSM5A60HzProtection type: FN (feeder/motor, NCT input) | Frequency: 60 Hz | Analog input: None
DPR1000FNRSM5A50HzAIProtection type: FN (feeder/motor, NCT input) | Frequency: 50 Hz | Analog input: 4-20 mA
DPR1000FNRSM5A50HzProtection type: FN (feeder/motor, NCT input) | Frequency: 50 Hz | Analog input: None
DPR1000FZRSM5A60HzAIProtection type: FZ (feeder/motor, ZCT input) | Frequency: 60 Hz | Analog input: 4-20 mA
DPR1000FZRSM5A60HzProtection type: FZ (feeder/motor, ZCT input) | Frequency: 60 Hz | Analog input: None
DPR1000FZRSM5A50HzAIProtection type: FZ (feeder/motor, ZCT input) | Frequency: 50 Hz | Analog input: 4-20 mA
DPR1000FZRSM5A50HzProtection type: FZ (feeder/motor, ZCT input) | Frequency: 50 Hz | Analog input: None
