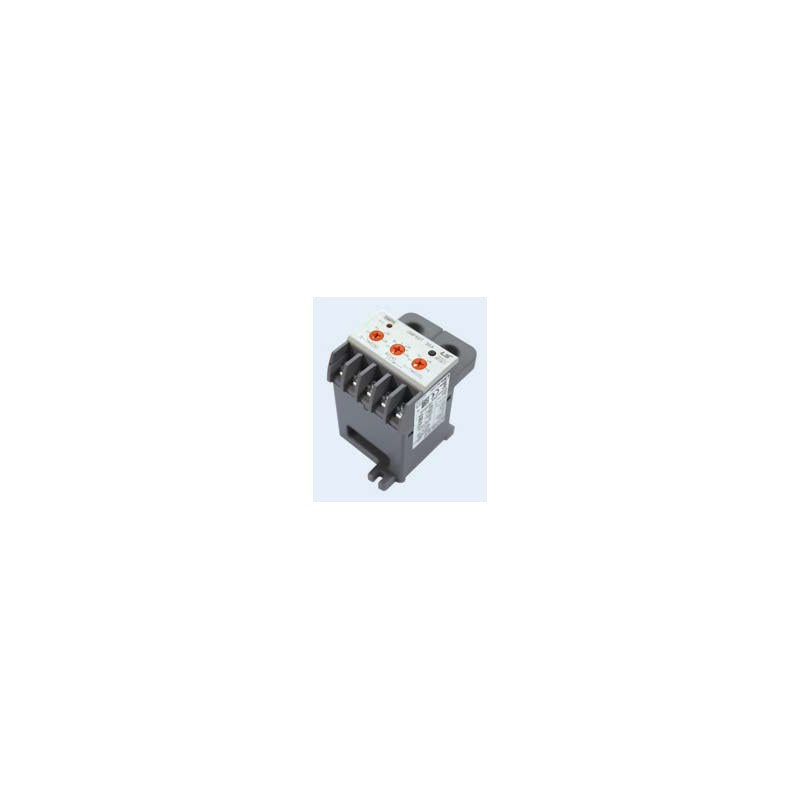

LS Electric DMPi Intelligent Digital Motor Protection Relay (0.5-65 A)

LS Electric DMPi Intelligent Digital Motor Protection Relay (0.5-65 A)

LS Electric DMPi intelligent digital motor protection relays with 4-digit display, in 0.5-6 A and 5-65 A ratings, screw or tunnel connection, optional ground-fault, instantaneous and communication functions.

Key features

  • Overcurrent, locked rotor, phase loss, unbalance, phase reversal and undercurrent protection as standard
  • Optional ground fault via external ZCT (Z) or built-in ZCT (B), and instantaneous short-circuit protection (I)
  • Selectable thermal inverse, inverse or definite-time characteristic; trip time 1-60 s at 600%
  • Optional RS485 Modbus (M) or 4-20 mA DC current output (A)
  • Separable 4-digit 7-segment display (cable sold separately); 35 mm DIN rail or screw mounting
  • For loads above 65 A use the 06i model with external CTs

Specifications

Series DMPi (Beyond X)
Control voltage AC/DC 85-260 V or AC/DC 24 V (specify)
Rated frequency 50/60 Hz
Auxiliary contacts 3-SPST (1a1b + instantaneous 1a), 3 A/250 V AC
Start delay / operating time 1-200 s / 1-60 s
Auto reset 1-20 min (overcurrent only)
Accuracy Current +/-3%, time +/-5%
ZCT input 200 mA/100 mV (LS ZCT)
Operating temperature -20 to 60 C
Power consumption 2 W max.
Source LS Electric EMPR Series catalog C15031-15 (2025-11), p. 42, 47, 134
DMP06i-S Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP06i-SM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP06i-SA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP06i-SI Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: Yes | Communication: None
DMP06i-SIM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP06i-SIA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP06i-SZ Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP06i-SZM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP06i-SZA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP06i-SZI Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: None
DMP06i-SZIM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP06i-SZIA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP06i-SB Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP06i-SBM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP06i-SBA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP06i-SBI Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: None
DMP06i-SBIM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP06i-SBIA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP06i-T Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP06i-TM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP06i-TA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP06i-TI Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: Yes | Communication: None
DMP06i-TIM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP06i-TIA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP06i-TZ Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP06i-TZM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP06i-TZA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP06i-TZI Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: None
DMP06i-TZIM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP06i-TZIA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP06i-TB Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP06i-TBM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP06i-TBA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP06i-TBI Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: None
DMP06i-TBIM Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP06i-TBIA Rated current: 0.5-6 A (external CT above 6 A) | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP65i-S Rated current: 5-65 A | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP65i-SM Rated current: 5-65 A | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP65i-SA Rated current: 5-65 A | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP65i-SI Rated current: 5-65 A | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: Yes | Communication: None
DMP65i-SIM Rated current: 5-65 A | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP65i-SIA Rated current: 5-65 A | Connection: Screw terminal | Ground fault: None | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP65i-SZ Rated current: 5-65 A | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP65i-SZM Rated current: 5-65 A | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP65i-SZA Rated current: 5-65 A | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP65i-SZI Rated current: 5-65 A | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: None
DMP65i-SZIM Rated current: 5-65 A | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP65i-SZIA Rated current: 5-65 A | Connection: Screw terminal | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP65i-SB Rated current: 5-65 A | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP65i-SBM Rated current: 5-65 A | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP65i-SBA Rated current: 5-65 A | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP65i-SBI Rated current: 5-65 A | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: None
DMP65i-SBIM Rated current: 5-65 A | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP65i-SBIA Rated current: 5-65 A | Connection: Screw terminal | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP65i-T Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP65i-TM Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP65i-TA Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP65i-TI Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: Yes | Communication: None
DMP65i-TIM Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP65i-TIA Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: None | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP65i-TZ Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP65i-TZM Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP65i-TZA Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP65i-TZI Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: None
DMP65i-TZIM Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP65i-TZIA Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: External ZCT | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
DMP65i-TB Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: None
DMP65i-TBM Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: RS485 Modbus
DMP65i-TBA Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: No (alarm only) | Communication: 4-20 mA DC output
DMP65i-TBI Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: None
DMP65i-TBIM Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: RS485 Modbus
DMP65i-TBIA Rated current: 5-65 A | Connection: Tunnel (feed-through) | Ground fault: Built-in ZCT | Instantaneous short-circuit: Yes | Communication: 4-20 mA DC output
Motor Protection RelaysLS Electric
72 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric DMPi Intelligent Digital Motor Protection Relay (0.5-65 A)

Brand LS Electric·Motor Protection Relays

Available part numbers (72)

DMP06i-S, DMP06i-SM, DMP06i-SA, DMP06i-SI, DMP06i-SIM, DMP06i-SIA, DMP06i-SZ, DMP06i-SZM, DMP06i-SZA, DMP06i-SZI + 62 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
