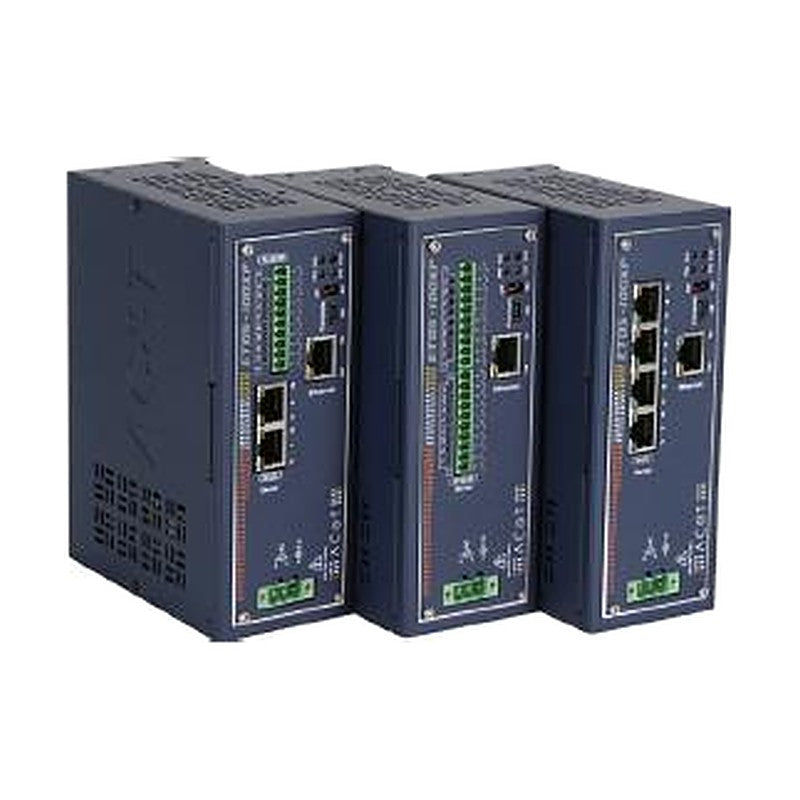

LS Electric ETOS-100XP / 150XP Industrial Device Servers

LS Electric ETOS-100XP / 150XP Industrial Device Servers

Compact ETOS-100XP and ETOS-150XP industrial network device servers (made by AC&T System) that integrate serial and Ethernet devices with built-in industrial protocol drivers, 4 serial ports and up to 2 Ethernet ports on DIN rail.

Key features

  • Independent master/slave operation of every serial and Ethernet port
  • Built-in drivers incl. Modbus RTU/ASCII/TCP, XGT/GLOFA Cnet/Enet, MELSEC, BACnet/IP, DNP3.0, IEC 60870
  • User-defined frame protocols and libraries via ETOS-RD programming
  • 100XP: up to 16 Ethernet devices; 150XP: up to 64 devices with Ethernet redundancy
  • Battery-backed memory, watchdog and frame/variable monitoring diagnostics
  • DIN rail or wall mounting

Specifications

Serial ports 4 (RS-232C RJ-45 / RS-422/485)
Serial speed 300 bps to 115.2 kbps
RS-422/485 isolation +/-2 kV
Power supply 100-240 VAC
Memory 512 KB user / 1 MB program
Mounting DIN rail / wall
Dimensions (WxHxD) 155 x 60 x 115-120 mm
Operating temperature -10 to +60 C
Humidity 5-95% RH, non-condensing
Source LS Electric ETOS-100XP / ETOS-150XP catalogs, p. 1-4
ETOS-100XP-S40 Model: 100XP | Ethernet: None (serial only) | RS-232C ports: 4 | RS-422/485 ports: 0
ETOS-100XP-S22 Model: 100XP | Ethernet: None (serial only) | RS-232C ports: 2 | RS-422/485 ports: 2
ETOS-100XP-S04 Model: 100XP | Ethernet: None (serial only) | RS-232C ports: 0 | RS-422/485 ports: 4
ETOS-100XP-E40 Model: 100XP | Ethernet: 1 x 10/100Base-TX | RS-232C ports: 4 | RS-422/485 ports: 0
ETOS-100XP-E22 Model: 100XP | Ethernet: 1 x 10/100Base-TX | RS-232C ports: 2 | RS-422/485 ports: 2
ETOS-100XP-E04 Model: 100XP | Ethernet: 1 x 10/100Base-TX | RS-232C ports: 0 | RS-422/485 ports: 4
ETOS-150XP-E40 Model: 150XP | Ethernet: 2 x 10/100/1000Base-TX | RS-232C ports: 4 | RS-422/485 ports: 0
ETOS-150XP-E22 Model: 150XP | Ethernet: 2 x 10/100/1000Base-TX | RS-232C ports: 2 | RS-422/485 ports: 2
ETOS-150XP-E04 Model: 150XP | Ethernet: 2 x 10/100/1000Base-TX | RS-232C ports: 0 | RS-422/485 ports: 4
Serial Device ServersLS Electric
9 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric ETOS-100XP / 150XP Industrial Device Servers

Brand LS Electric·Serial Device Servers

Available part numbers (9)

ETOS-100XP-S40, ETOS-100XP-S22, ETOS-100XP-S04, ETOS-100XP-E40, ETOS-100XP-E22, ETOS-100XP-E04, ETOS-150XP-E40, ETOS-150XP-E22, ETOS-150XP-E04
