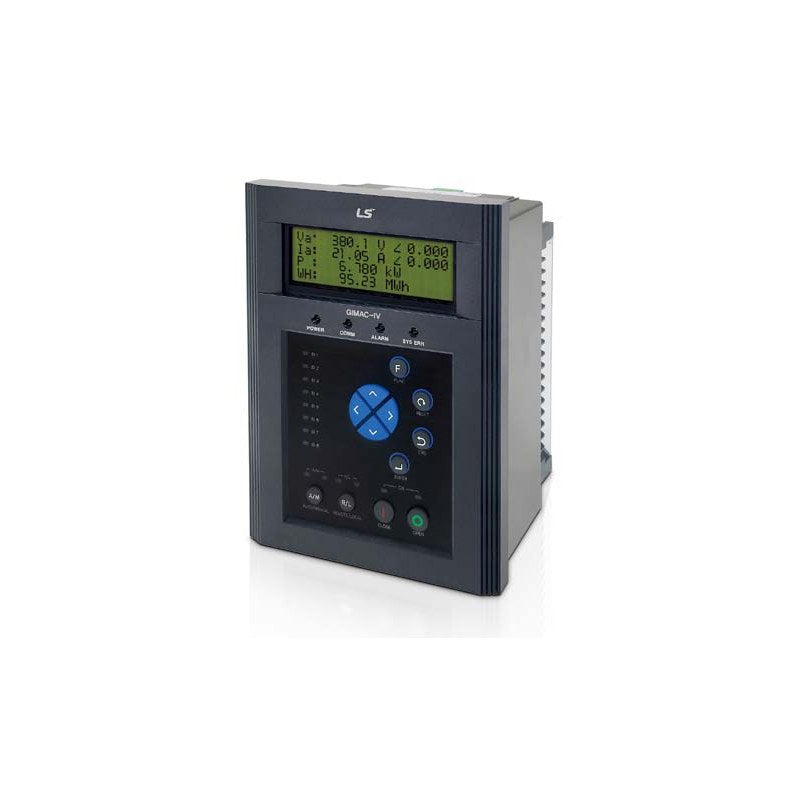

LS Electric GIMAC-IV (GIMAC-415) Metering, APFC & Demand Controller

LS Electric GIMAC-IV (GIMAC-415) Metering, APFC & Demand Controller

LS Electric Beyond X GIMAC-IV (GIMAC-415) digital integrated metering and control device, available as basic meter or with automatic power factor control and/or demand control functions.

Key features

  • High-speed DSP with 128 samples per cycle; voltage/current +/-0.2 %, power/energy +/-0.5 %
  • Harmonics up to 63rd order with THD; current and active power demand
  • Model variants: basic, APFC (capacitor bank control), demand control (load control) or both
  • Circuit breaker control outputs plus 8 configurable DO for bank/load control and alarms
  • Event recording up to 300 events; self-diagnosis of wiring, frequency, memory and CPU
  • RS485 communication with Modbus or DNP3.0

Specifications

Communication RS485
CT rating 5 A (0.05-6 A)
Wiring systems 1P2W, 1P3W, 3P3W, 3P4W
Voltage input PT 10-230 V; GPT 2.2-230 V
Output contacts AC 250 V 16 A / DC 30 V 16 A
Power consumption 10 W normal, 30 W operating
Standards IEC 60255, IEC 61000-4, KEMC 1110
Dimensions 190 x 255 x 116 mm
Weight 3.6 kg
Operating temperature -10 to +55 C
Note GIMAC-IV and GIMAC-415 are the same product
Source LS Electric GIMAC-IV catalog C160I1-02 (2024-06), p. 3, 10-11, 18, 21
GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC110V Model: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC110VAI Model: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC220V Model: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC220VAI Model: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC110V Model: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC110VAI Model: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC220V Model: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC220VAI Model: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A60HzAC/DC110VDI_AC/DC110V Model: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSM5A60HzAC/DC110VDI_AC/DC110VAI Model: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A60HzAC/DC110VDI_AC/DC220V Model: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSM5A60HzAC/DC110VDI_AC/DC220VAI Model: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A60HzAC/DC220VDI_AC/DC110V Model: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSM5A60HzAC/DC220VDI_AC/DC110VAI Model: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A60HzAC/DC220VDI_AC/DC220V Model: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSM5A60HzAC/DC220VDI_AC/DC220VAI Model: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A50HzAC/DC110VDI_AC/DC110V Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSD5A50HzAC/DC110VDI_AC/DC110VAI Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A50HzAC/DC110VDI_AC/DC220V Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSD5A50HzAC/DC110VDI_AC/DC220VAI Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A50HzAC/DC220VDI_AC/DC110V Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSD5A50HzAC/DC220VDI_AC/DC110VAI Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A50HzAC/DC220VDI_AC/DC220V Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSD5A50HzAC/DC220VDI_AC/DC220VAI Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A60HzAC/DC110VDI_AC/DC110V Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSD5A60HzAC/DC110VDI_AC/DC110VAI Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A60HzAC/DC110VDI_AC/DC220V Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSD5A60HzAC/DC110VDI_AC/DC220VAI Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A60HzAC/DC220VDI_AC/DC110V Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSD5A60HzAC/DC220VDI_AC/DC110VAI Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A60HzAC/DC220VDI_AC/DC220V Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSD5A60HzAC/DC220VDI_AC/DC220VAI Model: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A50HzAC/DC110VDI_AC/DC110V Model: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSM5A50HzAC/DC110VDI_AC/DC110VAI Model: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A50HzAC/DC110VDI_AC/DC220V Model: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSM5A50HzAC/DC110VDI_AC/DC220VAI Model: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A50HzAC/DC220VDI_AC/DC110V Model: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSM5A50HzAC/DC220VDI_AC/DC110VAI Model: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A50HzAC/DC220VDI_AC/DC220V Model: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSM5A50HzAC/DC220VDI_AC/DC220VAI Model: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A60HzAC/DC110VDI_AC/DC110V Model: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSM5A60HzAC/DC110VDI_AC/DC110VAI Model: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A60HzAC/DC110VDI_AC/DC220V Model: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSM5A60HzAC/DC110VDI_AC/DC220VAI Model: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A60HzAC/DC220VDI_AC/DC110V Model: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSM5A60HzAC/DC220VDI_AC/DC110VAI Model: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A60HzAC/DC220VDI_AC/DC220V Model: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSM5A60HzAC/DC220VDI_AC/DC220VAI Model: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A50HzAC/DC110VDI_AC/DC110V Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSD5A50HzAC/DC110VDI_AC/DC110VAI Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A50HzAC/DC110VDI_AC/DC220V Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSD5A50HzAC/DC110VDI_AC/DC220VAI Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A50HzAC/DC220VDI_AC/DC110V Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSD5A50HzAC/DC220VDI_AC/DC110VAI Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A50HzAC/DC220VDI_AC/DC220V Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSD5A50HzAC/DC220VDI_AC/DC220VAI Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A60HzAC/DC110VDI_AC/DC110V Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSD5A60HzAC/DC110VDI_AC/DC110VAI Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A60HzAC/DC110VDI_AC/DC220V Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSD5A60HzAC/DC110VDI_AC/DC220VAI Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A60HzAC/DC220VDI_AC/DC110V Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSD5A60HzAC/DC220VDI_AC/DC110VAI Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A60HzAC/DC220VDI_AC/DC220V Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSD5A60HzAC/DC220VDI_AC/DC220VAI Model: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A50HzAC/DC110VDI_AC/DC110V Model: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSM5A50HzAC/DC110VDI_AC/DC110VAI Model: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A50HzAC/DC110VDI_AC/DC220V Model: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSM5A50HzAC/DC110VDI_AC/DC220VAI Model: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A50HzAC/DC220VDI_AC/DC110V Model: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSM5A50HzAC/DC220VDI_AC/DC110VAI Model: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A50HzAC/DC220VDI_AC/DC220V Model: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSM5A50HzAC/DC220VDI_AC/DC220VAI Model: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A60HzAC/DC110VDI_AC/DC110V Model: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSM5A60HzAC/DC110VDI_AC/DC110VAI Model: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A60HzAC/DC110VDI_AC/DC220V Model: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSM5A60HzAC/DC110VDI_AC/DC220VAI Model: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A60HzAC/DC220VDI_AC/DC110V Model: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSM5A60HzAC/DC220VDI_AC/DC110VAI Model: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A60HzAC/DC220VDI_AC/DC220V Model: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSM5A60HzAC/DC220VDI_AC/DC220VAI Model: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A50HzAC/DC110VDI_AC/DC110V Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSD5A50HzAC/DC110VDI_AC/DC110VAI Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A50HzAC/DC110VDI_AC/DC220V Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSD5A50HzAC/DC110VDI_AC/DC220VAI Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A50HzAC/DC220VDI_AC/DC110V Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSD5A50HzAC/DC220VDI_AC/DC110VAI Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A50HzAC/DC220VDI_AC/DC220V Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSD5A50HzAC/DC220VDI_AC/DC220VAI Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A60HzAC/DC110VDI_AC/DC110V Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSD5A60HzAC/DC110VDI_AC/DC110VAI Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A60HzAC/DC110VDI_AC/DC220V Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSD5A60HzAC/DC110VDI_AC/DC220VAI Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A60HzAC/DC220VDI_AC/DC110V Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSD5A60HzAC/DC220VDI_AC/DC110VAI Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A60HzAC/DC220VDI_AC/DC220V Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSD5A60HzAC/DC220VDI_AC/DC220VAI Model: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A50HzAC/DC110VDI_AC/DC110V Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSM5A50HzAC/DC110VDI_AC/DC110VAI Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A50HzAC/DC110VDI_AC/DC220V Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSM5A50HzAC/DC110VDI_AC/DC220VAI Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A50HzAC/DC220VDI_AC/DC110V Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSM5A50HzAC/DC220VDI_AC/DC110VAI Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A50HzAC/DC220VDI_AC/DC220V Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSM5A50HzAC/DC220VDI_AC/DC220VAI Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A60HzAC/DC110VDI_AC/DC110V Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSM5A60HzAC/DC110VDI_AC/DC110VAI Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A60HzAC/DC110VDI_AC/DC220V Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSM5A60HzAC/DC110VDI_AC/DC220VAI Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A60HzAC/DC220VDI_AC/DC110V Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSM5A60HzAC/DC220VDI_AC/DC110VAI Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A60HzAC/DC220VDI_AC/DC220V Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSM5A60HzAC/DC220VDI_AC/DC220VAI Model: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A50HzAC/DC110VDI_AC/DC110V Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSD5A50HzAC/DC110VDI_AC/DC110VAI Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A50HzAC/DC110VDI_AC/DC220V Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSD5A50HzAC/DC110VDI_AC/DC220VAI Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A50HzAC/DC220VDI_AC/DC110V Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSD5A50HzAC/DC220VDI_AC/DC110VAI Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A50HzAC/DC220VDI_AC/DC220V Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSD5A50HzAC/DC220VDI_AC/DC220VAI Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A60HzAC/DC110VDI_AC/DC110V Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSD5A60HzAC/DC110VDI_AC/DC110VAI Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A60HzAC/DC110VDI_AC/DC220V Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSD5A60HzAC/DC110VDI_AC/DC220VAI Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A60HzAC/DC220VDI_AC/DC110V Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSD5A60HzAC/DC220VDI_AC/DC110VAI Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A60HzAC/DC220VDI_AC/DC220V Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSD5A60HzAC/DC220VDI_AC/DC220VAI Model: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
Power MetersLS Electric
128 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric GIMAC-IV (GIMAC-415) Metering, APFC & Demand Controller

Brand LS Electric·Power Meters

Available part numbers (128)

GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC110V, GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC110VAI, GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC220V, GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC220VAI, GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC110V, GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC110VAI, GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC220V, GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC220VAI, GIMAC-415NORSM5A60HzAC/DC110VDI_AC/DC110V, GIMAC-415NORSM5A60HzAC/DC110VDI_AC/DC110VAI + 118 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC110VModel: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC110VAIModel: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC220VModel: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSM5A50HzAC/DC110VDI_AC/DC220VAIModel: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC110VModel: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC110VAIModel: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC220VModel: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSM5A50HzAC/DC220VDI_AC/DC220VAIModel: Basic (NO) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A60HzAC/DC110VDI_AC/DC110VModel: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSM5A60HzAC/DC110VDI_AC/DC110VAIModel: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A60HzAC/DC110VDI_AC/DC220VModel: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSM5A60HzAC/DC110VDI_AC/DC220VAIModel: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A60HzAC/DC220VDI_AC/DC110VModel: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSM5A60HzAC/DC220VDI_AC/DC110VAIModel: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSM5A60HzAC/DC220VDI_AC/DC220VModel: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSM5A60HzAC/DC220VDI_AC/DC220VAIModel: Basic (NO) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A50HzAC/DC110VDI_AC/DC110VModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSD5A50HzAC/DC110VDI_AC/DC110VAIModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A50HzAC/DC110VDI_AC/DC220VModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSD5A50HzAC/DC110VDI_AC/DC220VAIModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A50HzAC/DC220VDI_AC/DC110VModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSD5A50HzAC/DC220VDI_AC/DC110VAIModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A50HzAC/DC220VDI_AC/DC220VModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSD5A50HzAC/DC220VDI_AC/DC220VAIModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A60HzAC/DC110VDI_AC/DC110VModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSD5A60HzAC/DC110VDI_AC/DC110VAIModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A60HzAC/DC110VDI_AC/DC220VModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSD5A60HzAC/DC110VDI_AC/DC220VAIModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A60HzAC/DC220VDI_AC/DC110VModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415NORSD5A60HzAC/DC220VDI_AC/DC110VAIModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415NORSD5A60HzAC/DC220VDI_AC/DC220VModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415NORSD5A60HzAC/DC220VDI_AC/DC220VAIModel: Basic (NO) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A50HzAC/DC110VDI_AC/DC110VModel: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSM5A50HzAC/DC110VDI_AC/DC110VAIModel: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A50HzAC/DC110VDI_AC/DC220VModel: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSM5A50HzAC/DC110VDI_AC/DC220VAIModel: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A50HzAC/DC220VDI_AC/DC110VModel: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSM5A50HzAC/DC220VDI_AC/DC110VAIModel: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A50HzAC/DC220VDI_AC/DC220VModel: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSM5A50HzAC/DC220VDI_AC/DC220VAIModel: APFC (AP) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A60HzAC/DC110VDI_AC/DC110VModel: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSM5A60HzAC/DC110VDI_AC/DC110VAIModel: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A60HzAC/DC110VDI_AC/DC220VModel: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSM5A60HzAC/DC110VDI_AC/DC220VAIModel: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A60HzAC/DC220VDI_AC/DC110VModel: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSM5A60HzAC/DC220VDI_AC/DC110VAIModel: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSM5A60HzAC/DC220VDI_AC/DC220VModel: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSM5A60HzAC/DC220VDI_AC/DC220VAIModel: APFC (AP) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A50HzAC/DC110VDI_AC/DC110VModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSD5A50HzAC/DC110VDI_AC/DC110VAIModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A50HzAC/DC110VDI_AC/DC220VModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSD5A50HzAC/DC110VDI_AC/DC220VAIModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A50HzAC/DC220VDI_AC/DC110VModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSD5A50HzAC/DC220VDI_AC/DC110VAIModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A50HzAC/DC220VDI_AC/DC220VModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSD5A50HzAC/DC220VDI_AC/DC220VAIModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A60HzAC/DC110VDI_AC/DC110VModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSD5A60HzAC/DC110VDI_AC/DC110VAIModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A60HzAC/DC110VDI_AC/DC220VModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSD5A60HzAC/DC110VDI_AC/DC220VAIModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A60HzAC/DC220VDI_AC/DC110VModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415APRSD5A60HzAC/DC220VDI_AC/DC110VAIModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415APRSD5A60HzAC/DC220VDI_AC/DC220VModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415APRSD5A60HzAC/DC220VDI_AC/DC220VAIModel: APFC (AP) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A50HzAC/DC110VDI_AC/DC110VModel: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSM5A50HzAC/DC110VDI_AC/DC110VAIModel: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A50HzAC/DC110VDI_AC/DC220VModel: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSM5A50HzAC/DC110VDI_AC/DC220VAIModel: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A50HzAC/DC220VDI_AC/DC110VModel: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSM5A50HzAC/DC220VDI_AC/DC110VAIModel: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A50HzAC/DC220VDI_AC/DC220VModel: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSM5A50HzAC/DC220VDI_AC/DC220VAIModel: Demand control (DC) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A60HzAC/DC110VDI_AC/DC110VModel: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSM5A60HzAC/DC110VDI_AC/DC110VAIModel: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A60HzAC/DC110VDI_AC/DC220VModel: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSM5A60HzAC/DC110VDI_AC/DC220VAIModel: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A60HzAC/DC220VDI_AC/DC110VModel: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSM5A60HzAC/DC220VDI_AC/DC110VAIModel: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSM5A60HzAC/DC220VDI_AC/DC220VModel: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSM5A60HzAC/DC220VDI_AC/DC220VAIModel: Demand control (DC) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A50HzAC/DC110VDI_AC/DC110VModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSD5A50HzAC/DC110VDI_AC/DC110VAIModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A50HzAC/DC110VDI_AC/DC220VModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSD5A50HzAC/DC110VDI_AC/DC220VAIModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A50HzAC/DC220VDI_AC/DC110VModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSD5A50HzAC/DC220VDI_AC/DC110VAIModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A50HzAC/DC220VDI_AC/DC220VModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSD5A50HzAC/DC220VDI_AC/DC220VAIModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A60HzAC/DC110VDI_AC/DC110VModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSD5A60HzAC/DC110VDI_AC/DC110VAIModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A60HzAC/DC110VDI_AC/DC220VModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSD5A60HzAC/DC110VDI_AC/DC220VAIModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A60HzAC/DC220VDI_AC/DC110VModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415DCRSD5A60HzAC/DC220VDI_AC/DC110VAIModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415DCRSD5A60HzAC/DC220VDI_AC/DC220VModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415DCRSD5A60HzAC/DC220VDI_AC/DC220VAIModel: Demand control (DC) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A50HzAC/DC110VDI_AC/DC110VModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSM5A50HzAC/DC110VDI_AC/DC110VAIModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A50HzAC/DC110VDI_AC/DC220VModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSM5A50HzAC/DC110VDI_AC/DC220VAIModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A50HzAC/DC220VDI_AC/DC110VModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSM5A50HzAC/DC220VDI_AC/DC110VAIModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A50HzAC/DC220VDI_AC/DC220VModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSM5A50HzAC/DC220VDI_AC/DC220VAIModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A60HzAC/DC110VDI_AC/DC110VModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSM5A60HzAC/DC110VDI_AC/DC110VAIModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A60HzAC/DC110VDI_AC/DC220VModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSM5A60HzAC/DC110VDI_AC/DC220VAIModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A60HzAC/DC220VDI_AC/DC110VModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSM5A60HzAC/DC220VDI_AC/DC110VAIModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSM5A60HzAC/DC220VDI_AC/DC220VModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSM5A60HzAC/DC220VDI_AC/DC220VAIModel: APFC + demand control (PD) | Protocol: Modbus | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A50HzAC/DC110VDI_AC/DC110VModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSD5A50HzAC/DC110VDI_AC/DC110VAIModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A50HzAC/DC110VDI_AC/DC220VModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSD5A50HzAC/DC110VDI_AC/DC220VAIModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A50HzAC/DC220VDI_AC/DC110VModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSD5A50HzAC/DC220VDI_AC/DC110VAIModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A50HzAC/DC220VDI_AC/DC220VModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSD5A50HzAC/DC220VDI_AC/DC220VAIModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A60HzAC/DC110VDI_AC/DC110VModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSD5A60HzAC/DC110VDI_AC/DC110VAIModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A60HzAC/DC110VDI_AC/DC220VModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSD5A60HzAC/DC110VDI_AC/DC220VAIModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A60HzAC/DC220VDI_AC/DC110VModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-415PDRSD5A60HzAC/DC220VDI_AC/DC110VAIModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-415PDRSD5A60HzAC/DC220VDI_AC/DC220VModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-415PDRSD5A60HzAC/DC220VDI_AC/DC220VAIModel: APFC + demand control (PD) | Protocol: DNP3.0 | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Controllers & Meters →
