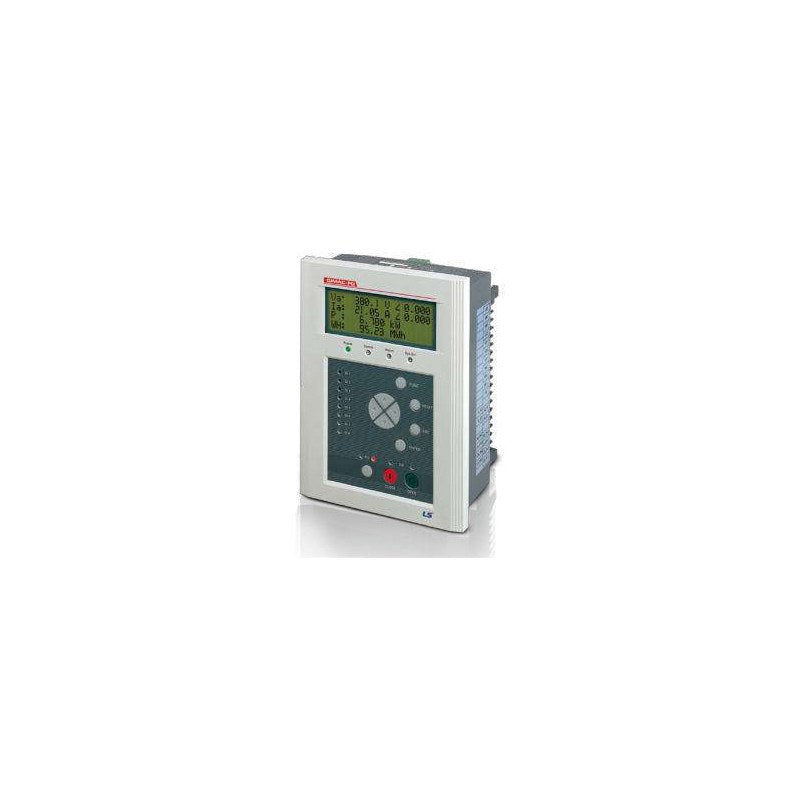

LS Electric GIMAC-PQ Digital Metering & Power Quality Analyzer

LS Electric GIMAC-PQ Digital Metering & Power Quality Analyzer

LS Electric GIMAC-PQ digital integrated metering and control device with power quality analysis, recording sag, swell and interruption events and fault waveforms.

Key features

  • 0.2 % class measurement with high-performance DSP and dedicated metering CPU
  • Harmonics to 15th order with THD, TDD and K-factor
  • Event recording up to 256 events incl. sag, swell, interruption, under/over voltage
  • Fault waveform recording up to 60 cycles
  • Optional 2-point 4-20 mA analog input (AI)
  • Dual-port Modbus RS485 for redundant communication

Specifications

Model NO (basic)
Communication RS485 / Modbus (2 ports)
Wiring systems 1P2W, 1P3W, 3P3W Delta/Y, 3P4W
Voltage input PT 10-230 V; GPT 2.2-230 V
Current input 0.05-6 A
Output contacts AC 250 V 16 A / DC 30 V 16 A
Standards IEC 60255, IEC 61000-4, KEMC 1110
Dimensions 190 x 255 x 116 mm
Weight 3.6 kg
Operating temperature -10 to +55 C
Source LS Electric GIMAC-PQ catalog C160J1-01 (2023-04), p. 3-5, 14
GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC110V CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC110VAI CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC220V CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC220VAI CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC110V CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC110VAI CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC220V CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC220VAI CT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A60HzAC/DC110VDI_AC/DC110V CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM1A60HzAC/DC110VDI_AC/DC110VAI CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A60HzAC/DC110VDI_AC/DC220V CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM1A60HzAC/DC110VDI_AC/DC220VAI CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A60HzAC/DC220VDI_AC/DC110V CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM1A60HzAC/DC220VDI_AC/DC110VAI CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A60HzAC/DC220VDI_AC/DC220V CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM1A60HzAC/DC220VDI_AC/DC220VAI CT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A50HzAC/DC110VDI_AC/DC110V CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM5A50HzAC/DC110VDI_AC/DC110VAI CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A50HzAC/DC110VDI_AC/DC220V CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM5A50HzAC/DC110VDI_AC/DC220VAI CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A50HzAC/DC220VDI_AC/DC110V CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM5A50HzAC/DC220VDI_AC/DC110VAI CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A50HzAC/DC220VDI_AC/DC220V CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM5A50HzAC/DC220VDI_AC/DC220VAI CT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A60HzAC/DC110VDI_AC/DC110V CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM5A60HzAC/DC110VDI_AC/DC110VAI CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A60HzAC/DC110VDI_AC/DC220V CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM5A60HzAC/DC110VDI_AC/DC220VAI CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A60HzAC/DC220VDI_AC/DC110V CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM5A60HzAC/DC220VDI_AC/DC110VAI CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A60HzAC/DC220VDI_AC/DC220V CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM5A60HzAC/DC220VDI_AC/DC220VAI CT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
Power MetersLS Electric
32 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric GIMAC-PQ Digital Metering & Power Quality Analyzer

Brand LS Electric·Power Meters

Available part numbers (32)

GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC110V, GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC110VAI, GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC220V, GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC220VAI, GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC110V, GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC110VAI, GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC220V, GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC220VAI, GIMAC-PQNORSM1A60HzAC/DC110VDI_AC/DC110V, GIMAC-PQNORSM1A60HzAC/DC110VDI_AC/DC110VAI + 22 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC110VCT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC110VAICT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC220VCT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM1A50HzAC/DC110VDI_AC/DC220VAICT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC110VCT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC110VAICT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC220VCT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM1A50HzAC/DC220VDI_AC/DC220VAICT rating: 1 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A60HzAC/DC110VDI_AC/DC110VCT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM1A60HzAC/DC110VDI_AC/DC110VAICT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A60HzAC/DC110VDI_AC/DC220VCT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM1A60HzAC/DC110VDI_AC/DC220VAICT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A60HzAC/DC220VDI_AC/DC110VCT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM1A60HzAC/DC220VDI_AC/DC110VAICT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM1A60HzAC/DC220VDI_AC/DC220VCT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM1A60HzAC/DC220VDI_AC/DC220VAICT rating: 1 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A50HzAC/DC110VDI_AC/DC110VCT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM5A50HzAC/DC110VDI_AC/DC110VAICT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A50HzAC/DC110VDI_AC/DC220VCT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM5A50HzAC/DC110VDI_AC/DC220VAICT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A50HzAC/DC220VDI_AC/DC110VCT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM5A50HzAC/DC220VDI_AC/DC110VAICT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A50HzAC/DC220VDI_AC/DC220VCT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM5A50HzAC/DC220VDI_AC/DC220VAICT rating: 5 A | Frequency: 50 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A60HzAC/DC110VDI_AC/DC110VCT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM5A60HzAC/DC110VDI_AC/DC110VAICT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A60HzAC/DC110VDI_AC/DC220VCT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM5A60HzAC/DC110VDI_AC/DC220VAICT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 110 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A60HzAC/DC220VDI_AC/DC110VCT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: None
GIMAC-PQNORSM5A60HzAC/DC220VDI_AC/DC110VAICT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 110 V | Analog input: 4-20 mA, 2 points
GIMAC-PQNORSM5A60HzAC/DC220VDI_AC/DC220VCT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: None
GIMAC-PQNORSM5A60HzAC/DC220VDI_AC/DC220VAICT rating: 5 A | Frequency: 60 Hz | Control power: AC/DC 220 V | DI voltage: AC/DC 220 V | Analog input: 4-20 mA, 2 points
