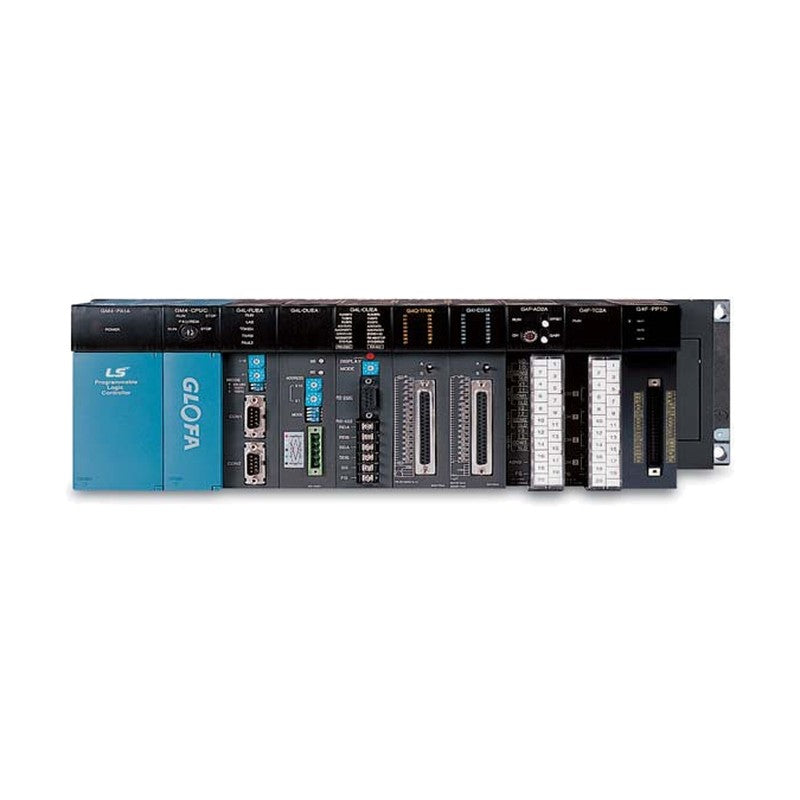

LS Electric G4F Special Function Modules (GM4/K300S) (Discontinued)

LS Electric G4F Special Function Modules (GM4/K300S) (Discontinued)

Discontinued LS Electric G4F analog, counter, positioning, motion, temperature and PID modules for GLOFA-GM4 and MASTER-K300S modular PLCs, supplied as spare parts.

Key features

  • 2, 4 and 8 channel analog input and output modules
  • 2-channel 200 kpps / 500 kpps high-speed counters
  • 1 to 3 axis pulse positioning with linear and circular interpolation; 16-axis G4F-M16M motion module
  • Thermocouple, RTD and 2-loop temperature control modules
  • 16-loop PID control module with auto-tuning and analog timer module

Specifications

Series GLOFA-GM4 / MASTER-K300S
Connector HO1C/HD1C/PP types include connector
Positioning CPU GM4 A/B CPU V2.6+, K300S CPU V3.1+
Discontinued February 2018
Status Spare-parts supply
Source LS Electric A016_GLOFA_GM_181227.pdf, p. 6, 54; A020_MASTER_K_____1910.pdf, p. 57
G4F-AD2A Function: Analog input | Channels: 4 ch | Rating: +-5/+-10 V, +-20 mA | Signal type: Voltage/current
G4F-AD3A Function: Analog input | Channels: 8 ch | Rating: 0-10 V, 4-20 mA | Signal type: Voltage/current
G4F-DA1A Function: Analog output | Channels: 2 ch | Rating: +-10 V, 4-20 mA | Signal type: Voltage/current
G4F-DA2V Function: Analog output | Channels: 4 ch | Rating: DC -10 to 10 V | Signal type: Voltage
G4F-DA2I Function: Analog output | Channels: 4 ch | Rating: DC 4-20 mA | Signal type: Current
G4F-DA3V Function: Analog output | Channels: 8 ch | Rating: DC -10 to 10 V | Signal type: Voltage
G4F-DA3I Function: Analog output | Channels: 8 ch | Rating: DC 4-20 mA | Signal type: Current
G4F-HO1C Function: High-speed counter | Channels: 2 ch | Rating: 200 kpps, 32-bit | Signal type: Open collector
G4F-HD1C Function: High-speed counter | Channels: 2 ch | Rating: 500 kpps, 32-bit | Signal type: Line driver
G4F-PP1O Function: Positioning | Channels: 1 axis | Rating: 200 kpps pulse output | Signal type: Open collector
G4F-PP2O Function: Positioning | Channels: 2 axes | Rating: 200 kpps pulse output | Signal type: Open collector
G4F-PP3O Function: Positioning | Channels: 3 axes | Rating: 200 kpps pulse output | Signal type: Open collector
G4F-PP1D Function: Positioning | Channels: 1 axis | Rating: 1 Mpps pulse output | Signal type: Line driver
G4F-PP2D Function: Positioning | Channels: 2 axes | Rating: 1 Mpps pulse output | Signal type: Line driver
G4F-PP3D Function: Positioning | Channels: 3 axes | Rating: 1 Mpps pulse output | Signal type: Line driver
G4F-M16M Function: Motion control | Channels: 16 axes | Rating: Position/speed/torque/cam | Signal type: GM4-CPUC only
G4F-TC2A Function: Thermocouple input | Channels: 4 ch | Rating: K, J, E, T, B, R, S | Signal type: Thermocouple
G4F-RD2A Function: RTD input | Channels: 4 ch | Rating: Resistance thermometer | Signal type: RTD
G4F-TMCA Function: Temperature control | Channels: 2 in + 2 out | Rating: PID 2 loops, 2 DO | Signal type: Temperature
G4F-PIDB Function: PID control | Channels: 16 loops | Rating: Auto-tuning, 16 DO | Signal type: Loop control
G4F-AT3A Function: Analog timer | Channels: 8 points | Rating: Timer setting | Signal type: Potentiometer
G4F-HSCA Function: High-speed counter | Channels: Legacy code | Rating: Not listed | Signal type: Not listed
G4F-INTA Function: Interrupt input | Channels: Legacy code | Rating: Not listed | Signal type: Not listed
