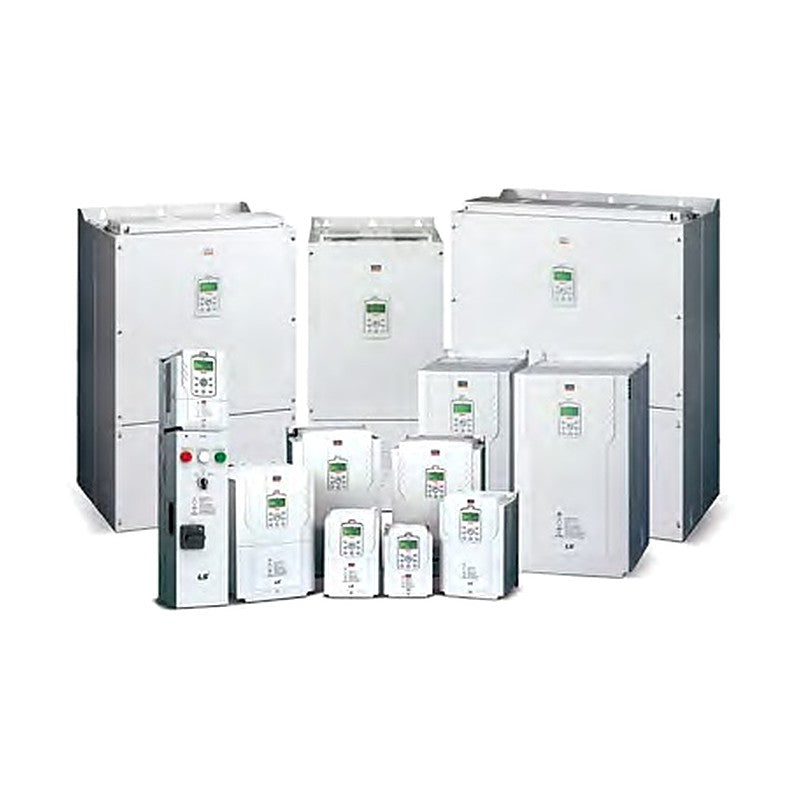

LS Electric H100 HVAC Fan and Pump AC Drive (200V Class)

LS Electric H100 HVAC Fan and Pump AC Drive (200V Class)

LS Electric LSLV-H100 HVAC fan and pump AC drives in the 3-phase 200-240 V class, 0.75 to 18.5 kW (standard and high-efficiency versions), plus legacy H100+ 230 V codes up to 90 kW.

Key features

  • Dedicated HVAC fan and pump drive with HAND / OFF / AUTO LCD keypad
  • Multi-motor control, PID with 2 external PID loops, fire mode, damper and pipe-break functions
  • Built-in Modbus RTU, Metasys N2 and BACnet MS/TP; LonWorks option
  • Energy saving operation, flying start and power-loss ride-through
  • High-efficiency (E) versions available up to 220 kW
  • UL Open as standard, UL Enclosed Type 1 with conduit kit option

Specifications

Series LSLV-H100
Keypad LCD keypad (C)
UL rating UL Open (O)
Input voltage 3-ph 200-240 VAC (-15% to +10%)
Output frequency 0-400 Hz
Control V/F, slip compensation
Overload 0.75-90 kW 120% 1 min; 110-500 kW 110% 1 min
Protection IP20 (0.75-185 kW), IP00 (220-500 kW)
Source LS Electric H100 Catalog KR 2023-06, p. 10-13
LSLV0008H100-2CONN Motor rating: 0.75 kW | Rated current: 5 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0008H100-2CONN(E) Motor rating: 0.75 kW | Rated current: 5 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0015H100-2CONN Motor rating: 1.5 kW | Rated current: 8 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0015H100-2CONN(E) Motor rating: 1.5 kW | Rated current: 8 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0022H100-2CONN Motor rating: 2.2 kW | Rated current: 12 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0022H100-2CONN(E) Motor rating: 2.2 kW | Rated current: 12 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0037H100-2CONN Motor rating: 3.7 kW | Rated current: 16 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0037H100-2CONN(E) Motor rating: 3.7 kW | Rated current: 16 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0055H100-2CONN Motor rating: 5.5 kW | Rated current: 22 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0055H100-2CONN(E) Motor rating: 5.5 kW | Rated current: 22 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0075H100-2CONN Motor rating: 7.5 kW | Rated current: 30 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0075H100-2CONN(E) Motor rating: 7.5 kW | Rated current: 30 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0110H100-2CONN Motor rating: 11 kW | Rated current: 42 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0110H100-2CONN(E) Motor rating: 11 kW | Rated current: 42 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0150H100-2CONN Motor rating: 15 kW | Rated current: 56 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0150H100-2CONN(E) Motor rating: 15 kW | Rated current: 56 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0185H100-2CONN Motor rating: 18.5 kW | Rated current: 69 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0185H100-2CONN(E) Motor rating: 18.5 kW | Rated current: 69 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0008H100-2CONN(PLUS) Motor rating: 0.75 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0015H100-2CONN(PLUS) Motor rating: 1.5 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0022H100-2CONN(PLUS) Motor rating: 2.2 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0037H100-2CONN(PLUS) Motor rating: 3.7 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0055H100-2CONN(PLUS) Motor rating: 5.5 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0075H100-2CONN(PLUS) Motor rating: 7.5 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0110H100-2CONN(PLUS) Motor rating: 11 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0150H100-2CONN(PLUS) Motor rating: 15 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0185H100-2CONN(PLUS) Motor rating: 18.5 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0220H100-2COFD(PLUS) Motor rating: 22 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0220H100-2COND(PLUS) Motor rating: 22 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0300H100-2COFD(PLUS) Motor rating: 30 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0300H100-2COND(PLUS) Motor rating: 30 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0370H100-2COFD(PLUS) Motor rating: 37 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0450H100-2COFD(PLUS) Motor rating: 45 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0550H100-2COFD(PLUS) Motor rating: 55 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0750H100-2COFD(PLUS) Motor rating: 75 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0900H100-2COFD(PLUS) Motor rating: 90 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
AC DrivesLS Electric
36 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric H100 HVAC Fan and Pump AC Drive (200V Class)

Brand LS Electric·AC Drives

Available part numbers (36)

LSLV0008H100-2CONN, LSLV0008H100-2CONN(E), LSLV0015H100-2CONN, LSLV0015H100-2CONN(E), LSLV0022H100-2CONN, LSLV0022H100-2CONN(E), LSLV0037H100-2CONN, LSLV0037H100-2CONN(E), LSLV0055H100-2CONN, LSLV0055H100-2CONN(E) + 26 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
LSLV0008H100-2CONNMotor rating: 0.75 kW | Rated current: 5 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0008H100-2CONN(E)Motor rating: 0.75 kW | Rated current: 5 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0015H100-2CONNMotor rating: 1.5 kW | Rated current: 8 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0015H100-2CONN(E)Motor rating: 1.5 kW | Rated current: 8 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0022H100-2CONNMotor rating: 2.2 kW | Rated current: 12 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0022H100-2CONN(E)Motor rating: 2.2 kW | Rated current: 12 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0037H100-2CONNMotor rating: 3.7 kW | Rated current: 16 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0037H100-2CONN(E)Motor rating: 3.7 kW | Rated current: 16 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0055H100-2CONNMotor rating: 5.5 kW | Rated current: 22 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0055H100-2CONN(E)Motor rating: 5.5 kW | Rated current: 22 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0075H100-2CONNMotor rating: 7.5 kW | Rated current: 30 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0075H100-2CONN(E)Motor rating: 7.5 kW | Rated current: 30 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0110H100-2CONNMotor rating: 11 kW | Rated current: 42 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0110H100-2CONN(E)Motor rating: 11 kW | Rated current: 42 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0150H100-2CONNMotor rating: 15 kW | Rated current: 56 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0150H100-2CONN(E)Motor rating: 15 kW | Rated current: 56 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0185H100-2CONNMotor rating: 18.5 kW | Rated current: 69 A | EMC filter: None | DC reactor: None | Version: Standard
LSLV0185H100-2CONN(E)Motor rating: 18.5 kW | Rated current: 69 A | EMC filter: None | DC reactor: None | Version: High-efficiency (E)
LSLV0008H100-2CONN(PLUS)Motor rating: 0.75 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0015H100-2CONN(PLUS)Motor rating: 1.5 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0022H100-2CONN(PLUS)Motor rating: 2.2 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0037H100-2CONN(PLUS)Motor rating: 3.7 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0055H100-2CONN(PLUS)Motor rating: 5.5 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0075H100-2CONN(PLUS)Motor rating: 7.5 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0110H100-2CONN(PLUS)Motor rating: 11 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0150H100-2CONN(PLUS)Motor rating: 15 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0185H100-2CONN(PLUS)Motor rating: 18.5 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: None | Version: H100+ legacy, UL Open
LSLV0220H100-2COFD(PLUS)Motor rating: 22 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0220H100-2COND(PLUS)Motor rating: 22 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0300H100-2COFD(PLUS)Motor rating: 30 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0300H100-2COND(PLUS)Motor rating: 30 kW | Rated current: Not listed (legacy) | EMC filter: None | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0370H100-2COFD(PLUS)Motor rating: 37 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0450H100-2COFD(PLUS)Motor rating: 45 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0550H100-2COFD(PLUS)Motor rating: 55 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0750H100-2COFD(PLUS)Motor rating: 75 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
LSLV0900H100-2COFD(PLUS)Motor rating: 90 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | DC reactor: Built-in | Version: H100+ legacy, UL Open
