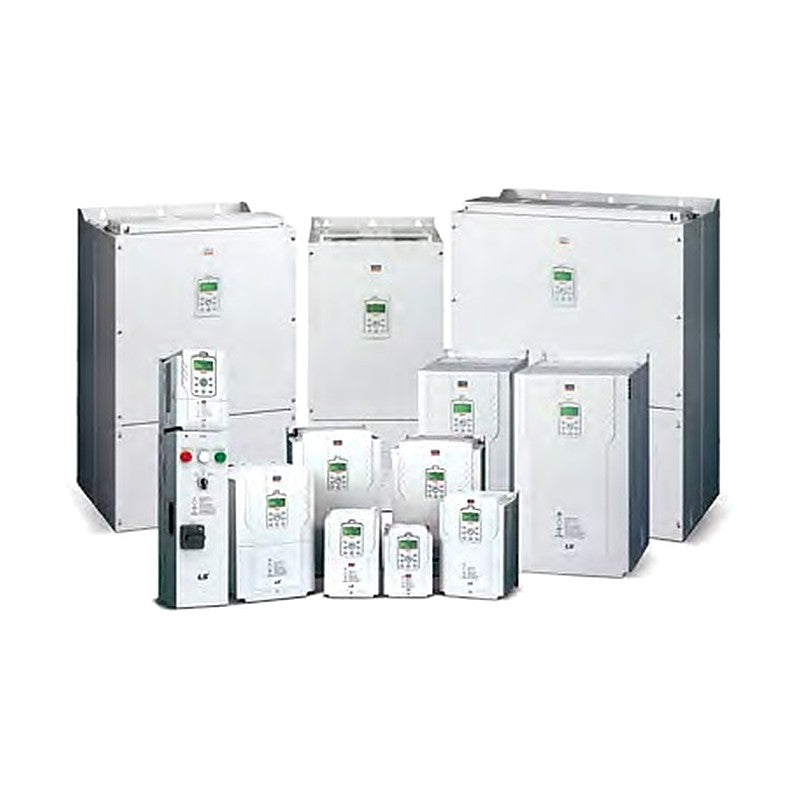

LS Electric H100 HVAC Fan and Pump AC Drive (400V Class, 37-500 kW)

LS Electric H100 HVAC Fan and Pump AC Drive (400V Class, 37-500 kW)

LS Electric LSLV-H100 HVAC fan and pump AC drives in the 3-phase 400 V class, 37 to 500 kW, with built-in DC reactor and EMC filter options, in standard and high-efficiency versions.

Key features

  • Dedicated HVAC fan and pump drive with HAND / OFF / AUTO LCD keypad
  • Multi-motor control, PID with 2 external PID loops, fire mode, damper and pipe-break functions
  • Built-in Modbus RTU, Metasys N2 and BACnet MS/TP; LonWorks option
  • Energy saving operation, flying start and power-loss ride-through
  • High-efficiency (E) versions available up to 220 kW
  • UL Open as standard, UL Enclosed Type 1 with conduit kit option

Specifications

Series LSLV-H100
Keypad LCD keypad (C)
UL rating UL Open (O)
Input voltage 3-ph 380-480 VAC (110-500 kW: 380-500 VAC)
Output frequency 0-400 Hz
Control V/F, slip compensation
Overload 0.75-90 kW 120% 1 min; 110-500 kW 110% 1 min
Protection IP20 (0.75-185 kW), IP00 (220-500 kW)
DC reactor Built-in
Source LS Electric H100 Catalog KR 2023-06, p. 10-13
LSLV0370H100-4COND Motor rating: 37 kW | Rated current: 75 A | EMC filter: None | Version: Standard
LSLV0370H100-4COND(E) Motor rating: 37 kW | Rated current: 75 A | EMC filter: None | Version: High-efficiency (E)
LSLV0370H100-4COFD Motor rating: 37 kW | Rated current: 75 A | EMC filter: Built-in C3 | Version: Standard
LSLV0370H100-4COFD(E) Motor rating: 37 kW | Rated current: 75 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0450H100-4COND Motor rating: 45 kW | Rated current: 91 A | EMC filter: None | Version: Standard
LSLV0450H100-4COND(E) Motor rating: 45 kW | Rated current: 91 A | EMC filter: None | Version: High-efficiency (E)
LSLV0450H100-4COFD Motor rating: 45 kW | Rated current: 91 A | EMC filter: Built-in C3 | Version: Standard
LSLV0450H100-4COFD(E) Motor rating: 45 kW | Rated current: 91 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0550H100-4COND Motor rating: 55 kW | Rated current: 107 A | EMC filter: None | Version: Standard
LSLV0550H100-4COND(E) Motor rating: 55 kW | Rated current: 107 A | EMC filter: None | Version: High-efficiency (E)
LSLV0550H100-4COFD Motor rating: 55 kW | Rated current: 107 A | EMC filter: Built-in C3 | Version: Standard
LSLV0550H100-4COFD(E) Motor rating: 55 kW | Rated current: 107 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV0750H100-4COFD Motor rating: 75 kW | Rated current: 142 A | EMC filter: Not required (meets C3) | Version: Standard
LSLV0750H100-4COFD(E) Motor rating: 75 kW | Rated current: 142 A | EMC filter: Not required (meets C3) | Version: High-efficiency (E)
LSLV0900H100-4COFD Motor rating: 90 kW | Rated current: 169 A | EMC filter: Not required (meets C3) | Version: Standard
LSLV0900H100-4COFD(E) Motor rating: 90 kW | Rated current: 169 A | EMC filter: Not required (meets C3) | Version: High-efficiency (E)
LSLV1100H100-4COFD Motor rating: 110 kW | Rated current: 223 A | EMC filter: Built-in C3 | Version: Standard
LSLV1100H100-4COFD(E) Motor rating: 110 kW | Rated current: 204.4 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV1320H100-4COFD Motor rating: 132 kW | Rated current: 264 A | EMC filter: Built-in C3 | Version: Standard
LSLV1320H100-4COFD(E) Motor rating: 132 kW | Rated current: 242 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV1600H100-4COFD Motor rating: 160 kW | Rated current: 325 A | EMC filter: Built-in C3 | Version: Standard
LSLV1600H100-4COFD(E) Motor rating: 160 kW | Rated current: 297.9 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV1850H100-4COFD Motor rating: 185 kW | Rated current: 370 A | EMC filter: Built-in C3 | Version: Standard
LSLV1850H100-4COFD(E) Motor rating: 185 kW | Rated current: 339.2 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV2200H100-4COFD Motor rating: 220 kW | Rated current: 432 A | EMC filter: Built-in C3 | Version: Standard
LSLV2200H100-4COFD(E) Motor rating: 220 kW | Rated current: 396 A | EMC filter: Built-in C3 | Version: High-efficiency (E)
LSLV2500H100-4COFD Motor rating: 250 kW | Rated current: 481 A | EMC filter: Built-in C3 | Version: Standard
LSLV3150H100-4COFD Motor rating: 315 kW | Rated current: 613 A | EMC filter: Built-in C3 | Version: Standard
LSLV3550H100-4COFD Motor rating: 355 kW | Rated current: 683 A | EMC filter: Built-in C3 | Version: Standard
LSLV4000H100-4COFD Motor rating: 400 kW | Rated current: 770 A | EMC filter: Built-in C3 | Version: Standard
LSLV5000H100-4COFD Motor rating: 500 kW | Rated current: 962 A | EMC filter: Built-in C3 | Version: Standard
LSLV0370H100-4COFD(PLUS) Motor rating: 37 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0370H100-4COND(PLUS) Motor rating: 37 kW | Rated current: Not listed (legacy) | EMC filter: None | Version: H100+ legacy, UL Open
LSLV0450H100-4COFD(PLUS) Motor rating: 45 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0450H100-4COND(PLUS) Motor rating: 45 kW | Rated current: Not listed (legacy) | EMC filter: None | Version: H100+ legacy, UL Open
LSLV0550H100-4COFD(PLUS) Motor rating: 55 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0550H100-4COND(PLUS) Motor rating: 55 kW | Rated current: Not listed (legacy) | EMC filter: None | Version: H100+ legacy, UL Open
LSLV0750H100-4COFD(PLUS) Motor rating: 75 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV0900H100-4COFD(PLUS) Motor rating: 90 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV1100H100-4COFD(PLUS) Motor rating: 110 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV1320H100-4COFD(PLUS) Motor rating: 132 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV1600H100-4COFD(PLUS) Motor rating: 160 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV1850H100-4COFD(PLUS) Motor rating: 185 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV2200H100-4COFD(PLUS) Motor rating: 220 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV2500H100-4COFD(PLUS) Motor rating: 250 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV3150H100-4COFD(PLUS) Motor rating: 315 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV3550H100-4COFD(PLUS) Motor rating: 355 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV4000H100-4COFD(PLUS) Motor rating: 400 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV5000H100-4COFD(PLUS) Motor rating: 500 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
LSLV7500H100-4COFD(PLUS) Motor rating: 750 kW | Rated current: Not listed (legacy) | EMC filter: Built-in | Version: H100+ legacy, UL Open
AC DrivesLS Electric
50 product codes available in this family
