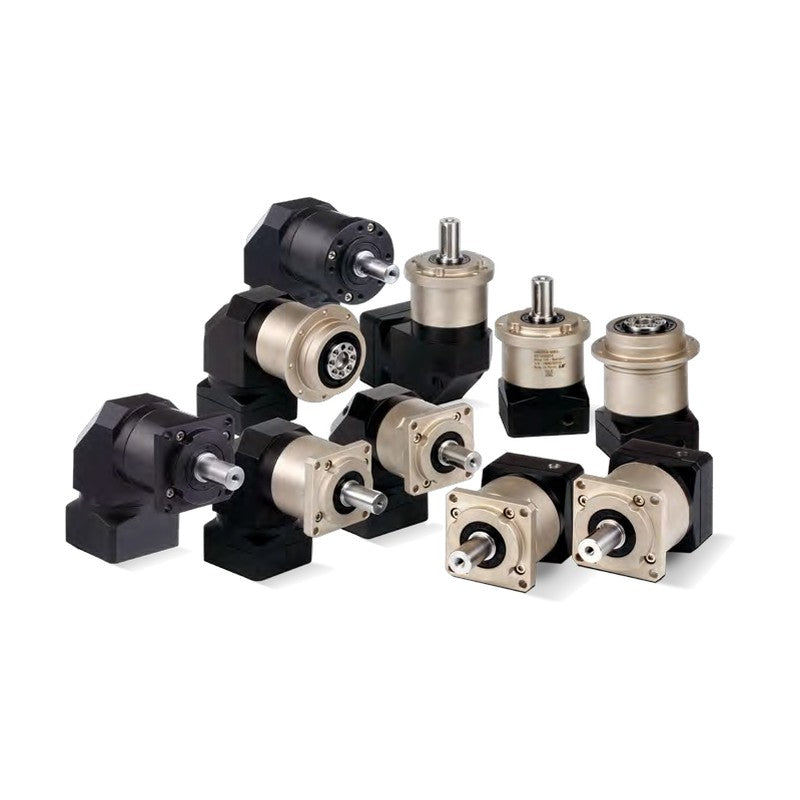

LS Electric HAR Right-Angle Planetary Gearbox, Round Flange (1-stage)

LS Electric HAR Right-Angle Planetary Gearbox, Round Flange (1-stage)

LS Electric HAR precision planetary gearbox (premium line, helical gear, right-angle, round flange, keyed or smooth output shaft) in frames 050-235; full order code HAR<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Premium line helical-gear planetary reducer, right-angle housing
  • Spiral bevel gear right-angle stage saves installation space
  • Backlash classes: S standard / P precision / A high precision
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65

Specifications

Series HAR (Premium line)
Gear type Helical planetary
Housing Right-Angle
Output Round Flange
Frame sizes 050, 070, 090, 120, 155, 205, 235
Ratios 3:1 to 20:1
Efficiency (1-stage / 2-stage) >= 95% / >= 92%
Rated input speed 5,000 to 2,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 58 to 74 dB
Stage input 1-stage std (1A)
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 57, 62-65
HAR0501A-003KS Frame: 050 | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-003NS Frame: 050 | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-003KP Frame: 050 | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-003NP Frame: 050 | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-004KS Frame: 050 | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-004NS Frame: 050 | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-004KP Frame: 050 | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-004NP Frame: 050 | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-005KS Frame: 050 | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-005NS Frame: 050 | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-005KP Frame: 050 | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-005NP Frame: 050 | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-006KS Frame: 050 | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-006NS Frame: 050 | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-006KP Frame: 050 | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-006NP Frame: 050 | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-007KS Frame: 050 | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-007NS Frame: 050 | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-007KP Frame: 050 | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-007NP Frame: 050 | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-008KS Frame: 050 | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-008NS Frame: 050 | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-008KP Frame: 050 | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-008NP Frame: 050 | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-009KS Frame: 050 | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-009NS Frame: 050 | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-009KP Frame: 050 | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-009NP Frame: 050 | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-010KS Frame: 050 | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-010NS Frame: 050 | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-010KP Frame: 050 | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-010NP Frame: 050 | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-003KS Frame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-003NS Frame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-003KP Frame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-003NP Frame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-003KA Frame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-003NA Frame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-004KS Frame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-004NS Frame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-004KP Frame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-004NP Frame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-004KA Frame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-004NA Frame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-005KS Frame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-005NS Frame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-005KP Frame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-005NP Frame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-005KA Frame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-005NA Frame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-006KS Frame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-006NS Frame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-006KP Frame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-006NP Frame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-006KA Frame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-006NA Frame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-007KS Frame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-007NS Frame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-007KP Frame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-007NP Frame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-007KA Frame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-007NA Frame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-008KS Frame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-008NS Frame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-008KP Frame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-008NP Frame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-008KA Frame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-008NA Frame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-009KS Frame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-009NS Frame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-009KP Frame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-009NP Frame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-009KA Frame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-009NA Frame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-010KS Frame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-010NS Frame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-010KP Frame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-010NP Frame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-010KA Frame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-010NA Frame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-014KS Frame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-014NS Frame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-014KP Frame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-014NP Frame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-014KA Frame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-014NA Frame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-020KS Frame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-020NS Frame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-020KP Frame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-020NP Frame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-020KA Frame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-020NA Frame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-003KS Frame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-003NS Frame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-003KP Frame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-003NP Frame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-003KA Frame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-003NA Frame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-004KS Frame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-004NS Frame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-004KP Frame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-004NP Frame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-004KA Frame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-004NA Frame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-005KS Frame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-005NS Frame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-005KP Frame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-005NP Frame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-005KA Frame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-005NA Frame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-006KS Frame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-006NS Frame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-006KP Frame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-006NP Frame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-006KA Frame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-006NA Frame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-007KS Frame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-007NS Frame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-007KP Frame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-007NP Frame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-007KA Frame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-007NA Frame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-008KS Frame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-008NS Frame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-008KP Frame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-008NP Frame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-008KA Frame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-008NA Frame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-009KS Frame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-009NS Frame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-009KP Frame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-009NP Frame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-009KA Frame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-009NA Frame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-010KS Frame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-010NS Frame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-010KP Frame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-010NP Frame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-010KA Frame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-010NA Frame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-014KS Frame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-014NS Frame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-014KP Frame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-014NP Frame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-014KA Frame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-014NA Frame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-020KS Frame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-020NS Frame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-020KP Frame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-020NP Frame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-020KA Frame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-020NA Frame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-003KS Frame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-003NS Frame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-003KP Frame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-003NP Frame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-003KA Frame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-003NA Frame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-004KS Frame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-004NS Frame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-004KP Frame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-004NP Frame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-004KA Frame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-004NA Frame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-005KS Frame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-005NS Frame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-005KP Frame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-005NP Frame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-005KA Frame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-005NA Frame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-006KS Frame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-006NS Frame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-006KP Frame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-006NP Frame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-006KA Frame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-006NA Frame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-007KS Frame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-007NS Frame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-007KP Frame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-007NP Frame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-007KA Frame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-007NA Frame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-008KS Frame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-008NS Frame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-008KP Frame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-008NP Frame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-008KA Frame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-008NA Frame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-009KS Frame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-009NS Frame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-009KP Frame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-009NP Frame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-009KA Frame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-009NA Frame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-010KS Frame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-010NS Frame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-010KP Frame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-010NP Frame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-010KA Frame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-010NA Frame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-014KS Frame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-014NS Frame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-014KP Frame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-014NP Frame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-014KA Frame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-014NA Frame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-020KS Frame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-020NS Frame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-020KP Frame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-020NP Frame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-020KA Frame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-020NA Frame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-003KS Frame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-003NS Frame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-003KP Frame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-003NP Frame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-003KA Frame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-003NA Frame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-004KS Frame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-004NS Frame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-004KP Frame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-004NP Frame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-004KA Frame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-004NA Frame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-005KS Frame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-005NS Frame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-005KP Frame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-005NP Frame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-005KA Frame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-005NA Frame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-006KS Frame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-006NS Frame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-006KP Frame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-006NP Frame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-006KA Frame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-006NA Frame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-007KS Frame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-007NS Frame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-007KP Frame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-007NP Frame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-007KA Frame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-007NA Frame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-008KS Frame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-008NS Frame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-008KP Frame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-008NP Frame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-008KA Frame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-008NA Frame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-009KS Frame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-009NS Frame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-009KP Frame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-009NP Frame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-009KA Frame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-009NA Frame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-010KS Frame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-010NS Frame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-010KP Frame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-010NP Frame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-010KA Frame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-010NA Frame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-014KS Frame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-014NS Frame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-014KP Frame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-014NP Frame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-014KA Frame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-014NA Frame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-020KS Frame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-020NS Frame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-020KP Frame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-020NP Frame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-020KA Frame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-020NA Frame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-003KS Frame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-003NS Frame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-003KP Frame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-003NP Frame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-003KA Frame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-003NA Frame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-004KS Frame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-004NS Frame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-004KP Frame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-004NP Frame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-004KA Frame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-004NA Frame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-005KS Frame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-005NS Frame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-005KP Frame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-005NP Frame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-005KA Frame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-005NA Frame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-006KS Frame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-006NS Frame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-006KP Frame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-006NP Frame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-006KA Frame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-006NA Frame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-007KS Frame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-007NS Frame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-007KP Frame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-007NP Frame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-007KA Frame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-007NA Frame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-008KS Frame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-008NS Frame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-008KP Frame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-008NP Frame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-008KA Frame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-008NA Frame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-009KS Frame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-009NS Frame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-009KP Frame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-009NP Frame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-009KA Frame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-009NA Frame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-010KS Frame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-010NS Frame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-010KP Frame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-010NP Frame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-010KA Frame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-010NA Frame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-014KS Frame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-014NS Frame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-014KP Frame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-014NP Frame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-014KA Frame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-014NA Frame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-020KS Frame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-020NS Frame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-020KP Frame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-020NP Frame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-020KA Frame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-020NA Frame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-003KS Frame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-003NS Frame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-003KP Frame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-003NP Frame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-003KA Frame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-003NA Frame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-004KS Frame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-004NS Frame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-004KP Frame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-004NP Frame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-004KA Frame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-004NA Frame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-005KS Frame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-005NS Frame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-005KP Frame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-005NP Frame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-005KA Frame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-005NA Frame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-006KS Frame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-006NS Frame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-006KP Frame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-006NP Frame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-006KA Frame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-006NA Frame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-007KS Frame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-007NS Frame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-007KP Frame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-007NP Frame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-007KA Frame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-007NA Frame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-008KS Frame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-008NS Frame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-008KP Frame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-008NP Frame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-008KA Frame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-008NA Frame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-009KS Frame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-009NS Frame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-009KP Frame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-009NP Frame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-009KA Frame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-009NA Frame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-010KS Frame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-010NS Frame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-010KP Frame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-010NP Frame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-010KA Frame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-010NA Frame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-014KS Frame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-014NS Frame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-014KP Frame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-014NP Frame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-014KA Frame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-014NA Frame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-020KS Frame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-020NS Frame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-020KP Frame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-020NP Frame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-020KA Frame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-020NA Frame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0501A Frame: 050 | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0701A Frame: 070 | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0901A Frame: 090 | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1201A Frame: 120 | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1551A Frame: 155 | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2051A Frame: 205 | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2351A Frame: 235 | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
399 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric HAR Right-Angle Planetary Gearbox, Round Flange (1-stage)

Brand LS Electric·Planetary Gearboxes

Available part numbers (399)

HAR0501A-003KS, HAR0501A-003NS, HAR0501A-003KP, HAR0501A-003NP, HAR0501A-004KS, HAR0501A-004NS, HAR0501A-004KP, HAR0501A-004NP, HAR0501A-005KS, HAR0501A-005NS + 389 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HAR0501A-003KSFrame: 050 | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-003NSFrame: 050 | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-003KPFrame: 050 | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-003NPFrame: 050 | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-004KSFrame: 050 | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-004NSFrame: 050 | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-004KPFrame: 050 | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-004NPFrame: 050 | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-005KSFrame: 050 | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-005NSFrame: 050 | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-005KPFrame: 050 | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-005NPFrame: 050 | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-006KSFrame: 050 | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-006NSFrame: 050 | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-006KPFrame: 050 | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-006NPFrame: 050 | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-007KSFrame: 050 | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-007NSFrame: 050 | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-007KPFrame: 050 | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-007NPFrame: 050 | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-008KSFrame: 050 | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-008NSFrame: 050 | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-008KPFrame: 050 | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-008NPFrame: 050 | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-009KSFrame: 050 | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-009NSFrame: 050 | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-009KPFrame: 050 | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-009NPFrame: 050 | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0501A-010KSFrame: 050 | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0501A-010NSFrame: 050 | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0501A-010KPFrame: 050 | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0501A-010NPFrame: 050 | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-003KSFrame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-003NSFrame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-003KPFrame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-003NPFrame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-003KAFrame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-003NAFrame: 070 | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-004KSFrame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-004NSFrame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-004KPFrame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-004NPFrame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-004KAFrame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-004NAFrame: 070 | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-005KSFrame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-005NSFrame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-005KPFrame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-005NPFrame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-005KAFrame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-005NAFrame: 070 | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-006KSFrame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-006NSFrame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-006KPFrame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-006NPFrame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-006KAFrame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-006NAFrame: 070 | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-007KSFrame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-007NSFrame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-007KPFrame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-007NPFrame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-007KAFrame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-007NAFrame: 070 | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-008KSFrame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-008NSFrame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-008KPFrame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-008NPFrame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-008KAFrame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-008NAFrame: 070 | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-009KSFrame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-009NSFrame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-009KPFrame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-009NPFrame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-009KAFrame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-009NAFrame: 070 | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-010KSFrame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-010NSFrame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-010KPFrame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-010NPFrame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-010KAFrame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-010NAFrame: 070 | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-014KSFrame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-014NSFrame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-014KPFrame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-014NPFrame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-014KAFrame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-014NAFrame: 070 | Input bore: 14 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0701A-020KSFrame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0701A-020NSFrame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0701A-020KPFrame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0701A-020NPFrame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0701A-020KAFrame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0701A-020NAFrame: 070 | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-003KSFrame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-003NSFrame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-003KPFrame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-003NPFrame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-003KAFrame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-003NAFrame: 090 | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-004KSFrame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-004NSFrame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-004KPFrame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-004NPFrame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-004KAFrame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-004NAFrame: 090 | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-005KSFrame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-005NSFrame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-005KPFrame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-005NPFrame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-005KAFrame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-005NAFrame: 090 | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-006KSFrame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-006NSFrame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-006KPFrame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-006NPFrame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-006KAFrame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-006NAFrame: 090 | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-007KSFrame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-007NSFrame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-007KPFrame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-007NPFrame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-007KAFrame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-007NAFrame: 090 | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-008KSFrame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-008NSFrame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-008KPFrame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-008NPFrame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-008KAFrame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-008NAFrame: 090 | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-009KSFrame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-009NSFrame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-009KPFrame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-009NPFrame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-009KAFrame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-009NAFrame: 090 | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-010KSFrame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-010NSFrame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-010KPFrame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-010NPFrame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-010KAFrame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-010NAFrame: 090 | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-014KSFrame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-014NSFrame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-014KPFrame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-014NPFrame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-014KAFrame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-014NAFrame: 090 | Input bore: 19 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0901A-020KSFrame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR0901A-020NSFrame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR0901A-020KPFrame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR0901A-020NPFrame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR0901A-020KAFrame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR0901A-020NAFrame: 090 | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-003KSFrame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-003NSFrame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-003KPFrame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-003NPFrame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-003KAFrame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-003NAFrame: 120 | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-004KSFrame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-004NSFrame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-004KPFrame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-004NPFrame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-004KAFrame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-004NAFrame: 120 | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-005KSFrame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-005NSFrame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-005KPFrame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-005NPFrame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-005KAFrame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-005NAFrame: 120 | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-006KSFrame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-006NSFrame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-006KPFrame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-006NPFrame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-006KAFrame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-006NAFrame: 120 | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-007KSFrame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-007NSFrame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-007KPFrame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-007NPFrame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-007KAFrame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-007NAFrame: 120 | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-008KSFrame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-008NSFrame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-008KPFrame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-008NPFrame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-008KAFrame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-008NAFrame: 120 | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-009KSFrame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-009NSFrame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-009KPFrame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-009NPFrame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-009KAFrame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-009NAFrame: 120 | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-010KSFrame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-010NSFrame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-010KPFrame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-010NPFrame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-010KAFrame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-010NAFrame: 120 | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-014KSFrame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-014NSFrame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-014KPFrame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-014NPFrame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-014KAFrame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-014NAFrame: 120 | Input bore: 24 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1201A-020KSFrame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1201A-020NSFrame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1201A-020KPFrame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1201A-020NPFrame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1201A-020KAFrame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1201A-020NAFrame: 120 | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-003KSFrame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-003NSFrame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-003KPFrame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-003NPFrame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-003KAFrame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-003NAFrame: 155 | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-004KSFrame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-004NSFrame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-004KPFrame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-004NPFrame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-004KAFrame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-004NAFrame: 155 | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-005KSFrame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-005NSFrame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-005KPFrame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-005NPFrame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-005KAFrame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-005NAFrame: 155 | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-006KSFrame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-006NSFrame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-006KPFrame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-006NPFrame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-006KAFrame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-006NAFrame: 155 | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-007KSFrame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-007NSFrame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-007KPFrame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-007NPFrame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-007KAFrame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-007NAFrame: 155 | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-008KSFrame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-008NSFrame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-008KPFrame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-008NPFrame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-008KAFrame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-008NAFrame: 155 | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-009KSFrame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-009NSFrame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-009KPFrame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-009NPFrame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-009KAFrame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-009NAFrame: 155 | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-010KSFrame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-010NSFrame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-010KPFrame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-010NPFrame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-010KAFrame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-010NAFrame: 155 | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-014KSFrame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-014NSFrame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-014KPFrame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-014NPFrame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-014KAFrame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-014NAFrame: 155 | Input bore: 35 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR1551A-020KSFrame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR1551A-020NSFrame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR1551A-020KPFrame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR1551A-020NPFrame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR1551A-020KAFrame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR1551A-020NAFrame: 155 | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-003KSFrame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-003NSFrame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-003KPFrame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-003NPFrame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-003KAFrame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-003NAFrame: 205 | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-004KSFrame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-004NSFrame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-004KPFrame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-004NPFrame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-004KAFrame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-004NAFrame: 205 | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-005KSFrame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-005NSFrame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-005KPFrame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-005NPFrame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-005KAFrame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-005NAFrame: 205 | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-006KSFrame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-006NSFrame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-006KPFrame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-006NPFrame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-006KAFrame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-006NAFrame: 205 | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-007KSFrame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-007NSFrame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-007KPFrame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-007NPFrame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-007KAFrame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-007NAFrame: 205 | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-008KSFrame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-008NSFrame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-008KPFrame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-008NPFrame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-008KAFrame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-008NAFrame: 205 | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-009KSFrame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-009NSFrame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-009KPFrame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-009NPFrame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-009KAFrame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-009NAFrame: 205 | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-010KSFrame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-010NSFrame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-010KPFrame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-010NPFrame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-010KAFrame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-010NAFrame: 205 | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-014KSFrame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-014NSFrame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-014KPFrame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-014NPFrame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-014KAFrame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-014NAFrame: 205 | Input bore: 42 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2051A-020KSFrame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2051A-020NSFrame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2051A-020KPFrame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2051A-020NPFrame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2051A-020KAFrame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2051A-020NAFrame: 205 | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-003KSFrame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-003NSFrame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-003KPFrame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-003NPFrame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-003KAFrame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-003NAFrame: 235 | Input bore: 55 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-004KSFrame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-004NSFrame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-004KPFrame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-004NPFrame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-004KAFrame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-004NAFrame: 235 | Input bore: 55 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-005KSFrame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-005NSFrame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-005KPFrame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-005NPFrame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-005KAFrame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-005NAFrame: 235 | Input bore: 55 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-006KSFrame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-006NSFrame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-006KPFrame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-006NPFrame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-006KAFrame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-006NAFrame: 235 | Input bore: 55 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-007KSFrame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-007NSFrame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-007KPFrame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-007NPFrame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-007KAFrame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-007NAFrame: 235 | Input bore: 55 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-008KSFrame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-008NSFrame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-008KPFrame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-008NPFrame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-008KAFrame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-008NAFrame: 235 | Input bore: 55 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-009KSFrame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-009NSFrame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-009KPFrame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-009NPFrame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-009KAFrame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-009NAFrame: 235 | Input bore: 55 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-010KSFrame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-010NSFrame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-010KPFrame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-010NPFrame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-010KAFrame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-010NAFrame: 235 | Input bore: 55 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-014KSFrame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-014NSFrame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-014KPFrame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-014NPFrame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-014KAFrame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-014NAFrame: 235 | Input bore: 55 mm | Ratio: 14:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR2351A-020KSFrame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 8 arcmin)
HAR2351A-020NSFrame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 8 arcmin)
HAR2351A-020KPFrame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 6 arcmin)
HAR2351A-020NPFrame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 6 arcmin)
HAR2351A-020KAFrame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: A (<= 4 arcmin)
HAR2351A-020NAFrame: 235 | Input bore: 55 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 4 arcmin)
HAR0501AFrame: 050 | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0701AFrame: 070 | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR0901AFrame: 090 | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1201AFrame: 120 | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR1551AFrame: 155 | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2051AFrame: 205 | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAR2351AFrame: 235 | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
