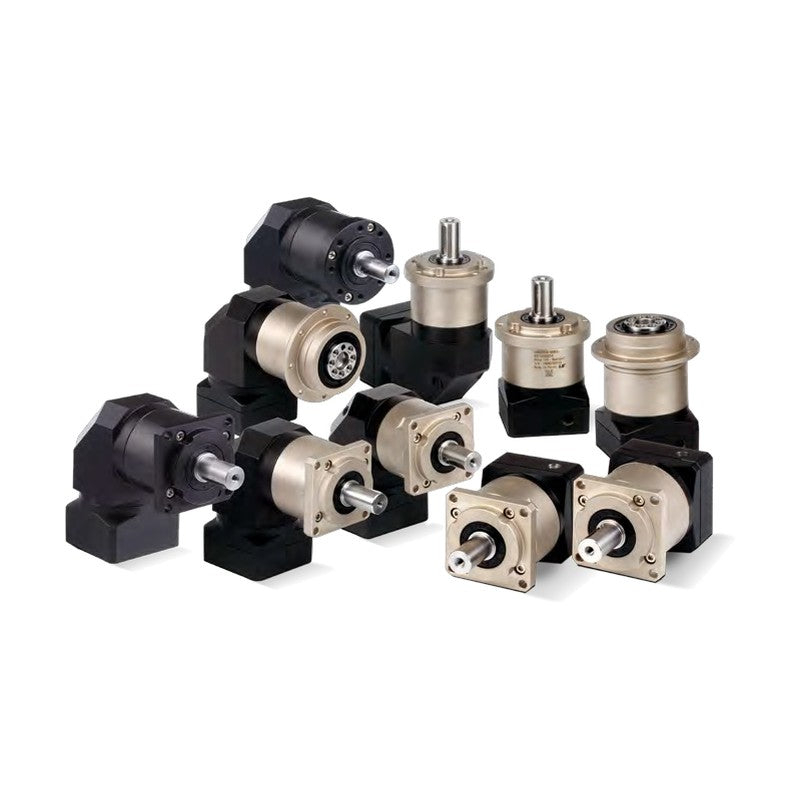

LS Electric HAS Right-Angle Planetary Gearbox, Square Flange (2-stage)

LS Electric HAS Right-Angle Planetary Gearbox, Square Flange (2-stage)

LS Electric HAS precision planetary gearbox (premium line, helical gear, right-angle, square flange, keyed or smooth output shaft) in frames 045-220; full order code HAS<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Premium line helical-gear planetary reducer, right-angle housing
  • Spiral bevel gear right-angle stage saves installation space
  • Backlash classes: S standard / P precision / A high precision
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65

Specifications

Series HAS (Premium line)
Gear type Helical planetary
Housing Right-Angle
Output Square Flange
Frame sizes 045, 060, 090, 115, 142, 180, 220
Ratios 15:1 to 200:1
Efficiency (1-stage / 2-stage) >= 95% / >= 92%
Rated input speed 5,000 to 2,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 58 to 74 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 47, 52-55
HAS0452A-015KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-015NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-015KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-015NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-020KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-020NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-020KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-020NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-025KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-025NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-025KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-025NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-030KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-030NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-030KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-030NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-035KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-035NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-035KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-035NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-040KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-040NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-040KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-040NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-045KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-045NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-045KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-045NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-050KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-050NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-050KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-050NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-060KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-060NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-060KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-060NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-070KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-070NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-070KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-070NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-080KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-080NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-080KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-080NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-090KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-090NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-090KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-090NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-100KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-100NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-100KP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-100NP Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-025KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-025NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-025KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-025NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-025KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-025NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-030KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-030NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-030KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-030NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-030KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-030NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-035KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-035NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-035KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-035NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-035KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-035NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-040KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-040NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-040KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-040NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-040KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-040NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-045KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-045NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-045KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-045NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-045KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-045NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-050KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-050NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-050KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-050NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-050KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-050NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-060KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-060NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-060KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-060NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-060KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-060NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-070KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-070NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-070KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-070NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-070KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-070NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-080KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-080NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-080KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-080NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-080KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-080NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-090KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-090NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-090KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-090NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-090KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-090NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-100KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-100NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-100KP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-100NP Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-100KA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-100NA Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-025KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-025NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-025KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-025NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-025KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-025NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-030KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-030NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-030KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-030NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-030KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-030NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-035KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-035NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-035KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-035NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-035KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-035NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-040KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-040NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-040KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-040NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-040KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-040NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-045KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-045NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-045KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-045NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-045KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-045NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-050KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-050NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-050KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-050NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-050KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-050NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-060KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-060NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-060KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-060NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-060KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-060NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-070KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-070NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-070KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-070NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-070KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-070NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-080KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-080NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-080KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-080NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-080KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-080NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-090KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-090NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-090KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-090NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-090KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-090NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-100KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-100NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-100KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-100NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-100KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-100NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-120KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-120NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-120KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-120NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-120KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-120NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-140KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-140NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-140KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-140NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-140KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-140NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-180KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-180NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-180KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-180NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-180KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-180NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-200KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-200NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-200KP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-200NP Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-200KA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-200NA Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-025KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-025NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-025KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-025NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-025KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-025NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-030KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-030NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-030KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-030NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-030KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-030NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-035KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-035NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-035KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-035NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-035KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-035NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-040KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-040NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-040KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-040NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-040KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-040NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-045KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-045NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-045KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-045NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-045KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-045NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-050KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-050NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-050KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-050NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-050KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-050NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-060KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-060NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-060KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-060NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-060KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-060NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-070KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-070NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-070KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-070NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-070KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-070NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-080KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-080NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-080KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-080NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-080KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-080NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-090KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-090NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-090KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-090NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-090KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-090NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-100KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-100NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-100KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-100NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-100KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-100NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-120KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-120NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-120KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-120NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-120KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-120NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-140KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-140NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-140KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-140NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-140KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-140NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-180KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-180NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-180KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-180NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-180KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-180NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-200KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-200NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-200KP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-200NP Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-200KA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-200NA Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-025KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-025NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-025KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-025NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-025KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-025NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-030KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-030NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-030KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-030NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-030KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-030NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-035KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-035NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-035KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-035NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-035KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-035NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-040KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-040NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-040KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-040NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-040KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-040NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-045KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-045NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-045KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-045NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-045KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-045NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-050KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-050NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-050KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-050NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-050KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-050NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-060KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-060NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-060KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-060NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-060KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-060NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-070KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-070NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-070KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-070NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-070KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-070NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-080KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-080NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-080KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-080NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-080KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-080NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-090KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-090NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-090KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-090NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-090KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-090NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-100KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-100NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-100KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-100NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-100KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-100NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-120KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-120NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-120KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-120NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-120KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-120NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-140KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-140NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-140KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-140NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-140KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-140NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-180KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-180NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-180KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-180NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-180KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-180NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-200KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-200NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-200KP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-200NP Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-200KA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-200NA Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-025KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-025NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-025KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-025NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-025KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-025NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-030KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-030NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-030KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-030NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-030KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-030NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-035KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-035NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-035KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-035NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-035KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-035NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-040KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-040NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-040KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-040NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-040KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-040NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-045KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-045NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-045KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-045NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-045KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-045NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-050KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-050NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-050KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-050NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-050KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-050NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-060KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-060NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-060KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-060NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-060KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-060NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-070KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-070NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-070KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-070NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-070KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-070NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-080KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-080NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-080KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-080NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-080KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-080NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-090KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-090NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-090KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-090NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-090KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-090NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-100KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-100NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-100KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-100NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-100KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-100NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-120KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-120NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-120KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-120NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-120KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-120NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-140KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-140NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-140KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-140NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-140KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-140NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-180KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-180NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-180KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-180NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-180KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-180NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-200KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-200NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-200KP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-200NP Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-200KA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-200NA Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-025KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-025NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-025KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-025NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-025KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-025NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-030KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-030NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-030KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-030NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-030KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-030NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-035KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-035NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-035KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-035NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-035KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-035NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-040KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-040NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-040KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-040NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-040KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-040NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-045KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-045NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-045KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-045NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-045KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-045NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-050KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-050NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-050KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-050NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-050KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-050NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-060KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-060NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-060KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-060NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-060KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-060NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-070KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-070NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-070KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-070NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-070KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-070NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-080KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-080NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-080KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-080NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-080KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-080NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-090KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-090NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-090KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-090NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-090KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-090NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-100KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-100NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-100KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-100NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-100KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-100NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-120KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-120NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-120KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-120NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-120KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-120NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-140KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-140NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-140KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-140NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-140KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-140NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-180KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-180NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-180KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-180NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-180KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-180NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-200KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-200NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-200KP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-200NP Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-200KA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-200NA Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-025KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-025NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-025KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-025NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-025KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-025NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-030KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-030NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-030KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-030NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-030KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-030NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-035KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-035NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-035KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-035NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-035KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-035NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-040KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-040NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-040KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-040NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-040KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-040NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-045KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-045NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-045KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-045NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-045KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-045NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-050KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-050NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-050KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-050NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-050KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-050NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-060KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-060NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-060KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-060NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-060KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-060NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-070KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-070NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-070KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-070NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-070KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-070NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-080KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-080NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-080KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-080NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-080KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-080NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-090KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-090NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-090KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-090NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-090KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-090NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-100KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-100NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-100KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-100NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-100KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-100NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-120KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-120NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-120KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-120NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-120KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-120NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-140KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-140NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-140KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-140NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-140KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-140NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-180KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-180NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-180KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-180NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-180KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-180NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-200KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-200NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-200KP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-200NP Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-200KA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-200NA Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-025KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-025NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-025KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-025NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-025KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-025NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-030KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-030NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-030KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-030NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-030KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-030NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-035KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-035NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-035KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-035NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-035KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-035NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-040KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-040NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-040KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-040NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-040KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-040NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-045KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-045NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-045KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-045NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-045KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-045NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-050KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-050NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-050KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-050NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-050KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-050NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-060KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-060NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-060KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-060NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-060KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-060NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-070KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-070NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-070KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-070NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-070KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-070NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-080KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-080NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-080KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-080NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-080KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-080NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-090KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-090NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-090KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-090NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-090KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-090NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-100KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-100NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-100KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-100NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-100KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-100NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-120KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-120NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-120KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-120NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-120KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-120NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-140KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-140NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-140KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-140NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-140KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-140NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-180KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-180NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-180KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-180NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-180KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-180NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-200KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-200NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-200KP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-200NP Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-200KA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-200NA Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-025KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-025NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-025KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-025NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-025KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-025NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-030KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-030NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-030KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-030NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-030KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-030NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-035KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-035NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-035KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-035NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-035KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-035NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-040KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-040NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-040KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-040NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-040KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-040NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-045KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-045NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-045KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-045NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-045KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-045NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-050KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-050NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-050KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-050NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-050KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-050NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-060KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-060NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-060KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-060NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-060KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-060NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-070KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-070NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-070KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-070NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-070KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-070NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-080KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-080NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-080KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-080NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-080KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-080NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-090KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-090NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-090KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-090NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-090KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-090NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-100KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-100NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-100KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-100NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-100KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-100NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-120KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-120NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-120KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-120NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-120KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-120NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-140KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-140NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-140KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-140NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-140KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-140NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-180KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-180NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-180KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-180NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-180KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-180NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-200KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-200NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-200KP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-200NP Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-200KA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-200NA Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-025KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-025NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-025KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-025NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-025KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-025NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-030KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-030NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-030KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-030NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-030KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-030NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-035KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-035NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-035KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-035NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-035KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-035NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-040KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-040NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-040KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-040NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-040KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-040NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-045KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-045NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-045KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-045NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-045KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-045NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-050KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-050NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-050KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-050NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-050KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-050NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-060KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-060NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-060KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-060NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-060KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-060NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-070KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-070NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-070KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-070NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-070KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-070NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-080KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-080NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-080KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-080NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-080KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-080NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-090KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-090NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-090KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-090NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-090KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-090NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-100KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-100NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-100KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-100NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-100KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-100NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-120KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-120NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-120KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-120NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-120KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-120NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-140KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-140NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-140KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-140NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-140KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-140NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-180KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-180NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-180KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-180NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-180KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-180NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-200KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-200NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-200KP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-200NP Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-200KA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-200NA Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-025KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-025NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-025KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-025NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-025KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-025NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-030KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-030NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-030KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-030NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-030KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-030NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-035KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-035NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-035KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-035NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-035KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-035NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-040KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-040NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-040KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-040NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-040KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-040NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-045KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-045NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-045KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-045NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-045KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-045NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-050KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-050NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-050KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-050NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-050KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-050NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-060KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-060NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-060KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-060NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-060KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-060NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-070KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-070NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-070KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-070NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-070KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-070NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-080KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-080NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-080KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-080NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-080KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-080NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-090KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-090NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-090KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-090NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-090KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-090NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-100KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-100NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-100KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-100NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-100KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-100NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-120KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-120NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-120KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-120NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-120KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-120NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-140KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-140NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-140KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-140NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-140KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-140NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-180KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-180NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-180KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-180NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-180KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-180NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-200KS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-200NS Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-200KP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-200NP Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-200KA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-200NA Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-025KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-025NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-025KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-025NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-025KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-025NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-030KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-030NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-030KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-030NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-030KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-030NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-035KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-035NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-035KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-035NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-035KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-035NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-040KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-040NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-040KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-040NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-040KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-040NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-045KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-045NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-045KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-045NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-045KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-045NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-050KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-050NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-050KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-050NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-050KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-050NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-060KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-060NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-060KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-060NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-060KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-060NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-070KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-070NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-070KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-070NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-070KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-070NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-080KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-080NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-080KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-080NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-080KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-080NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-090KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-090NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-090KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-090NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-090KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-090NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-100KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-100NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-100KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-100NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-100KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-100NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-120KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-120NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-120KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-120NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-120KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-120NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-140KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-140NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-140KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-140NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-140KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-140NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-180KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-180NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-180KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-180NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-180KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-180NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-200KS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-200NS Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-200KP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-200NP Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-200KA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-200NA Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS0902B Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1152B Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1422B Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1802B Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS2202B Frame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS0452A Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS0602A Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS0902A Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1152A Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1422A Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1802A Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS2202A Frame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
1121 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric HAS Right-Angle Planetary Gearbox, Square Flange (2-stage)

Brand LS Electric·Planetary Gearboxes

Available part numbers (1121)

HAS0452A-015KS, HAS0452A-015NS, HAS0452A-015KP, HAS0452A-015NP, HAS0452A-020KS, HAS0452A-020NS, HAS0452A-020KP, HAS0452A-020NP, HAS0452A-025KS, HAS0452A-025NS + 1111 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HAS0452A-015KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-015NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-015KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-015NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-020KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-020NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-020KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-020NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-025KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-025NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-025KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-025NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-030KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-030NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-030KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-030NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-035KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-035NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-035KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-035NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-040KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-040NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-040KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-040NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-045KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-045NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-045KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-045NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-050KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-050NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-050KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-050NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-060KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-060NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-060KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-060NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-070KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-070NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-070KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-070NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-080KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-080NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-080KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-080NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-090KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-090NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-090KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-090NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0452A-100KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0452A-100NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0452A-100KPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0452A-100NPFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-025KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-025NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-025KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-025NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-025KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-025NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-030KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-030NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-030KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-030NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-030KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-030NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-035KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-035NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-035KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-035NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-035KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-035NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-040KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-040NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-040KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-040NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-040KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-040NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-045KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-045NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-045KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-045NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-045KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-045NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-050KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-050NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-050KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-050NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-050KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-050NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-060KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-060NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-060KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-060NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-060KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-060NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-070KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-070NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-070KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-070NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-070KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-070NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-080KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-080NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-080KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-080NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-080KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-080NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-090KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-090NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-090KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-090NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-090KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-090NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602B-100KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602B-100NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602B-100KPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602B-100NPFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602B-100KAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602B-100NAFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-025KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-025NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-025KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-025NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-025KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-025NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-030KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-030NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-030KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-030NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-030KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-030NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-035KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-035NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-035KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-035NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-035KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-035NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-040KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-040NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-040KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-040NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-040KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-040NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-045KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-045NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-045KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-045NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-045KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-045NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-050KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-050NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-050KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-050NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-050KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-050NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-060KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-060NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-060KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-060NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-060KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-060NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-070KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-070NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-070KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-070NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-070KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-070NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-080KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-080NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-080KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-080NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-080KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-080NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-090KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-090NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-090KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-090NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-090KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-090NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-100KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-100NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-100KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-100NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-100KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-100NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-120KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-120NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-120KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-120NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-120KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-120NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-140KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-140NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-140KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-140NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-140KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-140NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-180KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-180NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-180KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-180NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-180KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-180NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602A-200KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0602A-200NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0602A-200KPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0602A-200NPFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0602A-200KAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0602A-200NAFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-025KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-025NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-025KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-025NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-025KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-025NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-030KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-030NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-030KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-030NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-030KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-030NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-035KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-035NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-035KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-035NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-035KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-035NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-040KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-040NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-040KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-040NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-040KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-040NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-045KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-045NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-045KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-045NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-045KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-045NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-050KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-050NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-050KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-050NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-050KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-050NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-060KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-060NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-060KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-060NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-060KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-060NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-070KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-070NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-070KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-070NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-070KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-070NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-080KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-080NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-080KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-080NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-080KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-080NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-090KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-090NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-090KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-090NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-090KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-090NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-100KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-100NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-100KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-100NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-100KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-100NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-120KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-120NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-120KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-120NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-120KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-120NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-140KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-140NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-140KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-140NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-140KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-140NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-180KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-180NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-180KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-180NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-180KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-180NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902B-200KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902B-200NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902B-200KPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902B-200NPFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902B-200KAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902B-200NAFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-025KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-025NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-025KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-025NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-025KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-025NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-030KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-030NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-030KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-030NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-030KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-030NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-035KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-035NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-035KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-035NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-035KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-035NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-040KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-040NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-040KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-040NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-040KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-040NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-045KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-045NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-045KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-045NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-045KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-045NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-050KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-050NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-050KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-050NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-050KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-050NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-060KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-060NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-060KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-060NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-060KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-060NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-070KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-070NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-070KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-070NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-070KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-070NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-080KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-080NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-080KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-080NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-080KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-080NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-090KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-090NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-090KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-090NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-090KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-090NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-100KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-100NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-100KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-100NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-100KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-100NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-120KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-120NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-120KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-120NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-120KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-120NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-140KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-140NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-140KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-140NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-140KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-140NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-180KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-180NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-180KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-180NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-180KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-180NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0902A-200KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS0902A-200NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS0902A-200KPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS0902A-200NPFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS0902A-200KAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS0902A-200NAFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-025KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-025NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-025KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-025NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-025KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-025NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-030KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-030NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-030KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-030NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-030KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-030NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-035KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-035NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-035KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-035NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-035KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-035NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-040KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-040NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-040KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-040NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-040KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-040NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-045KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-045NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-045KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-045NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-045KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-045NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-050KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-050NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-050KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-050NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-050KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-050NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-060KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-060NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-060KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-060NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-060KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-060NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-070KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-070NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-070KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-070NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-070KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-070NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-080KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-080NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-080KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-080NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-080KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-080NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-090KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-090NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-090KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-090NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-090KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-090NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-100KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-100NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-100KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-100NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-100KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-100NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-120KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-120NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-120KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-120NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-120KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-120NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-140KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-140NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-140KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-140NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-140KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-140NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-180KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-180NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-180KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-180NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-180KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-180NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152B-200KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152B-200NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152B-200KPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152B-200NPFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152B-200KAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152B-200NAFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-025KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-025NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-025KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-025NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-025KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-025NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-030KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-030NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-030KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-030NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-030KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-030NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-035KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-035NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-035KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-035NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-035KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-035NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-040KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-040NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-040KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-040NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-040KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-040NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-045KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-045NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-045KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-045NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-045KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-045NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-050KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-050NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-050KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-050NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-050KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-050NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-060KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-060NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-060KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-060NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-060KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-060NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-070KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-070NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-070KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-070NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-070KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-070NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-080KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-080NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-080KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-080NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-080KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-080NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-090KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-090NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-090KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-090NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-090KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-090NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-100KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-100NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-100KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-100NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-100KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-100NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-120KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-120NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-120KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-120NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-120KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-120NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-140KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-140NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-140KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-140NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-140KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-140NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-180KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-180NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-180KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-180NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-180KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-180NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1152A-200KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1152A-200NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1152A-200KPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1152A-200NPFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1152A-200KAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1152A-200NAFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-025KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-025NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-025KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-025NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-025KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-025NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-030KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-030NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-030KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-030NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-030KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-030NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-035KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-035NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-035KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-035NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-035KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-035NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-040KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-040NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-040KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-040NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-040KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-040NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-045KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-045NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-045KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-045NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-045KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-045NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-050KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-050NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-050KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-050NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-050KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-050NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-060KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-060NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-060KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-060NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-060KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-060NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-070KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-070NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-070KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-070NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-070KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-070NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-080KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-080NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-080KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-080NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-080KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-080NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-090KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-090NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-090KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-090NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-090KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-090NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-100KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-100NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-100KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-100NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-100KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-100NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-120KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-120NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-120KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-120NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-120KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-120NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-140KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-140NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-140KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-140NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-140KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-140NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-180KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-180NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-180KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-180NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-180KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-180NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422B-200KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422B-200NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422B-200KPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422B-200NPFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422B-200KAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422B-200NAFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-025KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-025NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-025KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-025NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-025KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-025NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-030KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-030NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-030KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-030NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-030KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-030NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-035KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-035NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-035KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-035NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-035KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-035NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-040KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-040NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-040KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-040NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-040KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-040NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-045KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-045NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-045KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-045NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-045KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-045NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-050KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-050NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-050KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-050NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-050KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-050NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-060KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-060NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-060KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-060NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-060KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-060NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-070KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-070NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-070KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-070NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-070KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-070NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-080KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-080NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-080KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-080NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-080KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-080NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-090KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-090NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-090KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-090NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-090KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-090NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-100KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-100NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-100KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-100NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-100KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-100NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-120KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-120NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-120KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-120NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-120KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-120NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-140KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-140NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-140KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-140NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-140KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-140NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-180KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-180NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-180KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-180NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-180KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-180NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1422A-200KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1422A-200NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1422A-200KPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1422A-200NPFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1422A-200KAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1422A-200NAFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-025KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-025NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-025KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-025NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-025KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-025NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-030KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-030NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-030KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-030NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-030KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-030NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-035KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-035NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-035KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-035NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-035KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-035NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-040KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-040NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-040KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-040NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-040KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-040NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-045KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-045NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-045KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-045NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-045KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-045NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-050KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-050NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-050KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-050NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-050KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-050NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-060KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-060NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-060KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-060NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-060KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-060NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-070KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-070NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-070KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-070NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-070KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-070NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-080KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-080NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-080KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-080NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-080KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-080NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-090KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-090NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-090KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-090NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-090KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-090NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-100KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-100NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-100KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-100NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-100KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-100NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-120KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-120NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-120KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-120NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-120KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-120NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-140KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-140NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-140KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-140NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-140KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-140NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-180KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-180NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-180KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-180NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-180KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-180NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802B-200KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802B-200NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802B-200KPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802B-200NPFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802B-200KAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802B-200NAFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-025KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-025NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-025KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-025NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-025KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-025NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-030KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-030NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-030KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-030NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-030KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-030NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-035KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-035NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-035KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-035NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-035KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-035NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-040KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-040NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-040KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-040NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-040KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-040NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-045KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-045NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-045KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-045NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-045KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-045NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-050KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-050NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-050KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-050NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-050KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-050NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-060KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-060NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-060KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-060NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-060KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-060NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-070KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-070NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-070KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-070NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-070KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-070NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-080KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-080NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-080KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-080NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-080KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-080NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-090KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-090NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-090KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-090NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-090KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-090NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-100KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-100NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-100KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-100NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-100KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-100NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-120KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-120NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-120KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-120NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-120KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-120NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-140KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-140NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-140KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-140NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-140KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-140NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-180KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-180NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-180KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-180NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-180KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-180NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS1802A-200KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS1802A-200NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS1802A-200KPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS1802A-200NPFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS1802A-200KAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS1802A-200NAFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-025KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-025NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-025KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-025NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-025KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-025NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-030KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-030NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-030KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-030NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-030KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-030NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-035KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-035NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-035KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-035NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-035KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-035NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-040KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-040NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-040KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-040NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-040KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-040NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-045KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-045NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-045KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-045NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-045KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-045NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-050KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-050NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-050KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-050NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-050KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-050NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-060KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-060NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-060KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-060NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-060KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-060NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-070KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-070NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-070KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-070NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-070KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-070NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-080KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-080NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-080KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-080NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-080KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-080NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-090KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-090NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-090KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-090NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-090KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-090NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-100KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-100NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-100KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-100NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-100KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-100NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-120KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-120NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-120KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-120NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-120KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-120NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-140KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-140NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-140KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-140NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-140KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-140NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-180KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-180NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-180KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-180NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-180KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-180NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202B-200KSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202B-200NSFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202B-200KPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202B-200NPFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202B-200KAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202B-200NAFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-025KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-025NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-025KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-025NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-025KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-025NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-030KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-030NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-030KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-030NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-030KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-030NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-035KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-035NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-035KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-035NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-035KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-035NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-040KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-040NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-040KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-040NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-040KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-040NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-045KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-045NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-045KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-045NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-045KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-045NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-050KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-050NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-050KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-050NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-050KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-050NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-060KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-060NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-060KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-060NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-060KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-060NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-070KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-070NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-070KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-070NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-070KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-070NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-080KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-080NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-080KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-080NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-080KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-080NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-090KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-090NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-090KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-090NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-090KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-090NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-100KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-100NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-100KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-100NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-100KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-100NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-120KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-120NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-120KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-120NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-120KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-120NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 120:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-140KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-140NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-140KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-140NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-140KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-140NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 140:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-180KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-180NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-180KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-180NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-180KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-180NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 180:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS2202A-200KSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: S (<= 11 arcmin)
HAS2202A-200NSFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 11 arcmin)
HAS2202A-200KPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: P (<= 9 arcmin)
HAS2202A-200NPFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: P (<= 9 arcmin)
HAS2202A-200KAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Keyed (K) | Backlash: A (<= 7 arcmin)
HAS2202A-200NAFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: 200:1 | Output shaft: Smooth, no key (N) | Backlash: A (<= 7 arcmin)
HAS0602BFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS0902BFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1152BFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1422BFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1802BFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS2202BFrame: 220 | Stage input: 2-stage std (2B) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS0452AFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS0602AFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS0902AFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1152AFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1422AFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS1802AFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
HAS2202AFrame: 220 | Stage input: 2-stage option (2A) | Input bore: 55 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
