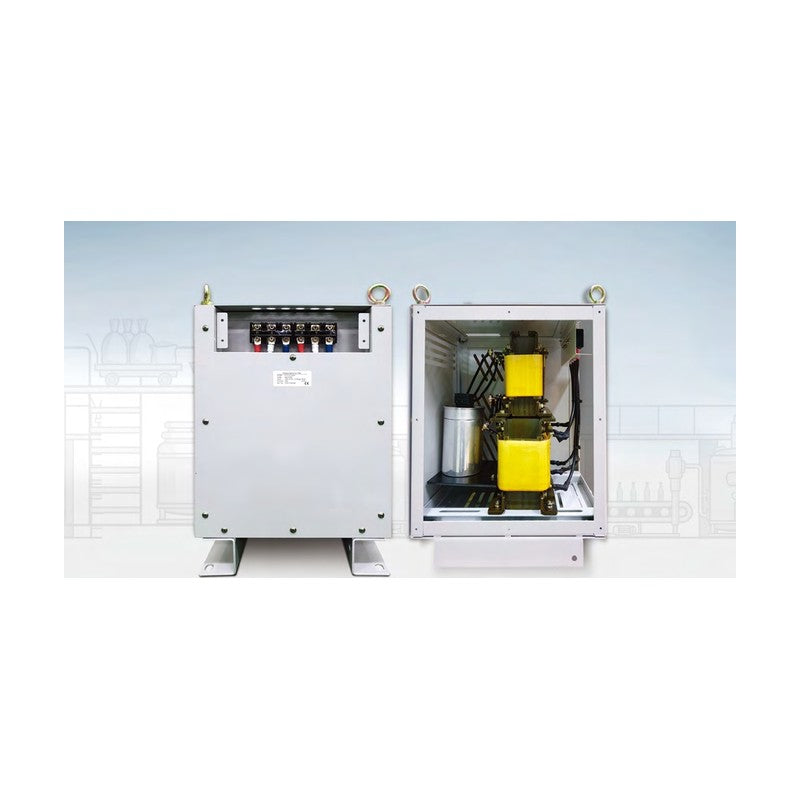

LS Electric HFH Low Harmonic Filter for iS7 (400V, 60 Hz)

LS Electric HFH Low Harmonic Filter for iS7 (400V, 60 Hz)

LS Electric HFH low harmonic filters are passive input filters optimized for LS iS7 drives, meeting IEEE 519-2014 with THDi of 5% or less.

Key features

  • Fully compatible with LS iS7 AC drives
  • ITHD 5% (with DC reactor) / 7% (without) at rated load
  • Ratings 12-432 A for 5.5-220 kW four-pole motors at 3-phase 380-415 VAC, 60 Hz
  • 98% or higher efficiency with natural cooling
  • IP20 enclosure up to 75 kW, IP00 for 90-220 kW
  • CE standard

Specifications

Series HFH low harmonic filter (LHF)
Input voltage 3-phase 380-415 VAC (-10% to +10%)
Input frequency 60 Hz (+/-1 Hz)
ITHD 5% with DC reactor / 7% without
Efficiency 98% or higher
Cooling Natural
Operating temperature -10 to +50 C
Storage temperature -25 to +85 C
Compatible drives LS iS7
Source LS Electric Low Harmonic Filter Catalog KR 2020.04, p. 1-2
HFH-0012-3(60) Rated current: 12 A | Motor (CT): 5.5 kW / 7.5 HP | Frame: 1 | Protection: IP20
HFH-0016-3(60) Rated current: 16 A | Motor (CT): 7.5 kW / 10 HP | Frame: 1 | Protection: IP20
HFH-0024-3(60) Rated current: 24 A | Motor (CT): 11 kW / 15 HP | Frame: 2 | Protection: IP20
HFH-0030-3(60) Rated current: 30 A | Motor (CT): 15 kW / 20 HP | Frame: 2 | Protection: IP20
HFH-0039-3(60) Rated current: 39 A | Motor (CT): 18.5 kW / 25 HP | Frame: 2 | Protection: IP20
HFH-0045-3(60) Rated current: 45 A | Motor (CT): 22 kW / 30 HP | Frame: 2 | Protection: IP20
HFH-0061-3(60) Rated current: 61 A | Motor (CT): 30 kW / 40 HP | Frame: 3 | Protection: IP20
HFH-0075-3(60) Rated current: 75 A | Motor (CT): 37 kW / 50 HP | Frame: 3 | Protection: IP20
HFH-0091-3(60) Rated current: 91 A | Motor (CT): 45 kW / 60 HP | Frame: 3 | Protection: IP20
HFH-0110-3(60) Rated current: 110 A | Motor (CT): 55 kW / 75 HP | Frame: 3 | Protection: IP20
HFH-0152-3(60) Rated current: 152 A | Motor (CT): 75 kW / 100 HP | Frame: 3 | Protection: IP20
HFH-0183-3(60) Rated current: 183 A | Motor (CT): 90 kW / 125 HP | Frame: 4 | Protection: IP00
HFH-0223-3(60) Rated current: 223 A | Motor (CT): 110 kW / 150 HP | Frame: 4 | Protection: IP00
HFH-0264-3(60) Rated current: 264 A | Motor (CT): 132 kW / 200 HP | Frame: 4 | Protection: IP00
HFH-0325-3(60) Rated current: 325 A | Motor (CT): 160 kW / 250 HP | Frame: 4 | Protection: IP00
HFH-0370-3(60) Rated current: 370 A | Motor (CT): 185 kW / 300 HP | Frame: 4 | Protection: IP00
HFH-0432-3(60) Rated current: 432 A | Motor (CT): 220 kW / 350 HP | Frame: 4 | Protection: IP00
Drive OptionsLS Electric
17 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric HFH Low Harmonic Filter for iS7 (400V, 60 Hz)

Brand LS Electric·Drive Options

Available part numbers (17)

HFH-0012-3(60), HFH-0016-3(60), HFH-0024-3(60), HFH-0030-3(60), HFH-0039-3(60), HFH-0045-3(60), HFH-0061-3(60), HFH-0075-3(60), HFH-0091-3(60), HFH-0110-3(60) + 7 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
HFH-0012-3(60)Rated current: 12 A | Motor (CT): 5.5 kW / 7.5 HP | Frame: 1 | Protection: IP20
HFH-0016-3(60)Rated current: 16 A | Motor (CT): 7.5 kW / 10 HP | Frame: 1 | Protection: IP20
HFH-0024-3(60)Rated current: 24 A | Motor (CT): 11 kW / 15 HP | Frame: 2 | Protection: IP20
HFH-0030-3(60)Rated current: 30 A | Motor (CT): 15 kW / 20 HP | Frame: 2 | Protection: IP20
HFH-0039-3(60)Rated current: 39 A | Motor (CT): 18.5 kW / 25 HP | Frame: 2 | Protection: IP20
HFH-0045-3(60)Rated current: 45 A | Motor (CT): 22 kW / 30 HP | Frame: 2 | Protection: IP20
HFH-0061-3(60)Rated current: 61 A | Motor (CT): 30 kW / 40 HP | Frame: 3 | Protection: IP20
HFH-0075-3(60)Rated current: 75 A | Motor (CT): 37 kW / 50 HP | Frame: 3 | Protection: IP20
HFH-0091-3(60)Rated current: 91 A | Motor (CT): 45 kW / 60 HP | Frame: 3 | Protection: IP20
HFH-0110-3(60)Rated current: 110 A | Motor (CT): 55 kW / 75 HP | Frame: 3 | Protection: IP20
HFH-0152-3(60)Rated current: 152 A | Motor (CT): 75 kW / 100 HP | Frame: 3 | Protection: IP20
HFH-0183-3(60)Rated current: 183 A | Motor (CT): 90 kW / 125 HP | Frame: 4 | Protection: IP00
HFH-0223-3(60)Rated current: 223 A | Motor (CT): 110 kW / 150 HP | Frame: 4 | Protection: IP00
HFH-0264-3(60)Rated current: 264 A | Motor (CT): 132 kW / 200 HP | Frame: 4 | Protection: IP00
HFH-0325-3(60)Rated current: 325 A | Motor (CT): 160 kW / 250 HP | Frame: 4 | Protection: IP00
HFH-0370-3(60)Rated current: 370 A | Motor (CT): 185 kW / 300 HP | Frame: 4 | Protection: IP00
HFH-0432-3(60)Rated current: 432 A | Motor (CT): 220 kW / 350 HP | Frame: 4 | Protection: IP00
