LS Electric i-FOS-X Industrial Ethernet Switches (Managed / Unmanaged)

LS Electric i-FOS-X Industrial Ethernet Switches (Managed / Unmanaged)

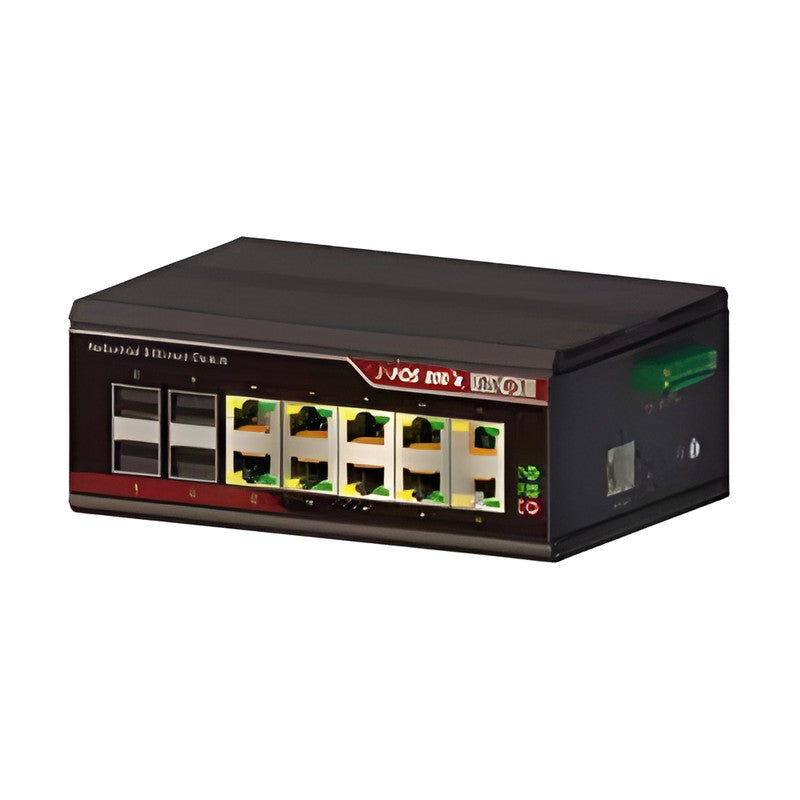

i-FOS-X industrial Ethernet switches (made by AC&T System): i-FOS-200X Gigabit managed ring switches and compact i-FOS-50X, 50XP PoE and 30X unmanaged switches with SFP fiber slots for DIN-rail installation.

Key features

  • i-FOS-200X managed: Smart Ring V2 with ring recovery under 20 ms, dual ring, coupling, dual homing
  • STP/RSTP/MSTP, IEEE 802.1X, HTTPS/SSH, RMON and SNMP MIBs on managed models
  • SFP slots accept 100Base-FX or 1000Base-X modules (multi-mode / single-mode)
  • Redundant 12-58 VDC inputs with reverse power protection; power alarm relay output
  • Broadcast storm protection DIP switch on unmanaged models; 120 W PoE+ budget on i-FOS-55XP-F
  • Wide -40 to +75 C operation with cold start at -40 C

Specifications

Switching Store and forward, L2 wire-speed, non-blocking
Input voltage 12-58 VDC, redundant
Operating temperature -40 to +75 C
Humidity 5-95% RH, non-condensing
Mounting DIN rail / wall
Ingress protection IP30
Fiber connector LC (via SFP module)
Certification KC, CE
Source LS Electric i-FOS-X Series Products Guide (2019.07), p. 2-10; Thermal Imaging Solutions catalog, p. 19-21
i-FOS-208X-2F Series: i-FOS-200X (managed) | Copper ports: 6 x 10/100/1000Base-T(X) | SFP slots: 2 (100Base-FX/1000Base-X) | PoE: No
i-FOS-210X-2F Series: i-FOS-200X (managed) | Copper ports: 8 x 10/100/1000Base-T(X) | SFP slots: 2 (100Base-FX/1000Base-X) | PoE: No
i-FOS-214X-4F Series: i-FOS-200X (managed) | Copper ports: 10 x 10/100/1000Base-T(X) | SFP slots: 4 (100Base-FX/1000Base-X) | PoE: No
i-FOS-58X-2F Series: i-FOS-50X (unmanaged) | Copper ports: 6 x 10/100/1000Base-T(X) | SFP slots: 2 (100Base-FX/1000Base-X) | PoE: No
i-FOS-58X-EE Series: i-FOS-50X (unmanaged) | Copper ports: 8 x 10/100/1000Base-T(X) | SFP slots: None | PoE: No
i-FOS-55XP-F Series: i-FOS-50XP (unmanaged) | Copper ports: 4 x 10/100/1000Base-T(X) | SFP slots: 1 (100Base-FX/1000Base-X) | PoE: 4 ports, 802.3at, 120 W
i-FOS-38X-EE Series: i-FOS-30X (unmanaged) | Copper ports: 8 x 10/100Base-T(X) | SFP slots: None | PoE: No
i-FOS-38X-2F Series: i-FOS-30X (unmanaged) | Copper ports: 6 x 10/100Base-T(X) | SFP slots: 2 (100Base-FX) | PoE: No
Industrial Network SwitchesLS Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric i-FOS-X Industrial Ethernet Switches (Managed / Unmanaged)

Brand LS Electric·Industrial Network Switches

Available part numbers (8)

i-FOS-208X-2F, i-FOS-210X-2F, i-FOS-214X-4F, i-FOS-58X-2F, i-FOS-58X-EE, i-FOS-55XP-F, i-FOS-38X-EE, i-FOS-38X-2F

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
i-FOS-208X-2FSeries: i-FOS-200X (managed) | Copper ports: 6 x 10/100/1000Base-T(X) | SFP slots: 2 (100Base-FX/1000Base-X) | PoE: No
i-FOS-210X-2FSeries: i-FOS-200X (managed) | Copper ports: 8 x 10/100/1000Base-T(X) | SFP slots: 2 (100Base-FX/1000Base-X) | PoE: No
i-FOS-214X-4FSeries: i-FOS-200X (managed) | Copper ports: 10 x 10/100/1000Base-T(X) | SFP slots: 4 (100Base-FX/1000Base-X) | PoE: No
i-FOS-58X-2FSeries: i-FOS-50X (unmanaged) | Copper ports: 6 x 10/100/1000Base-T(X) | SFP slots: 2 (100Base-FX/1000Base-X) | PoE: No
i-FOS-58X-EESeries: i-FOS-50X (unmanaged) | Copper ports: 8 x 10/100/1000Base-T(X) | SFP slots: None | PoE: No
i-FOS-55XP-FSeries: i-FOS-50XP (unmanaged) | Copper ports: 4 x 10/100/1000Base-T(X) | SFP slots: 1 (100Base-FX/1000Base-X) | PoE: 4 ports, 802.3at, 120 W
i-FOS-38X-EESeries: i-FOS-30X (unmanaged) | Copper ports: 8 x 10/100Base-T(X) | SFP slots: None | PoE: No
i-FOS-38X-2FSeries: i-FOS-30X (unmanaged) | Copper ports: 6 x 10/100Base-T(X) | SFP slots: 2 (100Base-FX) | PoE: No
