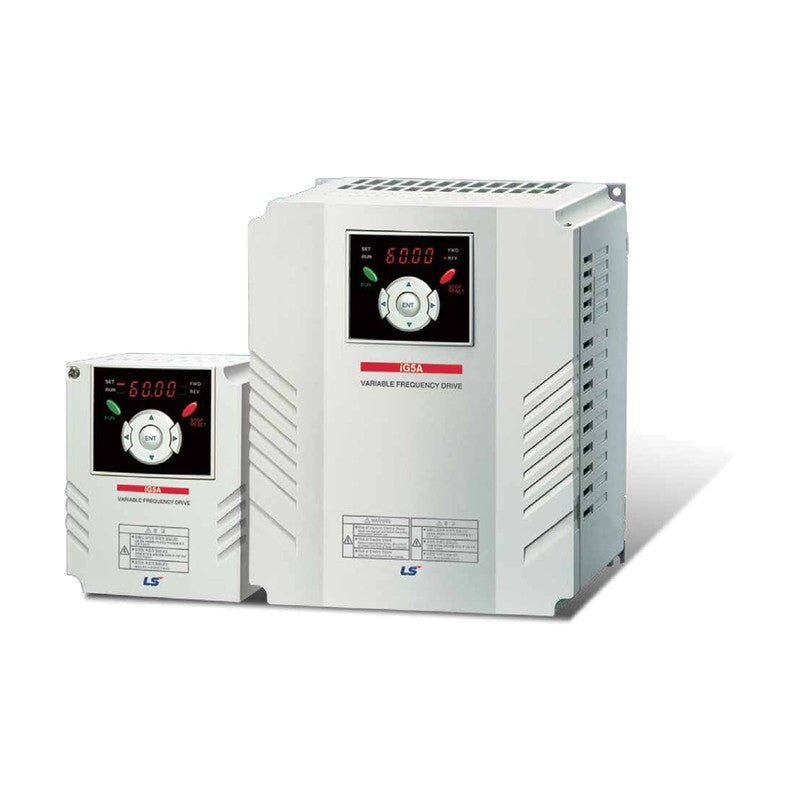

LS Electric iG5A Compact AC Drive 0.4-22 kW (Discontinued)

LS Electric iG5A Compact AC Drive 0.4-22 kW (Discontinued)

The LS Electric Starvert iG5A compact sensorless-vector AC drive (0.4-22 kW, 1-ph/3-ph 200 V and 3-ph 400 V) is discontinued; these codes are offered as replacement spares.

Key features

  • V/F and sensorless vector control, 0-400 Hz output
  • Built-in dynamic braking circuit for an external braking resistor
  • Built-in RS-485 (Modbus RTU / LS Bus), up to 31 drives networked
  • 8 multi-function inputs selectable NPN/PNP, relay and open-collector outputs
  • Built-in PID, up-down and 3-wire operation; brake control output
  • Fan replaceable without removing the cover; on/off fan control

Specifications

Series Starvert iG5A
Status Discontinued (spares)
Control V/F, sensorless vector
Overload capacity 150% for 1 min
Output frequency 0-400 Hz
Analog input 0-10 V, -10-10 V, 0-20 mA
Multi-function inputs 8 (P1-P8), NPN/PNP
Communication RS-485 built-in (Modbus RTU)
Enclosure IP20 (UL Type 1 with conduit kit)
Ambient temperature -10 to 50 C
Certifications UL, CE
Source LS Electric iG5A catalog (2021-06), p. 8-10
SV004iG5A-1 Input: 1-ph 200-230 V | Motor: 0.4 kW (0.5 HP) | Rated current: 2.5 A | Cooling: Forced fan
SV004iG5A-2 Input: 3-ph 200-230 V | Motor: 0.4 kW (0.5 HP) | Rated current: 2.5 A | Cooling: Natural
SV004iG5A-4 Input: 3-ph 380-480 V | Motor: 0.4 kW (0.5 HP) | Rated current: 1.25 A | Cooling: Natural
SV008iG5A-1 Input: 1-ph 200-230 V | Motor: 0.75 kW (1 HP) | Rated current: 5 A | Cooling: Forced fan
SV008iG5A-2 Input: 3-ph 200-230 V | Motor: 0.75 kW (1 HP) | Rated current: 5 A | Cooling: Forced fan
SV008iG5A-4 Input: 3-ph 380-480 V | Motor: 0.75 kW (1 HP) | Rated current: 2.5 A | Cooling: Forced fan
SV015iG5A-1 Input: 1-ph 200-230 V | Motor: 1.5 kW (2 HP) | Rated current: 8 A | Cooling: Forced fan
SV015iG5A-2 Input: 3-ph 200-230 V | Motor: 1.5 kW (2 HP) | Rated current: 8 A | Cooling: Forced fan
SV015iG5A-4 Input: 3-ph 380-480 V | Motor: 1.5 kW (2 HP) | Rated current: 4 A | Cooling: Forced fan
SV022iG5A-2 Input: 3-ph 200-230 V | Motor: 2.2 kW (3 HP) | Rated current: 12 A | Cooling: Forced fan
SV022iG5A-4 Input: 3-ph 380-480 V | Motor: 2.2 kW (3 HP) | Rated current: 6 A | Cooling: Forced fan
SV037iG5A-2 Input: 3-ph 200-230 V | Motor: 3.7 kW (5 HP) | Rated current: 16 A | Cooling: Forced fan
SV037iG5A-4 Input: 3-ph 380-480 V | Motor: 3.7 kW (5 HP) | Rated current: 8 A | Cooling: Forced fan
SV040iG5A-2 Input: 3-ph 200-230 V | Motor: 4 kW (5.4 HP) | Rated current: 17 A | Cooling: Forced fan
SV040iG5A-4 Input: 3-ph 380-480 V | Motor: 4 kW (5.4 HP) | Rated current: 9 A | Cooling: Forced fan
SV055iG5A-2 Input: 3-ph 200-230 V | Motor: 5.5 kW (7.5 HP) | Rated current: 24 A | Cooling: Forced fan
SV055iG5A-4 Input: 3-ph 380-480 V | Motor: 5.5 kW (7.5 HP) | Rated current: 12 A | Cooling: Forced fan
SV075iG5A-2 Input: 3-ph 200-230 V | Motor: 7.5 kW (10 HP) | Rated current: 32 A | Cooling: Forced fan
SV075iG5A-4 Input: 3-ph 380-480 V | Motor: 7.5 kW (10 HP) | Rated current: 16 A | Cooling: Forced fan
SV110iG5A-2 Input: 3-ph 200-230 V | Motor: 11 kW (15 HP) | Rated current: 46 A | Cooling: Forced fan
SV110iG5A-4 Input: 3-ph 380-480 V | Motor: 11 kW (15 HP) | Rated current: 24 A | Cooling: Forced fan
SV150iG5A-2 Input: 3-ph 200-230 V | Motor: 15 kW (20 HP) | Rated current: 60 A | Cooling: Forced fan
SV150iG5A-4 Input: 3-ph 380-480 V | Motor: 15 kW (20 HP) | Rated current: 30 A | Cooling: Forced fan
SV185iG5A-2 Input: 3-ph 200-230 V | Motor: 18.5 kW (25 HP) | Rated current: 74 A | Cooling: Forced fan
SV185iG5A-4 Input: 3-ph 380-480 V | Motor: 18.5 kW (25 HP) | Rated current: 39 A | Cooling: Forced fan
SV220iG5A-2 Input: 3-ph 200-230 V | Motor: 22 kW (30 HP) | Rated current: 88 A | Cooling: Forced fan
SV220iG5A-4 Input: 3-ph 380-480 V | Motor: 22 kW (30 HP) | Rated current: 45 A | Cooling: Forced fan
AC DrivesLS Electric
27 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric iG5A Compact AC Drive 0.4-22 kW (Discontinued)

Brand LS Electric·AC Drives

Available part numbers (27)

SV004iG5A-1, SV004iG5A-2, SV004iG5A-4, SV008iG5A-1, SV008iG5A-2, SV008iG5A-4, SV015iG5A-1, SV015iG5A-2, SV015iG5A-4, SV022iG5A-2 + 17 more — see full table ↓
