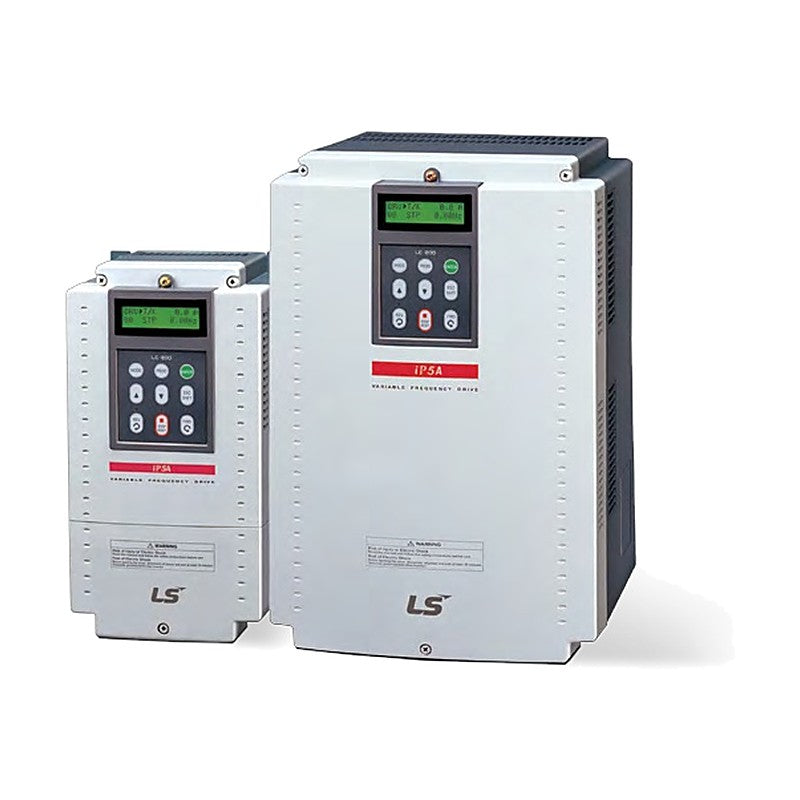

LS Electric iP5A Fan & Pump AC Drive 5.5-450 kW (Discontinued)

LS Electric iP5A Fan & Pump AC Drive 5.5-450 kW (Discontinued)

The LS Electric Starvert iP5A energy-saving fan and pump AC drive (5.5-30 kW 200 V, 5.5-450 kW 400 V, incl. marine-class versions) is discontinued; these codes are offered as replacement spares.

Key features

  • Fan/pump duty: 110% 1 min normal duty, 150% 1 min heavy duty
  • MMC multi-motor control, Pre-PID, Dual-PID and external PID
  • Flying start, commercial-line bypass, sleep/wake and energy-saving operation
  • Communication options: Modbus RTU, DeviceNet, Profibus-DP, LonWorks, BACnet, Metasys N2
  • Marine "(CLASS)" versions with DNV / ABS type approval (Class C/B/A/A)
  • Built-in DC reactor on "L" models; condensation-prevention heater function

Specifications

Series Starvert iP5A
Status Discontinued (spares)
Control V/F, slip compensation, sensorless vector
Overload capacity 110% 1 min (ND), 150% 1 min (HD)
Output frequency 0.01-120 Hz
Analog input 0-12 V, -12-12 V, 0-20 mA, pulse
Fault relay 3A/3B/3C, AC 250 V 1 A
Cooling Forced air
Rated current (ND) 24-115 A (200 V), 12-877 A (400 V)
Suffix N / O / E / L No keypad / UL Open / UL Enclosed / DC reactor
Source LS Electric iP5A catalog (2019-07), p. 8-9
SV055iP5A-2NE Input: 3-ph 200-230 V | Motor: 5.5 kW (7.5 HP) | Build: UL Type 1 (enclosed), no keypad | Version: Standard
SV055iP5A-4NE Input: 3-ph 380-480 V | Motor: 5.5 kW (7.5 HP) | Build: UL Type 1 (enclosed), no keypad | Version: Standard
SV055iP5A-4NE(CLASS) Input: 3-ph 380-480 V | Motor: 5.5 kW (7.5 HP) | Build: UL Type 1 (enclosed), no keypad | Version: Marine class
SV075iP5A-2NE Input: 3-ph 200-230 V | Motor: 7.5 kW (10 HP) | Build: UL Type 1 (enclosed), no keypad | Version: Standard
SV075iP5A-4NE Input: 3-ph 380-480 V | Motor: 7.5 kW (10 HP) | Build: UL Type 1 (enclosed), no keypad | Version: Standard
SV075iP5A-4NE(CLASS) Input: 3-ph 380-480 V | Motor: 7.5 kW (10 HP) | Build: UL Type 1 (enclosed), no keypad | Version: Marine class
SV110iP5A-2NE Input: 3-ph 200-230 V | Motor: 11 kW (15 HP) | Build: UL Type 1 (enclosed), no keypad | Version: Standard
SV110iP5A-4NE Input: 3-ph 380-480 V | Motor: 11 kW (15 HP) | Build: UL Type 1 (enclosed), no keypad | Version: Standard
SV110iP5A-4NE(CLASS) Input: 3-ph 380-480 V | Motor: 11 kW (15 HP) | Build: UL Type 1 (enclosed), no keypad | Version: Marine class
SV150iP5A-2NO Input: 3-ph 200-230 V | Motor: 15 kW (20 HP) | Build: UL Open (IP00), no keypad | Version: Standard
SV150iP5A-4NO Input: 3-ph 380-480 V | Motor: 15 kW (20 HP) | Build: UL Open (IP00), no keypad | Version: Standard
SV150iP5A-4NOL(CLASS) Input: 3-ph 380-480 V | Motor: 15 kW (20 HP) | Build: UL Open (IP00), no keypad, DC reactor | Version: Marine class
SV185iP5A-2NO Input: 3-ph 200-230 V | Motor: 18.5 kW (25 HP) | Build: UL Open (IP00), no keypad | Version: Standard
SV185iP5A-4NO Input: 3-ph 380-480 V | Motor: 18.5 kW (25 HP) | Build: UL Open (IP00), no keypad | Version: Standard
SV185iP5A-4NOL(CLASS) Input: 3-ph 380-480 V | Motor: 18.5 kW (25 HP) | Build: UL Open (IP00), no keypad, DC reactor | Version: Marine class
SV220iP5A-2NO Input: 3-ph 200-230 V | Motor: 22 kW (30 HP) | Build: UL Open (IP00), no keypad | Version: Standard
SV220iP5A-4NO Input: 3-ph 380-480 V | Motor: 22 kW (30 HP) | Build: UL Open (IP00), no keypad | Version: Standard
SV220iP5A-4NOL(CLASS) Input: 3-ph 380-480 V | Motor: 22 kW (30 HP) | Build: UL Open (IP00), no keypad, DC reactor | Version: Marine class
SV300iP5A-2NO Input: 3-ph 200-230 V | Motor: 30 kW (40 HP) | Build: UL Open (IP00), no keypad | Version: Standard
SV300iP5A-4NO Input: 3-ph 380-480 V | Motor: 30 kW (40 HP) | Build: UL Open (IP00), no keypad | Version: Standard
SV300iP5A-4NOL(CLASS) Input: 3-ph 380-480 V | Motor: 30 kW (40 HP) | Build: UL Open (IP00), no keypad, DC reactor | Version: Marine class
SV370iP5A-4O Input: 3-ph 380-480 V | Motor: 37 kW (50 HP) | Build: UL Open (IP00) | Version: Standard
SV370iP5A-4OL(CLASS) Input: 3-ph 380-480 V | Motor: 37 kW (50 HP) | Build: UL Open (IP00), DC reactor | Version: Marine class
SV450iP5A-4O Input: 3-ph 380-480 V | Motor: 45 kW (60 HP) | Build: UL Open (IP00) | Version: Standard
SV450iP5A-4OL(CLASS) Input: 3-ph 380-480 V | Motor: 45 kW (60 HP) | Build: UL Open (IP00), DC reactor | Version: Marine class
SV550iP5A-4O Input: 3-ph 380-480 V | Motor: 55 kW (75 HP) | Build: UL Open (IP00) | Version: Standard
SV550iP5A-4OL(CLASS) Input: 3-ph 380-480 V | Motor: 55 kW (75 HP) | Build: UL Open (IP00), DC reactor | Version: Marine class
SV750iP5A-4O Input: 3-ph 380-480 V | Motor: 75 kW (100 HP) | Build: UL Open (IP00) | Version: Standard
SV750iP5A-4OL(CLASS) Input: 3-ph 380-480 V | Motor: 75 kW (100 HP) | Build: UL Open (IP00), DC reactor | Version: Marine class
SV900iP5A-4O Input: 3-ph 380-480 V | Motor: 90 kW (125 HP) | Build: UL Open (IP00) | Version: Standard
SV900iP5A-4OL(CLASS) Input: 3-ph 380-480 V | Motor: 90 kW (125 HP) | Build: UL Open (IP00), DC reactor | Version: Marine class
SV1100iP5A-4OL Input: 3-ph 380-480 V | Motor: 110 kW (150 HP) | Build: UL Open (IP00), DC reactor | Version: Standard
SV1100iP5A-4OL(CLASS) Input: 3-ph 380-480 V | Motor: 110 kW (150 HP) | Build: UL Open (IP00), DC reactor | Version: Marine class
SV1320iP5A-4OL Input: 3-ph 380-480 V | Motor: 132 kW (175 HP) | Build: UL Open (IP00), DC reactor | Version: Standard
SV1320iP5A-4OL(CLASS) Input: 3-ph 380-480 V | Motor: 132 kW (175 HP) | Build: UL Open (IP00), DC reactor | Version: Marine class
SV1600iP5A-4OL Input: 3-ph 380-480 V | Motor: 160 kW (215 HP) | Build: UL Open (IP00), DC reactor | Version: Standard
SV1600iP5A-4OL(CLASS) Input: 3-ph 380-480 V | Motor: 160 kW (215 HP) | Build: UL Open (IP00), DC reactor | Version: Marine class
SV2200iP5A-4OL Input: 3-ph 380-480 V | Motor: 220 kW (295 HP) | Build: UL Open (IP00), DC reactor | Version: Standard
SV2200iP5A-4OL(CLASS) Input: 3-ph 380-480 V | Motor: 220 kW (295 HP) | Build: UL Open (IP00), DC reactor | Version: Marine class
SV2800iP5A-4OL Input: 3-ph 380-480 V | Motor: 280 kW (375 HP) | Build: UL Open (IP00), DC reactor | Version: Standard
SV2800iP5A-4OL(CLASS) Input: 3-ph 380-480 V | Motor: 280 kW (375 HP) | Build: UL Open (IP00), DC reactor | Version: Marine class
SV3150iP5A-4O Input: 3-ph 380-480 V | Motor: 315 kW (420 HP) | Build: UL Open (IP00) | Version: Standard
SV3150iP5A-4O(CLASS) Input: 3-ph 380-480 V | Motor: 315 kW (420 HP) | Build: UL Open (IP00) | Version: Marine class
SV3750iP5A-4O Input: 3-ph 380-480 V | Motor: 375 kW (500 HP) | Build: UL Open (IP00) | Version: Standard
SV3750iP5A-4O(CLASS) Input: 3-ph 380-480 V | Motor: 375 kW (500 HP) | Build: UL Open (IP00) | Version: Marine class
SV4500iP5A-4O Input: 3-ph 380-480 V | Motor: 450 kW (600 HP) | Build: UL Open (IP00) | Version: Standard
SV4500iP5A-4O(CLASS) Input: 3-ph 380-480 V | Motor: 450 kW (600 HP) | Build: UL Open (IP00) | Version: Marine class
AC DrivesLS Electric
47 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric iP5A Fan & Pump AC Drive 5.5-450 kW (Discontinued)

Brand LS Electric·AC Drives

Available part numbers (47)

SV055iP5A-2NE, SV055iP5A-4NE, SV055iP5A-4NE(CLASS), SV075iP5A-2NE, SV075iP5A-4NE, SV075iP5A-4NE(CLASS), SV110iP5A-2NE, SV110iP5A-4NE, SV110iP5A-4NE(CLASS), SV150iP5A-2NO + 37 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
