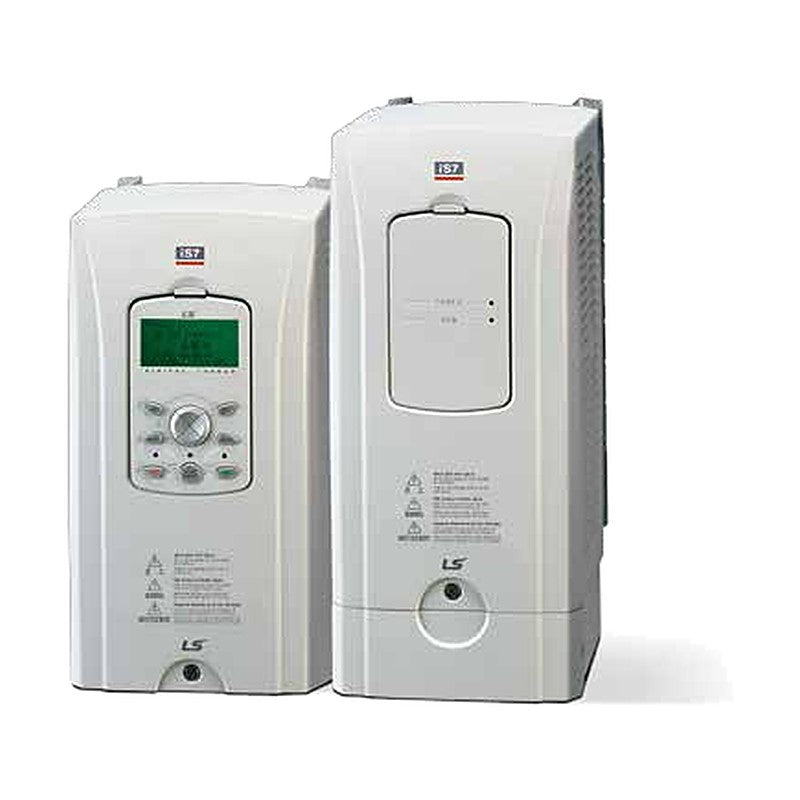

LS Electric iS7 AC Drive (0.75-375 kW, 200V and 400V Class)

LS Electric iS7 AC Drive (0.75-375 kW, 200V and 400V Class)

LS Electric SV-iS7 high-performance general-purpose AC drives, 0.75 to 75 kW at 3-phase 200 V and 0.75 to 375 kW at 3-phase 400 V, with built-in EMC filter and DC reactor versions.

Key features

  • V/F, V/F PG, slip compensation, sensorless vector 1/2 and closed-loop vector control
  • Dual rating: heavy duty 150% for 1 min, normal duty 110% for 1 min
  • Up to 0.75-22 kW models with optional built-in EMC filter (F) and DC reactor (D)
  • Three option slots for fieldbus, extension I/O, encoder, PLC, synchronization and safety cards
  • PID, sleep/wake-up, flying start, power braking, flux braking and MMC functions
  • Marine class approvals (DNV, BV, ABS, KR) available on dedicated versions

Specifications

Series SV-iS7 (Starvert)
Output frequency 0-400 Hz (vector 0-120 Hz)
Input frequency 50-60 Hz (+/-5%)
Overload HD 150% 1 min / ND 110% 1 min
Control V/F, sensorless vector, vector (PG)
Digital inputs 8 multi-function, NPN/PNP
Outputs Relay (N.O./N.C.), open collector, 0-10 V
Enclosure IP21 to 75 kW; IP00 200V 30-75 kW and 90 kW+
UL rating UL Open (O)
Ambient -10 to 50 C (HD), -10 to 40 C (ND)
Source LS Electric iS7 Catalog KR 2023-09, p. 12-15
SV0008iS7-2NO Input: 3-ph 200-230 V | Motor (heavy duty): 0.75 kW | Motor (normal duty): 1.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0008iS7-2NOF Input: 3-ph 200-230 V | Motor (heavy duty): 0.75 kW | Motor (normal duty): 1.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0008iS7-2NOD Input: 3-ph 200-230 V | Motor (heavy duty): 0.75 kW | Motor (normal duty): 1.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0008iS7-2NOFD Input: 3-ph 200-230 V | Motor (heavy duty): 0.75 kW | Motor (normal duty): 1.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0015iS7-2NO Input: 3-ph 200-230 V | Motor (heavy duty): 1.5 kW | Motor (normal duty): 2.2 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0015iS7-2NOF Input: 3-ph 200-230 V | Motor (heavy duty): 1.5 kW | Motor (normal duty): 2.2 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0015iS7-2NOD Input: 3-ph 200-230 V | Motor (heavy duty): 1.5 kW | Motor (normal duty): 2.2 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0015iS7-2NOFD Input: 3-ph 200-230 V | Motor (heavy duty): 1.5 kW | Motor (normal duty): 2.2 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0022iS7-2NO Input: 3-ph 200-230 V | Motor (heavy duty): 2.2 kW | Motor (normal duty): 3.7 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0022iS7-2NOF Input: 3-ph 200-230 V | Motor (heavy duty): 2.2 kW | Motor (normal duty): 3.7 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0022iS7-2NOD Input: 3-ph 200-230 V | Motor (heavy duty): 2.2 kW | Motor (normal duty): 3.7 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0022iS7-2NOFD Input: 3-ph 200-230 V | Motor (heavy duty): 2.2 kW | Motor (normal duty): 3.7 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0037iS7-2NO Input: 3-ph 200-230 V | Motor (heavy duty): 3.7 kW | Motor (normal duty): 5.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0037iS7-2NOF Input: 3-ph 200-230 V | Motor (heavy duty): 3.7 kW | Motor (normal duty): 5.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0037iS7-2NOD Input: 3-ph 200-230 V | Motor (heavy duty): 3.7 kW | Motor (normal duty): 5.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0037iS7-2NOFD Input: 3-ph 200-230 V | Motor (heavy duty): 3.7 kW | Motor (normal duty): 5.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0055iS7-2NO Input: 3-ph 200-230 V | Motor (heavy duty): 5.5 kW | Motor (normal duty): 7.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0055iS7-2NOF Input: 3-ph 200-230 V | Motor (heavy duty): 5.5 kW | Motor (normal duty): 7.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0055iS7-2NOD Input: 3-ph 200-230 V | Motor (heavy duty): 5.5 kW | Motor (normal duty): 7.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0055iS7-2NOFD Input: 3-ph 200-230 V | Motor (heavy duty): 5.5 kW | Motor (normal duty): 7.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0075iS7-2NO Input: 3-ph 200-230 V | Motor (heavy duty): 7.5 kW | Motor (normal duty): 11 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0075iS7-2NOF Input: 3-ph 200-230 V | Motor (heavy duty): 7.5 kW | Motor (normal duty): 11 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0075iS7-2NOD Input: 3-ph 200-230 V | Motor (heavy duty): 7.5 kW | Motor (normal duty): 11 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0075iS7-2NOFD Input: 3-ph 200-230 V | Motor (heavy duty): 7.5 kW | Motor (normal duty): 11 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0110iS7-2NO Input: 3-ph 200-230 V | Motor (heavy duty): 11 kW | Motor (normal duty): 15 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0110iS7-2NOF Input: 3-ph 200-230 V | Motor (heavy duty): 11 kW | Motor (normal duty): 15 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0110iS7-2NOD Input: 3-ph 200-230 V | Motor (heavy duty): 11 kW | Motor (normal duty): 15 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0110iS7-2NOFD Input: 3-ph 200-230 V | Motor (heavy duty): 11 kW | Motor (normal duty): 15 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0150iS7-2NO Input: 3-ph 200-230 V | Motor (heavy duty): 15 kW | Motor (normal duty): 18.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0150iS7-2NOF Input: 3-ph 200-230 V | Motor (heavy duty): 15 kW | Motor (normal duty): 18.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0150iS7-2NOD Input: 3-ph 200-230 V | Motor (heavy duty): 15 kW | Motor (normal duty): 18.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0150iS7-2NOFD Input: 3-ph 200-230 V | Motor (heavy duty): 15 kW | Motor (normal duty): 18.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0185iS7-2NO Input: 3-ph 200-230 V | Motor (heavy duty): 18.5 kW | Motor (normal duty): 22 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0185iS7-2NOF Input: 3-ph 200-230 V | Motor (heavy duty): 18.5 kW | Motor (normal duty): 22 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0185iS7-2NOD Input: 3-ph 200-230 V | Motor (heavy duty): 18.5 kW | Motor (normal duty): 22 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0185iS7-2NOFD Input: 3-ph 200-230 V | Motor (heavy duty): 18.5 kW | Motor (normal duty): 22 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0220iS7-2NO Input: 3-ph 200-230 V | Motor (heavy duty): 22 kW | Motor (normal duty): 30 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0220iS7-2NOF Input: 3-ph 200-230 V | Motor (heavy duty): 22 kW | Motor (normal duty): 30 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0220iS7-2NOD Input: 3-ph 200-230 V | Motor (heavy duty): 22 kW | Motor (normal duty): 30 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0220iS7-2NOFD Input: 3-ph 200-230 V | Motor (heavy duty): 22 kW | Motor (normal duty): 30 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0008iS7-4NO Input: 3-ph 380-480 V | Motor (heavy duty): 0.75 kW | Motor (normal duty): 1.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0008iS7-4NOF Input: 3-ph 380-480 V | Motor (heavy duty): 0.75 kW | Motor (normal duty): 1.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0008iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 0.75 kW | Motor (normal duty): 1.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0008iS7-4NOFD Input: 3-ph 380-480 V | Motor (heavy duty): 0.75 kW | Motor (normal duty): 1.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0015iS7-4NO Input: 3-ph 380-480 V | Motor (heavy duty): 1.5 kW | Motor (normal duty): 2.2 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0015iS7-4NOF Input: 3-ph 380-480 V | Motor (heavy duty): 1.5 kW | Motor (normal duty): 2.2 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0015iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 1.5 kW | Motor (normal duty): 2.2 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0015iS7-4NOFD Input: 3-ph 380-480 V | Motor (heavy duty): 1.5 kW | Motor (normal duty): 2.2 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0022iS7-4NO Input: 3-ph 380-480 V | Motor (heavy duty): 2.2 kW | Motor (normal duty): 3.7 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0022iS7-4NOF Input: 3-ph 380-480 V | Motor (heavy duty): 2.2 kW | Motor (normal duty): 3.7 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0022iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 2.2 kW | Motor (normal duty): 3.7 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0022iS7-4NOFD Input: 3-ph 380-480 V | Motor (heavy duty): 2.2 kW | Motor (normal duty): 3.7 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0037iS7-4NO Input: 3-ph 380-480 V | Motor (heavy duty): 3.7 kW | Motor (normal duty): 5.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0037iS7-4NOF Input: 3-ph 380-480 V | Motor (heavy duty): 3.7 kW | Motor (normal duty): 5.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0037iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 3.7 kW | Motor (normal duty): 5.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0037iS7-4NOFD Input: 3-ph 380-480 V | Motor (heavy duty): 3.7 kW | Motor (normal duty): 5.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0055iS7-4NO Input: 3-ph 380-480 V | Motor (heavy duty): 5.5 kW | Motor (normal duty): 7.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0055iS7-4NOF Input: 3-ph 380-480 V | Motor (heavy duty): 5.5 kW | Motor (normal duty): 7.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0055iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 5.5 kW | Motor (normal duty): 7.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0055iS7-4NOFD Input: 3-ph 380-480 V | Motor (heavy duty): 5.5 kW | Motor (normal duty): 7.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0075iS7-4NO Input: 3-ph 380-480 V | Motor (heavy duty): 7.5 kW | Motor (normal duty): 11 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0075iS7-4NOF Input: 3-ph 380-480 V | Motor (heavy duty): 7.5 kW | Motor (normal duty): 11 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0075iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 7.5 kW | Motor (normal duty): 11 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0075iS7-4NOFD Input: 3-ph 380-480 V | Motor (heavy duty): 7.5 kW | Motor (normal duty): 11 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0110iS7-4NO Input: 3-ph 380-480 V | Motor (heavy duty): 11 kW | Motor (normal duty): 15 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0110iS7-4NOF Input: 3-ph 380-480 V | Motor (heavy duty): 11 kW | Motor (normal duty): 15 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0110iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 11 kW | Motor (normal duty): 15 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0110iS7-4NOFD Input: 3-ph 380-480 V | Motor (heavy duty): 11 kW | Motor (normal duty): 15 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0150iS7-4NO Input: 3-ph 380-480 V | Motor (heavy duty): 15 kW | Motor (normal duty): 18.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0150iS7-4NOF Input: 3-ph 380-480 V | Motor (heavy duty): 15 kW | Motor (normal duty): 18.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0150iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 15 kW | Motor (normal duty): 18.5 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0150iS7-4NOFD Input: 3-ph 380-480 V | Motor (heavy duty): 15 kW | Motor (normal duty): 18.5 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0185iS7-4NO Input: 3-ph 380-480 V | Motor (heavy duty): 18.5 kW | Motor (normal duty): 22 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0185iS7-4NOF Input: 3-ph 380-480 V | Motor (heavy duty): 18.5 kW | Motor (normal duty): 22 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0185iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 18.5 kW | Motor (normal duty): 22 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0185iS7-4NOFD Input: 3-ph 380-480 V | Motor (heavy duty): 18.5 kW | Motor (normal duty): 22 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0220iS7-4NO Input: 3-ph 380-480 V | Motor (heavy duty): 22 kW | Motor (normal duty): 30 kW | Keypad: None (N) | EMC filter: None | DC reactor: None
SV0220iS7-4NOF Input: 3-ph 380-480 V | Motor (heavy duty): 22 kW | Motor (normal duty): 30 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: None
SV0220iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 22 kW | Motor (normal duty): 30 kW | Keypad: None (N) | EMC filter: None | DC reactor: Built-in (D)
SV0220iS7-4NOFD Input: 3-ph 380-480 V | Motor (heavy duty): 22 kW | Motor (normal duty): 30 kW | Keypad: None (N) | EMC filter: Built-in (F) | DC reactor: Built-in (D)
SV0300iS7-2SO Input: 3-ph 200-230 V | Motor (heavy duty): 30 kW | Motor (normal duty): 37 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0370iS7-2SO Input: 3-ph 200-230 V | Motor (heavy duty): 37 kW | Motor (normal duty): 45 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0450iS7-2SO Input: 3-ph 200-230 V | Motor (heavy duty): 45 kW | Motor (normal duty): 55 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0550iS7-2SO Input: 3-ph 200-230 V | Motor (heavy duty): 55 kW | Motor (normal duty): 75 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0750iS7-2SO Input: 3-ph 200-230 V | Motor (heavy duty): 75 kW | Motor (normal duty): 90 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0300iS7-4SO Input: 3-ph 380-480 V | Motor (heavy duty): 30 kW | Motor (normal duty): 37 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0300iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 30 kW | Motor (normal duty): 37 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV0370iS7-4SO Input: 3-ph 380-480 V | Motor (heavy duty): 37 kW | Motor (normal duty): 45 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0370iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 37 kW | Motor (normal duty): 45 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV0450iS7-4SO Input: 3-ph 380-480 V | Motor (heavy duty): 45 kW | Motor (normal duty): 55 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0450iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 45 kW | Motor (normal duty): 55 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV0550iS7-4SO Input: 3-ph 380-480 V | Motor (heavy duty): 55 kW | Motor (normal duty): 75 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0550iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 55 kW | Motor (normal duty): 75 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV0750iS7-4SO Input: 3-ph 380-480 V | Motor (heavy duty): 75 kW | Motor (normal duty): 90 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0750iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 75 kW | Motor (normal duty): 90 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV0900iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 90 kW | Motor (normal duty): 110 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV1100iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 110 kW | Motor (normal duty): 132 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV1320iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 132 kW | Motor (normal duty): 160 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV1600iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 160 kW | Motor (normal duty): 185 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV1850iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 185 kW | Motor (normal duty): 220 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV2200iS7-4SOD Input: 3-ph 380-480 V | Motor (heavy duty): 220 kW | Motor (normal duty): 280 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: Built-in (D)
SV2800iS7-4SO Input: 3-ph 380-480 V | Motor (heavy duty): 280 kW | Motor (normal duty): 315 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV3150iS7-4SO Input: 3-ph 380-480 V | Motor (heavy duty): 315 kW | Motor (normal duty): 375 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV3750iS7-4SO Input: 3-ph 380-480 V | Motor (heavy duty): 375 kW | Motor (normal duty): 450 kW | Keypad: Graphic keypad (S) | EMC filter: None | DC reactor: None
SV0300iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 30 kW | Motor (normal duty): 37 kW | Keypad: Legacy code (N) | EMC filter: None | DC reactor: Built-in (D)
SV0370iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 37 kW | Motor (normal duty): 45 kW | Keypad: Legacy code (N) | EMC filter: None | DC reactor: Built-in (D)
SV0450iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 45 kW | Motor (normal duty): 55 kW | Keypad: Legacy code (N) | EMC filter: None | DC reactor: Built-in (D)
SV0550iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 55 kW | Motor (normal duty): 75 kW | Keypad: Legacy code (N) | EMC filter: None | DC reactor: Built-in (D)
SV0750iS7-4NOD Input: 3-ph 380-480 V | Motor (heavy duty): 75 kW | Motor (normal duty): 90 kW | Keypad: Legacy code (N) | EMC filter: None | DC reactor: Built-in (D)
