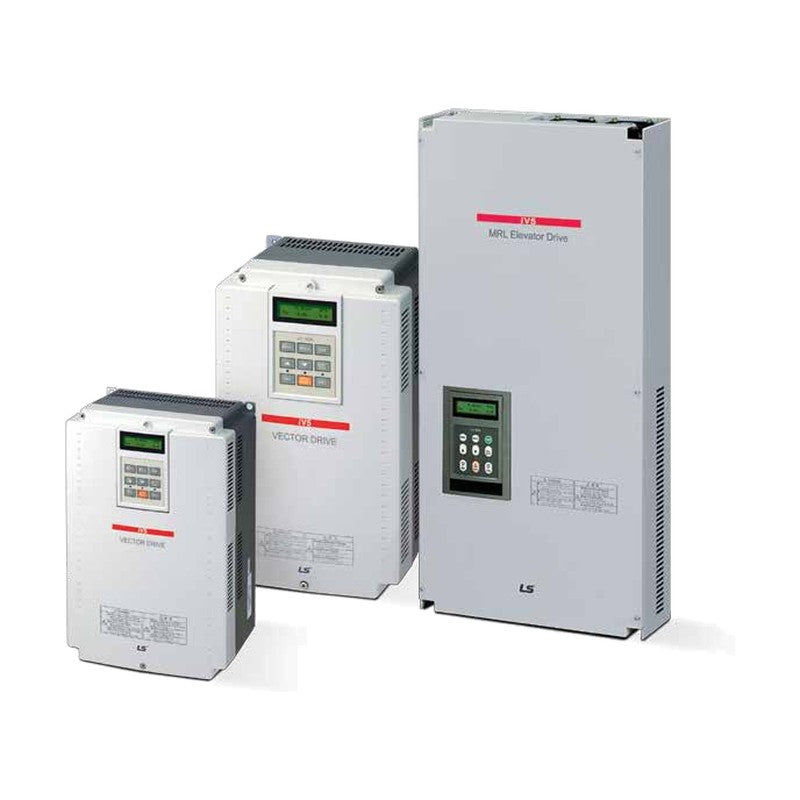

LS Electric iV5 Vector AC Drive 2.2-800 kW (Discontinued)

LS Electric iV5 Vector AC Drive 2.2-800 kW (Discontinued)

The LS Electric Starvert iV5 closed-loop vector AC drive (2.2-37 kW 200 V, 2.2-800 kW 400 V AC, 5.5-500 kW 540-680 V DC input, and MRL elevator models) is discontinued; these codes are offered as replacement spares.

Key features

  • High-precision flux vector control with encoder feedback, 0-3600 rpm
  • Speed and torque control for cranes, elevators, winders, presses and machine tools
  • Built-in DB IGBT on 2.2-22 kW "DB" models; dedicated DB units for larger ratings
  • DC-input "DC" models for common DC bus systems
  • Options: sync, SIN/COS + EnDat, elevator I/O, extended I/O, 24 V encoder I/O
  • Fieldbus options: LS485 / Modbus RTU, DeviceNet, Profibus-DP, CC-Link

Specifications

Series Starvert iV5
Status Discontinued (spares)
Control Closed-loop vector (encoder)
Output speed 0-3600 rpm (MRL: 0-200 rpm)
Output voltage 200-230 V / 380-480 V class
Input frequency 50/60 Hz (+/-5%)
Rated current 12-146 A (200 V), 6-1384 A (400 V)
Suffix DB Built-in braking IGBT (2.2-22 kW)
Suffix DC DC power input 540-680 V
(MD) / Press type Molded case 2.2-22 kW / sheet case 30 kW+
Source LS Electric iV5 catalog (2020-05), p. 13-15
SV022iV5-2DB(MD) Input: 3-ph 200-230 V AC | Motor: 2.2 kW (3 HP) | Braking: Built-in DB IGBT
SV022iV5-4DB(MD) Input: 3-ph 380-480 V AC | Motor: 2.2 kW (3 HP) | Braking: Built-in DB IGBT
SV037iV5-2DB(MD) Input: 3-ph 200-230 V AC | Motor: 3.7 kW (5 HP) | Braking: Built-in DB IGBT
SV037iV5-4DB(MD) Input: 3-ph 380-480 V AC | Motor: 3.7 kW (5 HP) | Braking: Built-in DB IGBT
SV055iV5-2DB(MD) Input: 3-ph 200-230 V AC | Motor: 5.5 kW (7.5 HP) | Braking: Built-in DB IGBT
SV055iV5-4DB(MD) Input: 3-ph 380-480 V AC | Motor: 5.5 kW (7.5 HP) | Braking: Built-in DB IGBT
SV055iV5-4DC Input: DC 540-680 V | Motor: 5.5 kW (7.5 HP) | Braking: External DB unit
SV075iV5-2DB(MD) Input: 3-ph 200-230 V AC | Motor: 7.5 kW (10 HP) | Braking: Built-in DB IGBT
SV075iV5-4DB(MD) Input: 3-ph 380-480 V AC | Motor: 7.5 kW (10 HP) | Braking: Built-in DB IGBT
SV075iV5-4DC Input: DC 540-680 V | Motor: 7.5 kW (10 HP) | Braking: External DB unit
SV110iV5-2DB(MD) Input: 3-ph 200-230 V AC | Motor: 11 kW (15 HP) | Braking: Built-in DB IGBT
SV110iV5-4DB(MD) Input: 3-ph 380-480 V AC | Motor: 11 kW (15 HP) | Braking: Built-in DB IGBT
SV110iV5-4DC Input: DC 540-680 V | Motor: 11 kW (15 HP) | Braking: External DB unit
SV150iV5-2DB(MD) Input: 3-ph 200-230 V AC | Motor: 15 kW (20 HP) | Braking: Built-in DB IGBT
SV150iV5-4DB(MD) Input: 3-ph 380-480 V AC | Motor: 15 kW (20 HP) | Braking: Built-in DB IGBT
SV150iV5-4DC Input: DC 540-680 V | Motor: 15 kW (20 HP) | Braking: External DB unit
SV185iV5-2DB(MD) Input: 3-ph 200-230 V AC | Motor: 18.5 kW (25 HP) | Braking: Built-in DB IGBT
SV185iV5-4DB(MD) Input: 3-ph 380-480 V AC | Motor: 18.5 kW (25 HP) | Braking: Built-in DB IGBT
SV185iV5-4DC Input: DC 540-680 V | Motor: 18.5 kW (25 HP) | Braking: External DB unit
SV220iV5-2DB(MD) Input: 3-ph 200-230 V AC | Motor: 22 kW (30 HP) | Braking: Built-in DB IGBT
SV220iV5-4DB(MD) Input: 3-ph 380-480 V AC | Motor: 22 kW (30 HP) | Braking: Built-in DB IGBT
SV220iV5-4DC Input: DC 540-680 V | Motor: 22 kW (30 HP) | Braking: External DB unit
SV300iV5-2 Input: 3-ph 200-230 V AC | Motor: 30 kW (40 HP) | Braking: External DB unit
SV300iV5-4 Input: 3-ph 380-480 V AC | Motor: 30 kW (40 HP) | Braking: External DB unit
SV300iV5-4DC Input: DC 540-680 V | Motor: 30 kW (40 HP) | Braking: External DB unit
SV370iV5-2 Input: 3-ph 200-230 V AC | Motor: 37 kW (50 HP) | Braking: External DB unit
SV370iV5-4 Input: 3-ph 380-480 V AC | Motor: 37 kW (50 HP) | Braking: External DB unit
SV370iV5-4DC Input: DC 540-680 V | Motor: 37 kW (50 HP) | Braking: External DB unit
SV450iV5-4 Input: 3-ph 380-480 V AC | Motor: 45 kW (60 HP) | Braking: External DB unit
SV450iV5-4DC Input: DC 540-680 V | Motor: 45 kW (60 HP) | Braking: External DB unit
SV550iV5-4 Input: 3-ph 380-480 V AC | Motor: 55 kW (75 HP) | Braking: External DB unit
SV550iV5-4DC Input: DC 540-680 V | Motor: 55 kW (75 HP) | Braking: External DB unit
SV750iV5-4 Input: 3-ph 380-480 V AC | Motor: 75 kW (100 HP) | Braking: External DB unit
SV750iV5-4DC Input: DC 540-680 V | Motor: 75 kW (100 HP) | Braking: External DB unit
SV900iV5-4 Input: 3-ph 380-480 V AC | Motor: 90 kW (120 HP) | Braking: External DB unit
SV900iV5-4DC Input: DC 540-680 V | Motor: 90 kW (120 HP) | Braking: External DB unit
SV1100iV5-4 Input: 3-ph 380-480 V AC | Motor: 110 kW (150 HP) | Braking: External DB unit
SV1100iV5-4DC Input: DC 540-680 V | Motor: 110 kW (150 HP) | Braking: External DB unit
SV1320iV5-4 Input: 3-ph 380-480 V AC | Motor: 132 kW (175 HP) | Braking: External DB unit
SV1320iV5-4DC Input: DC 540-680 V | Motor: 132 kW (175 HP) | Braking: External DB unit
SV1600iV5-4 Input: 3-ph 380-480 V AC | Motor: 160 kW (215 HP) | Braking: External DB unit
SV1600iV5-4DC Input: DC 540-680 V | Motor: 160 kW (215 HP) | Braking: External DB unit
SV2200iV5-4 Input: 3-ph 380-480 V AC | Motor: 220 kW (300 HP) | Braking: External DB unit
SV2200iV5-4DC Input: DC 540-680 V | Motor: 220 kW (300 HP) | Braking: External DB unit
SV2800iV5-4 Input: 3-ph 380-480 V AC | Motor: 280 kW (373 HP) | Braking: External DB unit
SV2800iV5-4DC Input: DC 540-680 V | Motor: 280 kW (373 HP) | Braking: External DB unit
SV3150iV5-4 Input: 3-ph 380-480 V AC | Motor: 315 kW (420 HP) | Braking: External DB unit
SV3150iV5-4DC Input: DC 540-680 V | Motor: 315 kW (420 HP) | Braking: External DB unit
SV3750iV5-4 Input: 3-ph 380-480 V AC | Motor: 375 kW (500 HP) | Braking: External DB unit
SV3750iV5-4DC Input: DC 540-680 V | Motor: 375 kW (500 HP) | Braking: External DB unit
SV5000iV5-4 Input: 3-ph 380-480 V AC | Motor: 500 kW (666 HP) | Braking: External DB unit
SV5000iV5-4DC Input: DC 540-680 V | Motor: 500 kW (666 HP) | Braking: External DB unit
SV8000iV5-4 Input: 3-ph 380-480 V AC | Motor: 800 kW (1067 HP) | Braking: External DB unit
SV075iV5-4(MRL) Input: 3-ph 380-480 V AC (MRL) | Motor: 7.5 kW (10 HP) | Braking: Built-in DB IGBT
SV110iV5-4(MRL) Input: 3-ph 380-480 V AC (MRL) | Motor: 11 kW (15 HP) | Braking: Built-in DB IGBT
SV150iV5-4(MRL) Input: 3-ph 380-480 V AC (MRL) | Motor: 15 kW (20 HP) | Braking: Built-in DB IGBT
SV220iV5-4(MRL) Input: 3-ph 380-480 V AC (MRL) | Motor: 22 kW (30 HP) | Braking: Built-in DB IGBT
AC DrivesLS Electric
57 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric iV5 Vector AC Drive 2.2-800 kW (Discontinued)

Brand LS Electric·AC Drives

Available part numbers (57)

SV022iV5-2DB(MD), SV022iV5-4DB(MD), SV037iV5-2DB(MD), SV037iV5-4DB(MD), SV055iV5-2DB(MD), SV055iV5-4DB(MD), SV055iV5-4DC, SV075iV5-2DB(MD), SV075iV5-4DB(MD), SV075iV5-4DC + 47 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
