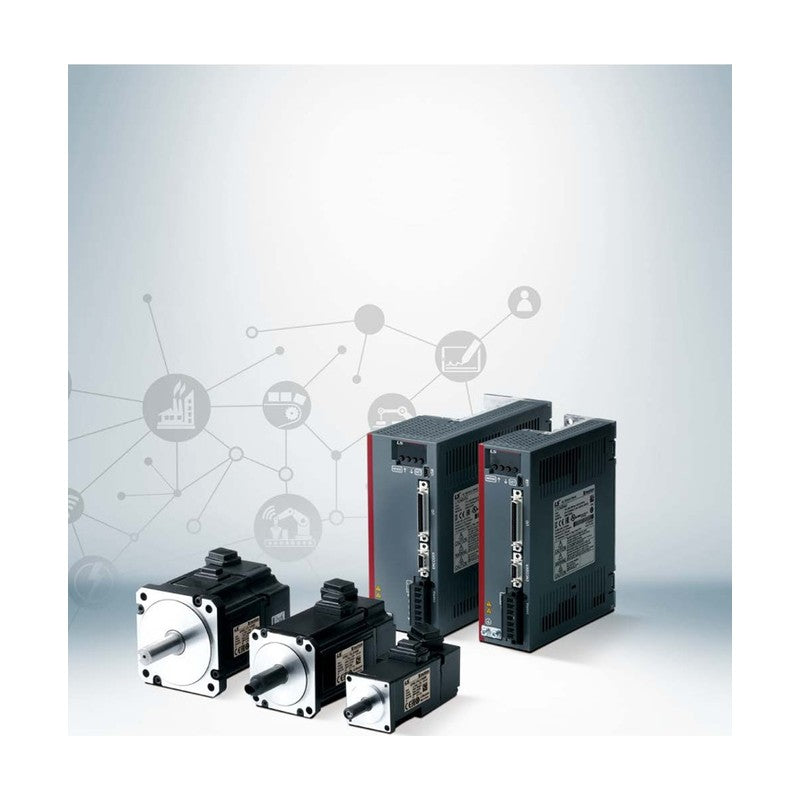

LS Electric Xmotion L7C Compact Servo Drives (1-Phase 200V, 0.1-1 kW)

LS Electric Xmotion L7C Compact Servo Drives (1-Phase 200V, 0.1-1 kW)

LS Electric Xmotion L7C compact, cost-optimised servo drives for single-phase 200-230 V supply, 100 W to 1 kW, with pulse-train command, indexing operation and RS-422 Modbus RTU.

Key features

  • Integrated control and power boards with single power input (1-phase AC 200-230 V)
  • Current loop 10 kHz, speed/position loop 5 kHz, as L7S
  • Indexing operation and 1 MB memory as L7P; I/O pin map compatible with L7S
  • Pulse input 1 Mpps line driver / 200 kpps open collector; sign+pulse, CW+CCW, A/B phase
  • RS-422 Modbus RTU, 9,600-57,600 bps, up to 200 m, built-in 120 ohm termination
  • 10 assignable inputs (34 functions), 8 outputs (5 assignable), 2 analog inputs

Specifications

Input power 1-phase AC 200-230 V (-15 to +10%), 50/60 Hz
Encoder Quadrature (incremental), BiSS-B, BiSS-C (absolute, incremental)
Speed control range 1:5,000
Frequency response 1 kHz or more (19-bit serial encoder)
Analog inputs Speed and torque command/limit, +/-10 V
Dynamic brake Built in
Regenerative resistor External (option)
Display 7-segment, 5 digits
Operating temperature 0 to 50 C
Source LS Electric L7C Servo Drive & Motor leaflet (2018.04), p. 2-3
L7CA001U Capacity: 100 W | Rated current: 1.4 A | Max current: 4.2 A
L7CA002U Capacity: 200 W | Rated current: 1.7 A | Max current: 5.1 A
L7CA004U Capacity: 400 W | Rated current: 3.0 A | Max current: 9.0 A
L7CA008U Capacity: 750 W | Rated current: 5.2 A | Max current: 15.6 A
L7CA010U Capacity: 1 kW | Rated current: 6.75 A | Max current: 20.25 A
Servo DrivesLS Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Xmotion L7C Compact Servo Drives (1-Phase 200V, 0.1-1 kW)

Brand LS Electric·Servo Drives

Available part numbers (5)

L7CA001U, L7CA002U, L7CA004U, L7CA008U, L7CA010U

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
L7CA001UCapacity: 100 W | Rated current: 1.4 A | Max current: 4.2 A
L7CA002UCapacity: 200 W | Rated current: 1.7 A | Max current: 5.1 A
L7CA004UCapacity: 400 W | Rated current: 3.0 A | Max current: 9.0 A
L7CA008UCapacity: 750 W | Rated current: 5.2 A | Max current: 15.6 A
L7CA010UCapacity: 1 kW | Rated current: 6.75 A | Max current: 20.25 A
