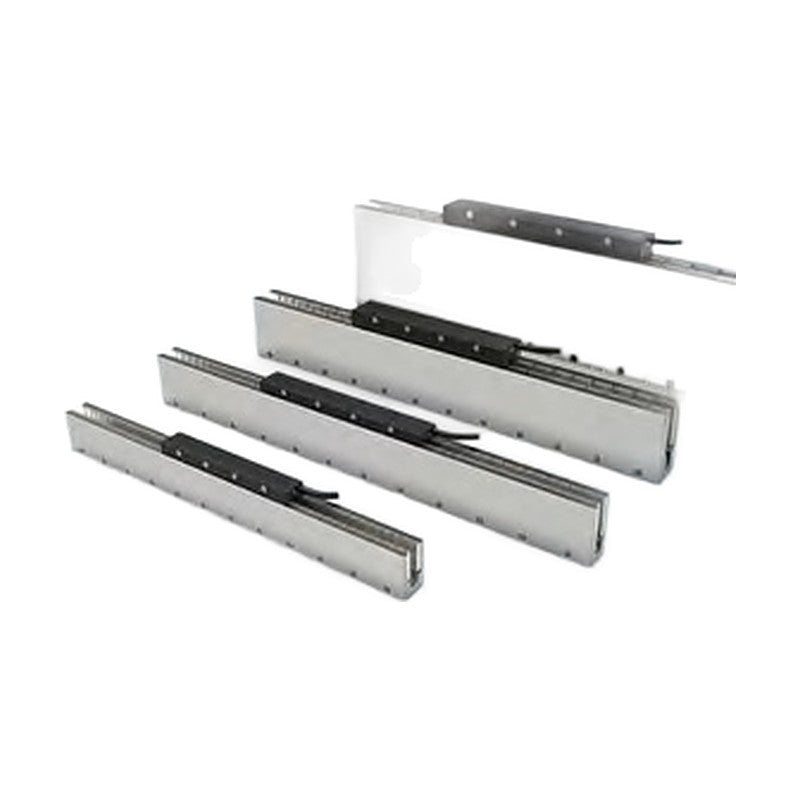

LS Electric LSLM Coreless Linear Motor Coils (L076-L230)

LS Electric LSLM Coreless Linear Motor Coils (L076-L230)

LS Electric LSLM coreless (ironless) linear motor coils (movers), assembly heights 76 to 230 mm, 40 to 3,382 N rated force, with or without digital hall sensor, for Xmotion L7NH, L7P and iX7NH drives.

Key features

  • No cogging and low speed ripple for smooth, high-precision motion
  • High force, high speed, rapid acceleration and deceleration
  • No magnetic attraction force between coil and track for easy, safe assembly
  • Series, parallel, triple and double windings; optional digital hall sensor (D) or none (N)
  • Matched with LSLT-L U-channel magnet tracks (144-252 mm) of the same assembly height
  • Supports Quadrature and EnDat 2.2 linear encoders via iX7NH/L7 drives

Specifications

Rated time Continuous
Insulation class B
Insulation resistance DC 500 V, 10 Mohm
Dielectric strength AC 1500 V, 1 min
Excitation Permanent magnet
Cooling Natural cooling
Protection IP00
Ambient 0 to 40 C, 20-80% RH, altitude 1000 m or less
Code format LSLM-L(height)-(winding)(force code)(hall D/N)
Source LS Electric Linear Motor catalog (2023.01), p. 4, 7, 20-29
LSLM-L076-S004D Assembly height: 76 mm | Winding: Series | Force rated peak: 40 / 122 N | Current rated peak: 2 / 5.9 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A004U / iX7NH A004U
LSLM-L076-S004N Assembly height: 76 mm | Winding: Series | Force rated peak: 40 / 122 N | Current rated peak: 2 / 5.9 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A004U / iX7NH A004U
LSLM-L076-S006D Assembly height: 76 mm | Winding: Series | Force rated peak: 61 / 183 N | Current rated peak: 2 / 5.9 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A004U / iX7NH A004U
LSLM-L076-S006N Assembly height: 76 mm | Winding: Series | Force rated peak: 61 / 183 N | Current rated peak: 2 / 5.9 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A004U / iX7NH A004U
LSLM-L076-S008D Assembly height: 76 mm | Winding: Series | Force rated peak: 81 / 245 N | Current rated peak: 2 / 5.9 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A004U / iX7NH A004U
LSLM-L076-S008N Assembly height: 76 mm | Winding: Series | Force rated peak: 81 / 245 N | Current rated peak: 2 / 5.9 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A004U / iX7NH A004U
LSLM-L076-S010D Assembly height: 76 mm | Winding: Series | Force rated peak: 101 / 306 N | Current rated peak: 2 / 5.9 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A004U / iX7NH A004U
LSLM-L076-S010N Assembly height: 76 mm | Winding: Series | Force rated peak: 101 / 306 N | Current rated peak: 2 / 5.9 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A004U / iX7NH A004U
LSLM-L098-S008D Assembly height: 98 mm | Winding: Series | Force rated peak: 85 / 255 N | Current rated peak: 1.6 / 4.8 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A002U / iX7NH A002U
LSLM-L098-S008N Assembly height: 98 mm | Winding: Series | Force rated peak: 85 / 255 N | Current rated peak: 1.6 / 4.8 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A002U / iX7NH A002U
LSLM-L098-S012D Assembly height: 98 mm | Winding: Series | Force rated peak: 127 / 383 N | Current rated peak: 1.6 / 4.8 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A002U / iX7NH A004U
LSLM-L098-S012N Assembly height: 98 mm | Winding: Series | Force rated peak: 127 / 383 N | Current rated peak: 1.6 / 4.8 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A002U / iX7NH A004U
LSLM-L098-S017D Assembly height: 98 mm | Winding: Series | Force rated peak: 170 / 510 N | Current rated peak: 1.6 / 4.8 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A002U / iX7NH A004U
LSLM-L098-S017N Assembly height: 98 mm | Winding: Series | Force rated peak: 170 / 510 N | Current rated peak: 1.6 / 4.8 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A002U / iX7NH A004U
LSLM-L098-P017D Assembly height: 98 mm | Winding: Parallel | Force rated peak: 170 / 510 N | Current rated peak: 3.2 / 9.6 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L098-P017N Assembly height: 98 mm | Winding: Parallel | Force rated peak: 170 / 510 N | Current rated peak: 3.2 / 9.6 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L098-S025D Assembly height: 98 mm | Winding: Series | Force rated peak: 255 / 766 N | Current rated peak: 1.6 / 4.8 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A002U / iX7NH A004U
LSLM-L098-S025N Assembly height: 98 mm | Winding: Series | Force rated peak: 255 / 766 N | Current rated peak: 1.6 / 4.8 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A002U / iX7NH A004U
LSLM-L098-P025D Assembly height: 98 mm | Winding: Parallel | Force rated peak: 255 / 766 N | Current rated peak: 3.2 / 9.6 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L098-P025N Assembly height: 98 mm | Winding: Parallel | Force rated peak: 255 / 766 N | Current rated peak: 3.2 / 9.6 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L132-S016D Assembly height: 132 mm | Winding: Series | Force rated peak: 162 / 486 N | Current rated peak: 5.1 / 15.3 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L132-S016N Assembly height: 132 mm | Winding: Series | Force rated peak: 162 / 486 N | Current rated peak: 5.1 / 15.3 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L132-S032D Assembly height: 132 mm | Winding: Series | Force rated peak: 323 / 971 N | Current rated peak: 5.1 / 15.3 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L132-S032N Assembly height: 132 mm | Winding: Series | Force rated peak: 323 / 971 N | Current rated peak: 5.1 / 15.3 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L132-S048D Assembly height: 132 mm | Winding: Series | Force rated peak: 485 / 1458 N | Current rated peak: 5.1 / 15.3 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L132-S048N Assembly height: 132 mm | Winding: Series | Force rated peak: 485 / 1458 N | Current rated peak: 5.1 / 15.3 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L132-T048D Assembly height: 132 mm | Winding: Triple | Force rated peak: 485 / 1458 N | Current rated peak: 15.3 / 45.9 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A035U (no iX7NH match)
LSLM-L132-T048N Assembly height: 132 mm | Winding: Triple | Force rated peak: 485 / 1458 N | Current rated peak: 15.3 / 45.9 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A035U (no iX7NH match)
LSLM-L132-S064D Assembly height: 132 mm | Winding: Series | Force rated peak: 647 / 1943 N | Current rated peak: 5.1 / 15.3 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L132-S064N Assembly height: 132 mm | Winding: Series | Force rated peak: 647 / 1943 N | Current rated peak: 5.1 / 15.3 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A008U / iX7NH A008U
LSLM-L132-P064D Assembly height: 132 mm | Winding: Parallel | Force rated peak: 647 / 1943 N | Current rated peak: 10.2 / 30.6 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L132-P064N Assembly height: 132 mm | Winding: Parallel | Force rated peak: 647 / 1943 N | Current rated peak: 10.2 / 30.6 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L132-P097D Assembly height: 132 mm | Winding: Parallel | Force rated peak: 971 / 2914 N | Current rated peak: 10.2 / 30.6 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L132-P097N Assembly height: 132 mm | Winding: Parallel | Force rated peak: 971 / 2914 N | Current rated peak: 10.2 / 30.6 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L132-T097D Assembly height: 132 mm | Winding: Triple | Force rated peak: 971 / 2914 N | Current rated peak: 15.3 / 45.9 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A035U (no iX7NH match)
LSLM-L132-T097N Assembly height: 132 mm | Winding: Triple | Force rated peak: 971 / 2914 N | Current rated peak: 15.3 / 45.9 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A035U (no iX7NH match)
LSLM-L230-S056D Assembly height: 230 mm | Winding: Series | Force rated peak: 563 / 1691 N | Current rated peak: 9.1 / 27.3 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L230-S056N Assembly height: 230 mm | Winding: Series | Force rated peak: 563 / 1691 N | Current rated peak: 9.1 / 27.3 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L230-S112D Assembly height: 230 mm | Winding: Series | Force rated peak: 1127 / 3382 N | Current rated peak: 9.1 / 27.3 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L230-S112N Assembly height: 230 mm | Winding: Series | Force rated peak: 1127 / 3382 N | Current rated peak: 9.1 / 27.3 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L230-P112D Assembly height: 230 mm | Winding: Parallel | Force rated peak: 1127 / 3382 N | Current rated peak: 18.2 / 54.6 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A050U (no iX7NH match)
LSLM-L230-P112N Assembly height: 230 mm | Winding: Parallel | Force rated peak: 1127 / 3382 N | Current rated peak: 18.2 / 54.6 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A050U (no iX7NH match)
LSLM-L230-S169D Assembly height: 230 mm | Winding: Series | Force rated peak: 1691 / 5073 N | Current rated peak: 9.1 / 27.3 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L230-S169N Assembly height: 230 mm | Winding: Series | Force rated peak: 1691 / 5073 N | Current rated peak: 9.1 / 27.3 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L230-T169D Assembly height: 230 mm | Winding: Triple | Force rated peak: 1691 / 5073 N | Current rated peak: 27.3 / 81.9 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A050U (no iX7NH match)
LSLM-L230-T169N Assembly height: 230 mm | Winding: Triple | Force rated peak: 1691 / 5073 N | Current rated peak: 27.3 / 81.9 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A050U (no iX7NH match)
LSLM-L230-P225D Assembly height: 230 mm | Winding: Parallel | Force rated peak: 2255 / 6765 N | Current rated peak: 18.2 / 54.6 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A050U (no iX7NH match)
LSLM-L230-P225N Assembly height: 230 mm | Winding: Parallel | Force rated peak: 2255 / 6765 N | Current rated peak: 18.2 / 54.6 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A050U (no iX7NH match)
LSLM-L230-D225D Assembly height: 230 mm | Winding: Double | Force rated peak: 2255 / 6765 N | Current rated peak: 36.4 / 109.2 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L230-D225N Assembly height: 230 mm | Winding: Double | Force rated peak: 2255 / 6765 N | Current rated peak: 36.4 / 109.2 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A020U / iX7NH A020U
LSLM-L230-P338D Assembly height: 230 mm | Winding: Parallel | Force rated peak: 3382 / 10148 N | Current rated peak: 18.2 / 54.6 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A050U (no iX7NH match)
LSLM-L230-P338N Assembly height: 230 mm | Winding: Parallel | Force rated peak: 3382 / 10148 N | Current rated peak: 18.2 / 54.6 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A050U (no iX7NH match)
LSLM-L230-T338D Assembly height: 230 mm | Winding: Triple | Force rated peak: 3382 / 10148 N | Current rated peak: 27.3 / 81.9 Arms | Hall sensor: Digital hall sensor | Drive 200V: L7 A050U (no iX7NH match)
LSLM-L230-T338N Assembly height: 230 mm | Winding: Triple | Force rated peak: 3382 / 10148 N | Current rated peak: 27.3 / 81.9 Arms | Hall sensor: No hall sensor | Drive 200V: L7 A050U (no iX7NH match)
