LS Electric LSLT Linear Motor Magnet Tracks (Core and Coreless)

LS Electric LSLT Linear Motor Magnet Tracks (Core and Coreless)

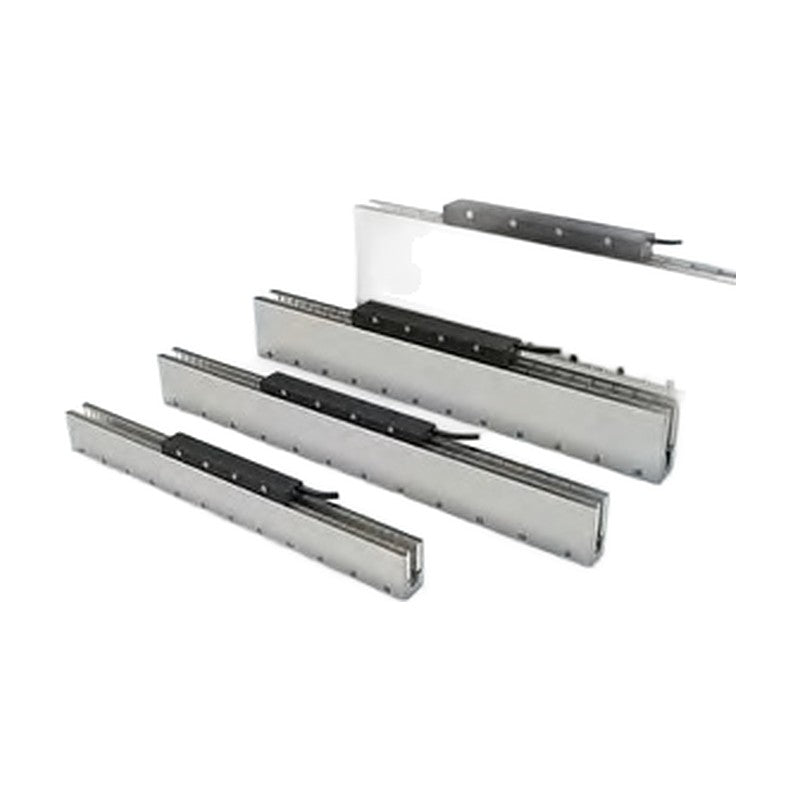

LS Electric LSLT permanent-magnet tracks (stators) for LSLM core-type and coreless linear motor coils, 144 to 252 mm sections that are butted together to any stroke length.

Key features

  • Modular sections laid end to end; total track length = max travel + coil length + hall sensor length
  • Core-type flat tracks for C046-C165 coils; U-channel tracks for L076-L230 coreless coils
  • Choose track width/height to match the coil assembly size
  • Strong permanent magnets: follow handling instructions when unpacking and installing
  • Same LSLT code family across the LS linear motor range

Specifications

Excitation Permanent magnet
Protection IP00
Ambient 0 to 40 C, 20-80% RH
Code format LSLT-(C/L)(size)-(length mm)
Matching coils LSLM of same type and size
Track selection Sum of tracks >= stroke + coil (+ hall) length
Source LS Electric Linear Motor catalog (2023.01), p. 7, 9, 21, 45
LSLT-C046-180 Motor type: Core (iron core) | Assembly size: 46 mm | Track length: 180 mm | For coils: LSLM-C046
LSLT-C046-252 Motor type: Core (iron core) | Assembly size: 46 mm | Track length: 252 mm | For coils: LSLM-C046
LSLT-C058-192 Motor type: Core (iron core) | Assembly size: 58 mm | Track length: 192 mm | For coils: LSLM-C058
LSLT-C058-240 Motor type: Core (iron core) | Assembly size: 58 mm | Track length: 240 mm | For coils: LSLM-C058
LSLT-C072-180 Motor type: Core (iron core) | Assembly size: 72 mm | Track length: 180 mm | For coils: LSLM-C072
LSLT-C072-240 Motor type: Core (iron core) | Assembly size: 72 mm | Track length: 240 mm | For coils: LSLM-C072
LSLT-C100-180 Motor type: Core (iron core) | Assembly size: 100 mm | Track length: 180 mm | For coils: LSLM-C100
LSLT-C100-240 Motor type: Core (iron core) | Assembly size: 100 mm | Track length: 240 mm | For coils: LSLM-C100
LSLT-C165-180 Motor type: Core (iron core) | Assembly size: 165 mm | Track length: 180 mm | For coils: LSLM-C165
LSLT-C165-240 Motor type: Core (iron core) | Assembly size: 165 mm | Track length: 240 mm | For coils: LSLM-C165
LSLT-L076-144 Motor type: Coreless | Assembly size: 76 mm | Track length: 144 mm | For coils: LSLM-L076
LSLT-L076-240 Motor type: Coreless | Assembly size: 76 mm | Track length: 240 mm | For coils: LSLM-L076
LSLT-L098-180 Motor type: Coreless | Assembly size: 98 mm | Track length: 180 mm | For coils: LSLM-L098
LSLT-L098-240 Motor type: Coreless | Assembly size: 98 mm | Track length: 240 mm | For coils: LSLM-L098
LSLT-L132-180 Motor type: Coreless | Assembly size: 132 mm | Track length: 180 mm | For coils: LSLM-L132
LSLT-L132-240 Motor type: Coreless | Assembly size: 132 mm | Track length: 240 mm | For coils: LSLM-L132
LSLT-L230-168 Motor type: Coreless | Assembly size: 230 mm | Track length: 168 mm | For coils: LSLM-L230
LSLT-L230-252 Motor type: Coreless | Assembly size: 230 mm | Track length: 252 mm | For coils: LSLM-L230
