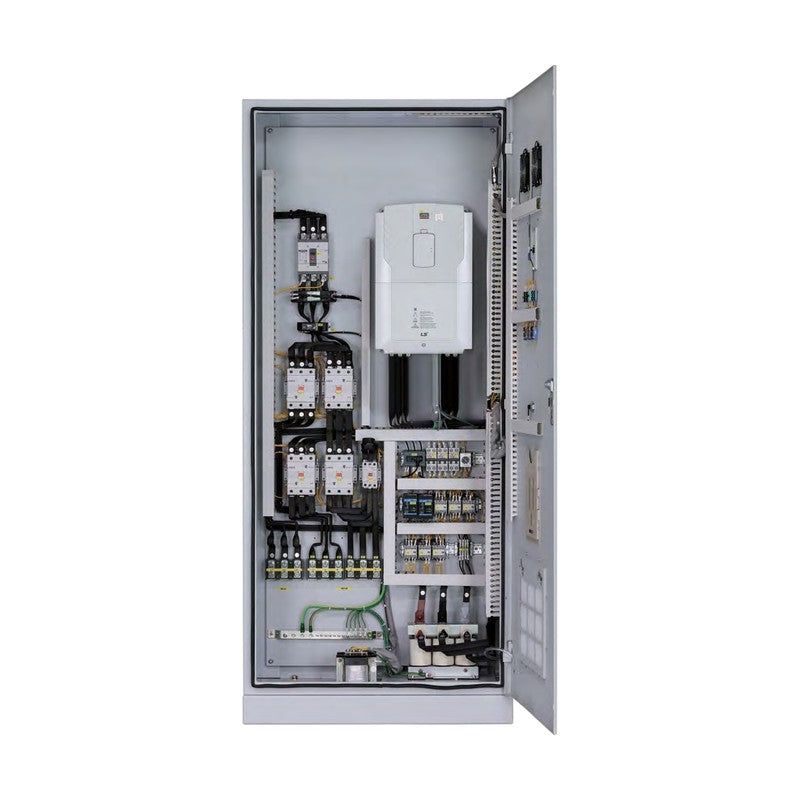

LS Electric LSLVP Standard Panel Drive with H100 (400V, 5.5-132 kW)

LS Electric LSLVP standard energy-saving panel drives package an H100 high-efficiency 400V drive with bypass line, protection and standard sequence in one IP41 floor-standing panel for HVAC fans and pumps.

Key features

H100 high-efficiency 400V drive, 5.5-132 kW, one unit per panel; EMC filter built in, DC reactor built in from 37 kW
Bypass line with DMPi motor protection relay against overcurrent, ground fault and phase loss
Starting method selectable: inverter, DOL bypass (5.5-37 kW) or star-delta bypass (15-132 kW)
Order options in the full code: color 5Y 7/1 or RAL 7035, base height 50-350 mm, top/bottom cable entry, 380/440V, AC reactor, Ethernet, signal converters
RS-485 (Modbus RTU, LS INV485, BACnet RTU, Metasys N2) standard; RAPIEnet+ optional
Standardized frames F-H1 to F-H5 with 2000 mm height (excluding base)

Specifications

Drive unit	H100 high efficiency 400V class
Output rating	3-phase 380-440 V
Overload	120% for 1 min
Enclosure	IP41, indoor free-standing
Cooling	Forced air
Panel form	1 unit / 1 panel
Operation	Panel / local, manual / auto speed reference
Output filter	None (cable up to 100 m)
Full order code	LSLVP-H-kW-H100(E)-base/color/cable/voltage/start-ACR/comm/signal
Source	LS Electric Standard Panel Drive Catalog K 2025.12, p. 3, 6-10

LSLVP-H-0055-H100(E)		Motor: 5.5 kW / 7.5 HP \| Rated current: 12 A \| Frame: F-H1 \| Size WxDxH: 500x450x2000 mm
LSLVP-H-0075-H100(E)		Motor: 7.5 kW / 10 HP \| Rated current: 16 A \| Frame: F-H1 \| Size WxDxH: 500x450x2000 mm
LSLVP-H-0110-H100(E)		Motor: 11 kW / 15 HP \| Rated current: 24 A \| Frame: F-H1 \| Size WxDxH: 500x450x2000 mm
LSLVP-H-0150-H100(E)		Motor: 15 kW / 20 HP \| Rated current: 30 A \| Frame: F-H2 \| Size WxDxH: 700x450x2000 mm
LSLVP-H-0185-H100(E)		Motor: 18.5 kW / 25 HP \| Rated current: 38 A \| Frame: F-H2 \| Size WxDxH: 700x450x2000 mm
LSLVP-H-0220-H100(E)		Motor: 22 kW / 30 HP \| Rated current: 45 A \| Frame: F-H2 \| Size WxDxH: 700x450x2000 mm
LSLVP-H-0300-H100(E)		Motor: 30 kW / 40 HP \| Rated current: 61 A \| Frame: F-H2 \| Size WxDxH: 700x450x2000 mm
LSLVP-H-0370-H100(E)		Motor: 37 kW / 50 HP \| Rated current: 75 A \| Frame: F-H2 \| Size WxDxH: 700x450x2000 mm
LSLVP-H-0450-H100(E)		Motor: 45 kW / 60 HP \| Rated current: 91 A \| Frame: F-H3 \| Size WxDxH: 900x450x2000 mm
LSLVP-H-0550-H100(E)		Motor: 55 kW / 75 HP \| Rated current: 107 A \| Frame: F-H3 \| Size WxDxH: 900x450x2000 mm
LSLVP-H-0750-H100(E)		Motor: 75 kW / 100 HP \| Rated current: 142 A \| Frame: F-H4 \| Size WxDxH: 1000x450x2000 mm
LSLVP-H-0900-H100(E)		Motor: 90 kW / 125 HP \| Rated current: 169 A \| Frame: F-H4 \| Size WxDxH: 1000x450x2000 mm
LSLVP-H-1100-H100(E)		Motor: 110 kW / 150 HP \| Rated current: 204.4 A \| Frame: F-H5 \| Size WxDxH: 1200x550x2000 mm
LSLVP-H-1320-H100(E)		Motor: 132 kW / 200 HP \| Rated current: 242 A \| Frame: F-H5 \| Size WxDxH: 1200x550x2000 mm

AC DrivesLS Electric

14 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric LSLVP Standard Panel Drive with H100 (400V, 5.5-132 kW)

Brand LS Electric·AC Drives

Available part numbers (14)

LSLVP-H-0055-H100(E), LSLVP-H-0075-H100(E), LSLVP-H-0110-H100(E), LSLVP-H-0150-H100(E), LSLVP-H-0185-H100(E), LSLVP-H-0220-H100(E), LSLVP-H-0300-H100(E), LSLVP-H-0370-H100(E), LSLVP-H-0450-H100(E), LSLVP-H-0550-H100(E) + 4 more — see full table ↓
