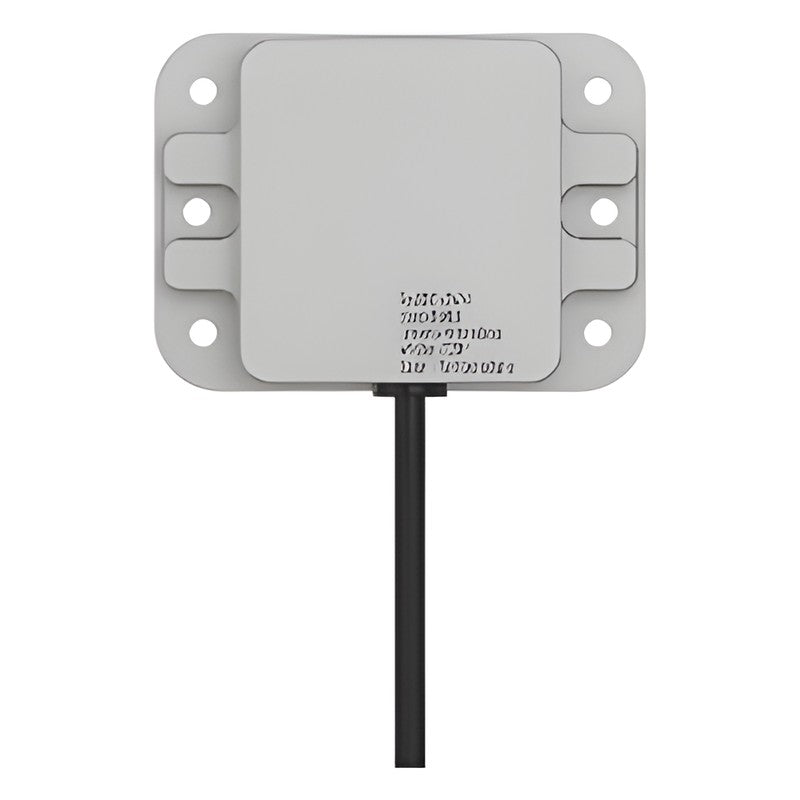

LS Electric LSLVSS Smart Vibration Sensor for Motors

LS Electric LSLVSS smart vibration sensors combine sensor and controller in one body for simultaneous motor vibration and temperature monitoring via PLC, HMI, drive or SCADA.

Key features

Current (4-20 mA), voltage (0-5 V) or Modbus RTU outputs for vibration and temperature
Fluorine-coated version for 60% sulfuric acid or fume environments; high-temperature (175 C) cable version
Bracket or magnet mounting (magnet for current, small-size and Modbus types)
IP65 standard; IP66 aluminium waterproof case for current, voltage, small-size and Modbus types
Vibration range 0.25-1.0 g, detection 0.02-1.0 kHz, 24 VDC supply
Clamp/band bracket and IP66 case options

Specifications

Vibration range	0.25 / 0.5 / 1.0 g (V)
Temperature range	-20 to 75 C (T)
Cable length	3 m (3M)
Sensitivity	0.01 m/s2 (0.001 g)
Detection frequency	0.02-1.0 kHz
Resonant frequency	2.4 kHz
Supply	24 VDC; 70 mA (Modbus type 30 mA)
Mounting thread	M4
Storage temperature	-35 to 85 C
Certification	CE, KC
Source	LS Electric LSLVSS Series Leaflet K 2025.02, p. 1-2

LSLVSS-VTC3MBO		Output: Current 4-20 mA \| Mounting: Bracket \| Enclosure: IP65
LSLVSS-VTC3MBP		Output: Current 4-20 mA \| Mounting: Bracket \| Enclosure: IP66 case
LSLVSS-VTC3MMO		Output: Current 4-20 mA \| Mounting: Magnet \| Enclosure: IP65
LSLVSS-VTC3MMP		Output: Current 4-20 mA \| Mounting: Magnet \| Enclosure: IP66 case
LSLVSS-VTV3MBO		Output: Voltage 0-5 V \| Mounting: Bracket \| Enclosure: IP65
LSLVSS-VTV3MBP		Output: Voltage 0-5 V \| Mounting: Bracket \| Enclosure: IP66 case
LSLVSS-VTCF3MBO		Output: Current, fluorine coated \| Mounting: Bracket \| Enclosure: IP65
LSLVSS-VTCH3MBO		Output: Current, high-temp cable \| Mounting: Bracket \| Enclosure: IP65
LSLVSS-VTCS3MBO		Output: Current, small size \| Mounting: Bracket \| Enclosure: IP65
LSLVSS-VTCS3MBP		Output: Current, small size \| Mounting: Bracket \| Enclosure: IP66 case
LSLVSS-VTCS3MMO		Output: Current, small size \| Mounting: Magnet \| Enclosure: IP65
LSLVSS-VTCS3MMP		Output: Current, small size \| Mounting: Magnet \| Enclosure: IP66 case
LSLVSS-VTL3MBO		Output: Modbus RTU \| Mounting: Bracket \| Enclosure: IP65
LSLVSS-VTL3MBP		Output: Modbus RTU \| Mounting: Bracket \| Enclosure: IP66 case
LSLVSS-VTL3MMO		Output: Modbus RTU \| Mounting: Magnet \| Enclosure: IP65
LSLVSS-VTL3MMP		Output: Modbus RTU \| Mounting: Magnet \| Enclosure: IP66 case
LSLVSS-CLAMPBRAKETOPTION		Output: Accessory \| Mounting: Clamp bracket \| Enclosure: Option
LSLVSS-BANDBRAKETOPTION		Output: Accessory \| Mounting: Band bracket \| Enclosure: Option
LSLVSS-CLAMPBRAKETOPTION(IP66)		Output: Accessory \| Mounting: Clamp bracket for IP66 case \| Enclosure: Option
LSLVSS-BANDBRAKETOPTION(IP66)		Output: Accessory \| Mounting: Band bracket for IP66 case \| Enclosure: Option
LSLVSS-IP66CASEOPTION		Output: Accessory \| Mounting: IP66 aluminium case \| Enclosure: Option

Vibration SensorsLS Electric

21 product codes available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric LSLVSS Smart Vibration Sensor for Motors

Brand LS Electric·Vibration Sensors

Available part numbers (21)

LSLVSS-VTC3MBO, LSLVSS-VTC3MBP, LSLVSS-VTC3MMO, LSLVSS-VTC3MMP, LSLVSS-VTV3MBO, LSLVSS-VTV3MBP, LSLVSS-VTCF3MBO, LSLVSS-VTCH3MBO, LSLVSS-VTCS3MBO, LSLVSS-VTCS3MBP + 11 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.
