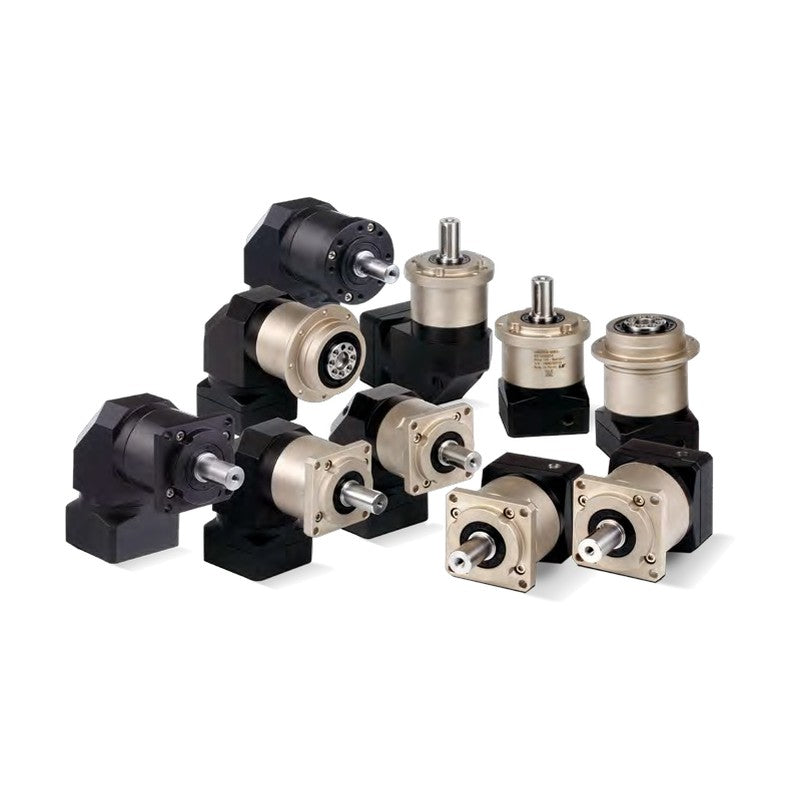

LS Electric MSS Inline Planetary Gearbox, Square Flange (045-180)

LS Electric MSS Inline Planetary Gearbox, Square Flange (045-180)

LS Electric MSS precision planetary gearbox (basic line, helical gear, inline, square flange, keyed or smooth output shaft) in frames 045-180; full order code MSS<frame><stage>-<ratio><key><backlash>, motor adapter ordered separately.

Key features

  • Basic line helical-gear planetary reducer, inline housing
  • Coaxial input/output for compact inline mounting
  • Backlash classes: S (standard)
  • Clamp-type input with motor adapter for LS, HIGEN, Mitsubishi, Panasonic and Yaskawa servo motors
  • Lifetime grease lubrication (maintenance free), IP65

Specifications

Series MSS (Basic line)
Gear type Helical planetary
Housing Inline
Output Square Flange
Frame sizes 045, 060, 090, 115, 142, 180
Ratios 3:1 to 100:1
Efficiency (1-stage / 2-stage) >= 97% / >= 94%
Rated input speed 5,000 to 3,000 rpm
Service life 20,000 h (10,000 h continuous)
Lubrication Grease (VIGO Grease RE #0)
Protection IP65
Operating temperature -10 to +90 C
Noise <= 52 to 64 dB
Source LS Electric Precision Planetary Gearbox catalog (2025.02), p. 6-7, 17, 18-21
MSS0451A-003KS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-003NS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-004KS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-004NS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-005KS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-005NS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-006KS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-006NS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-007KS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-007NS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-008KS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-008NS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-009KS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-009NS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-010KS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-010NS Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0452A-015KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-015NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-020KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-020NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-025KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-025NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-030KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-030NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-035KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-035NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-040KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-040NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-045KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-045NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-050KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-050NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-060KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-060NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-070KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-070NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-080KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-080NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-090KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-090NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-100KS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-100NS Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0601A-003KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-003NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-004KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-004NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-005KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-005NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-006KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-006NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-007KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-007NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-008KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-008NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-009KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-009NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-010KS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-010NS Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0602B-015KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-015NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-015KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-015NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-020KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-020NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-020KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-020NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-025KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-025NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-025KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-025NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-030KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-030NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-030KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-030NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-035KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-035NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-035KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-035NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-040KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-040NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-040KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-040NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-045KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-045NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-045KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-045NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-050KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-050NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-050KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-050NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-060KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-060NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-060KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-060NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-070KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-070NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-070KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-070NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-080KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-080NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-080KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-080NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-090KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-090NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-090KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-090NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-100KS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-100NS Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-100KS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-100NS Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0901A-003KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-003NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-004KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-004NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-005KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-005NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-006KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-006NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-007KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-007NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-008KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-008NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-009KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-009NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-010KS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-010NS Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0902B-015KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-015NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-015KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-015NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-020KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-020NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-020KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-020NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-025KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-025NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-025KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-025NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-030KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-030NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-030KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-030NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-035KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-035NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-035KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-035NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-040KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-040NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-040KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-040NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-045KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-045NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-045KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-045NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-050KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-050NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-050KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-050NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-060KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-060NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-060KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-060NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-070KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-070NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-070KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-070NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-080KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-080NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-080KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-080NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-090KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-090NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-090KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-090NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-100KS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-100NS Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-100KS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-100NS Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1151A-003KS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-003NS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-004KS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-004NS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-005KS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-005NS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-006KS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-006NS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-007KS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-007NS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-008KS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-008NS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-009KS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-009NS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-010KS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-010NS Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1152B-015KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-015NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-015KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-015NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-020KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-020NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-020KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-020NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-025KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-025NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-025KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-025NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-030KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-030NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-030KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-030NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-035KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-035NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-035KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-035NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-040KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-040NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-040KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-040NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-045KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-045NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-045KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-045NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-050KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-050NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-050KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-050NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-060KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-060NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-060KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-060NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-070KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-070NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-070KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-070NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-080KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-080NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-080KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-080NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-090KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-090NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-090KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-090NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-100KS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-100NS Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-100KS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-100NS Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1421A-003KS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-003NS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-004KS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-004NS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-005KS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-005NS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-006KS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-006NS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-007KS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-007NS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-008KS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-008NS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-009KS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-009NS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-010KS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-010NS Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1422B-015KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-015NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-015KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-015NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-020KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-020NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-020KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-020NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-025KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-025NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-025KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-025NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-030KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-030NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-030KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-030NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-035KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-035NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-035KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-035NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-040KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-040NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-040KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-040NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-045KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-045NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-045KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-045NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-050KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-050NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-050KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-050NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-060KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-060NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-060KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-060NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-070KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-070NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-070KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-070NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-080KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-080NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-080KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-080NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-090KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-090NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-090KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-090NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-100KS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-100NS Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-100KS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-100NS Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1801A-003KS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-003NS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-004KS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-004NS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-005KS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-005NS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-006KS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-006NS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-007KS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-007NS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-008KS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-008NS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-009KS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-009NS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-010KS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-010NS Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1802B-015KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-015NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-015KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-015NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-020KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-020NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-020KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-020NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-025KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-025NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-025KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-025NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-030KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-030NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-030KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-030NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-035KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-035NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-035KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-035NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-040KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-040NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-040KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-040NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-045KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-045NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-045KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-045NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-050KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-050NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-050KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-050NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-060KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-060NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-060KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-060NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-070KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-070NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-070KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-070NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-080KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-080NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-080KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-080NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-090KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-090NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-090KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-090NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-100KS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-100NS Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-100KS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-100NS Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0451A Frame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0601A Frame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0901A Frame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1151A Frame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1421A Frame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1801A Frame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0602B Frame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0902B Frame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1152B Frame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1422B Frame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1802B Frame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0452A Frame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0602A Frame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0902A Frame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1152A Frame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1422A Frame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1802A Frame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
Planetary GearboxesLS Electric
399 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric MSS Inline Planetary Gearbox, Square Flange (045-180)

Brand LS Electric·Planetary Gearboxes

Available part numbers (399)

MSS0451A-003KS, MSS0451A-003NS, MSS0451A-004KS, MSS0451A-004NS, MSS0451A-005KS, MSS0451A-005NS, MSS0451A-006KS, MSS0451A-006NS, MSS0451A-007KS, MSS0451A-007NS + 389 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MSS0451A-003KSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-003NSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-004KSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-004NSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-005KSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-005NSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-006KSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-006NSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-007KSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-007NSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-008KSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-008NSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-009KSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-009NSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0451A-010KSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0451A-010NSFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0452A-015KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-015NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-020KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-020NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-025KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-025NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-030KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-030NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-035KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-035NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-040KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-040NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-045KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-045NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-050KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-050NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-060KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-060NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-070KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-070NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-080KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-080NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-090KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-090NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0452A-100KSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0452A-100NSFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0601A-003KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-003NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-004KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-004NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-005KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-005NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-006KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-006NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-007KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-007NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-008KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-008NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-009KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-009NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0601A-010KSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0601A-010NSFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0602B-015KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-015NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-015KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-015NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-020KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-020NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-020KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-020NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-025KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-025NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-025KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-025NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-030KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-030NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-030KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-030NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-035KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-035NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-035KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-035NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-040KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-040NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-040KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-040NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-045KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-045NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-045KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-045NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-050KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-050NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-050KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-050NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-060KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-060NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-060KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-060NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-070KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-070NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-070KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-070NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-080KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-080NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-080KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-080NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-090KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-090NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-090KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-090NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602B-100KSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602B-100NSFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0602A-100KSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0602A-100NSFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0901A-003KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-003NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-004KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-004NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-005KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-005NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-006KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-006NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-007KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-007NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-008KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-008NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-009KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-009NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0901A-010KSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS0901A-010NSFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS0902B-015KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-015NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-015KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-015NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-020KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-020NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-020KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-020NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-025KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-025NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-025KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-025NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-030KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-030NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-030KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-030NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-035KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-035NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-035KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-035NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-040KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-040NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-040KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-040NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-045KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-045NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-045KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-045NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-050KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-050NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-050KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-050NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-060KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-060NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-060KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-060NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-070KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-070NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-070KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-070NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-080KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-080NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-080KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-080NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-090KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-090NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-090KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-090NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902B-100KSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902B-100NSFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0902A-100KSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS0902A-100NSFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1151A-003KSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-003NSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-004KSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-004NSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-005KSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-005NSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-006KSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-006NSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-007KSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-007NSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-008KSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-008NSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-009KSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-009NSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1151A-010KSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1151A-010NSFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1152B-015KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-015NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-015KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-015NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-020KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-020NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-020KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-020NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-025KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-025NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-025KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-025NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-030KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-030NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-030KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-030NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-035KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-035NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-035KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-035NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-040KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-040NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-040KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-040NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-045KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-045NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-045KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-045NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-050KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-050NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-050KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-050NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-060KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-060NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-060KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-060NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-070KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-070NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-070KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-070NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-080KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-080NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-080KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-080NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-090KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-090NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-090KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-090NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152B-100KSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152B-100NSFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1152A-100KSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1152A-100NSFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1421A-003KSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-003NSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-004KSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-004NSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-005KSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-005NSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-006KSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-006NSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-007KSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-007NSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-008KSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-008NSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-009KSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-009NSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1421A-010KSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1421A-010NSFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1422B-015KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-015NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-015KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-015NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-020KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-020NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-020KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-020NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-025KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-025NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-025KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-025NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-030KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-030NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-030KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-030NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-035KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-035NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-035KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-035NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-040KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-040NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-040KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-040NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-045KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-045NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-045KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-045NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-050KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-050NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-050KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-050NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-060KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-060NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-060KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-060NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-070KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-070NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-070KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-070NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-080KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-080NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-080KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-080NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-090KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-090NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-090KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-090NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422B-100KSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422B-100NSFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1422A-100KSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1422A-100NSFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1801A-003KSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-003NSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 3:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-004KSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-004NSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 4:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-005KSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-005NSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 5:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-006KSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-006NSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 6:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-007KSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-007NSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 7:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-008KSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-008NSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 8:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-009KSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-009NSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 9:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1801A-010KSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Keyed (K) | Backlash: S (<= 7 arcmin)
MSS1801A-010NSFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: 10:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 7 arcmin)
MSS1802B-015KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-015NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-015KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-015NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 15:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-020KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-020NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-020KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-020NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 20:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-025KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-025NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-025KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-025NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 25:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-030KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-030NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-030KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-030NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 30:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-035KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-035NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-035KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-035NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 35:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-040KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-040NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-040KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-040NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 40:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-045KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-045NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-045KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-045NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 45:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-050KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-050NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-050KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-050NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 50:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-060KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-060NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-060KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-060NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 60:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-070KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-070NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-070KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-070NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 70:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-080KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-080NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-080KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-080NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 80:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-090KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-090NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-090KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-090NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 90:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802B-100KSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802B-100NSFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS1802A-100KSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Keyed (K) | Backlash: S (<= 9 arcmin)
MSS1802A-100NSFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: 100:1 | Output shaft: Smooth, no key (N) | Backlash: S (<= 9 arcmin)
MSS0451AFrame: 045 | Stage input: 1-stage std (1A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0601AFrame: 060 | Stage input: 1-stage std (1A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0901AFrame: 090 | Stage input: 1-stage std (1A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1151AFrame: 115 | Stage input: 1-stage std (1A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1421AFrame: 142 | Stage input: 1-stage std (1A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1801AFrame: 180 | Stage input: 1-stage std (1A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0602BFrame: 060 | Stage input: 2-stage std (2B) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0902BFrame: 090 | Stage input: 2-stage std (2B) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1152BFrame: 115 | Stage input: 2-stage std (2B) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1422BFrame: 142 | Stage input: 2-stage std (2B) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1802BFrame: 180 | Stage input: 2-stage std (2B) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0452AFrame: 045 | Stage input: 2-stage option (2A) | Input bore: 8 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0602AFrame: 060 | Stage input: 2-stage option (2A) | Input bore: 14 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS0902AFrame: 090 | Stage input: 2-stage option (2A) | Input bore: 19 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1152AFrame: 115 | Stage input: 2-stage option (2A) | Input bore: 24 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1422AFrame: 142 | Stage input: 2-stage option (2A) | Input bore: 35 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)
MSS1802AFrame: 180 | Stage input: 2-stage option (2A) | Input bore: 42 mm | Ratio: Legacy code (specify) | Output shaft: Legacy code (specify) | Backlash: Legacy code (specify)

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Motors & Gearheads →
