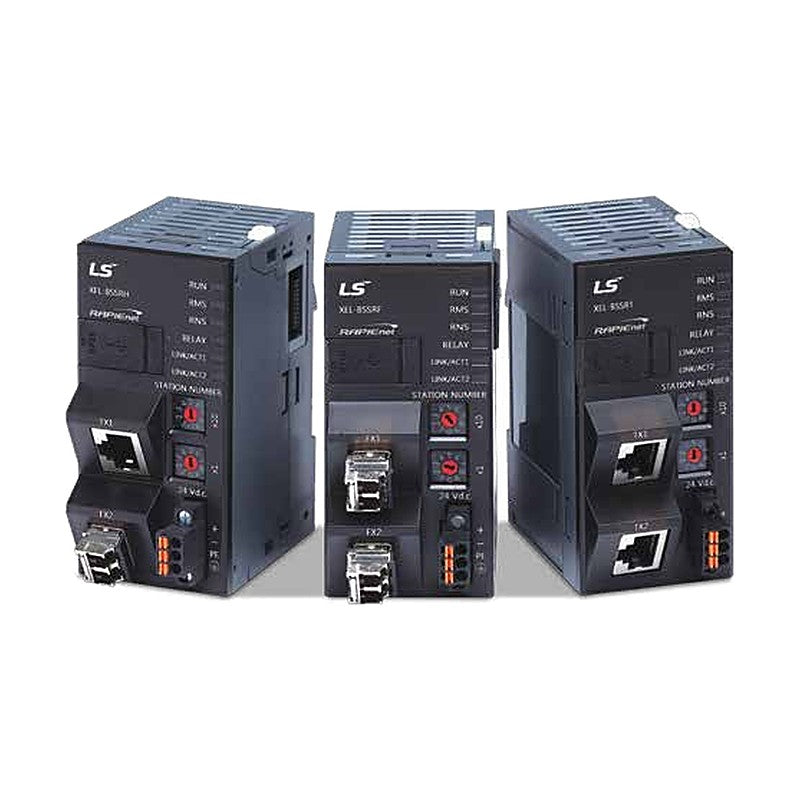

LS Electric Smart I/O Expansion Adapters (XEL-BSSR, XPL/XDL/XRL-BSSA)

LS Electric Smart I/O Expansion Adapters (XEL-BSSR, XPL/XDL/XRL-BSSA)

LS Electric Smart I/O expansion-type adapters connect up to 8 XGB digital and analog I/O modules to a RAPIEnet+, Profibus-DP, DeviceNet or Rnet master as a remote slave station.

Key features

  • Build modular remote I/O stations from XGB XBE digital and XBF analog, RTD, TC, load cell and counter modules
  • XEL-BSSR RAPIEnet+ adapters support RAPIEnet, EtherNet/IP and Modbus TCP, with ring redundancy
  • XEL-BSSRT also hosts XGT Safety PLC safety I/O modules
  • Electrical (T), optical (F) and hybrid (H) RAPIEnet+ port versions up to 1 Gbps
  • Profibus-DP, DeviceNet and Rnet slave adapters with rotary station-number switches

Specifications

Expansion modules XGB XBE / XBF I/O modules
Max. expansion modules 8
Power input DC 24 V
Configuration XG5000 / rotary station switches
Mounting DIN rail
Source LS Electric Smart I/O catalog (2020-08), p. 16-17, 23-24, 31-32, 39-40, 54; RAPIEnet+ catalog (2021-03), p. 14-15
XEL-BSSRT Network: RAPIEnet+ / EtherNet/IP / Modbus TCP | Network port: 2 x RJ45, 100/1000 Mbps | Status: Current
XEL-BSSRF Network: RAPIEnet+ / EtherNet/IP / Modbus TCP | Network port: 2 x SFP optical, 100/1000 Mbps | Status: Current
XEL-BSSRH Network: RAPIEnet+ / EtherNet/IP / Modbus TCP | Network port: 1 x RJ45 + 1 x SFP optical | Status: Current
XPL-BSSA Network: Profibus-DP | Network port: 9-pin D-sub | Status: Current
XDL-BSSA Network: DeviceNet | Network port: DeviceNet connector | Status: Current
XRL-BSSA Network: Rnet | Network port: 9-pin D-sub | Status: Current
XEL-BSSA Network: - (not in current catalog) | Network port: - | Status: Legacy code
XEL-BSSB Network: - (not in current catalog) | Network port: - | Status: Legacy code
Remote I/O ModulesLS Electric
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric Smart I/O Expansion Adapters (XEL-BSSR, XPL/XDL/XRL-BSSA)

Brand LS Electric·Remote I/O Modules

Available part numbers (8)

XEL-BSSRT, XEL-BSSRF, XEL-BSSRH, XPL-BSSA, XDL-BSSA, XRL-BSSA, XEL-BSSA, XEL-BSSB

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XEL-BSSRTNetwork: RAPIEnet+ / EtherNet/IP / Modbus TCP | Network port: 2 x RJ45, 100/1000 Mbps | Status: Current
XEL-BSSRFNetwork: RAPIEnet+ / EtherNet/IP / Modbus TCP | Network port: 2 x SFP optical, 100/1000 Mbps | Status: Current
XEL-BSSRHNetwork: RAPIEnet+ / EtherNet/IP / Modbus TCP | Network port: 1 x RJ45 + 1 x SFP optical | Status: Current
XPL-BSSANetwork: Profibus-DP | Network port: 9-pin D-sub | Status: Current
XDL-BSSANetwork: DeviceNet | Network port: DeviceNet connector | Status: Current
XRL-BSSANetwork: Rnet | Network port: 9-pin D-sub | Status: Current
XEL-BSSANetwork: - (not in current catalog) | Network port: - | Status: Legacy code
XEL-BSSBNetwork: - (not in current catalog) | Network port: - | Status: Legacy code
