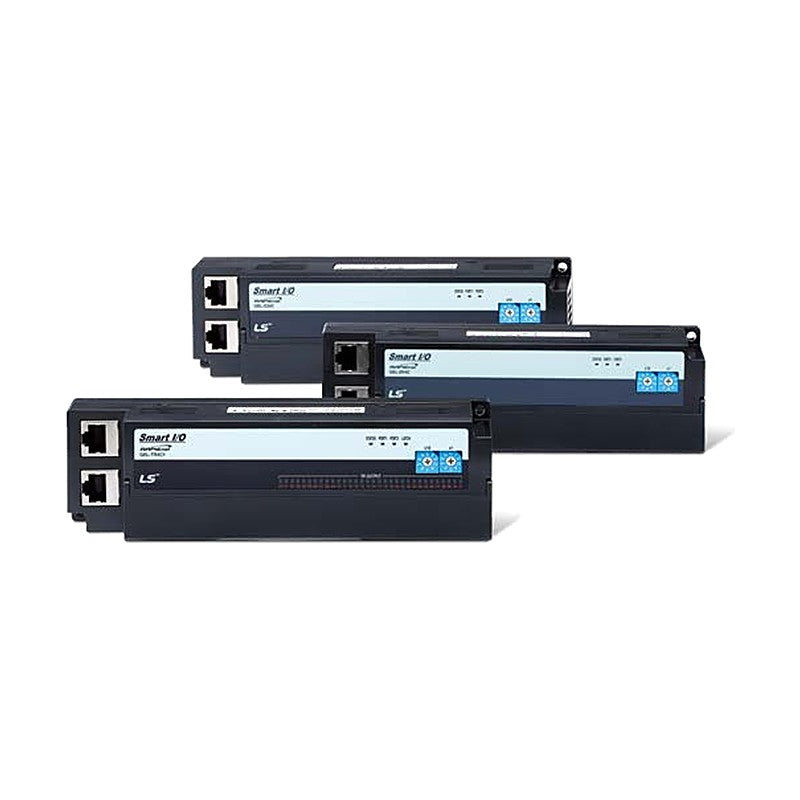

LS Electric GEL Smart I/O Block Modules (RAPIEnet+)

LS Electric GEL Smart I/O Block Modules (RAPIEnet+)

LS Electric GEL Smart I/O block-type remote I/O modules for RAPIEnet+ networks, providing digital and analog I/O in a compact all-in-one housing.

Key features

  • RAPIEnet+ slave block I/O (RAPIEnet v2, EtherNet/IP, Modbus TCP/IP) for distributed wiring close to the machine
  • 16 and 32 point DC input, transistor output, relay output and 16/16 mixed modules plus 8-channel analog input and 4-channel analog output
  • Transistor outputs in source (C) and sink (C1) versions
  • Works with XGL-EFMTB/EFMFB/EFMHB RAPIEnet+ master
  • No IP setup needed: rotary station number, auto-scan, ring redundancy and remote O/S update

Specifications

Network RAPIEnet v2, EtherNet/IP, Modbus TCP/IP
Communication connector 2 x RJ45, 100 Mbps
Form factor Block-type Smart I/O (all-in-one)
Signal voltage DC 24 V
Common Inputs/TR 16 points/COM; relay 8 points/COM
Terminals Removable terminal block
Operating temperature 0 to 55 C
Master XGL-EFMTB/EFMFB/EFMHB RAPIEnet+ master
Source LS Electric Smart I/O catalog (2020-08), p. 14-54
GEL-D24C I/O type: DC input | Points: 32 | Rating: DC 24 V | Output wiring: n/a (sink/source input)
GEL-TR4C I/O type: Transistor output | Points: 32 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source
GEL-TR4C1 I/O type: Transistor output | Points: 32 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink
GEL-RY2C I/O type: Relay output | Points: 16 | Rating: DC 24 V / AC 220 V, 2 A/pt | Output wiring: Relay contact
GEL-DT4C I/O type: DC input + TR output | Points: 16 in / 16 out | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source
GEL-DT4C1 I/O type: DC input + TR output | Points: 16 in / 16 out | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink
GEL-AV8C I/O type: Analog voltage input | Points: 8 ch | Rating: 1-5 / 0-5 / 0-10 / -10-10 V | Output wiring: n/a
GEL-AC8C I/O type: Analog current input | Points: 8 ch | Rating: 4-20 / 0-20 mA | Output wiring: n/a
GEL-DV4C I/O type: Analog voltage output | Points: 4 ch | Rating: 1-5 / 0-5 / 0-10 / -10-10 V | Output wiring: n/a
GEL-DC4C I/O type: Analog current output | Points: 4 ch | Rating: 4-20 / 0-20 mA | Output wiring: n/a
Remote I/O ModulesLS Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric GEL Smart I/O Block Modules (RAPIEnet+)

Brand LS Electric·Remote I/O Modules

Available part numbers (10)

GEL-D24C, GEL-TR4C, GEL-TR4C1, GEL-RY2C, GEL-DT4C, GEL-DT4C1, GEL-AV8C, GEL-AC8C, GEL-DV4C, GEL-DC4C

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
GEL-D24CI/O type: DC input | Points: 32 | Rating: DC 24 V | Output wiring: n/a (sink/source input)
GEL-TR4CI/O type: Transistor output | Points: 32 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source
GEL-TR4C1I/O type: Transistor output | Points: 32 | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink
GEL-RY2CI/O type: Relay output | Points: 16 | Rating: DC 24 V / AC 220 V, 2 A/pt | Output wiring: Relay contact
GEL-DT4CI/O type: DC input + TR output | Points: 16 in / 16 out | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Source
GEL-DT4C1I/O type: DC input + TR output | Points: 16 in / 16 out | Rating: DC 24 V, 0.5 A/pt, 3 A/COM | Output wiring: Sink
GEL-AV8CI/O type: Analog voltage input | Points: 8 ch | Rating: 1-5 / 0-5 / 0-10 / -10-10 V | Output wiring: n/a
GEL-AC8CI/O type: Analog current input | Points: 8 ch | Rating: 4-20 / 0-20 mA | Output wiring: n/a
GEL-DV4CI/O type: Analog voltage output | Points: 4 ch | Rating: 1-5 / 0-5 / 0-10 / -10-10 V | Output wiring: n/a
GEL-DC4CI/O type: Analog current output | Points: 4 ch | Rating: 4-20 / 0-20 mA | Output wiring: n/a
