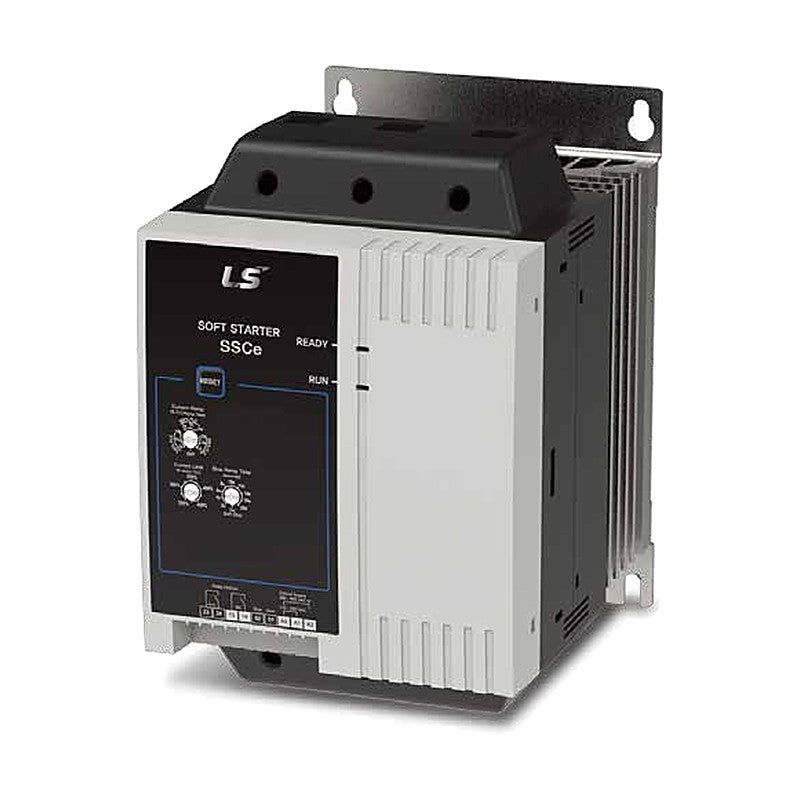

LS Electric SSC Compact Soft Starter (18-200 A, Built-in Bypass)

LS Electric SSC Compact Soft Starter (18-200 A, Built-in Bypass)

LS Electric SSC series economic compact soft starters with built-in bypass for three-phase motors from 18 A to 200 A at up to 575 VAC.

Key features

  • SSCe basic soft start/stop with three parameters set by front rotary switches (initial voltage, start ramp, stop ramp)
  • SSCi adds motor thermal-model overload protection (trip settable at 105% motor temperature)
  • Bypass relay built in; DIN-rail or horizontal mounting with front LED indicators
  • Main supply 200-440 VAC (V4) or 200-575 VAC (V6); control supply 110-240/380-440 VAC (C1) or 24 VAC/VDC (C2)
  • Main contactor and programmable relay outputs (6 A, 250 VAC resistive)
  • IEC, UL and KC certified

Specifications

Series SSC compact soft starter
Current range 18-200 A
Main frequency 45-66 Hz
Rated insulation voltage 600 VAC
Form designation Bypassed semiconductor motor starter, form 1
Duty rating (018-060) AC53b 4-6:354 at 40 C, < 1000 m
Duty rating (075-200) AC53b 4-6:594 at 40 C, < 1000 m
Protection degree IP20 (018-060), IP00 (075-200)
Operating temperature -10 to +60 C
Source LS Electric Soft Starter Catalog KR 2023.05, p. 4-9, 16, 18
SSCe-018-V4-C1 Protection: Without motor protection | Rated current: 18 A | Motor at 400V: 7.5 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-018-V4-C2 Protection: Without motor protection | Rated current: 18 A | Motor at 400V: 7.5 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-018-V6-C1 Protection: Without motor protection | Rated current: 18 A | Motor at 400V: 7.5 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-018-V6-C2 Protection: Without motor protection | Rated current: 18 A | Motor at 400V: 7.5 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCe-034-V4-C1 Protection: Without motor protection | Rated current: 34 A | Motor at 400V: 15 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-034-V4-C2 Protection: Without motor protection | Rated current: 34 A | Motor at 400V: 15 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-034-V6-C1 Protection: Without motor protection | Rated current: 34 A | Motor at 400V: 15 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-034-V6-C2 Protection: Without motor protection | Rated current: 34 A | Motor at 400V: 15 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCe-042-V4-C1 Protection: Without motor protection | Rated current: 42 A | Motor at 400V: 18 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-042-V4-C2 Protection: Without motor protection | Rated current: 42 A | Motor at 400V: 18 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-042-V6-C1 Protection: Without motor protection | Rated current: 42 A | Motor at 400V: 18 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-042-V6-C2 Protection: Without motor protection | Rated current: 42 A | Motor at 400V: 18 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCe-048-V4-C1 Protection: Without motor protection | Rated current: 48 A | Motor at 400V: 22 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-048-V4-C2 Protection: Without motor protection | Rated current: 48 A | Motor at 400V: 22 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-048-V6-C1 Protection: Without motor protection | Rated current: 48 A | Motor at 400V: 22 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-048-V6-C2 Protection: Without motor protection | Rated current: 48 A | Motor at 400V: 22 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCe-060-V4-C1 Protection: Without motor protection | Rated current: 60 A | Motor at 400V: 30 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-060-V4-C2 Protection: Without motor protection | Rated current: 60 A | Motor at 400V: 30 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-060-V6-C1 Protection: Without motor protection | Rated current: 60 A | Motor at 400V: 30 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-060-V6-C2 Protection: Without motor protection | Rated current: 60 A | Motor at 400V: 30 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCe-075-V4-C1 Protection: Without motor protection | Rated current: 75 A | Motor at 400V: 37 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-075-V4-C2 Protection: Without motor protection | Rated current: 75 A | Motor at 400V: 37 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-075-V6-C1 Protection: Without motor protection | Rated current: 75 A | Motor at 400V: 37 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-075-V6-C2 Protection: Without motor protection | Rated current: 75 A | Motor at 400V: 37 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCe-085-V4-C1 Protection: Without motor protection | Rated current: 85 A | Motor at 400V: 45 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-085-V4-C2 Protection: Without motor protection | Rated current: 85 A | Motor at 400V: 45 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-085-V6-C1 Protection: Without motor protection | Rated current: 85 A | Motor at 400V: 45 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-085-V6-C2 Protection: Without motor protection | Rated current: 85 A | Motor at 400V: 45 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCe-100-V4-C1 Protection: Without motor protection | Rated current: 100 A | Motor at 400V: 55 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-100-V4-C2 Protection: Without motor protection | Rated current: 100 A | Motor at 400V: 55 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-100-V6-C1 Protection: Without motor protection | Rated current: 100 A | Motor at 400V: 55 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-100-V6-C2 Protection: Without motor protection | Rated current: 100 A | Motor at 400V: 55 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCe-140-V4-C1 Protection: Without motor protection | Rated current: 140 A | Motor at 400V: 75 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-140-V4-C2 Protection: Without motor protection | Rated current: 140 A | Motor at 400V: 75 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-140-V6-C1 Protection: Without motor protection | Rated current: 140 A | Motor at 400V: 75 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-140-V6-C2 Protection: Without motor protection | Rated current: 140 A | Motor at 400V: 75 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCe-170-V4-C1 Protection: Without motor protection | Rated current: 170 A | Motor at 400V: 90 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-170-V4-C2 Protection: Without motor protection | Rated current: 170 A | Motor at 400V: 90 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-170-V6-C1 Protection: Without motor protection | Rated current: 170 A | Motor at 400V: 90 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-170-V6-C2 Protection: Without motor protection | Rated current: 170 A | Motor at 400V: 90 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCe-200-V4-C1 Protection: Without motor protection | Rated current: 200 A | Motor at 400V: 110 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-200-V4-C2 Protection: Without motor protection | Rated current: 200 A | Motor at 400V: 110 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCe-200-V6-C1 Protection: Without motor protection | Rated current: 200 A | Motor at 400V: 110 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCe-200-V6-C2 Protection: Without motor protection | Rated current: 200 A | Motor at 400V: 110 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-018-V4-C1 Protection: With motor protection | Rated current: 18 A | Motor at 400V: 7.5 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-018-V4-C2 Protection: With motor protection | Rated current: 18 A | Motor at 400V: 7.5 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-018-V6-C1 Protection: With motor protection | Rated current: 18 A | Motor at 400V: 7.5 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-018-V6-C2 Protection: With motor protection | Rated current: 18 A | Motor at 400V: 7.5 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-034-V4-C1 Protection: With motor protection | Rated current: 34 A | Motor at 400V: 15 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-034-V4-C2 Protection: With motor protection | Rated current: 34 A | Motor at 400V: 15 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-034-V6-C1 Protection: With motor protection | Rated current: 34 A | Motor at 400V: 15 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-034-V6-C2 Protection: With motor protection | Rated current: 34 A | Motor at 400V: 15 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-042-V4-C1 Protection: With motor protection | Rated current: 42 A | Motor at 400V: 18 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-042-V4-C2 Protection: With motor protection | Rated current: 42 A | Motor at 400V: 18 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-042-V6-C1 Protection: With motor protection | Rated current: 42 A | Motor at 400V: 18 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-042-V6-C2 Protection: With motor protection | Rated current: 42 A | Motor at 400V: 18 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-048-V4-C1 Protection: With motor protection | Rated current: 48 A | Motor at 400V: 22 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-048-V4-C2 Protection: With motor protection | Rated current: 48 A | Motor at 400V: 22 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-048-V6-C1 Protection: With motor protection | Rated current: 48 A | Motor at 400V: 22 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-048-V6-C2 Protection: With motor protection | Rated current: 48 A | Motor at 400V: 22 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-060-V4-C1 Protection: With motor protection | Rated current: 60 A | Motor at 400V: 30 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-060-V4-C2 Protection: With motor protection | Rated current: 60 A | Motor at 400V: 30 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-060-V6-C1 Protection: With motor protection | Rated current: 60 A | Motor at 400V: 30 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-060-V6-C2 Protection: With motor protection | Rated current: 60 A | Motor at 400V: 30 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-075-V4-C1 Protection: With motor protection | Rated current: 75 A | Motor at 400V: 37 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-075-V4-C2 Protection: With motor protection | Rated current: 75 A | Motor at 400V: 37 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-075-V6-C1 Protection: With motor protection | Rated current: 75 A | Motor at 400V: 37 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-075-V6-C2 Protection: With motor protection | Rated current: 75 A | Motor at 400V: 37 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-085-V4-C1 Protection: With motor protection | Rated current: 85 A | Motor at 400V: 45 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-085-V4-C2 Protection: With motor protection | Rated current: 85 A | Motor at 400V: 45 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-085-V6-C1 Protection: With motor protection | Rated current: 85 A | Motor at 400V: 45 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-085-V6-C2 Protection: With motor protection | Rated current: 85 A | Motor at 400V: 45 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-100-V4-C1 Protection: With motor protection | Rated current: 100 A | Motor at 400V: 55 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-100-V4-C2 Protection: With motor protection | Rated current: 100 A | Motor at 400V: 55 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-100-V6-C1 Protection: With motor protection | Rated current: 100 A | Motor at 400V: 55 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-100-V6-C2 Protection: With motor protection | Rated current: 100 A | Motor at 400V: 55 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-140-V4-C1 Protection: With motor protection | Rated current: 140 A | Motor at 400V: 75 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-140-V4-C2 Protection: With motor protection | Rated current: 140 A | Motor at 400V: 75 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-140-V6-C1 Protection: With motor protection | Rated current: 140 A | Motor at 400V: 75 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-140-V6-C2 Protection: With motor protection | Rated current: 140 A | Motor at 400V: 75 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-170-V4-C1 Protection: With motor protection | Rated current: 170 A | Motor at 400V: 90 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-170-V4-C2 Protection: With motor protection | Rated current: 170 A | Motor at 400V: 90 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-170-V6-C1 Protection: With motor protection | Rated current: 170 A | Motor at 400V: 90 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-170-V6-C2 Protection: With motor protection | Rated current: 170 A | Motor at 400V: 90 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
SSCi-200-V4-C1 Protection: With motor protection | Rated current: 200 A | Motor at 400V: 110 kW | Main voltage: 200-440 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-200-V4-C2 Protection: With motor protection | Rated current: 200 A | Motor at 400V: 110 kW | Main voltage: 200-440 VAC | Control voltage: 24 VAC/VDC
SSCi-200-V6-C1 Protection: With motor protection | Rated current: 200 A | Motor at 400V: 110 kW | Main voltage: 200-575 VAC | Control voltage: 110-240 / 380-440 VAC
SSCi-200-V6-C2 Protection: With motor protection | Rated current: 200 A | Motor at 400V: 110 kW | Main voltage: 200-575 VAC | Control voltage: 24 VAC/VDC
