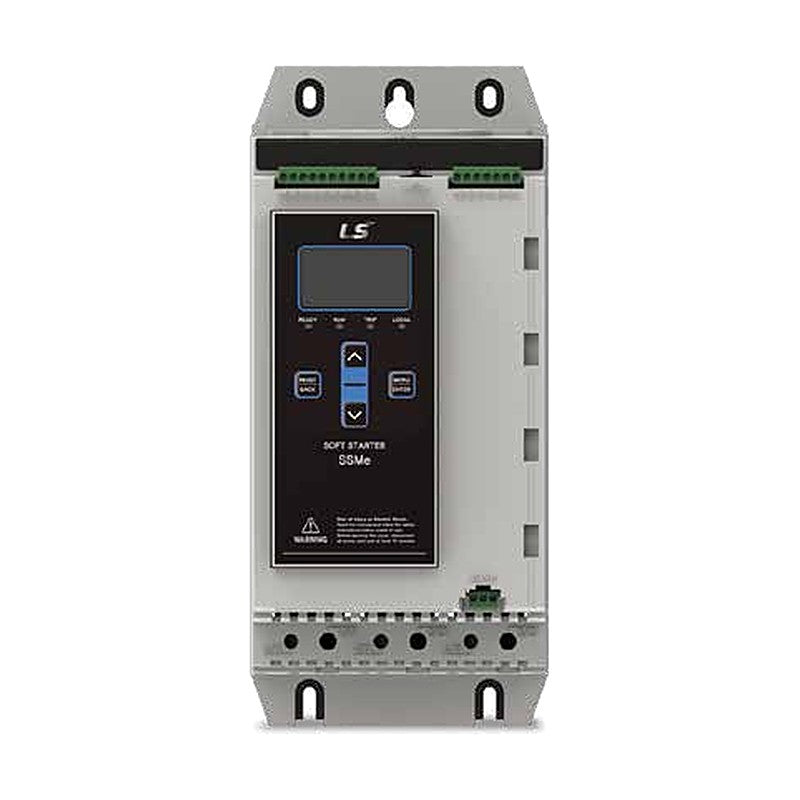

LS Electric SSM Standard Soft Starter (24-1250 A, Built-in Bypass)

LS Electric SSM Standard Soft Starter (24-1250 A, Built-in Bypass)

LS Electric SSM series standard soft starters with built-in bypass, graphic display and smart-card fieldbus options for motors from 24 A to 1250 A at up to 690 VAC.

Key features

  • SSMe (24-580 A, up to 525 VAC) with standard motor protection; SSMi (24-1250 A, up to 690 VAC) with complete motor protection
  • Built-in bypass circuit; 99.5% or higher efficiency in bypassed run
  • Graphic display with quick application setup and eight menu languages
  • Smart cards for Modbus RTU, Profibus, DeviceNet, Modbus TCP, Profinet and EtherNet/IP
  • Constant-current and current-ramp starting, auto timers, simulation mode, emergency run
  • Main contactor, two relay outputs and a 4-20 mA analog output

Specifications

Series SSM standard soft starter
Bypass Built-in (B)
Main frequency 50-60 Hz (+/-5 Hz)
Rated insulation voltage 600 VAC
Rated impulse withstand 6 kV
Form designation Bypassed or continuous semiconductor motor starter, form 1
Short-circuit coordination Type 2 (semiconductor fuses), Type 1 (HRC fuses)
Protection degree IP20 (0024B-0135B), IP00 (0184B-1250B)
Operating temperature -10 to 60 C (derate above 40 C)
Source LS Electric Soft Starter Catalog KR 2023.05, p. 10-15, 17, 19
SSMe-0024B-V5-C1 Protection: Standard motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0024B-V5-C2 Protection: Standard motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0042B-V5-C1 Protection: Standard motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0042B-V5-C2 Protection: Standard motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0052B-V5-C1 Protection: Standard motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0052B-V5-C2 Protection: Standard motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0064B-V5-C1 Protection: Standard motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0064B-V5-C2 Protection: Standard motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0069B-V5-C1 Protection: Standard motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0069B-V5-C2 Protection: Standard motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0105B-V5-C1 Protection: Standard motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0105B-V5-C2 Protection: Standard motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0115B-V5-C1 Protection: Standard motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0115B-V5-C2 Protection: Standard motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0135B-V5-C1 Protection: Standard motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0135B-V5-C2 Protection: Standard motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0184B-V5-C1 Protection: Standard motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0184B-V5-C2 Protection: Standard motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0200B-V5-C1 Protection: Standard motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0200B-V5-C2 Protection: Standard motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0229B-V5-C1 Protection: Standard motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0229B-V5-C2 Protection: Standard motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0250B-V5-C1 Protection: Standard motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0250B-V5-C2 Protection: Standard motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0352B-V5-C1 Protection: Standard motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0352B-V5-C2 Protection: Standard motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0397B-V5-C1 Protection: Standard motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0397B-V5-C2 Protection: Standard motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0410B-V5-C1 Protection: Standard motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0410B-V5-C2 Protection: Standard motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0550B-V5-C1 Protection: Standard motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0550B-V5-C2 Protection: Standard motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0580B-V5-C1 Protection: Standard motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0580B-V5-C2 Protection: Standard motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0024B-V5-C1 Protection: Complete motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0024B-V5-C2 Protection: Complete motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0024B-V7-C1 Protection: Complete motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0024B-V7-C2 Protection: Complete motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0042B-V5-C1 Protection: Complete motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0042B-V5-C2 Protection: Complete motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0042B-V7-C1 Protection: Complete motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0042B-V7-C2 Protection: Complete motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0052B-V5-C1 Protection: Complete motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0052B-V5-C2 Protection: Complete motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0052B-V7-C1 Protection: Complete motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0052B-V7-C2 Protection: Complete motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0064B-V5-C1 Protection: Complete motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0064B-V5-C2 Protection: Complete motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0064B-V7-C1 Protection: Complete motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0064B-V7-C2 Protection: Complete motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0069B-V5-C1 Protection: Complete motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0069B-V5-C2 Protection: Complete motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0069B-V7-C1 Protection: Complete motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0069B-V7-C2 Protection: Complete motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0105B-V5-C1 Protection: Complete motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0105B-V5-C2 Protection: Complete motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0105B-V7-C1 Protection: Complete motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0105B-V7-C2 Protection: Complete motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0115B-V5-C1 Protection: Complete motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0115B-V5-C2 Protection: Complete motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0115B-V7-C1 Protection: Complete motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0115B-V7-C2 Protection: Complete motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0135B-V5-C1 Protection: Complete motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0135B-V5-C2 Protection: Complete motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0135B-V7-C1 Protection: Complete motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0135B-V7-C2 Protection: Complete motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0184B-V5-C1 Protection: Complete motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0184B-V5-C2 Protection: Complete motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0184B-V7-C1 Protection: Complete motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0184B-V7-C2 Protection: Complete motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0200B-V5-C1 Protection: Complete motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0200B-V5-C2 Protection: Complete motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0200B-V7-C1 Protection: Complete motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0200B-V7-C2 Protection: Complete motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0229B-V5-C1 Protection: Complete motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0229B-V5-C2 Protection: Complete motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0229B-V7-C1 Protection: Complete motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0229B-V7-C2 Protection: Complete motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0250B-V5-C1 Protection: Complete motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0250B-V5-C2 Protection: Complete motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0250B-V7-C1 Protection: Complete motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0250B-V7-C2 Protection: Complete motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0352B-V5-C1 Protection: Complete motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0352B-V5-C2 Protection: Complete motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0352B-V7-C1 Protection: Complete motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0352B-V7-C2 Protection: Complete motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0397B-V5-C1 Protection: Complete motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0397B-V5-C2 Protection: Complete motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0397B-V7-C1 Protection: Complete motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0397B-V7-C2 Protection: Complete motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0410B-V5-C1 Protection: Complete motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0410B-V5-C2 Protection: Complete motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0410B-V7-C1 Protection: Complete motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0410B-V7-C2 Protection: Complete motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0550B-V5-C1 Protection: Complete motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0550B-V5-C2 Protection: Complete motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0550B-V7-C1 Protection: Complete motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0550B-V7-C2 Protection: Complete motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0580B-V5-C1 Protection: Complete motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0580B-V5-C2 Protection: Complete motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0580B-V7-C1 Protection: Complete motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0580B-V7-C2 Protection: Complete motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0835B-V5-C1 Protection: Complete motor protection | Rated current: 835 A | Motor at 400V: 355 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0835B-V5-C2 Protection: Complete motor protection | Rated current: 835 A | Motor at 400V: 355 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0835B-V7-C1 Protection: Complete motor protection | Rated current: 835 A | Motor at 400V: 355 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0835B-V7-C2 Protection: Complete motor protection | Rated current: 835 A | Motor at 400V: 355 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0940B-V5-C1 Protection: Complete motor protection | Rated current: 940 A | Motor at 400V: 400 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0940B-V5-C2 Protection: Complete motor protection | Rated current: 940 A | Motor at 400V: 400 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0940B-V7-C1 Protection: Complete motor protection | Rated current: 940 A | Motor at 400V: 400 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0940B-V7-C2 Protection: Complete motor protection | Rated current: 940 A | Motor at 400V: 400 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-1070B-V5-C1 Protection: Complete motor protection | Rated current: 1070 A | Motor at 400V: 500 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1070B-V5-C2 Protection: Complete motor protection | Rated current: 1070 A | Motor at 400V: 500 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-1070B-V7-C1 Protection: Complete motor protection | Rated current: 1070 A | Motor at 400V: 500 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1070B-V7-C2 Protection: Complete motor protection | Rated current: 1070 A | Motor at 400V: 500 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-1230B-V5-C1 Protection: Complete motor protection | Rated current: 1230 A | Motor at 400V: 600 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1230B-V5-C2 Protection: Complete motor protection | Rated current: 1230 A | Motor at 400V: 600 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-1230B-V7-C1 Protection: Complete motor protection | Rated current: 1230 A | Motor at 400V: 600 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1230B-V7-C2 Protection: Complete motor protection | Rated current: 1230 A | Motor at 400V: 600 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-1250B-V5-C1 Protection: Complete motor protection | Rated current: 1250 A | Motor at 400V: 700 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1250B-V5-C2 Protection: Complete motor protection | Rated current: 1250 A | Motor at 400V: 700 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-1250B-V7-C1 Protection: Complete motor protection | Rated current: 1250 A | Motor at 400V: 700 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1250B-V7-C2 Protection: Complete motor protection | Rated current: 1250 A | Motor at 400V: 700 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
Soft StartersLS Electric
122 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric SSM Standard Soft Starter (24-1250 A, Built-in Bypass)

Brand LS Electric·Soft Starters

Available part numbers (122)

SSMe-0024B-V5-C1, SSMe-0024B-V5-C2, SSMe-0042B-V5-C1, SSMe-0042B-V5-C2, SSMe-0052B-V5-C1, SSMe-0052B-V5-C2, SSMe-0064B-V5-C1, SSMe-0064B-V5-C2, SSMe-0069B-V5-C1, SSMe-0069B-V5-C2 + 112 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SSMe-0024B-V5-C1Protection: Standard motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0024B-V5-C2Protection: Standard motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0042B-V5-C1Protection: Standard motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0042B-V5-C2Protection: Standard motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0052B-V5-C1Protection: Standard motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0052B-V5-C2Protection: Standard motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0064B-V5-C1Protection: Standard motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0064B-V5-C2Protection: Standard motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0069B-V5-C1Protection: Standard motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0069B-V5-C2Protection: Standard motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0105B-V5-C1Protection: Standard motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0105B-V5-C2Protection: Standard motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0115B-V5-C1Protection: Standard motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0115B-V5-C2Protection: Standard motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0135B-V5-C1Protection: Standard motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0135B-V5-C2Protection: Standard motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0184B-V5-C1Protection: Standard motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0184B-V5-C2Protection: Standard motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0200B-V5-C1Protection: Standard motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0200B-V5-C2Protection: Standard motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0229B-V5-C1Protection: Standard motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0229B-V5-C2Protection: Standard motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0250B-V5-C1Protection: Standard motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0250B-V5-C2Protection: Standard motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0352B-V5-C1Protection: Standard motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0352B-V5-C2Protection: Standard motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0397B-V5-C1Protection: Standard motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0397B-V5-C2Protection: Standard motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0410B-V5-C1Protection: Standard motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0410B-V5-C2Protection: Standard motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0550B-V5-C1Protection: Standard motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0550B-V5-C2Protection: Standard motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMe-0580B-V5-C1Protection: Standard motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMe-0580B-V5-C2Protection: Standard motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0024B-V5-C1Protection: Complete motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0024B-V5-C2Protection: Complete motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0024B-V7-C1Protection: Complete motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0024B-V7-C2Protection: Complete motor protection | Rated current: 24 A | Motor at 400V: 11 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0042B-V5-C1Protection: Complete motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0042B-V5-C2Protection: Complete motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0042B-V7-C1Protection: Complete motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0042B-V7-C2Protection: Complete motor protection | Rated current: 42 A | Motor at 400V: 18.5 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0052B-V5-C1Protection: Complete motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0052B-V5-C2Protection: Complete motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0052B-V7-C1Protection: Complete motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0052B-V7-C2Protection: Complete motor protection | Rated current: 52 A | Motor at 400V: 22 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0064B-V5-C1Protection: Complete motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0064B-V5-C2Protection: Complete motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0064B-V7-C1Protection: Complete motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0064B-V7-C2Protection: Complete motor protection | Rated current: 64 A | Motor at 400V: 30 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0069B-V5-C1Protection: Complete motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0069B-V5-C2Protection: Complete motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0069B-V7-C1Protection: Complete motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0069B-V7-C2Protection: Complete motor protection | Rated current: 69 A | Motor at 400V: 37 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0105B-V5-C1Protection: Complete motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0105B-V5-C2Protection: Complete motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0105B-V7-C1Protection: Complete motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0105B-V7-C2Protection: Complete motor protection | Rated current: 105 A | Motor at 400V: 45 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0115B-V5-C1Protection: Complete motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0115B-V5-C2Protection: Complete motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0115B-V7-C1Protection: Complete motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0115B-V7-C2Protection: Complete motor protection | Rated current: 115 A | Motor at 400V: 55 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0135B-V5-C1Protection: Complete motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0135B-V5-C2Protection: Complete motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0135B-V7-C1Protection: Complete motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0135B-V7-C2Protection: Complete motor protection | Rated current: 135 A | Motor at 400V: 60 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0184B-V5-C1Protection: Complete motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0184B-V5-C2Protection: Complete motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0184B-V7-C1Protection: Complete motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0184B-V7-C2Protection: Complete motor protection | Rated current: 184 A | Motor at 400V: 75 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0200B-V5-C1Protection: Complete motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0200B-V5-C2Protection: Complete motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0200B-V7-C1Protection: Complete motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0200B-V7-C2Protection: Complete motor protection | Rated current: 200 A | Motor at 400V: 90 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0229B-V5-C1Protection: Complete motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0229B-V5-C2Protection: Complete motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0229B-V7-C1Protection: Complete motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0229B-V7-C2Protection: Complete motor protection | Rated current: 229 A | Motor at 400V: 110 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0250B-V5-C1Protection: Complete motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0250B-V5-C2Protection: Complete motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0250B-V7-C1Protection: Complete motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0250B-V7-C2Protection: Complete motor protection | Rated current: 250 A | Motor at 400V: 132 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0352B-V5-C1Protection: Complete motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0352B-V5-C2Protection: Complete motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0352B-V7-C1Protection: Complete motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0352B-V7-C2Protection: Complete motor protection | Rated current: 352 A | Motor at 400V: 160 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0397B-V5-C1Protection: Complete motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0397B-V5-C2Protection: Complete motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0397B-V7-C1Protection: Complete motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0397B-V7-C2Protection: Complete motor protection | Rated current: 397 A | Motor at 400V: 185 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0410B-V5-C1Protection: Complete motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0410B-V5-C2Protection: Complete motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0410B-V7-C1Protection: Complete motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0410B-V7-C2Protection: Complete motor protection | Rated current: 410 A | Motor at 400V: 220 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0550B-V5-C1Protection: Complete motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0550B-V5-C2Protection: Complete motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0550B-V7-C1Protection: Complete motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0550B-V7-C2Protection: Complete motor protection | Rated current: 550 A | Motor at 400V: 300 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0580B-V5-C1Protection: Complete motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0580B-V5-C2Protection: Complete motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0580B-V7-C1Protection: Complete motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0580B-V7-C2Protection: Complete motor protection | Rated current: 580 A | Motor at 400V: 315 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0835B-V5-C1Protection: Complete motor protection | Rated current: 835 A | Motor at 400V: 355 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0835B-V5-C2Protection: Complete motor protection | Rated current: 835 A | Motor at 400V: 355 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0835B-V7-C1Protection: Complete motor protection | Rated current: 835 A | Motor at 400V: 355 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0835B-V7-C2Protection: Complete motor protection | Rated current: 835 A | Motor at 400V: 355 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-0940B-V5-C1Protection: Complete motor protection | Rated current: 940 A | Motor at 400V: 400 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0940B-V5-C2Protection: Complete motor protection | Rated current: 940 A | Motor at 400V: 400 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-0940B-V7-C1Protection: Complete motor protection | Rated current: 940 A | Motor at 400V: 400 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-0940B-V7-C2Protection: Complete motor protection | Rated current: 940 A | Motor at 400V: 400 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-1070B-V5-C1Protection: Complete motor protection | Rated current: 1070 A | Motor at 400V: 500 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1070B-V5-C2Protection: Complete motor protection | Rated current: 1070 A | Motor at 400V: 500 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-1070B-V7-C1Protection: Complete motor protection | Rated current: 1070 A | Motor at 400V: 500 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1070B-V7-C2Protection: Complete motor protection | Rated current: 1070 A | Motor at 400V: 500 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-1230B-V5-C1Protection: Complete motor protection | Rated current: 1230 A | Motor at 400V: 600 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1230B-V5-C2Protection: Complete motor protection | Rated current: 1230 A | Motor at 400V: 600 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-1230B-V7-C1Protection: Complete motor protection | Rated current: 1230 A | Motor at 400V: 600 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1230B-V7-C2Protection: Complete motor protection | Rated current: 1230 A | Motor at 400V: 600 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC
SSMi-1250B-V5-C1Protection: Complete motor protection | Rated current: 1250 A | Motor at 400V: 700 kW | Main voltage: 200-525 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1250B-V5-C2Protection: Complete motor protection | Rated current: 1250 A | Motor at 400V: 700 kW | Main voltage: 200-525 VAC | Control voltage: 24 VAC/VDC
SSMi-1250B-V7-C1Protection: Complete motor protection | Rated current: 1250 A | Motor at 400V: 700 kW | Main voltage: 380-690 VAC | Control voltage: 110-120 or 220-240 VAC
SSMi-1250B-V7-C2Protection: Complete motor protection | Rated current: 1250 A | Motor at 400V: 700 kW | Main voltage: 380-690 VAC | Control voltage: 24 VAC/VDC

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Inverters & Drives →
