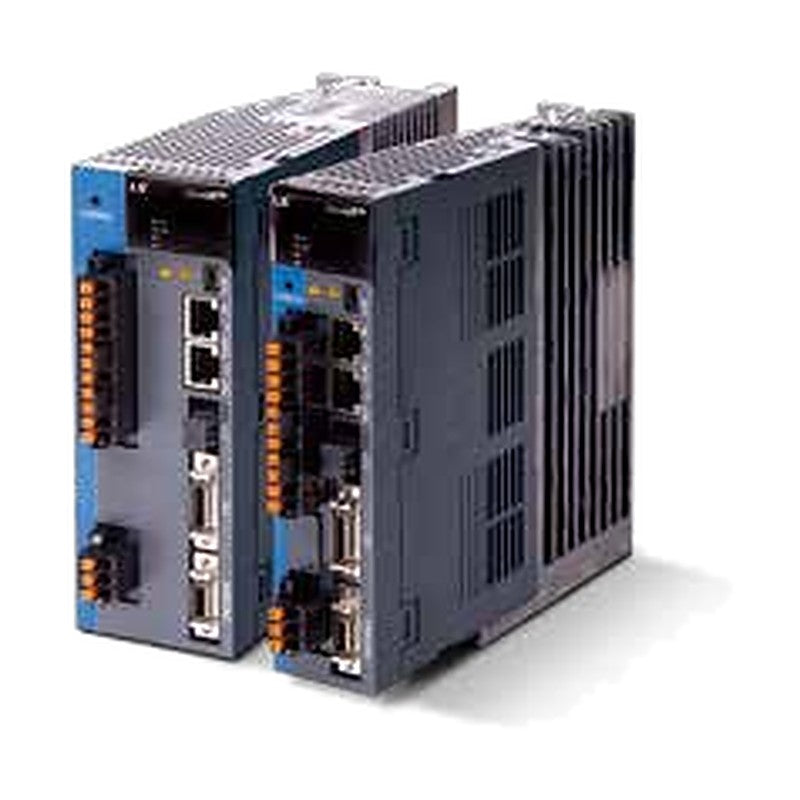

LS Electric X-Trak L7MMT EtherCAT Servo Drives (200V, 0.1-15 kW)

LS Electric X-Trak L7MMT EtherCAT Servo Drives (200V, 0.1-15 kW)

LS Electric L7MMT EtherCAT servo drives dedicated to the X-Trak moving-magnet transport system, 200 V class, 0.1 to 15 kW.

Key features

  • Drives LSMMT moving-magnet modules on X-Trak tracks
  • EtherCAT FoE / EoE / CoE with distributed clock synchronisation, minimum DC cycle 250 us
  • Profile position, velocity and torque modes plus cyclic synchronous position mode
  • 8 digital inputs, 4 digital outputs, 1 analog input and 2 analog outputs
  • STO safety (STO1, STO2 inputs, EDM output)

Specifications

Main power 3-phase AC 200-230 V, 50/60 Hz
Control power 1-phase AC 200-230 V, 50/60 Hz
Speed control range 1:5000
Network EtherCAT
I/O DI 8, DO 4, AI 1, AO 2
Safety STO
Source LS Electric X-Trak Solution catalog (2021.11), p. 6-7
L7MMT001U Capacity: 0.1 kW | Rated current: 1.4 A | Max current: 4.2 A
L7MMT002U Capacity: 0.2 kW | Rated current: 1.7 A | Max current: 5.1 A
L7MMT004U Capacity: 0.4 kW | Rated current: 3.0 A | Max current: 9.0 A
L7MMT008U Capacity: 0.75 kW | Rated current: 5.2 A | Max current: 15.6 A
L7MMT010U Capacity: 1.0 kW | Rated current: 6.75 A | Max current: 20.25 A
L7MMT020U Capacity: 2.0 kW | Rated current: 13.5 A | Max current: 40.5 A
L7MMT035U Capacity: 3.5 kW | Rated current: 16.7 A | Max current: 50.1 A
L7MMT050U Capacity: 5.0 kW | Rated current: 32.0 A | Max current: 90.9 A
L7MMT075U Capacity: 7.5 kW | Rated current: 39.4 A | Max current: 98.5 A
L7MMT150U Capacity: 15.0 kW | Rated current: 76.0 A | Max current: 190.0 A
Servo DrivesLS Electric
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric X-Trak L7MMT EtherCAT Servo Drives (200V, 0.1-15 kW)

Brand LS Electric·Servo Drives

Available part numbers (10)

L7MMT001U, L7MMT002U, L7MMT004U, L7MMT008U, L7MMT010U, L7MMT020U, L7MMT035U, L7MMT050U, L7MMT075U, L7MMT150U
