LS Electric EtherCAT Smart I/O (XEL-BSSCT Adapter, APS-EC Block)

LS Electric EtherCAT Smart I/O (XEL-BSSCT Adapter, APS-EC Block)

LS Electric EtherCAT smart I/O: the XEL-BSSCT expansion adapter that connects up to eight XGB I/O and special modules, and APS-EC compact block I/O with digital and analog points.

Key features

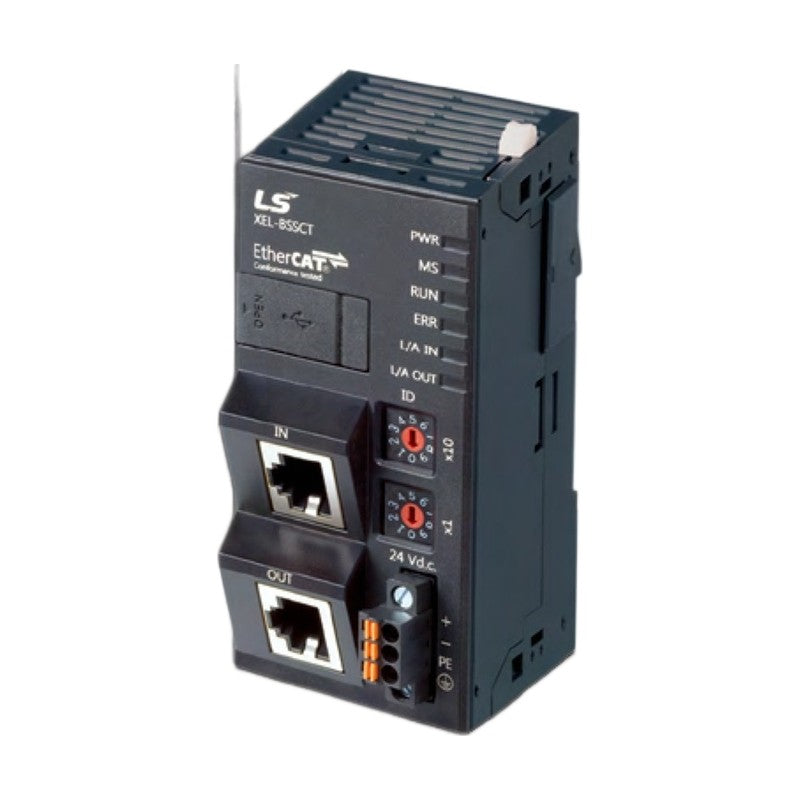

  • XEL-BSSCT: EtherCAT slave adapter for up to 8 expansion modules, 5 V 3.0 A internal supply
  • Supports 15 digital I/O modules (TR sink/source, relay) and 14 special modules (load cell, HSC, temperature, analog)
  • XEL-BSSCT PDO size up to 1,024 bytes in / 1,024 bytes out; node address by rotary switch, master or PADT
  • APS-EC block I/O: NPN/PNP inputs, per-point LED, 100 Mbps EtherCAT, 1 ms response
  • APS-EC analog ranges 0-5 V, 1-5 V, 0-10 V, -10 to +10 V, -5 to +5 V, 0-20 mA, 4-20 mA
  • Works with XMC and other EtherCAT masters

Specifications

Network EtherCAT, 100BASE-TX, 2 x RJ45
Cable Cat. 5 or better STP, max 100 m between nodes
Supply voltage DC 24 V (XEL-BSSCT DC 20.4-28.8 V)
XEL-BSSCT input current 1.3 A max
APS-EC rated current Input 5 mA, output 0.5 A/point, 3 A/COM
APS-EC common 16 points/COM
Programming port USB (XEL-BSSCT)
Source LS Electric Motion Controller & EtherCAT Smart I/O catalog (2019.04), p. 6, 10; X-Trak catalog (2021.11), p. 7
XEL-BSSCT Type: Expansion adapter | IO: Up to 8 XGB expansion modules
APS-EC-D232 Type: Block I/O, digital | IO: 16 inputs / 16 outputs
APS-EC-DT32K Type: Block I/O, digital | IO: 32 inputs
APS-EC-TR32K Type: Block I/O, digital | IO: 32 transistor outputs
APS-EC-AH1S Type: Block I/O, analog | IO: 4 ch voltage / 4 ch current
APS-EC-AH2S Type: Block I/O, analog | IO: 8 ch voltage
APS-EC-AH3S Type: Block I/O, analog | IO: 8 ch current
Remote I/O ModulesLS Electric
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric EtherCAT Smart I/O (XEL-BSSCT Adapter, APS-EC Block)

Brand LS Electric·Remote I/O Modules

Available part numbers (7)

XEL-BSSCT, APS-EC-D232, APS-EC-DT32K, APS-EC-TR32K, APS-EC-AH1S, APS-EC-AH2S, APS-EC-AH3S

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XEL-BSSCTType: Expansion adapter | IO: Up to 8 XGB expansion modules
APS-EC-D232Type: Block I/O, digital | IO: 16 inputs / 16 outputs
APS-EC-DT32KType: Block I/O, digital | IO: 32 inputs
APS-EC-TR32KType: Block I/O, digital | IO: 32 transistor outputs
APS-EC-AH1SType: Block I/O, analog | IO: 4 ch voltage / 4 ch current
APS-EC-AH2SType: Block I/O, analog | IO: 8 ch voltage
APS-EC-AH3SType: Block I/O, analog | IO: 8 ch current
