LS Electric XGB Loader and Smart Link Cables

LS Electric XGB Loader and Smart Link Cables

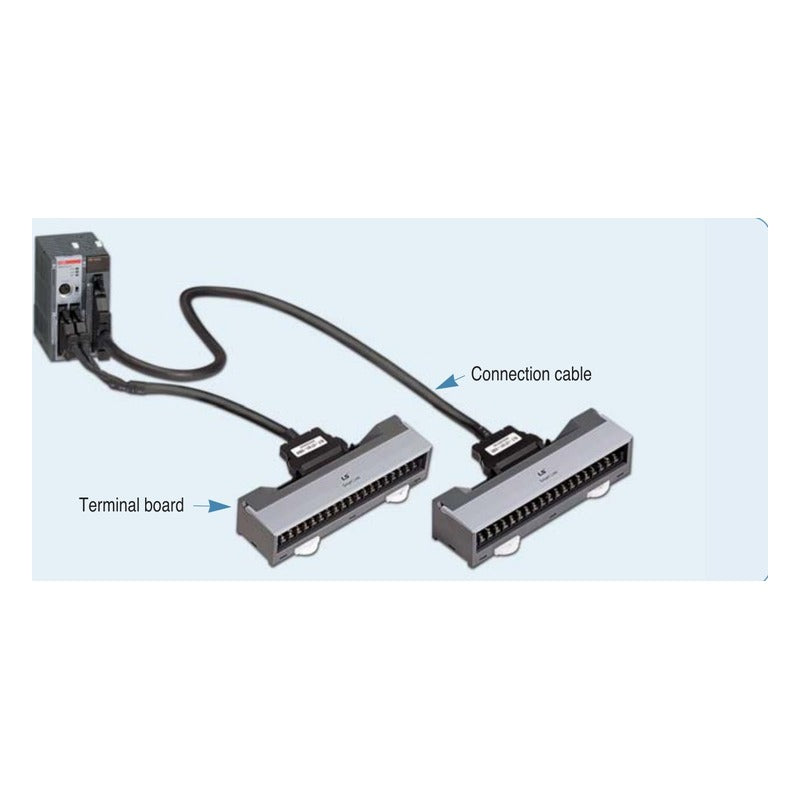

LS Electric XGB loader and Smart Link cables connect XGB main units to a PC for programming and link 40-pin connector I/O and special modules to Smart Link terminal blocks.

Key features

  • PMC-310S RS-232C loader cable from XGB 6-pin port to PC 9-pin D-sub
  • R40H/20HH-xxS-XBM3 Smart Link cables for XBM-DN16S/DN32S slim main units
  • C40HH-xxSB-XBI cables for XBF-PD02A/HO02A/HD02A, XBE-DC32A/TN32A/TP32A, XBM-DN32H and XBM/XEM HP/H2
  • C40HH-xxSB-XBE cables for XBE-TN32A and XBE-TP32A output modules
  • Smart Link cable lengths 0.5, 1, 1.5, 2 and 3 m

Specifications

Series XGB accessories
Loader port pinout XGB 6/2/3 to PC 2/3/5
Smart Link connector 40-pin
Also compatible XBB-UP (C40HH-xxSB-XBI)
Use Programming and I/O wiring
Source LS Electric XGB Series catalog (2024-07), p. 133, 135
PMC-310S Cable type: Loader cable | Connection: XGB 6-pin male to PC D-sub 9F | Compatible modules: XGB main unit RS-232C loader port | Length: -
R40H/20HH-05S-XBM3 Cable type: Smart Link cable | Connection: XBM Slim connector to terminal | Compatible modules: XBM-DN16S, XBM-DN32S | Length: 0.5 m
R40H/20HH-10S-XBM3 Cable type: Smart Link cable | Connection: XBM Slim connector to terminal | Compatible modules: XBM-DN16S, XBM-DN32S | Length: 1 m
C40HH-05SB-XBI Cable type: Smart Link cable | Connection: 40-pin connector to terminal | Compatible modules: XBF-PD02A/HO/HD, XBE-32A, XBM H/HP | Length: 0.5 m
C40HH-10SB-XBI Cable type: Smart Link cable | Connection: 40-pin connector to terminal | Compatible modules: XBF-PD02A/HO/HD, XBE-32A, XBM H/HP | Length: 1 m
C40HH-15SB-XBI Cable type: Smart Link cable | Connection: 40-pin connector to terminal | Compatible modules: XBF-PD02A/HO/HD, XBE-32A, XBM H/HP | Length: 1.5 m
C40HH-20SB-XBI Cable type: Smart Link cable | Connection: 40-pin connector to terminal | Compatible modules: XBF-PD02A/HO/HD, XBE-32A, XBM H/HP | Length: 2 m
C40HH-30SB-XBI Cable type: Smart Link cable | Connection: 40-pin connector to terminal | Compatible modules: XBF-PD02A/HO/HD, XBE-32A, XBM H/HP | Length: 3 m
C40HH-05SB-XBE Cable type: Smart Link cable | Connection: 40-pin connector to terminal | Compatible modules: XBE-TN32A, XBE-TP32A | Length: 0.5 m
C40HH-10SB-XBE Cable type: Smart Link cable | Connection: 40-pin connector to terminal | Compatible modules: XBE-TN32A, XBE-TP32A | Length: 1 m
C40HH-15SB-XBE Cable type: Smart Link cable | Connection: 40-pin connector to terminal | Compatible modules: XBE-TN32A, XBE-TP32A | Length: 1.5 m
C40HH-20SB-XBE Cable type: Smart Link cable | Connection: 40-pin connector to terminal | Compatible modules: XBE-TN32A, XBE-TP32A | Length: 2 m
C40HH-30SB-XBE Cable type: Smart Link cable | Connection: 40-pin connector to terminal | Compatible modules: XBE-TN32A, XBE-TP32A | Length: 3 m
