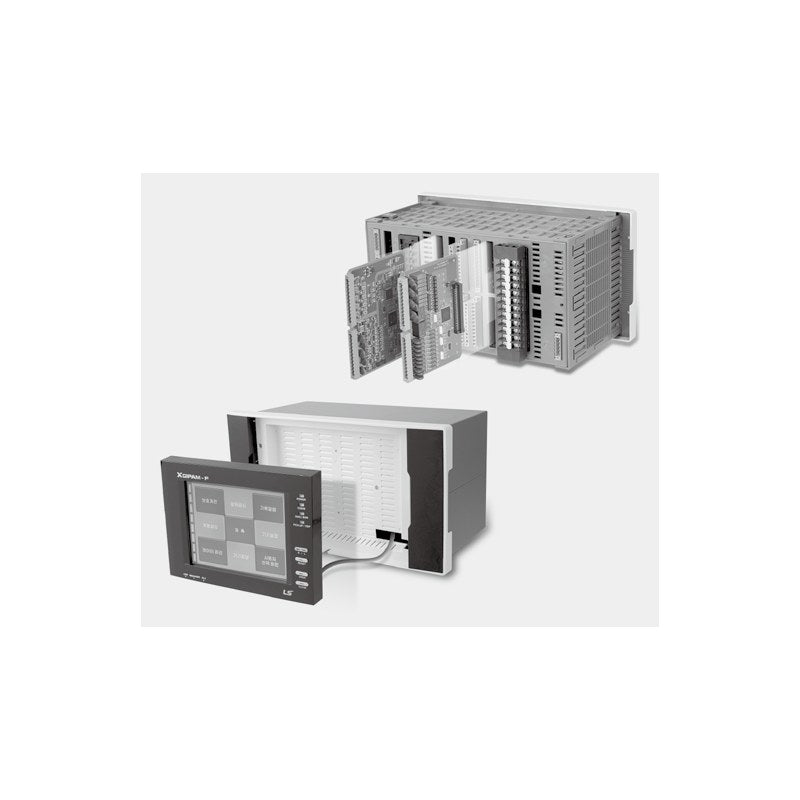

LS Electric XGIPAM Digital Protection & Measurement Device

LS Electric XGIPAM Digital Protection & Measurement Device

LS Electric XGIPAM next-generation modular digital protection and measurement device for feeder, bay, motor, transformer, 3-winding transformer and distributed generation applications.

Key features

  • Six application types: F, B (bay controller), M, T, DG and 3wT with type-specific protection elements incl. DFR (87T / 3W87T)
  • RS-485 (Modbus, DNP 3.0) or Ethernet TE/FE (Modbus, DNP 3.0, IEC 61850, each with RSTP option); IEC 61850 KEMA certified
  • Modular slots: optional AI/O modules (slots 2-3), additional DI/O modules (slots 5-6) and arc protection module (F/M, Modbus)
  • Integrated or separate HMI (separate HMI on 5 m cable); COMTRADE fault waveform recording
  • Codes listed in the base slot configuration; optional slot modules are specified at order (catalog token per slot)

Specifications

CT rating 5 A (ZCT 1.5 mA)
PT rating 100-120 V, 100/sqrt3-190/sqrt3 V selectable
Wiring 3P3W, 3P4W
Control power AC 110 V, DC 110-125 V
Digital input voltage AC/DC 110 V
Trip contacts AC 250 V 10 A / DC 30 V 10 A resistive
Operating temperature -10 to 55 C
Size (W x H x D) 360 x 190 x 207 mm (integrated HMI); 424 x 190 x 239 mm (separate)
Standards IEC 60255-22 series, IEC 60255-25, KEMC 1120, IEC 61850
Source LS Electric XGIPAM catalog C16091-03 (2024-12), p. 12-13, 36
XGIPAMFRSM--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMFRSM--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMFRSM--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFRSM--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFRSD--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMFRSD--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMFRSD--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFRSD--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFTEM--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMFTEM--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMFTEM--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFTEM--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFTED--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMFTED--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMFTED--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFTED--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFTEDR--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMFTEDR--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMFTEDR--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFTEDR--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFTEC--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMFTEC--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMFTEC--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFTEC--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFTECR--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMFTECR--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMFTECR--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFTECR--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFFEM--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMFFEM--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMFFEM--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFFEM--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFFED--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMFFED--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMFFED--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFFED--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFFEDR--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMFFEDR--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMFFEDR--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFFEDR--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFFEC--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMFFEC--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMFFEC--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFFEC--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFFECR--DI--TI-5A60Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMFFECR--DI--TI-5A50Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMFFECR--DI--TISE5A60Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFFECR--DI--TISE5A50Hz Protection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBRSM--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMBRSM--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMBRSM--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBRSM--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBRSD--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMBRSD--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMBRSD--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBRSD--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBTEM--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMBTEM--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMBTEM--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBTEM--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBTED--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMBTED--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMBTED--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBTED--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBTEDR--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMBTEDR--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMBTEDR--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBTEDR--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBTEC--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMBTEC--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMBTEC--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBTEC--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBTECR--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMBTECR--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMBTECR--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBTECR--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBFEM--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMBFEM--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMBFEM--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBFEM--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBFED--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMBFED--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMBFED--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBFED--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBFEDR--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMBFEDR--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMBFEDR--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBFEDR--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBFEC--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMBFEC--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMBFEC--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBFEC--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBFECR--DIDI-TI-5A60Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMBFECR--DIDI-TI-5A50Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMBFECR--DIDI-TISE5A60Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBFECR--DIDI-TISE5A50Hz Protection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMRSM--DI--TI-5A60Hz Protection type: M (motor) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMMRSM--DI--TI-5A50Hz Protection type: M (motor) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMMRSM--DI--TISE5A60Hz Protection type: M (motor) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMRSM--DI--TISE5A50Hz Protection type: M (motor) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMRSD--DI--TI-5A60Hz Protection type: M (motor) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMMRSD--DI--TI-5A50Hz Protection type: M (motor) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMMRSD--DI--TISE5A60Hz Protection type: M (motor) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMRSD--DI--TISE5A50Hz Protection type: M (motor) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMTEM--DI--TI-5A60Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMMTEM--DI--TI-5A50Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMMTEM--DI--TISE5A60Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMTEM--DI--TISE5A50Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMTED--DI--TI-5A60Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMMTED--DI--TI-5A50Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMMTED--DI--TISE5A60Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMTED--DI--TISE5A50Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMTEDR--DI--TI-5A60Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMMTEDR--DI--TI-5A50Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMMTEDR--DI--TISE5A60Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMTEDR--DI--TISE5A50Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMTEC--DI--TI-5A60Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMMTEC--DI--TI-5A50Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMMTEC--DI--TISE5A60Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMTEC--DI--TISE5A50Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMTECR--DI--TI-5A60Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMMTECR--DI--TI-5A50Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMMTECR--DI--TISE5A60Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMTECR--DI--TISE5A50Hz Protection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMFEM--DI--TI-5A60Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMMFEM--DI--TI-5A50Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMMFEM--DI--TISE5A60Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMFEM--DI--TISE5A50Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMFED--DI--TI-5A60Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMMFED--DI--TI-5A50Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMMFED--DI--TISE5A60Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMFED--DI--TISE5A50Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMFEDR--DI--TI-5A60Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMMFEDR--DI--TI-5A50Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMMFEDR--DI--TISE5A60Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMFEDR--DI--TISE5A50Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMFEC--DI--TI-5A60Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMMFEC--DI--TI-5A50Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMMFEC--DI--TISE5A60Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMFEC--DI--TISE5A50Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMFECR--DI--TI-5A60Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMMFECR--DI--TI-5A50Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMMFECR--DI--TISE5A60Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMFECR--DI--TISE5A50Hz Protection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTRSM--DI--TI-5A60Hz Protection type: T (transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMTRSM--DI--TI-5A50Hz Protection type: T (transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMTRSM--DI--TISE5A60Hz Protection type: T (transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTRSM--DI--TISE5A50Hz Protection type: T (transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTRSD--DI--TI-5A60Hz Protection type: T (transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMTRSD--DI--TI-5A50Hz Protection type: T (transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMTRSD--DI--TISE5A60Hz Protection type: T (transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTRSD--DI--TISE5A50Hz Protection type: T (transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTTEM--DI--TI-5A60Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMTTEM--DI--TI-5A50Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMTTEM--DI--TISE5A60Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTTEM--DI--TISE5A50Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTTED--DI--TI-5A60Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMTTED--DI--TI-5A50Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMTTED--DI--TISE5A60Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTTED--DI--TISE5A50Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTTEDR--DI--TI-5A60Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMTTEDR--DI--TI-5A50Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMTTEDR--DI--TISE5A60Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTTEDR--DI--TISE5A50Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTTEC--DI--TI-5A60Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMTTEC--DI--TI-5A50Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMTTEC--DI--TISE5A60Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTTEC--DI--TISE5A50Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTTECR--DI--TI-5A60Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMTTECR--DI--TI-5A50Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMTTECR--DI--TISE5A60Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTTECR--DI--TISE5A50Hz Protection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTFEM--DI--TI-5A60Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMTFEM--DI--TI-5A50Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMTFEM--DI--TISE5A60Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTFEM--DI--TISE5A50Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTFED--DI--TI-5A60Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMTFED--DI--TI-5A50Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMTFED--DI--TISE5A60Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTFED--DI--TISE5A50Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTFEDR--DI--TI-5A60Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMTFEDR--DI--TI-5A50Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMTFEDR--DI--TISE5A60Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTFEDR--DI--TISE5A50Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTFEC--DI--TI-5A60Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMTFEC--DI--TI-5A50Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMTFEC--DI--TISE5A60Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTFEC--DI--TISE5A50Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTFECR--DI--TI-5A60Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMTFECR--DI--TI-5A50Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMTFECR--DI--TISE5A60Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTFECR--DI--TISE5A50Hz Protection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGRSM--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGRSM--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGRSM--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGRSM--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGRSD--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGRSD--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGRSD--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGRSD--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGTEM--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGTEM--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGTEM--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGTEM--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGTED--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGTED--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGTED--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGTED--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGTEDR--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGTEDR--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGTEDR--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGTEDR--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGTEC--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGTEC--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGTEC--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGTEC--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGTECR--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGTECR--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGTECR--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGTECR--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGFEM--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGFEM--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGFEM--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGFEM--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGFED--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGFED--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGFED--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGFED--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGFEDR--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGFEDR--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGFEDR--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGFEDR--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGFEC--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGFEC--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGFEC--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGFEC--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGFECR--DIDI-TI-5A60Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGFECR--DIDI-TI-5A50Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGFECR--DIDI-TISE5A60Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGFECR--DIDI-TISE5A50Hz Protection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTRSM--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTRSM--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTRSM--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTRSM--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTRSD--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTRSD--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTRSD--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTRSD--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTTEM--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTTEM--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTTEM--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTTEM--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTTED--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTTED--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTTED--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTTED--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTTEDR--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTTEDR--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTTEDR--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTTEDR--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTTEC--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTTEC--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTTEC--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTTEC--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTTECR--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTTECR--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTTECR--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTTECR--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTFEM--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTFEM--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTFEM--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTFEM--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTFED--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTFED--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTFED--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTFED--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTFEDR--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTFEDR--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTFEDR--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTFEDR--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTFEC--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTFEC--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTFEC--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTFEC--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTFECR--DI-DI--5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTFECR--DI-DI--5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTFECR--DI-DI-SE5A60Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTFECR--DI-DI-SE5A50Hz Protection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
Protection RelaysLS Electric
288 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

LS Electric XGIPAM Digital Protection & Measurement Device

Brand LS Electric·Protection Relays

Available part numbers (288)

XGIPAMFRSM--DI--TI-5A60Hz, XGIPAMFRSM--DI--TI-5A50Hz, XGIPAMFRSM--DI--TISE5A60Hz, XGIPAMFRSM--DI--TISE5A50Hz, XGIPAMFRSD--DI--TI-5A60Hz, XGIPAMFRSD--DI--TI-5A50Hz, XGIPAMFRSD--DI--TISE5A60Hz, XGIPAMFRSD--DI--TISE5A50Hz, XGIPAMFTEM--DI--TI-5A60Hz, XGIPAMFTEM--DI--TI-5A50Hz + 278 more — see full table ↓

How to order

Send the LS Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
XGIPAMFRSM--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMFRSM--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMFRSM--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFRSM--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFRSD--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMFRSD--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMFRSD--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFRSD--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFTEM--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMFTEM--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMFTEM--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFTEM--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFTED--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMFTED--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMFTED--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFTED--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFTEDR--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMFTEDR--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMFTEDR--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFTEDR--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFTEC--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMFTEC--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMFTEC--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFTEC--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFTECR--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMFTECR--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMFTECR--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFTECR--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFFEM--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMFFEM--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMFFEM--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFFEM--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFFED--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMFFED--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMFFED--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFFED--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFFEDR--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMFFEDR--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMFFEDR--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFFEDR--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFFEC--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMFFEC--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMFFEC--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFFEC--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMFFECR--DI--TI-5A60HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMFFECR--DI--TI-5A50HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMFFECR--DI--TISE5A60HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMFFECR--DI--TISE5A50HzProtection type: F (feeder/incoming) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBRSM--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMBRSM--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMBRSM--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBRSM--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBRSD--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMBRSD--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMBRSD--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBRSD--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBTEM--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMBTEM--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMBTEM--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBTEM--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBTED--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMBTED--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMBTED--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBTED--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBTEDR--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMBTEDR--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMBTEDR--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBTEDR--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBTEC--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMBTEC--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMBTEC--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBTEC--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBTECR--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMBTECR--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMBTECR--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBTECR--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBFEM--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMBFEM--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMBFEM--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBFEM--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBFED--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMBFED--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMBFED--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBFED--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBFEDR--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMBFEDR--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMBFEDR--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBFEDR--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBFEC--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMBFEC--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMBFEC--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBFEC--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMBFECR--DIDI-TI-5A60HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMBFECR--DIDI-TI-5A50HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMBFECR--DIDI-TISE5A60HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMBFECR--DIDI-TISE5A50HzProtection type: B (bay controller) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMRSM--DI--TI-5A60HzProtection type: M (motor) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMMRSM--DI--TI-5A50HzProtection type: M (motor) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMMRSM--DI--TISE5A60HzProtection type: M (motor) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMRSM--DI--TISE5A50HzProtection type: M (motor) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMRSD--DI--TI-5A60HzProtection type: M (motor) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMMRSD--DI--TI-5A50HzProtection type: M (motor) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMMRSD--DI--TISE5A60HzProtection type: M (motor) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMRSD--DI--TISE5A50HzProtection type: M (motor) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMTEM--DI--TI-5A60HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMMTEM--DI--TI-5A50HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMMTEM--DI--TISE5A60HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMTEM--DI--TISE5A50HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMTED--DI--TI-5A60HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMMTED--DI--TI-5A50HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMMTED--DI--TISE5A60HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMTED--DI--TISE5A50HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMTEDR--DI--TI-5A60HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMMTEDR--DI--TI-5A50HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMMTEDR--DI--TISE5A60HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMTEDR--DI--TISE5A50HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMTEC--DI--TI-5A60HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMMTEC--DI--TI-5A50HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMMTEC--DI--TISE5A60HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMTEC--DI--TISE5A50HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMTECR--DI--TI-5A60HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMMTECR--DI--TI-5A50HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMMTECR--DI--TISE5A60HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMTECR--DI--TISE5A50HzProtection type: M (motor) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMFEM--DI--TI-5A60HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMMFEM--DI--TI-5A50HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMMFEM--DI--TISE5A60HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMFEM--DI--TISE5A50HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMFED--DI--TI-5A60HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMMFED--DI--TI-5A50HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMMFED--DI--TISE5A60HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMFED--DI--TISE5A50HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMFEDR--DI--TI-5A60HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMMFEDR--DI--TI-5A50HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMMFEDR--DI--TISE5A60HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMFEDR--DI--TISE5A50HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMFEC--DI--TI-5A60HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMMFEC--DI--TI-5A50HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMMFEC--DI--TISE5A60HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMFEC--DI--TISE5A50HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMMFECR--DI--TI-5A60HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMMFECR--DI--TI-5A50HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMMFECR--DI--TISE5A60HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMMFECR--DI--TISE5A50HzProtection type: M (motor) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTRSM--DI--TI-5A60HzProtection type: T (transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMTRSM--DI--TI-5A50HzProtection type: T (transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMTRSM--DI--TISE5A60HzProtection type: T (transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTRSM--DI--TISE5A50HzProtection type: T (transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTRSD--DI--TI-5A60HzProtection type: T (transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMTRSD--DI--TI-5A50HzProtection type: T (transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMTRSD--DI--TISE5A60HzProtection type: T (transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTRSD--DI--TISE5A50HzProtection type: T (transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTTEM--DI--TI-5A60HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMTTEM--DI--TI-5A50HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMTTEM--DI--TISE5A60HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTTEM--DI--TISE5A50HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTTED--DI--TI-5A60HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMTTED--DI--TI-5A50HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMTTED--DI--TISE5A60HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTTED--DI--TISE5A50HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTTEDR--DI--TI-5A60HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMTTEDR--DI--TI-5A50HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMTTEDR--DI--TISE5A60HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTTEDR--DI--TISE5A50HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTTEC--DI--TI-5A60HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMTTEC--DI--TI-5A50HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMTTEC--DI--TISE5A60HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTTEC--DI--TISE5A50HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTTECR--DI--TI-5A60HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMTTECR--DI--TI-5A50HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMTTECR--DI--TISE5A60HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTTECR--DI--TISE5A50HzProtection type: T (transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTFEM--DI--TI-5A60HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMTFEM--DI--TI-5A50HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMTFEM--DI--TISE5A60HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTFEM--DI--TISE5A50HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTFED--DI--TI-5A60HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMTFED--DI--TI-5A50HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMTFED--DI--TISE5A60HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTFED--DI--TISE5A50HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTFEDR--DI--TI-5A60HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMTFEDR--DI--TI-5A50HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMTFEDR--DI--TISE5A60HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTFEDR--DI--TISE5A50HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTFEC--DI--TI-5A60HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMTFEC--DI--TI-5A50HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMTFEC--DI--TISE5A60HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTFEC--DI--TISE5A50HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMTFECR--DI--TI-5A60HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMTFECR--DI--TI-5A50HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMTFECR--DI--TISE5A60HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMTFECR--DI--TISE5A50HzProtection type: T (transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGRSM--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGRSM--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGRSM--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGRSM--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGRSD--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGRSD--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGRSD--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGRSD--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGTEM--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGTEM--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGTEM--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGTEM--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGTED--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGTED--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGTED--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGTED--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGTEDR--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGTEDR--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGTEDR--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGTEDR--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGTEC--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGTEC--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGTEC--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGTEC--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGTECR--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGTECR--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGTECR--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGTECR--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGFEM--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGFEM--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGFEM--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGFEM--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGFED--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGFED--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGFED--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGFED--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGFEDR--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGFEDR--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGFEDR--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGFEDR--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGFEC--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGFEC--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGFEC--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGFEC--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAMDGFECR--DIDI-TI-5A60HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAMDGFECR--DIDI-TI-5A50HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAMDGFECR--DIDI-TISE5A60HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAMDGFECR--DIDI-TISE5A50HzProtection type: DG (distributed generation) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTRSM--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTRSM--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTRSM--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTRSM--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTRSD--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTRSD--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTRSD--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTRSD--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: RS-485 | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTTEM--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTTEM--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTTEM--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTTEM--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTTED--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTTED--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTTED--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTTED--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTTEDR--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTTEDR--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTTEDR--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTTEDR--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTTEC--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTTEC--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTTEC--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTTEC--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTTECR--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTTECR--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTTECR--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTTECR--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100/10BASE-T Ethernet | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTFEM--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTFEM--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTFEM--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTFEM--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: Modbus | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTFED--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTFED--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTFED--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTFED--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTFEDR--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTFEDR--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTFEDR--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTFEDR--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: DNP 3.0 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTFEC--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTFEC--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTFEC--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTFEC--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 | HMI: Separate (5 m cable) | Frequency: 50 Hz
XGIPAM3wTFECR--DI-DI--5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 60 Hz
XGIPAM3wTFECR--DI-DI--5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Integrated | Frequency: 50 Hz
XGIPAM3wTFECR--DI-DI-SE5A60HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 60 Hz
XGIPAM3wTFECR--DI-DI-SE5A50HzProtection type: 3wT (3-winding transformer) | Communication: 100BASE-FX Ethernet (fiber) | Protocol: IEC 61850 RSTP | HMI: Separate (5 m cable) | Frequency: 50 Hz

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Controllers & Meters →
